Key Specifications

Power & Electrical Performance

Power Source

AC: 230 V | DC: 24 V / 15 A

Rated Output

240 W

Output Voltage / Impedance

100 V / 42 Ω (Selectable via internal wiring)

Frequency Response / THD

50 Hz - 16 kHz | ≤ 1 % Distortion

Signal-to-Noise Ratio

≥ 60 dB

AC Power Consumption

Idle: 54 W | Normal: 255 W | Rated: 549 W

Audio Inputs & Controls

Inputs 1 - 3

-60 dB (MIC) / -10 dB (LINE) | 600 Ω | XLR/Phone

BGM 1 - 2 / Power Amp In

-20 dB / 0 dB

Telephone Paging

-10 dB | Balanced Push-in Terminal

Tone Control

Bass: 100 Hz ±10 dB (Individually Adjustable)

Chime Tones

2-tone / 4-tone (Up/Down) / Single / Gong / Off

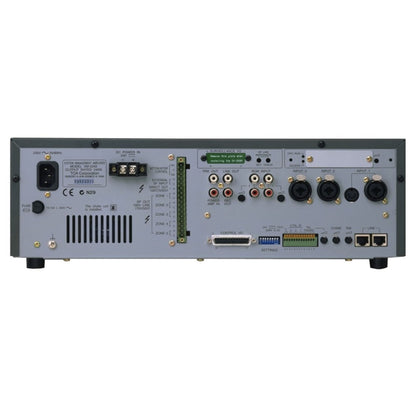

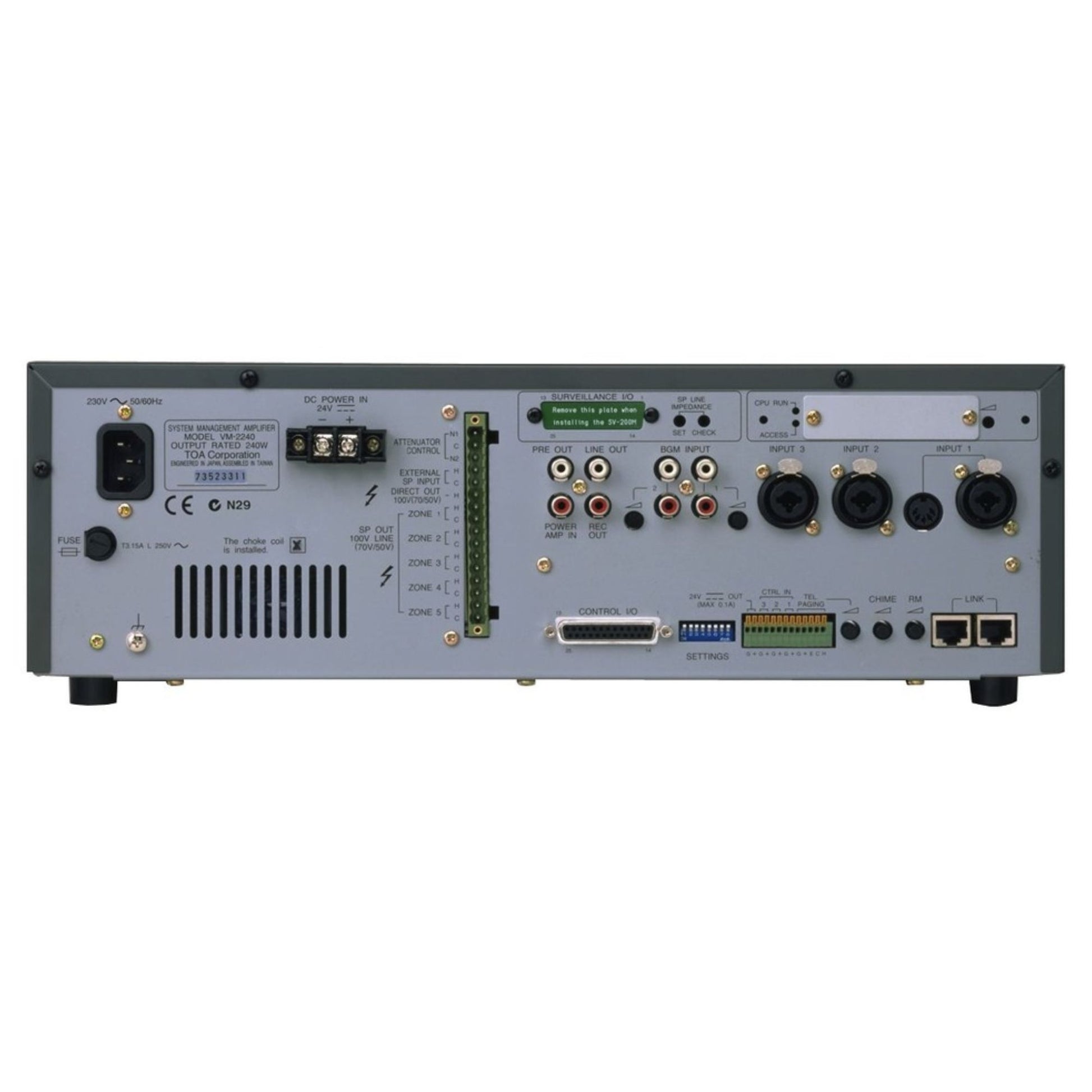

Outputs & Connectivity

Speaker Output

5-Zone Selector with Attenuator (Screw Connector)

Direct Output

Direct from Transformer (Attenuator Bypassed)

Line / Pre-Amp / Rec Out

0 dB

Remote Mic Connection

2x RJ45 (Up to 4x RM-200M | Max 800 m)

System Logic & Monitoring

External Control I/O

D-sub 25-pin (Activation/Emergency/Stop/Cutoff)

Surveillance I/O

D-sub 25-pin (Failure Detection/Fault Indication)

Functions

Emergency Broadcast, Priority Control, Unit Stacking

Physical Specifications

Dimensions (W x H x D)

419 × 143.3 × 355.7 mm (16.5 × 5.64 × 14")

Weight / Finish

14.5 kg (31.97 lb) | ABS Resin Panel, Steel Case
