VM0404

PRICE FOR INQUIRY

Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
Long distance transmission – up to 30m
Easily switch between multiple sources and multiple displays
Easy Operation: Front panel pushbuttons & RS-232 serial controller
Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
Supports up to 300 MHz bandwidth for high performance video
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Built-in bi-directional RS-232 serial port for high-end system control*
Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
Rack Mountable
All-metal casing

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VM0404-CHN-5551

Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
Long distance transmission – up to 30m
Easily switch between multiple sources and multiple displays
Easy Operation: Front panel pushbuttons & RS-232 serial controller
Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
Supports up to 300 MHz bandwidth for high performance video
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Built-in bi-directional RS-232 serial port for high-end system control*
Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
Rack Mountable
All-metal casing

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN VM0404

Key Specifications

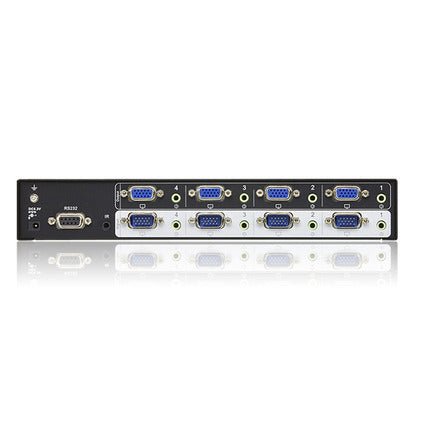

Connectors
Video In	4 x HDB-15 Male (Blue)
Audio In	4 x Mini Stereo Jack Female (Green)
Video Out	4 x HDB-15 Female (Blue)
Audio Out	4 x Mini Stereo Jack Female (Green)
RS-232	1 x DB-9 Female (Black)
IR Port	1 x Mini Stereo Jack Female (Black)
Power	1 x DC Jack
Switches
Port Selection	4 x Pushbuttons
Power	1 x Pushbutton
LEDs
Port Selections	16 (Green)
Power Indicator	1 (Green / Orange)
Video
Bandwidth	300 MHz
Resolution	1920 x 1440 @ 60Hz
Power Consumption
Power Consumption	DC 5.3V, 2.7W
Environment
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	0–80% RH, Non-Condensing
Physical
Housing	Metal
Properties
Weight	0.87 kg
Dimensions (L × W × H)	26.00 x 7.60 x 4.20 cm
