Key Specifications

Input Connections

8 VGA Video + Audio Inputs

Output Connections

8 VGA Video + Audio Outputs

Signal Range

Up to 30 meters

Video Quality

Up to 1920 x 1440; VGA, SVGA, SXGA, UXGA, and WUXGA (1920 x 1200)

Bandwidth

Up to 500 MHz

Audio Support

Stereo Audio

EDID Support

EDID Expert Technology with multiple EDID modes

Power On Detection

Automatically switches to the next powered-on source when a source is powered off

Cascade Support

Up to 3 Levels

Mounting

Rack Mountable

Housing

All Metal Casing

Switching Features

Audio / Video Switching

Independent switching of audio and video sources

Input to Output Routing

Each input can be independently connected to any or all outputs

Operation Methods

Front Panel Controls, RS-232 Serial Controller, IR Remote Control

Front Panel Features

LCD Display

Displays configuration and operating options

MENU Button

Invokes menu page / main screen

PROFILE Button

Switches between video source profile selections

ESC Button

Cancels current selection or exits without saving

ENTER Button

Confirms current selection

Tuner Dials

Navigate up, down, left, right, and scroll options within LCD display

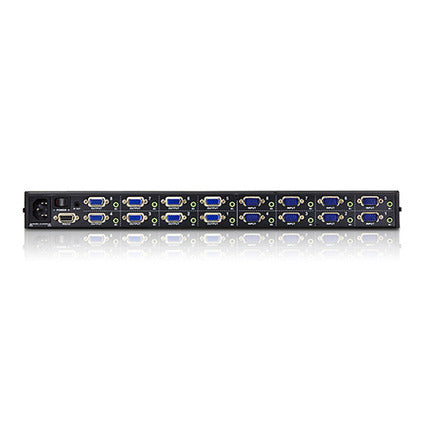

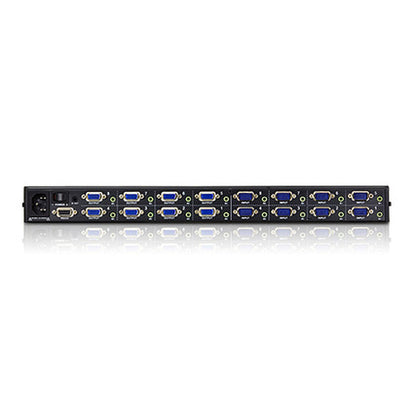

Rear Panel Features

Power Socket

Standard 3-pin AC power socket

Power Switch

Standard rocker switch for power on/off

External IR Receiver Port

3.5 mm Mini Stereo Jack

RS-232 Serial Port

Serial control interface

Audio / Video Input Ports

VGA ports for video sources and Mini Stereo Jacks for audio sources

Audio / Video Output Ports

VGA ports for displays and Mini Stereo Jacks for speakers

Package Contents

VM0808 Unit

1x VM0808 8x8 Video Matrix Switch

Power Cord

1x Power Cord

IR Remote Control

1x IR Remote Control

IR Receiver

1x IR Receiver

Mounting Kit

1x Mounting Kit

Documentation

1x User Instructions
