Key Specifications

Video Input

Interface

1 x HDB-15 Male (Blue)

Impedance

75 Ohms

Max Distance

5.9' / 1.8 m

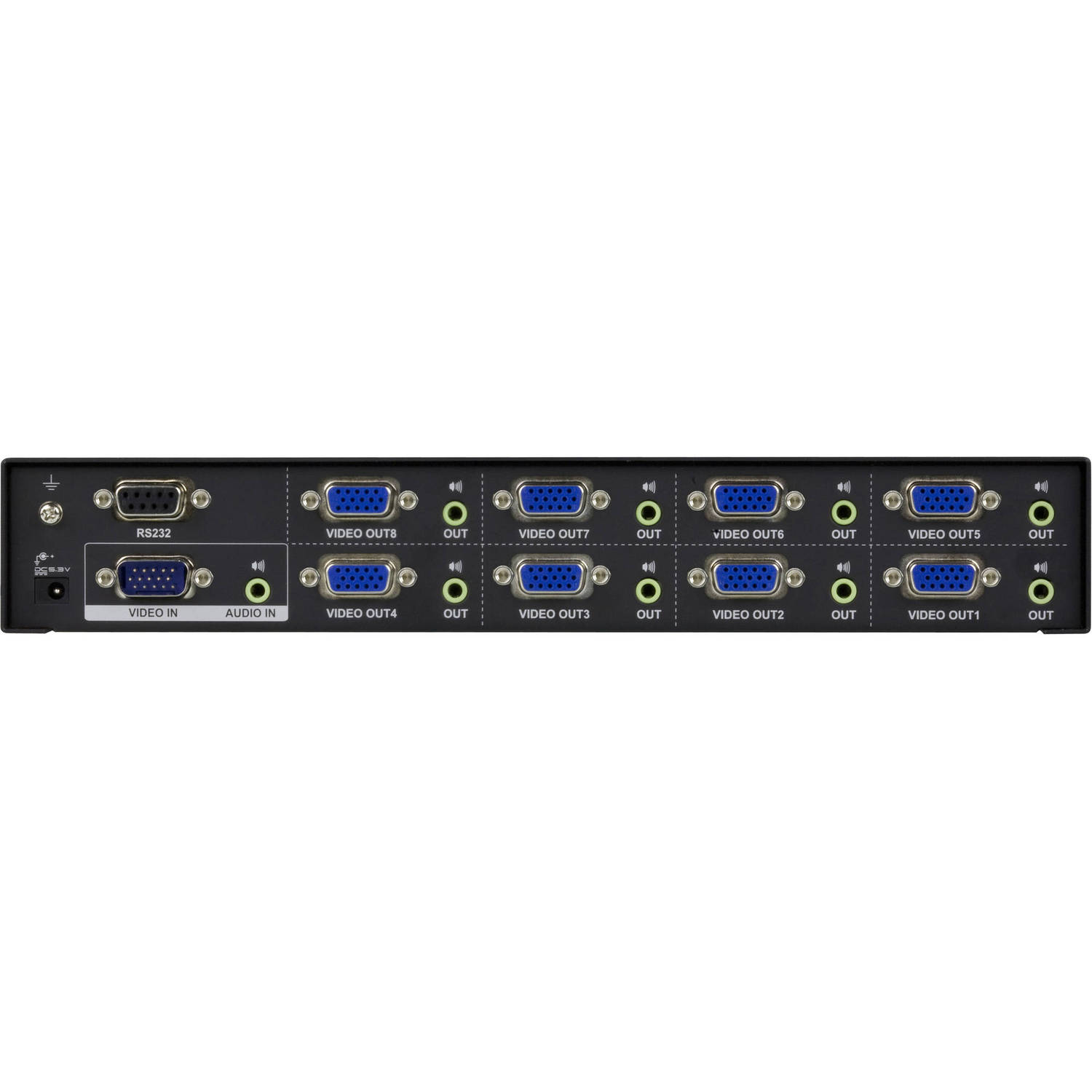

Video Output

Interface

8 x HDB-15 Female (Blue)

Impedance

75 Ohms

Video

Bandwidth

400 MHz (Maximum)

Resolution

Up to 1920 x 1440

Max Distance

98.4' / 30.0 m

Audio

Input

1 x Mini Stereo Jack Female (Green)

Output

8 x Mini Stereo Jack Female (Green)

Control

RS-232

1 x DB-9 Female (Black)

General Specifications

EDID

EDID Mode: Port 1 / Audio / Default

Power

Connector: 1 x DC Jack
Consumption: 5.3 VDC, 2.3 W

Operating Temperature

32 to 122°F / 0 to 50°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Humidity (Non-Condensing)

0–80% RH

Dimensions (L × W × H)

7.9 x 3.0 x 1.7" / 20.0 x 7.6 x 4.4 cm

Weight

1.92 lb / 0.87 kg

Packaging Info

Package Weight

2.7 lb

Box Dimensions (L × W × H)

11.3 x 7 x 2.7"

What's in the Box

Included Items

1x 4-Port VGA Splitter with Audio
1x Power Adapter
1x User Instructions
