Key Specifications

Type

Passive 2-Way Speaker

Included Speakers

2

Power Handling

15 W Nominal | 30 W Program | 60 W Peak

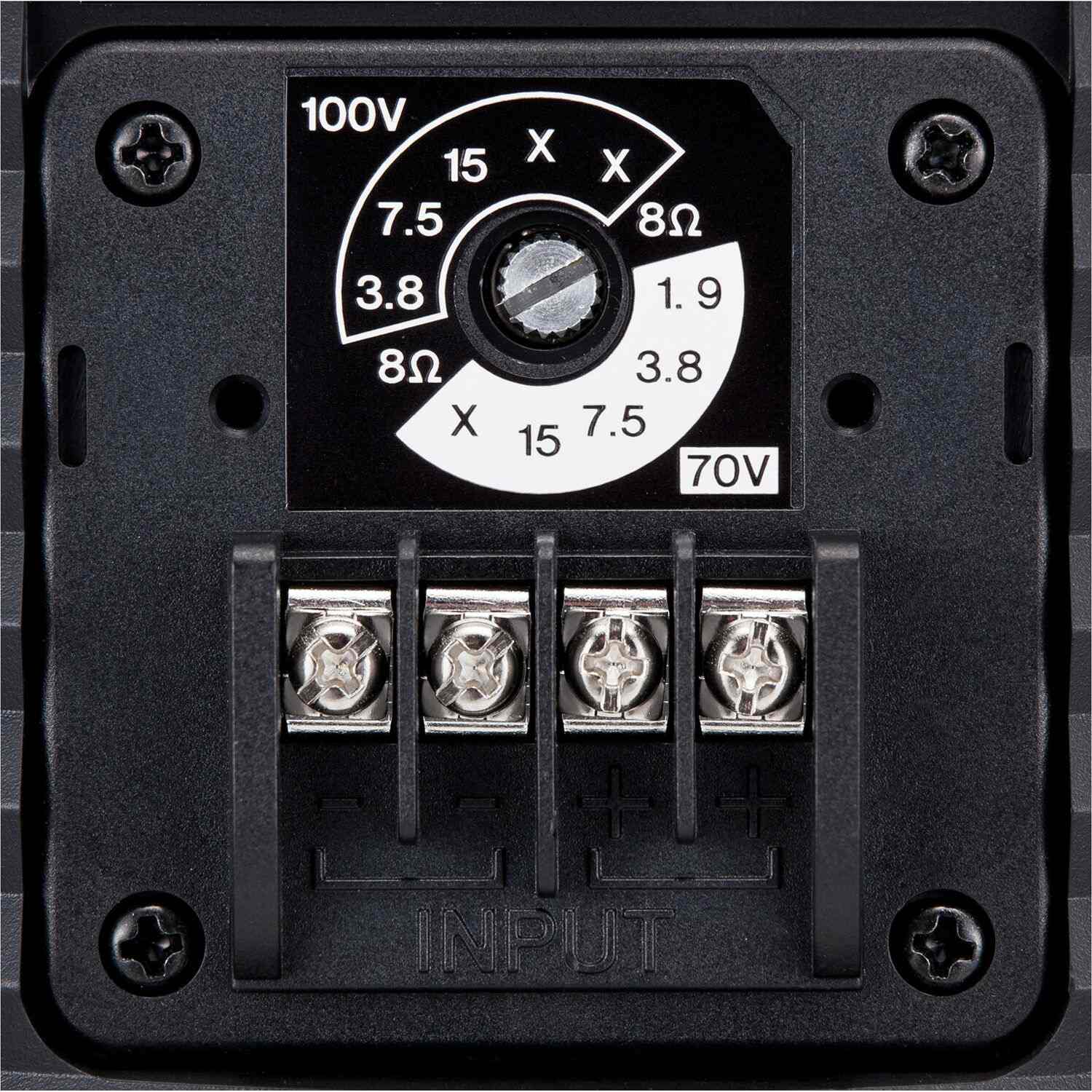

Constant Voltage / Transformer Taps

70 V: 15 / 7.5 / 3.8 / 1.9 W or 8Ω bypass
100 V: 15 / 7.5 / 3.8 W or 8Ω bypass

Impedance

8 Ω

HF Driver

1" / 2.5 cm Tweeter

LF Driver

4" / 10.2 cm Woofer

Frequency Range

100 Hz – 20 kHz

Maximum SPL

106 dB SPL (Peak)

Sensitivity

88 dB SPL

Coverage Angle

110° H × 110° V

Crossover

15 kHz (Passive)

Protections

Overload

Input Connectors

2× Barrier Strip Speaker Input

Enclosure / Construction

Bass-Reflex, Steel

Mounting

Bracket Point

Dimensions

9.6 × 6.8 × 6" / 243 × 172 × 152 mm

Weight

4.2 lb / 1.9 kg

Color

Black, White

Environmental Resistance

Water-Resistant (IPX3)

Certifications

EN55103
