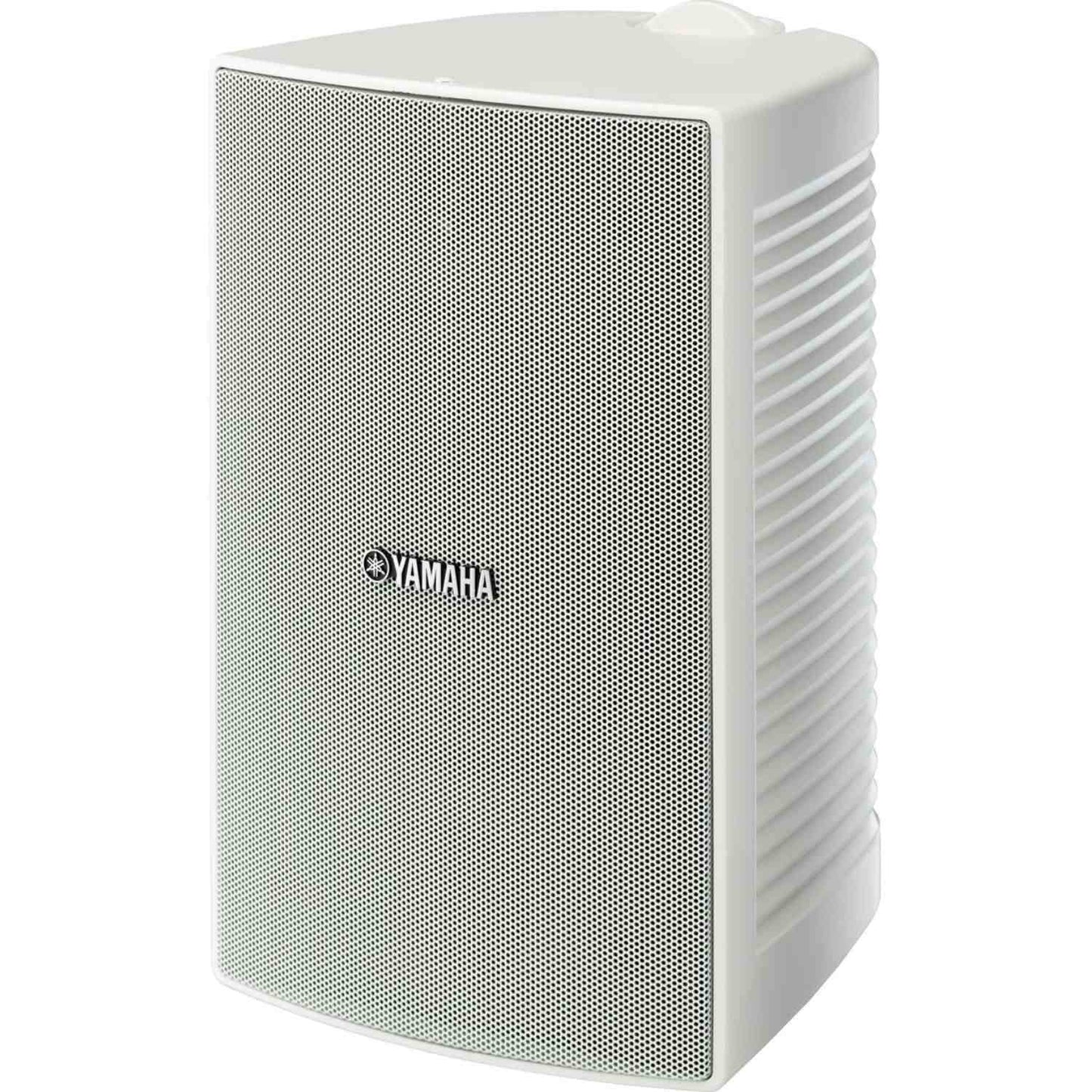

YAMAHA VS6
YAMAHA VS6
|
Key Specifications |
|
|
Type |
Passive 2-Way Speaker |
|
Included Speakers |
2 |
|
Power Handling |
25 W Nominal | 50 W Program | 100 W Peak |
|

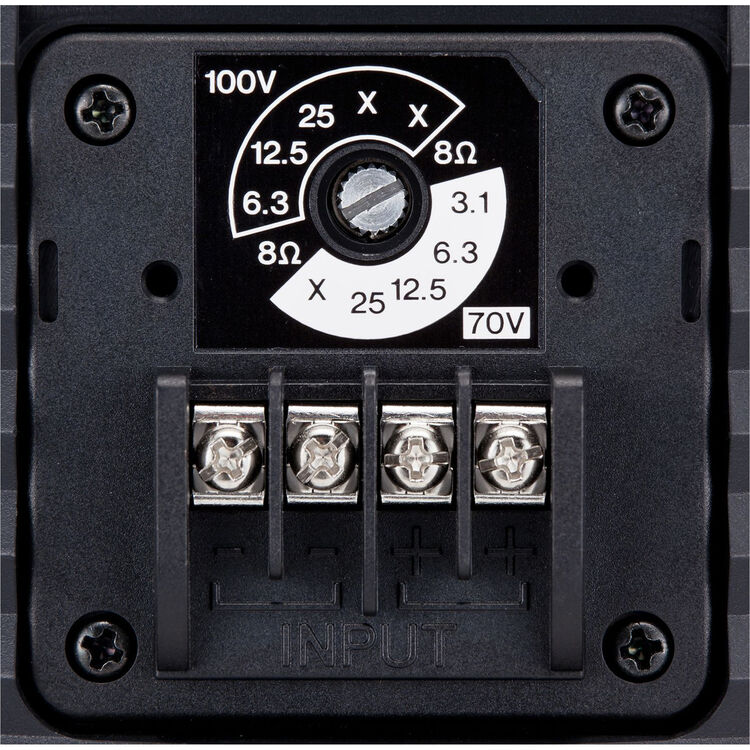

Constant Voltage / Transformer Taps |
70 V: 25 / 12.5 / 6.3 / 3.1 W or 8Ω bypass |
|
Impedance |
8 Ω |
|
HF Driver |
1" / 2.5 cm Tweeter |
|
LF Driver |
6.5" / 16.5 cm Woofer |
|
Frequency Range |
80 Hz – 20 kHz |
|
Maximum SPL |
110 dB SPL (Peak) |
|
Sensitivity |
90 dB SPL |
|
Coverage Angle |
90° H × 90° V |
|
Crossover |
15 kHz (Passive) |
|
Protections |
Overload |
|
Input Connectors |
2× Barrier Strip Speaker Input |
|
Enclosure / Construction |
Bass-Reflex, Steel |
|
Mounting |
Bracket Point |
|
Rotation Range |
81° H × 81° V (Bracket Mount) |
|
Dimensions |
12.1 × 8.6 × 7.5" / 30.8 × 21.9 × 19 cm |
|
Weight |
6.2 lb / 2.8 kg |
|

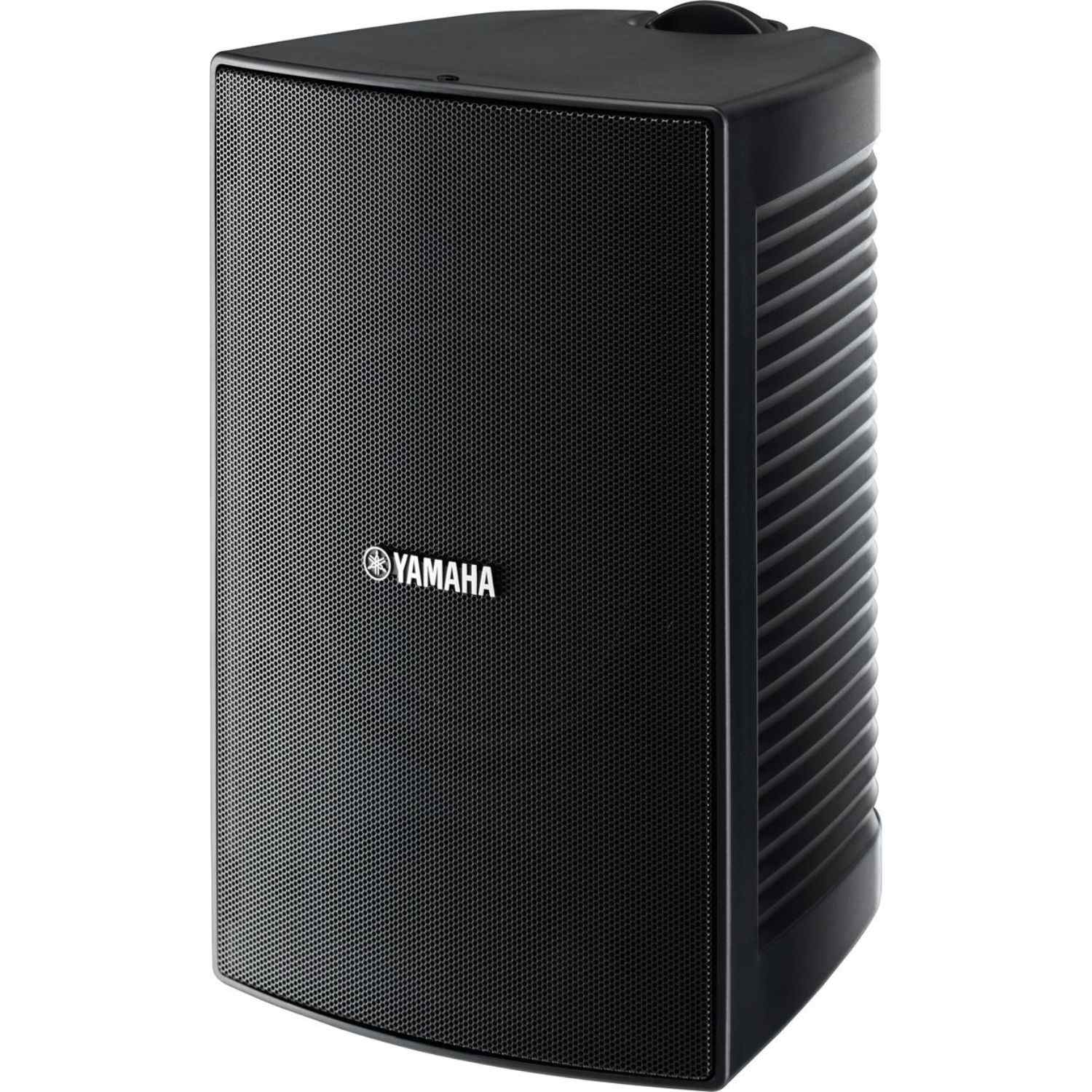

Color |
Black, White |
|
Environmental Resistance |
Water-Resistant (IPX3) |
|
Certifications |
EN55103 |
