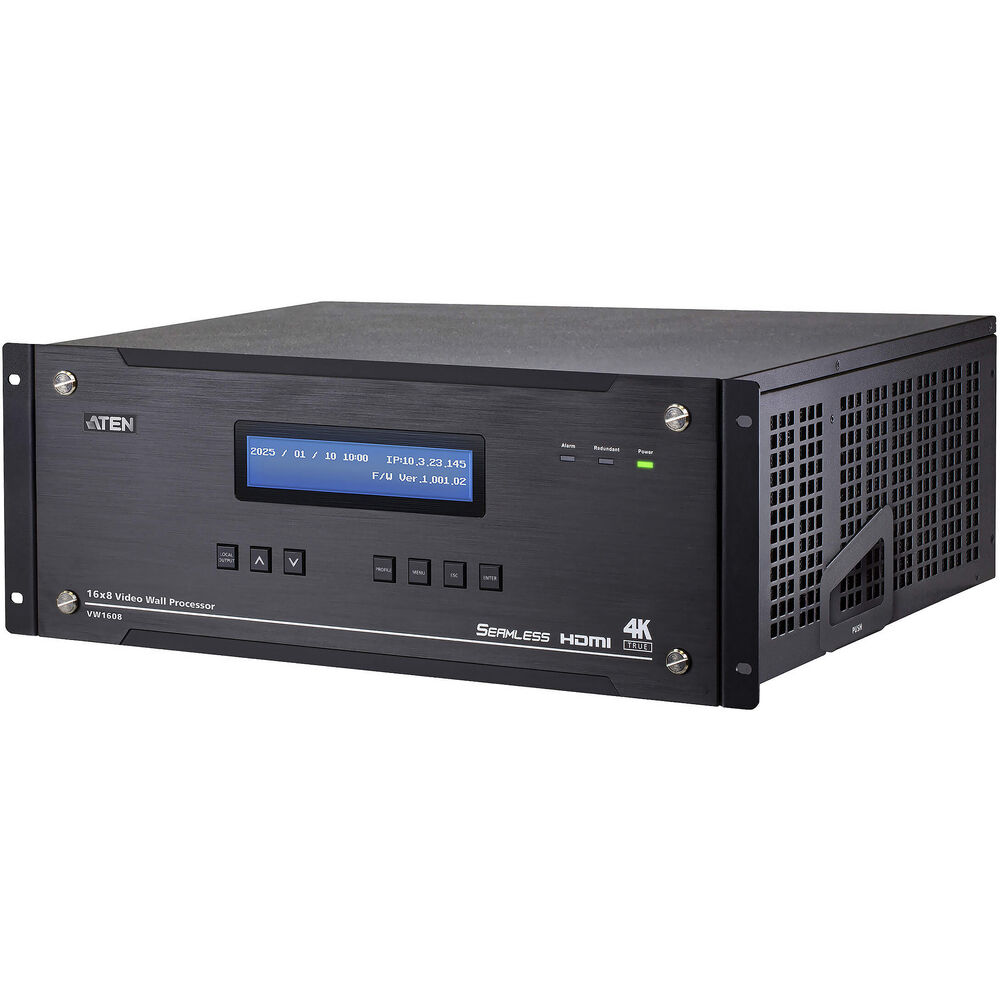

Key Specifications

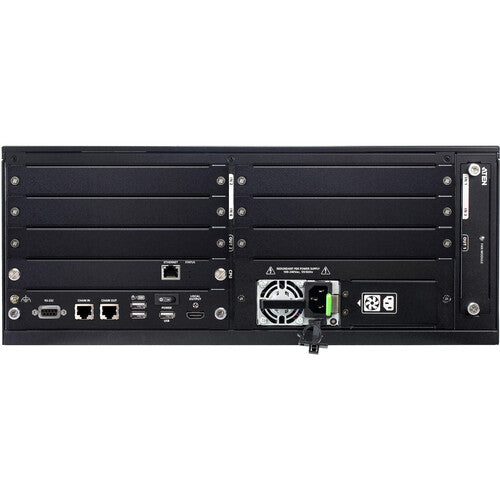

Board Input

4 x Slot, up to 16 4K Inputs
(Note: Top 2 Slots can be used for Function Board)

Board Output

2 x Slot, up to 8 True 4K Outputs

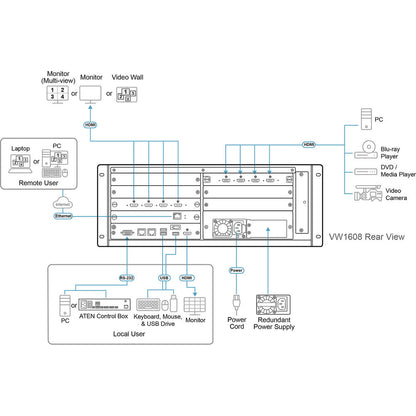

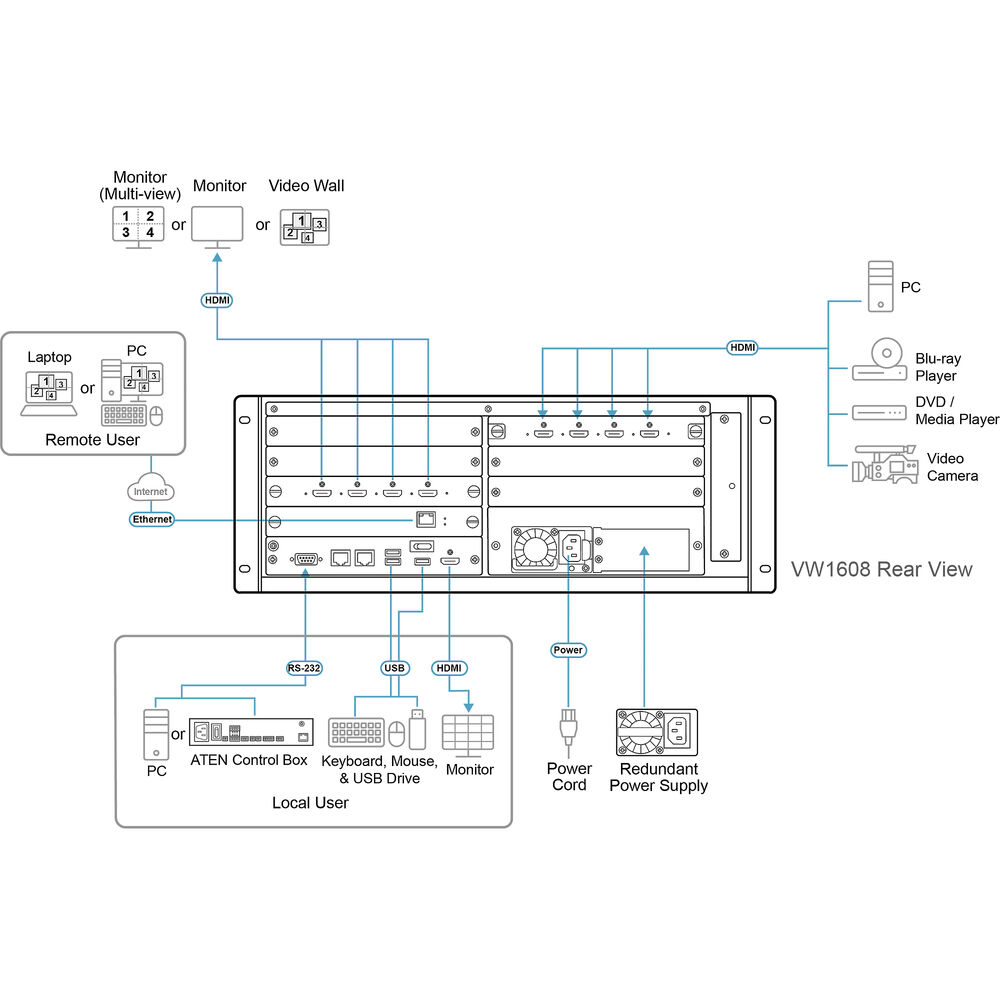

Video Input

Interfaces

Depends on which I/O Board is Inserted

Video Output

Interfaces

Local Output: 1 x HDMI Type A Female (Black)

Control

RS-232

1 x DB-9 Female (Black)

Serial Control Pin Configuration

Pin 2 = Tx
Pin 3 = Rx
Pin 5 = Gnd

Baud Rate & Protocol

Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No

Ethernet

1 x RJ-45 Female

USB

3 x USB Type A Female (White)
Supports Storage and Firmware Upgrade

EDID Settings

EDID Mode: Default / Port1 / Remix / Customized
EDID Wizard Support

Communication

Daisy Chain Ports

RJ45 x2

Connectors

Power Connector

1 x 3-Prong AC Socket

Optional Power

Redundancy, Optional Hot Swap PSU

Power

Maximum Input Power Rating

100-240 VAC; 50-60Hz; 10A

Power Consumption

AC110V: 550W / 326BTU/h
AC220V: 550W / 324BTU/h

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Dimensions (L x W x H)

48.20 x 46.61 x 17.67 cm
(18.98 x 18.35 x 6.96 in.)

Weight

11.65 kg (25.66 lb)

Rack Height

4U

Carton Lot

1 pc

Note

For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using an LxWxH format.
