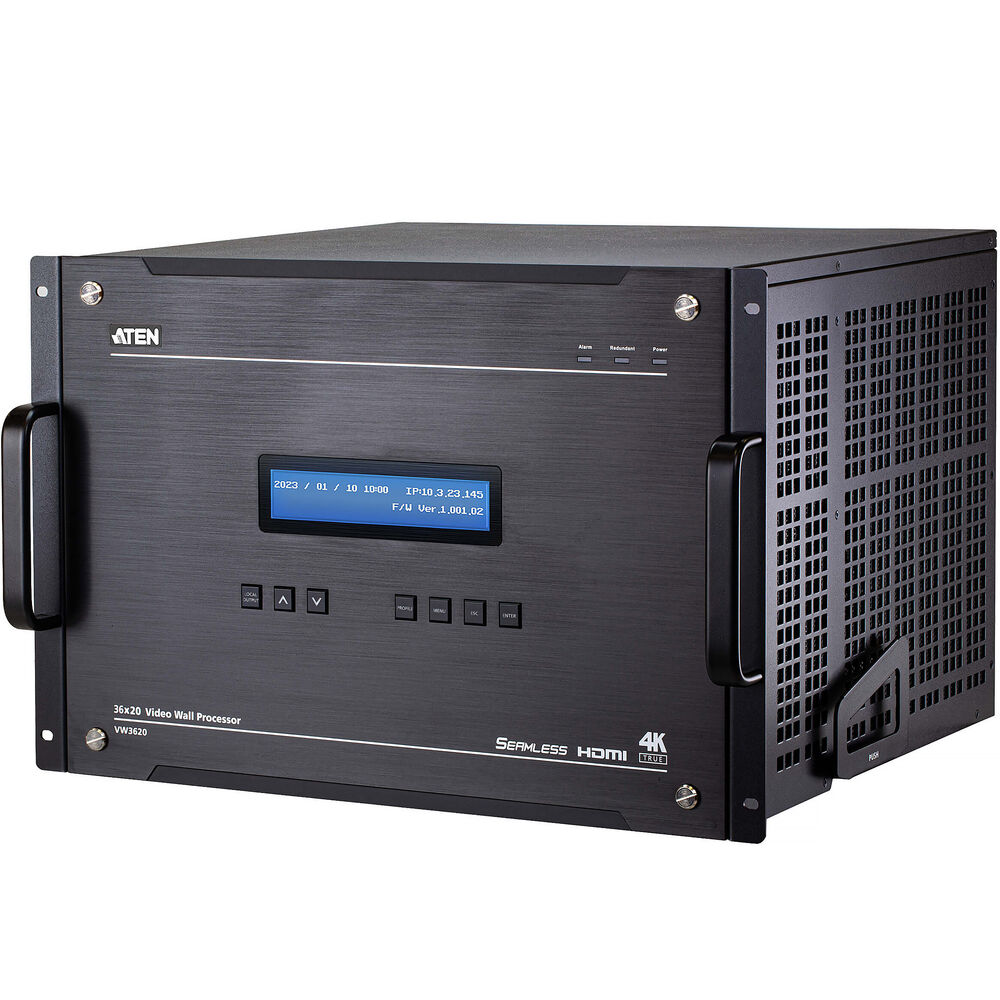

VW3620 36 x 20 Modular Video Wall Processor

PRICE FOR INQUIRY

Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis
FPGA hardware architecture
– handles True 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay
True 4K@60 scalability with 4:4:4 signal processing – supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ATEN-VW3620-CHN-8520

Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis
FPGA hardware architecture
– handles True 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay
True 4K@60 scalability with 4:4:4 signal processing – supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ATEN VW3620 36 x 20 Modular Video Wall Processor

Key Specifications

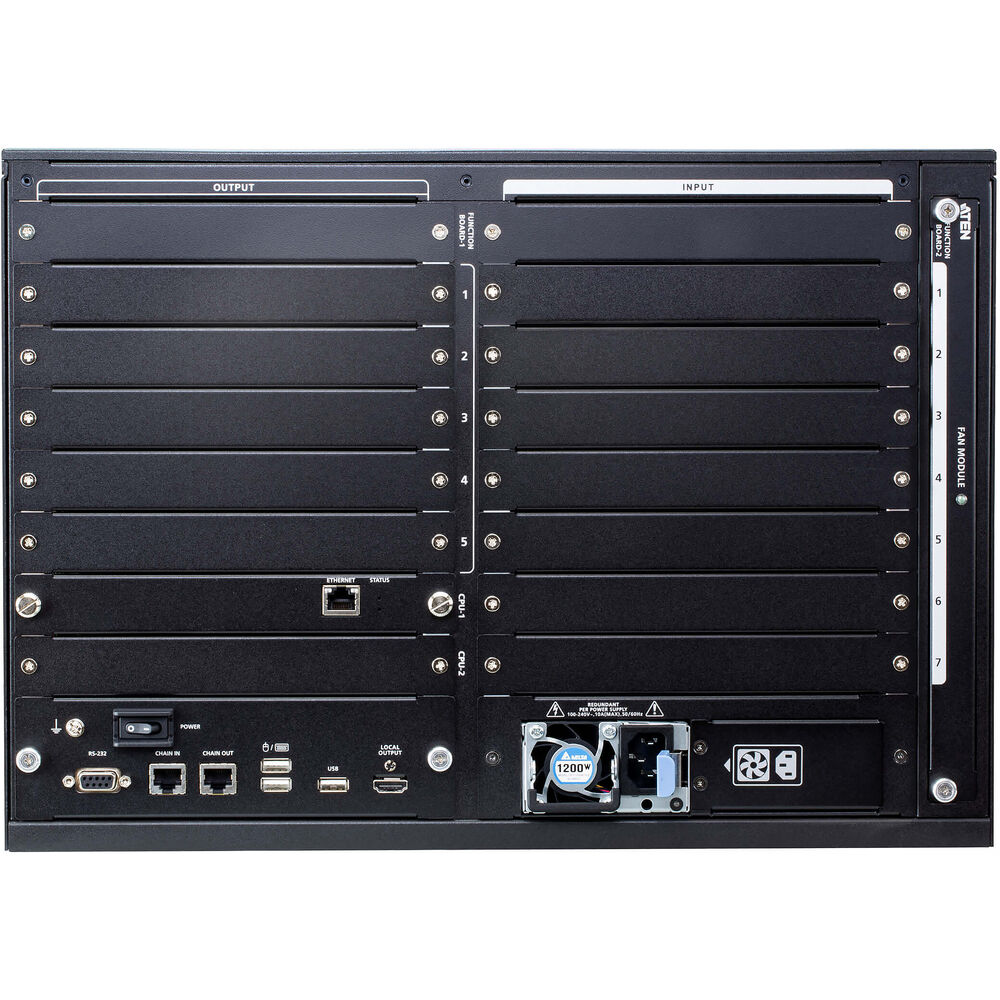

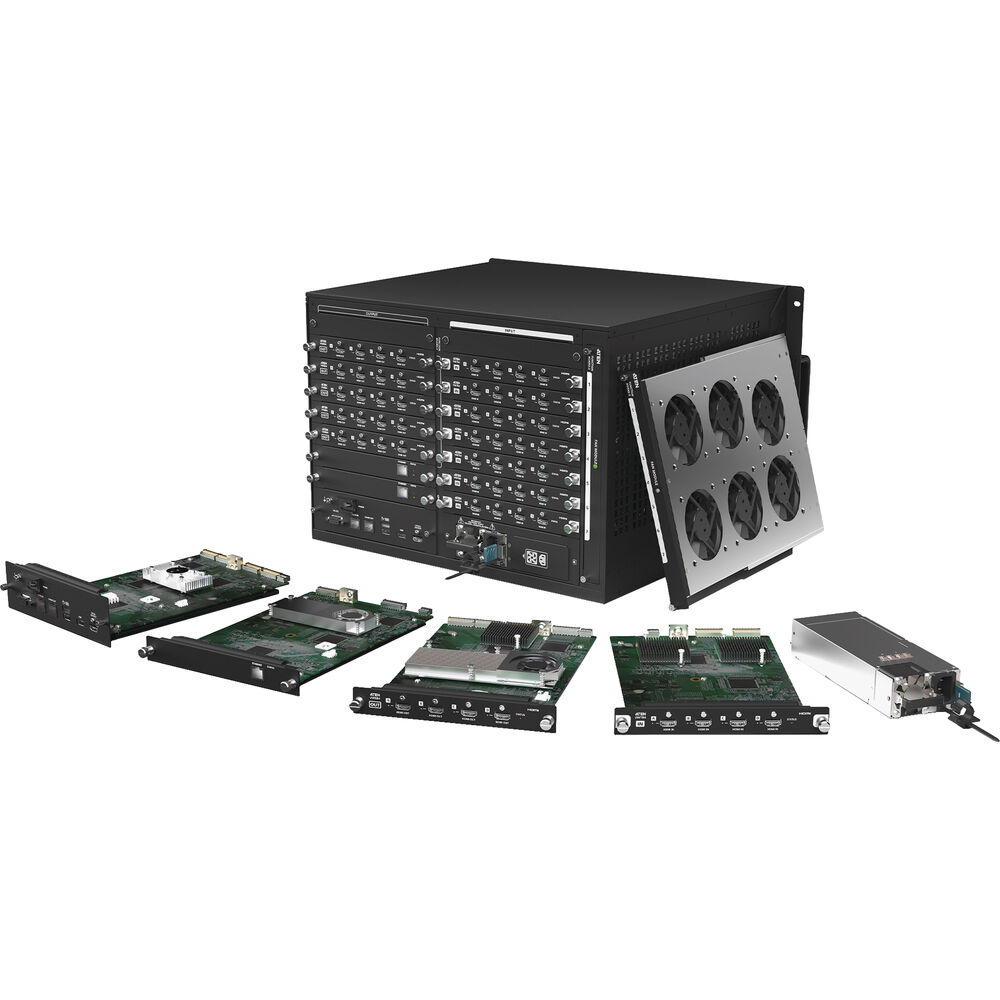

Board Input	7 x Slot, up to 32 4K Inputs
Board Output	5 x Slot, up to 20 4K Outputs
Function Slots	2 x Slots for Function Board, can also be used as Input Slot
Video Input
Interfaces	Depends on which I/O Board is Inserted
Video Output
Interfaces	Local Output: 1 x HDMI Type A Female (Black)
Control
RS-232	1 x DB-9 Female (Black)
Serial Control Pin Configuration	Pin 2 = Tx Pin 3 = Rx Pin 5 = Gnd
Baud Rate & Protocol	Baud Rate: 19200 Data Bits: 8 Stop Bits: 1 Parity: No Flow Control: No
Ethernet	1 x RJ-45 Female
USB	3 x Keyboard / Mouse / FW Upgrade & Storage
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized EDID Wizard Support
Communication
Daisy Chain Ports	RJ45 x2
Connectors
Power Connector	1 x 3-Prong AC Socket
Optional Power	Redundancy, Optional Hot Swap PSU
Power
Maximum Input Power Rating	100-240 VAC; 50-60Hz; 10A
Power Consumption	AC110V: 1200W / 2720BTU/h AC220V: 1200W / 2636BTU/h
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Dimensions (L x W x H)	48.20 x 45.80 x 30.98 cm (18.98 x 18.03 x 12.2 in.)
Weight	16.21 kg (35.7 lb)
Rack Height	7U
Carton Lot	1 pc
Note	For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using an LxWxH format.
