YAMAHA VXC2F
YAMAHA VXC2F
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
1 |
|
Speaker Configuration |
Full-Range |
|
Power Handling |
15 W RMS |
|

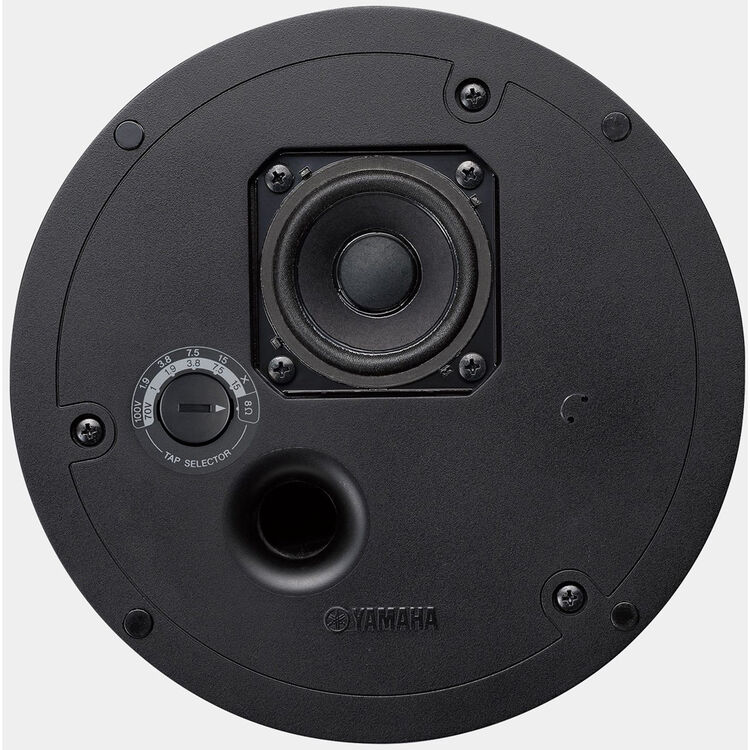

Constant Voltage / Transformer Taps |
70 V: 15 / 7.5 / 3.8 / 1.9 / 1 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
15 W |
|
Enclosure Type |
Bass-Reflex |
|
Shielded |
No |
|
Full-Range Driver |
2.5" / 6.3 cm |
|
Frequency Range (-10 dB) |
67 Hz – 20 kHz |
|
Maximum SPL |
104 dB SPL |
|
Sensitivity |
86 dB SPL |
|
Coverage Angle |
160° Conical |
|
Protections |
Overload |
|

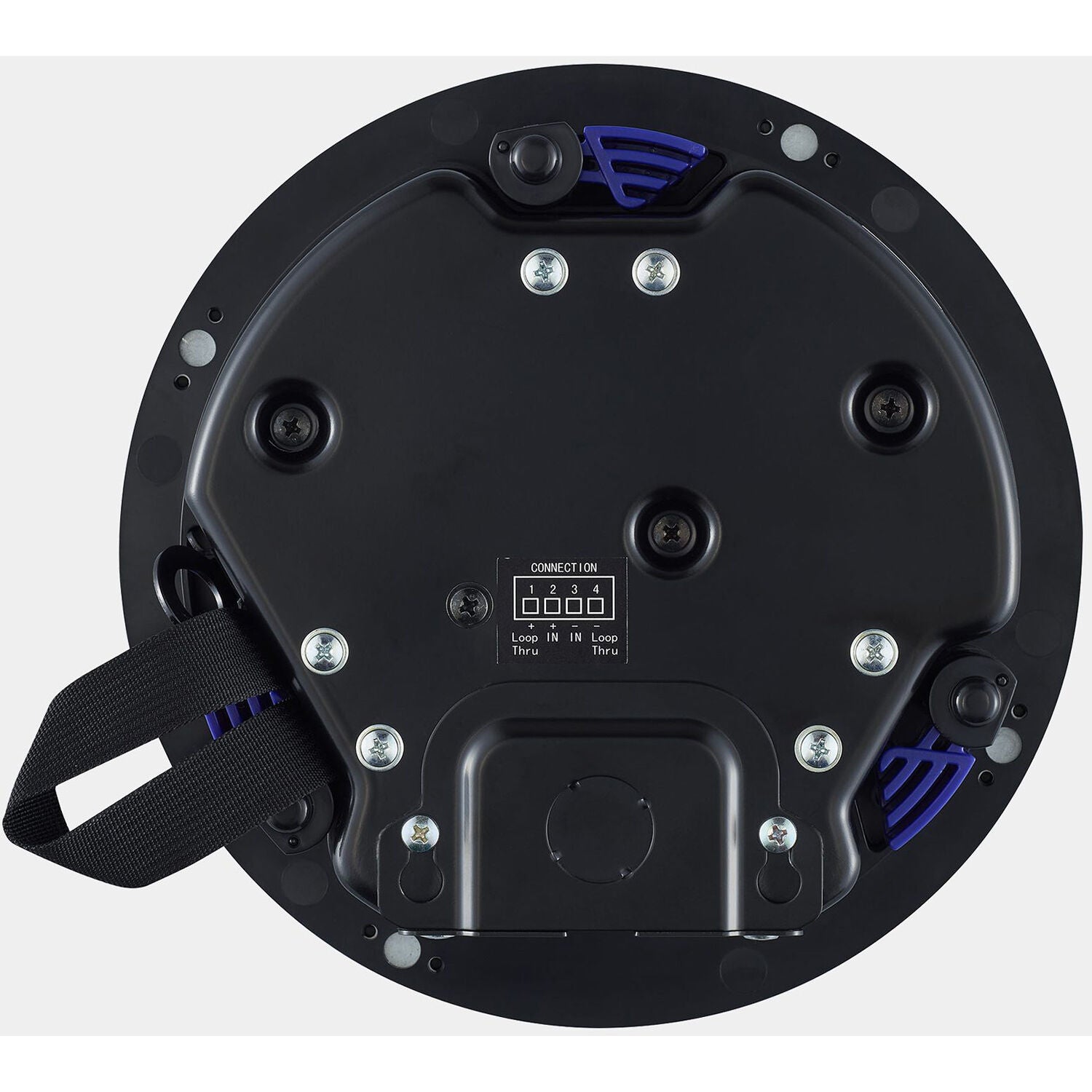

Inputs/Outputs |
1 × Block 4-Pin Speaker Input/Thru (Locking, Removable) |
|
Maximum Wire Gauge |
12 AWG |
|
Certifications |
CE, EAC, NFPA70, RoHS, UL1480, UL2043 |
|
Environmental Resistance |
No |
|
Color |
Black, White |
|
Mounting |
Ceiling Tile |
|
Cutout Depth |
3" / 7.6 cm |
|
Cutout Size |
7.3" / 18.6 cm |
|
Mount Surface Thickness |
0.2 to 1.5" / 0.5 to 3.7 cm |
|
Construction Material |
ABS, Steel |
|
Dimensions (H × W) |
8.9 × 3.5" / 22.5 × 8.9 cm |
|
Weight |
3.7 lb / 1.7 kg |
