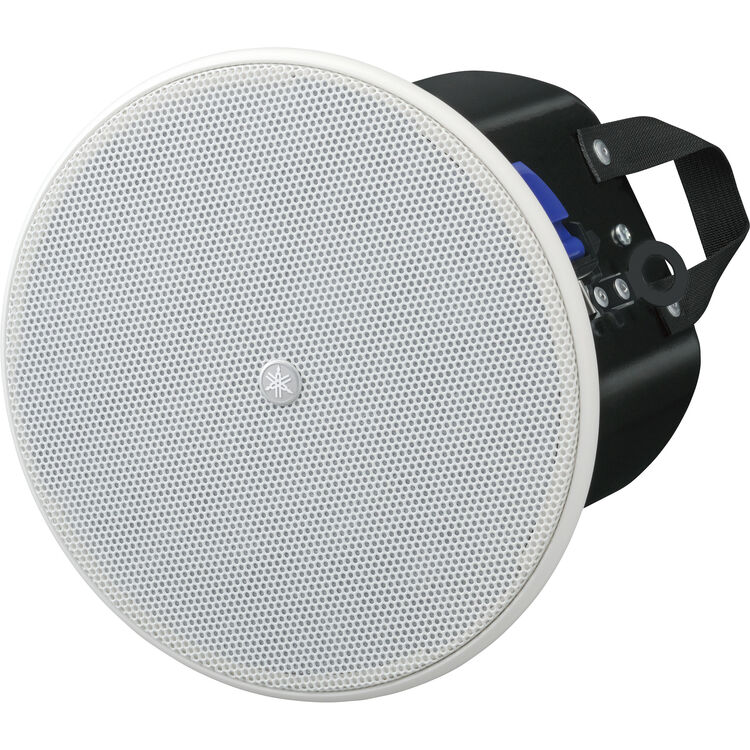

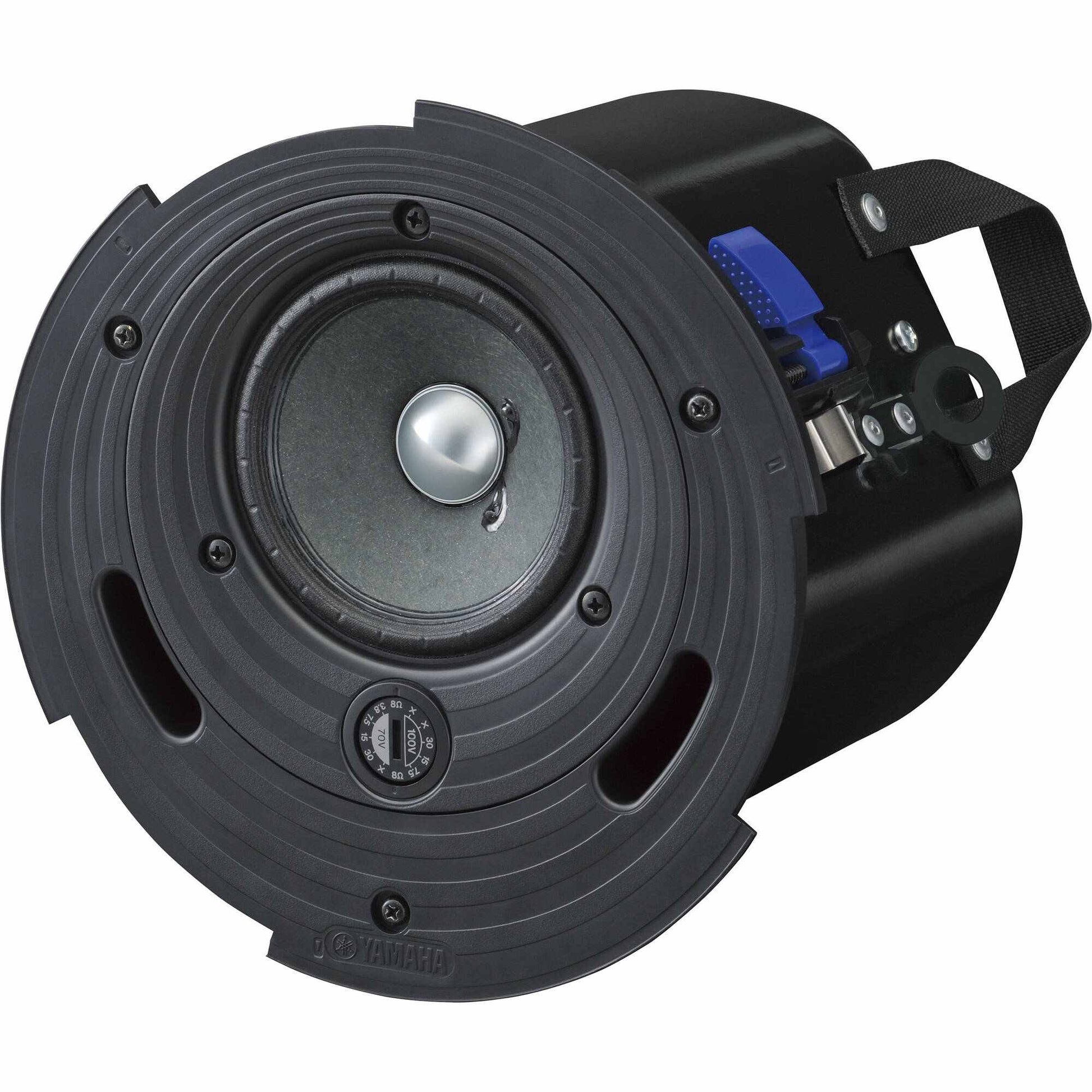

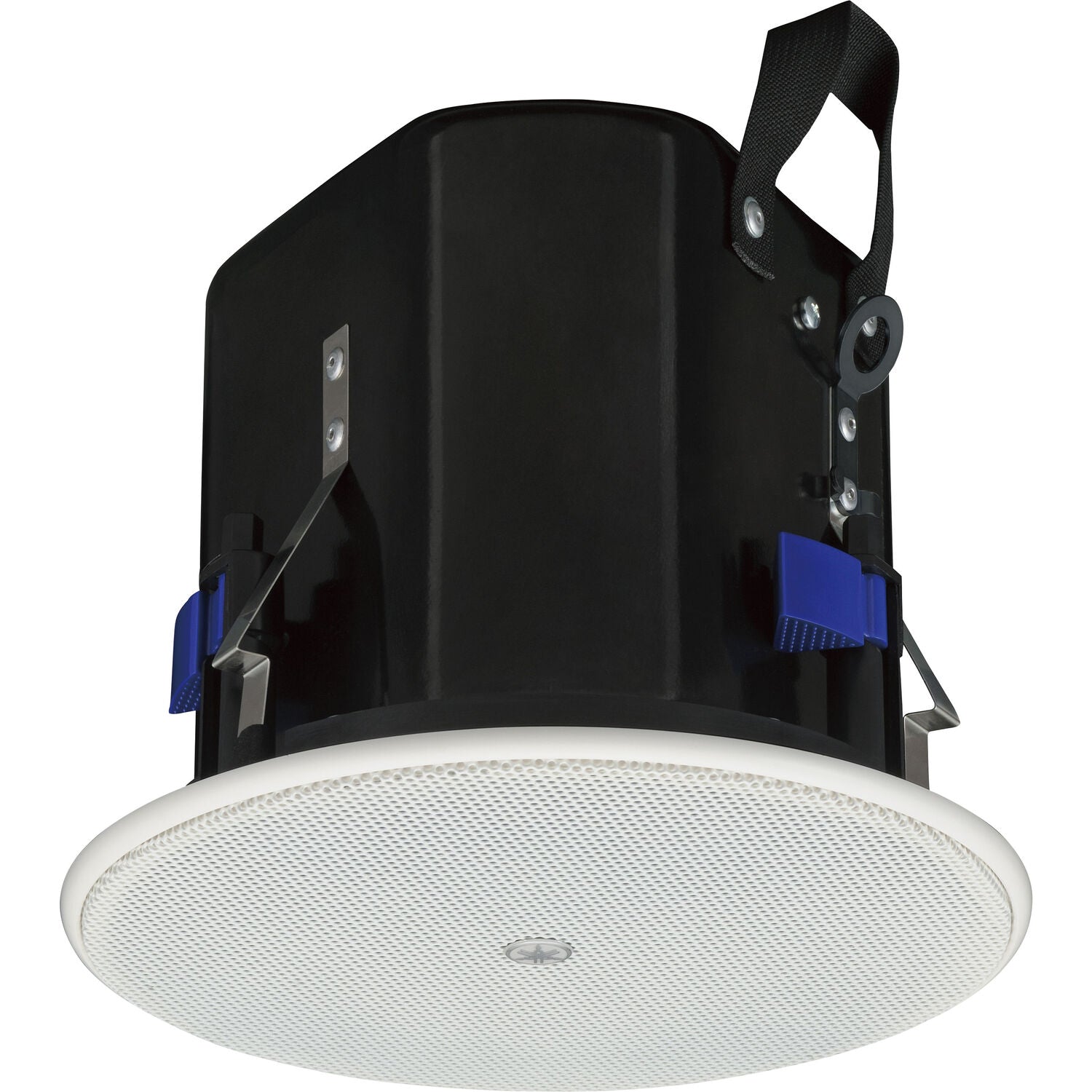

YAMAHA VXC4
YAMAHA VXC4
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
Full-Range |
|
Power Handling |
30 W RMS |
|
Constant Voltage / Transformer Taps |
70 V: 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
30 W |
|
Enclosure Type |
Bass-Reflex |
|
Full-Range Driver |
4" / 10.2 cm |
|
Frequency Range (-10 dB) |
80 Hz – 20 kHz |
|
Maximum SPL |
108 dB SPL |
|
Sensitivity |
87 dB SPL |
|
Coverage Angle |
130° Conical (Half Space) |
|
Protections |
Overload |
|
Inputs/Outputs |
1 × Block 4-Pin Line Input/Thru |
|
Certifications |
UL 1480 |
|
Environmental Resistance |
No |
|
Color |
White |
|
Mounting |
Ceiling Tile |
|
Cutout Size |
7.3" / 18.6 cm |
|
Mount Surface Thickness |
0.2 to 1.4" / 0.5 to 3.5 cm |
|
Construction Material |
ABS, High-Impact Polystyrene, Steel |
|
Dimensions (H × W) |
8.9 × 7.6" / 22.5 × 19.4 cm |
|
Weight |
5.7 lb / 2.6 kg (Each Speaker) |
