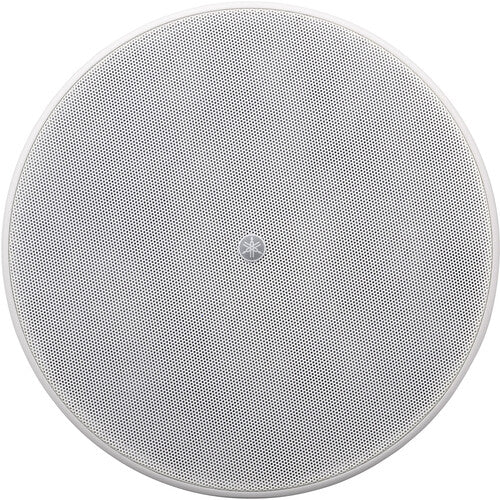

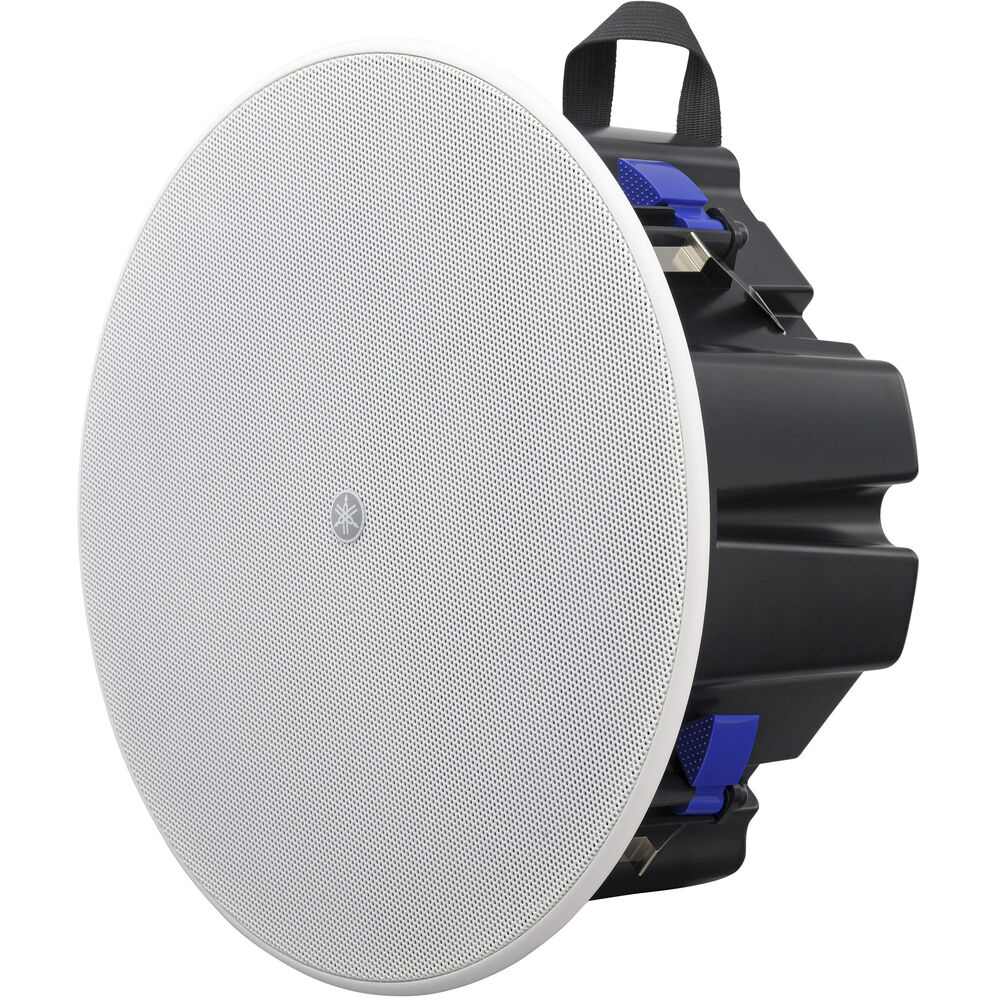

YAMAHA VXC5FW
YAMAHA VXC5FW
|
Key Specifications |
|
|
Speaker Configuration |
|
|
Active / Passive |
Passive |
|

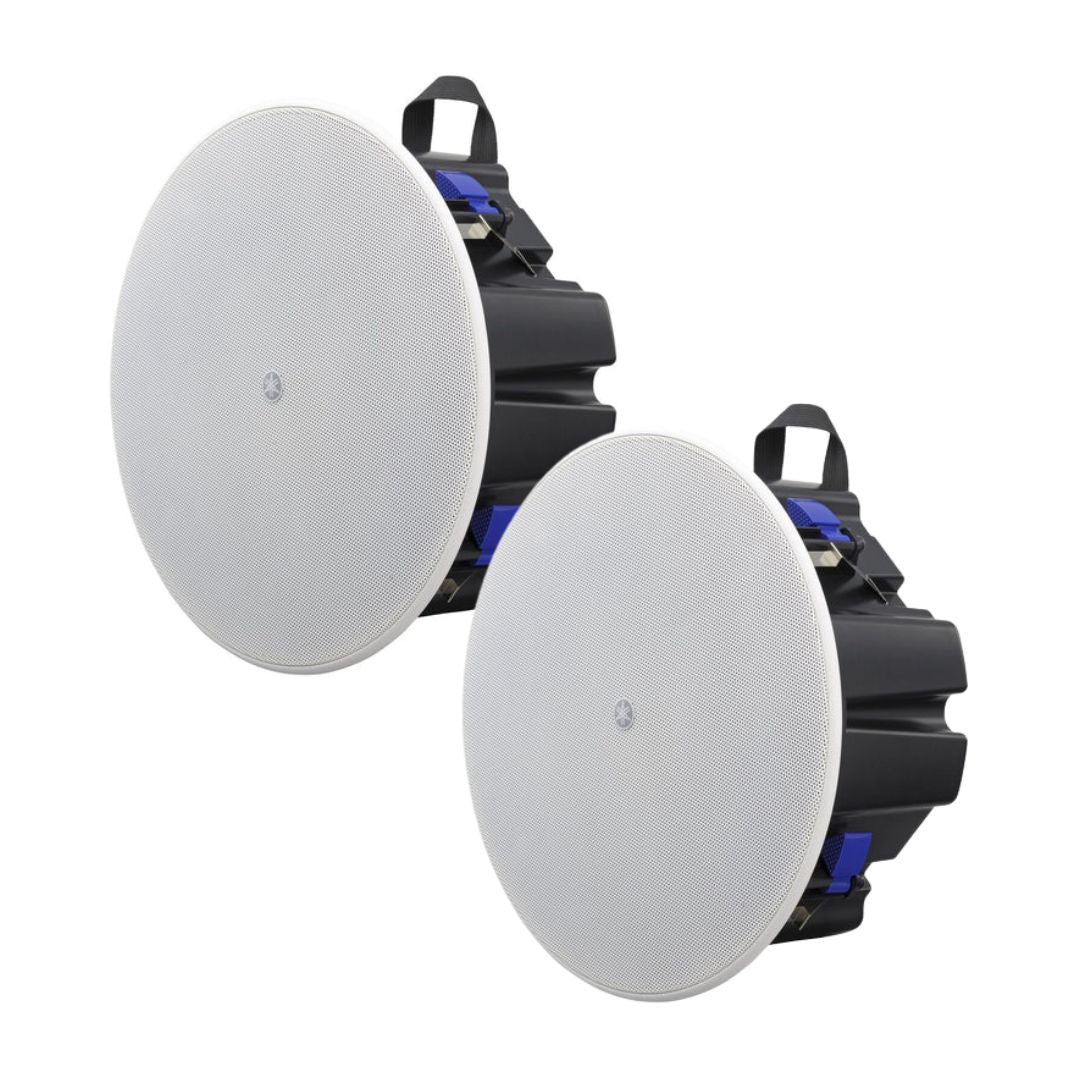

Included Speakers |
2 |
|
Speaker Type |
Full-Range |
|
Enclosure Type |
Bass-Reflex |
|
Shielded |
No |
|
Power Handling |
|
|
Continuous Power |
40 W |
|
Program Power |
80 W |
|
Peak Power |
160 W |
|
Transformer Wattage |
30 W |
|
Constant Voltage Taps |
|
|
70 V Taps |
30 W / 15 W / 7.5 W / 3.8 W or 8 Ω Bypass |
|
100 V Taps |
30 W / 15 W / 7.5 W or 8 Ω Bypass |
|
Impedance |
8 Ω |
|
Drivers |
|
|

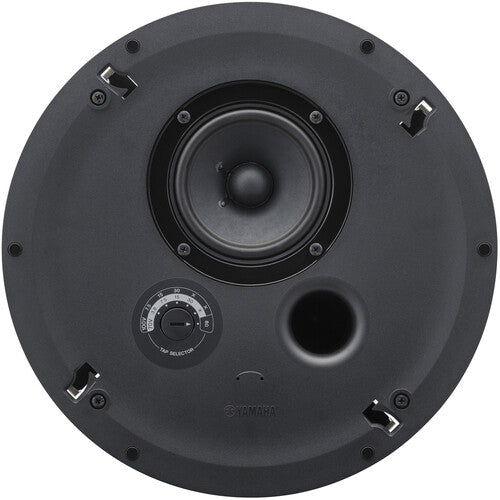

Full-Range Driver |
4.5" (11.4 cm) |
|
Performance |
|
|
Frequency Range |
60 Hz – 20 kHz (-10 dB) |
|
Maximum SPL |
111 dB SPL |
|
Sensitivity |
89 dB SPL |
|
Coverage Angle |
130° Conical |
|
Protection |
Overload Protection |
|
Connectivity |
|
|

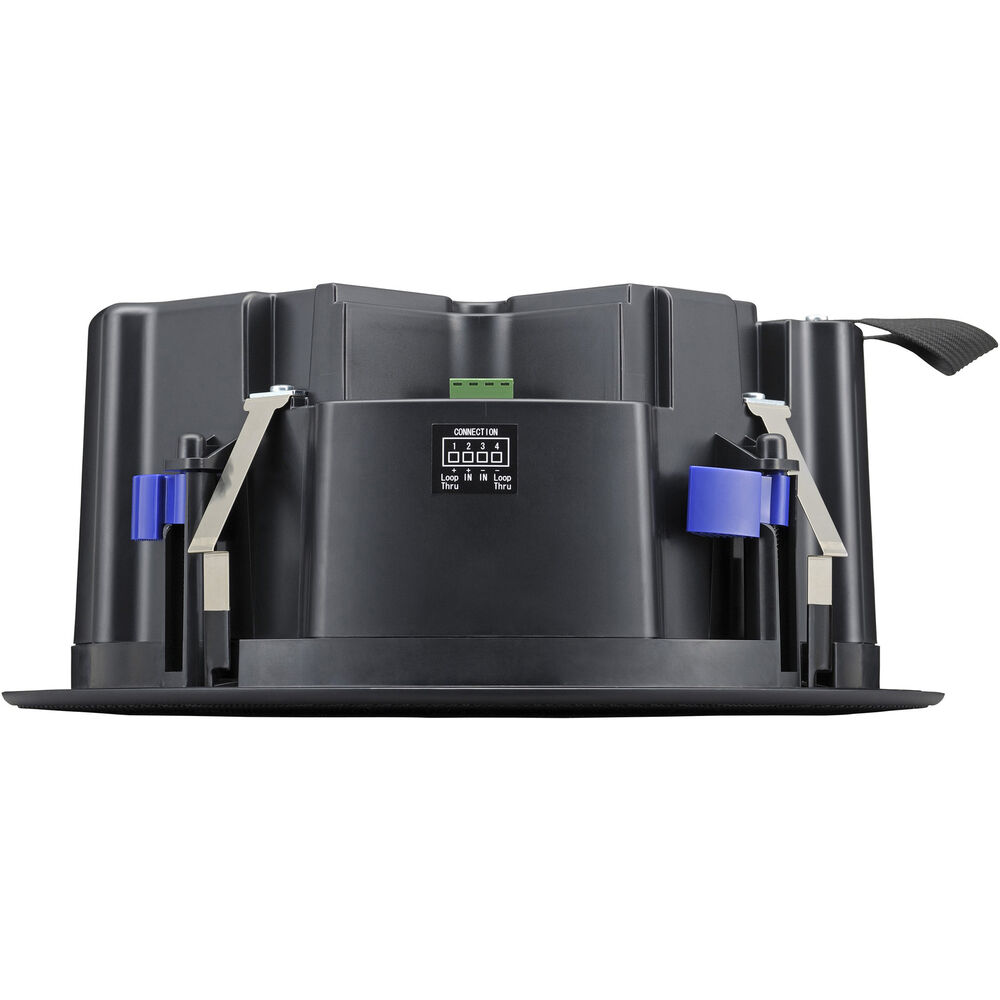

Speaker Input / Thru |
1 × 4-Pin Locking Removable Block Connector |
|
Maximum Wire Gauge |
12 AWG |
|
Physical Specifications |
|
|
Color |
White |
|
Mounting Type |
Ceiling Tile |
|
Cutout Size |
11.2" (28.5 cm) |
|
Cutout Depth |
3" (7.6 cm) |
|
Mount Surface Thickness |
0.2" to 1.5" (0.5 to 3.7 cm) |
|
Construction Material |
ABS, Steel |
|
Dimensions |
12.8 × 5.6" (32.4 × 14.3 cm) |
|
Weight |
6.8 lb (3.1 kg) |
|
Certifications |
|
|
Compliance |
CE, EAC, NFPA70, RoHS, UL1480 |
|
Environmental Resistance |
No |
