YAMAHA VXC8
YAMAHA VXC8
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
2-Way |
|
Power Handling |
90 W RMS |
|

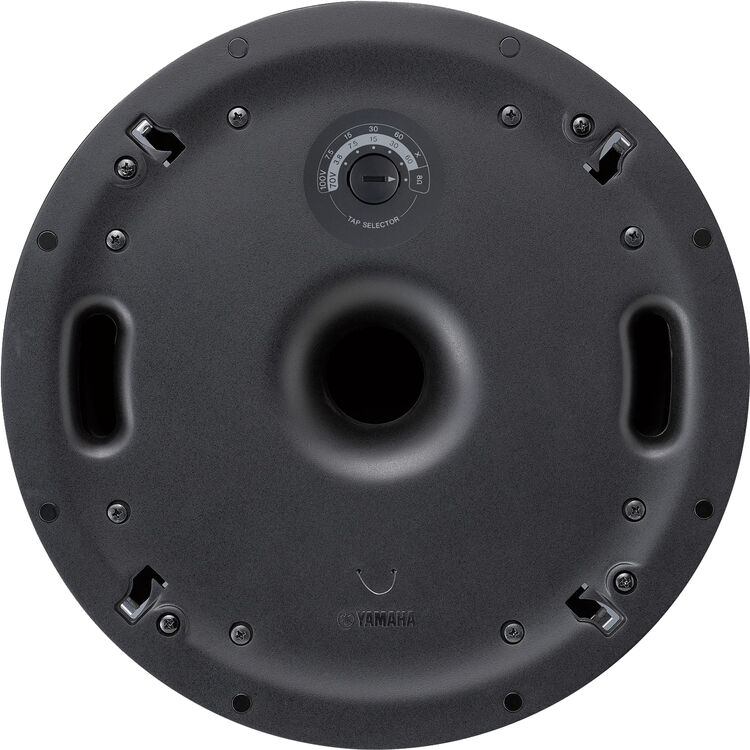

Constant Voltage / Transformer Taps |
70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
60 W |
|
Enclosure Type |
Bass-Reflex |
|

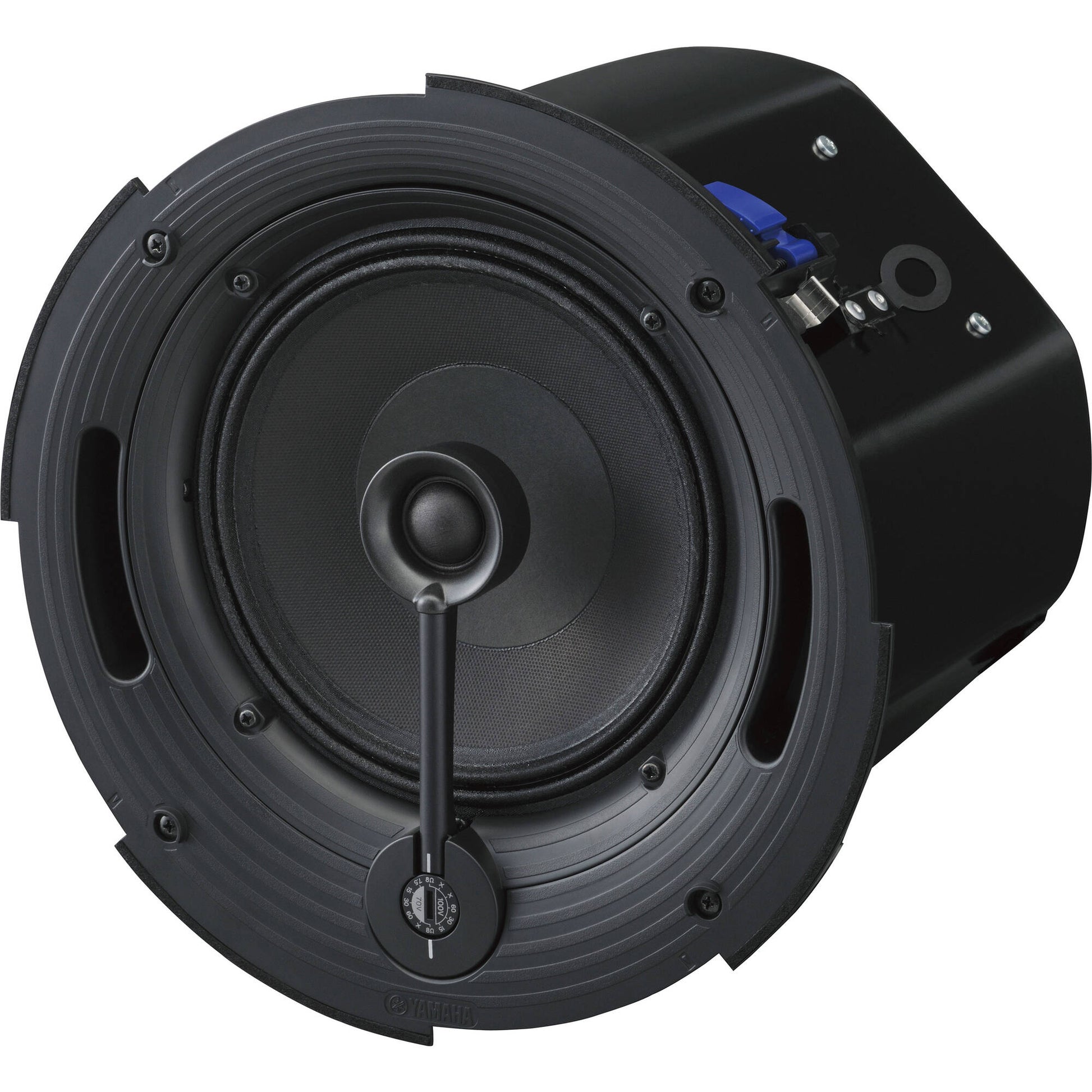

HF Driver |
1" / 2.5 cm Soft-Dome Tweeter |
|
LF Driver |
8" / 20.3 cm Woofer |
|
Frequency Range (-10 dB) |
55 Hz – 20 kHz |
|
Maximum SPL |
116 dB SPL |
|
Sensitivity |
90 dB SPL |
|
Coverage Angle |
100° Conical (Half Space) |
|
Protections |
Overload |
|

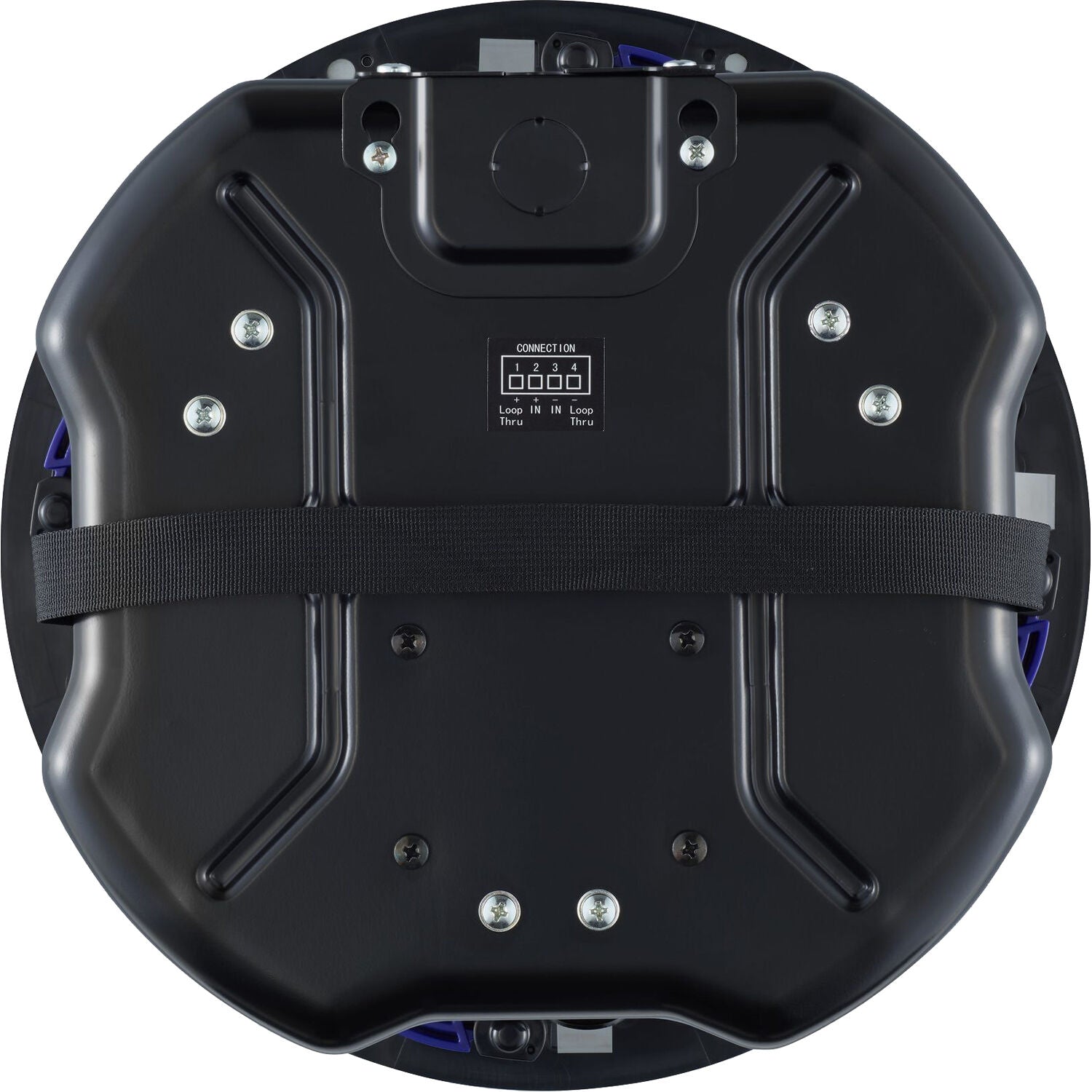

Inputs/Outputs |
1 × Block 4-Pin Line Input/Thru |
|
Maximum Wire Gauge |
12 AWG |
|
Certifications |
UL 1480 |
|
Environmental Resistance |
No |
|
Color |
White |
|
Mounting |
Ceiling Tile |
|
Cutout Size |
11.2" / 28.5 cm |
|
Mount Surface Thickness |
0.2 to 1.4" / 0.5 to 3.5 cm |
|
Construction Material |
ABS, High-Impact Polystyrene, Steel |
|
Dimensions (H × W) |
12.8 × 10.6" / 32.5 × 26.9 cm |
|
Weight |
14.6 lb / 6.6 kg (Each Speaker) |
