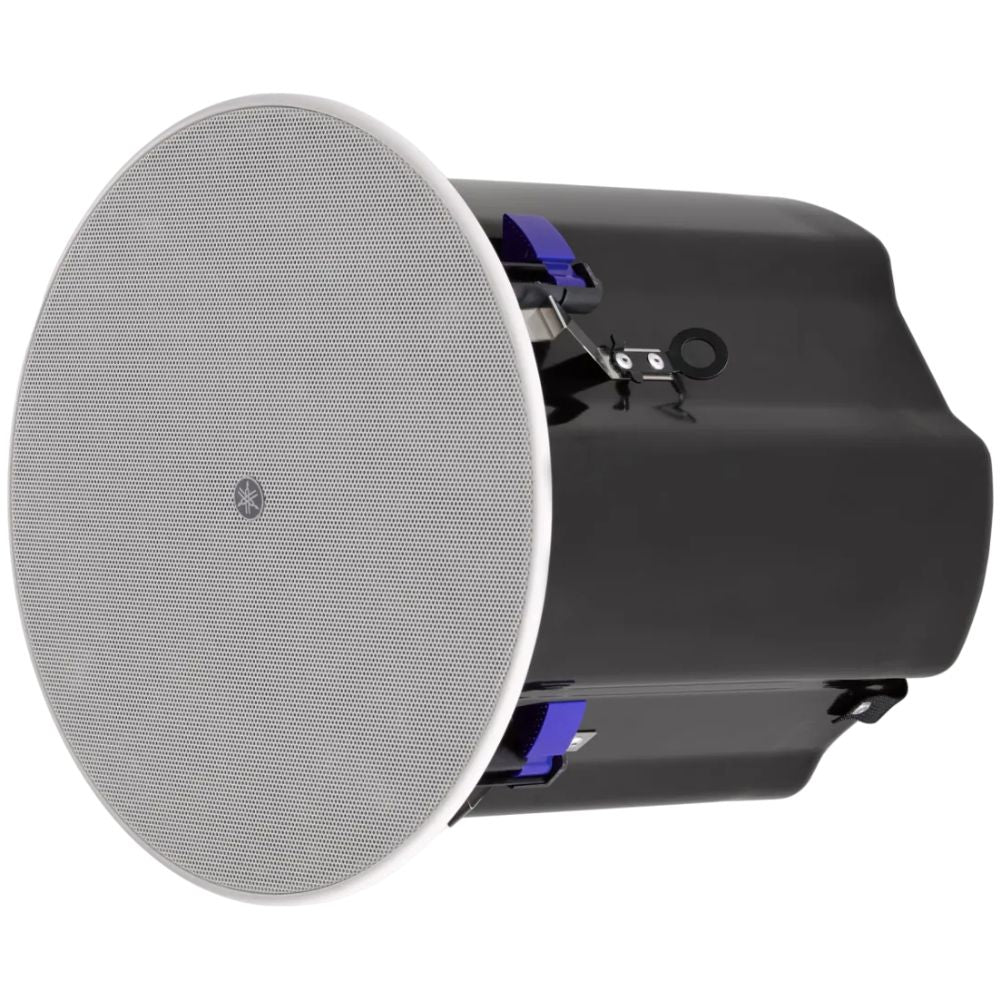

YAMAHA VXC8S
YAMAHA VXC8S
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
1 |
|
Speaker Configuration |
Subwoofer |
|
Power Handling |
100 W 200 W Program 400 W Peak |
|

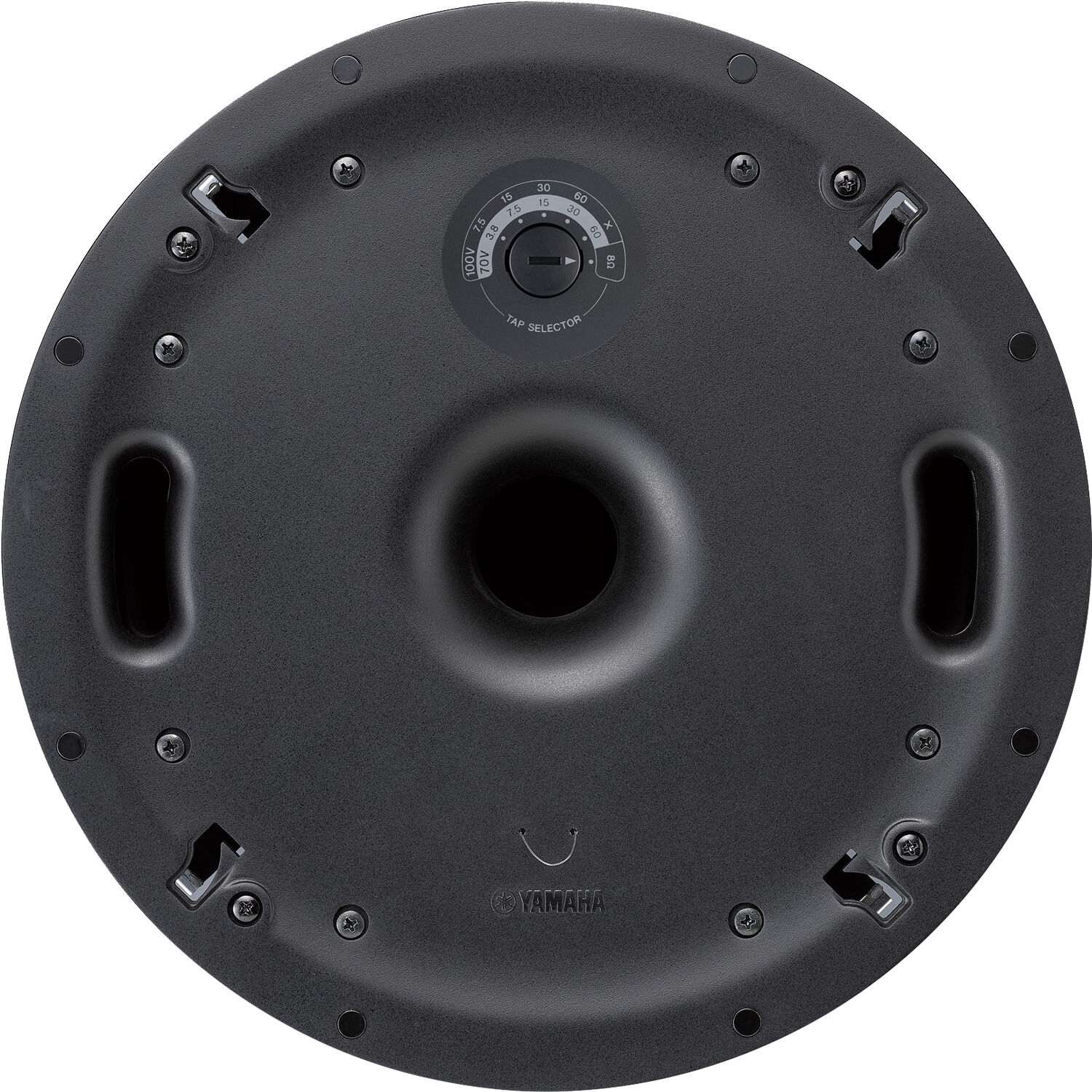

Constant Voltage / Transformer Taps |
70 V 100 V |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
60 W |
|
Enclosure Type |
Bandpass |
|
Drivers |
|
|
LF Driver |
8" / 20.3 cm |
|
Performance |
|
|
Frequency Range |
44 Hz to 200 Hz |
|
Maximum SPL |
114 dB SPL |
|
Sensitivity |
88 dB SPL |
|
Coverage Angle |
Omnidirectional |
|
Protections |
Output Limiter |
|
Connectivity |
|
|
Inputs/Outputs |

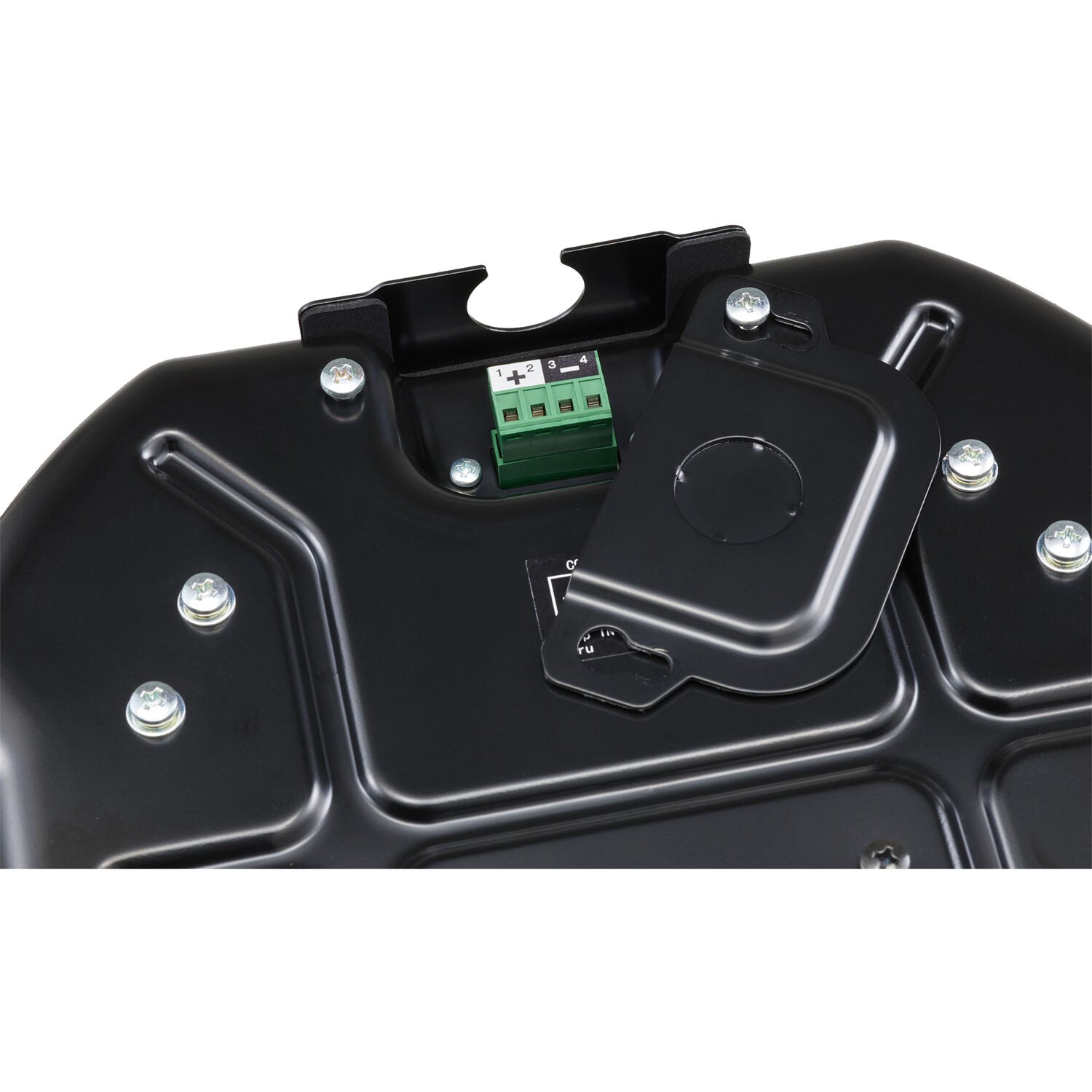

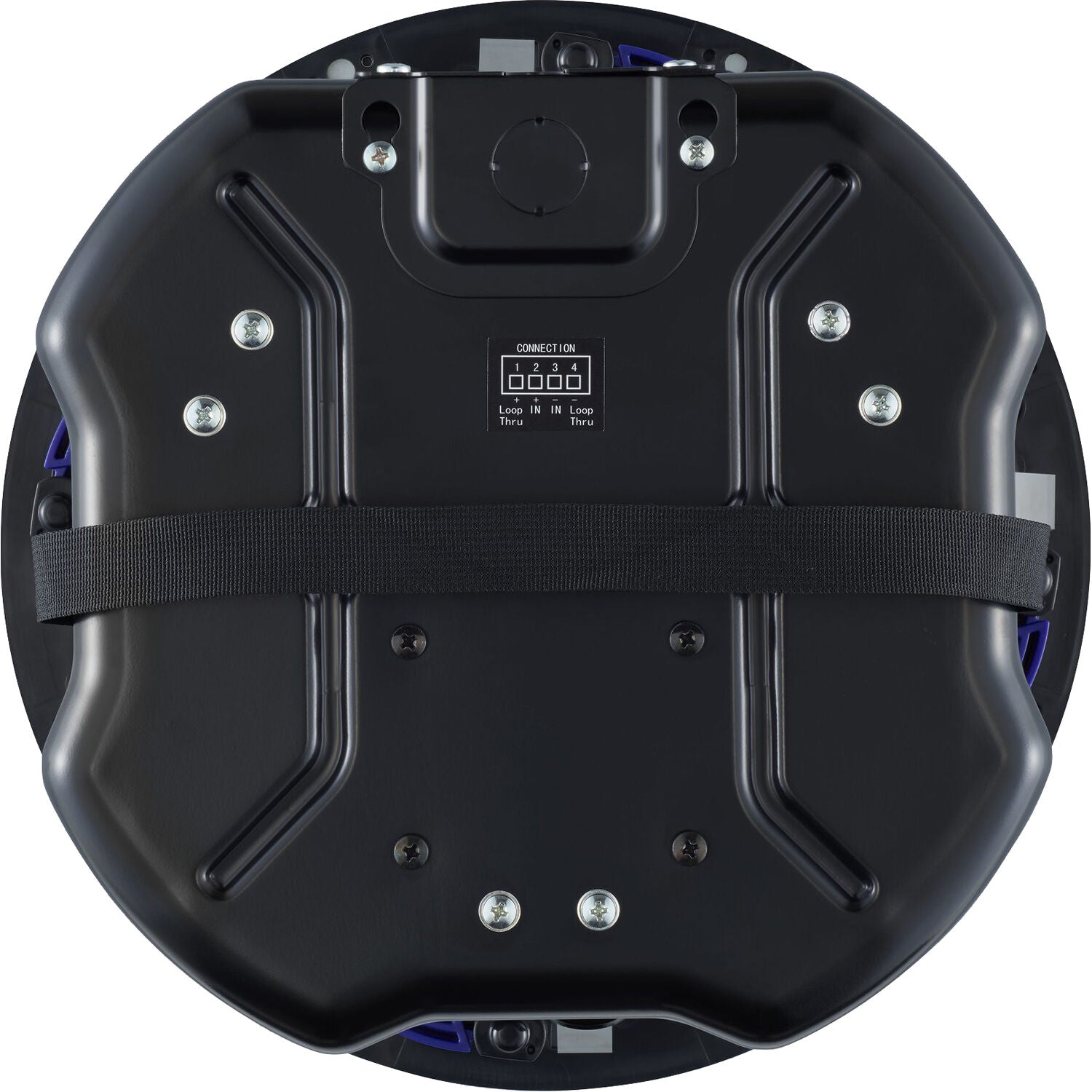

1 × Block 4-Pin Line Input/Thru (Locking, Removable) |
|
Physical |
|
|
Certifications |
CE, EAC, NFPA70, RoHS, UL1480, UL2043 |
|
Environmental Resistance |
No |
|
Color |
Black |
|
Mounting |
Ceiling Tile |
|
Cutout Size |
11.2" / 28.5 cm |
|
Mount Surface Thickness |
0.2 to 1.5" / 0.5 to 3.7 cm |
|
Dimensions |
12.8 × 12.4" / 32.4 × 31.4 cm |
|
Weight |
19.2 lb / 8.7 kg |
