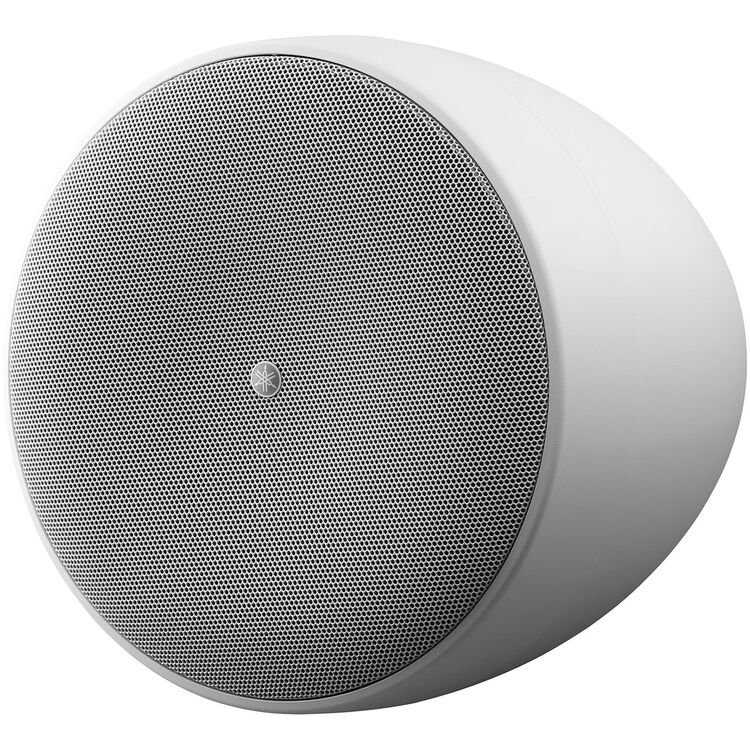

YAMAHA VXH6
YAMAHA VXH6
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
1 |
|
Speaker Configuration |
2-Way |
|
Power Handling |
75 W Continuous |
|

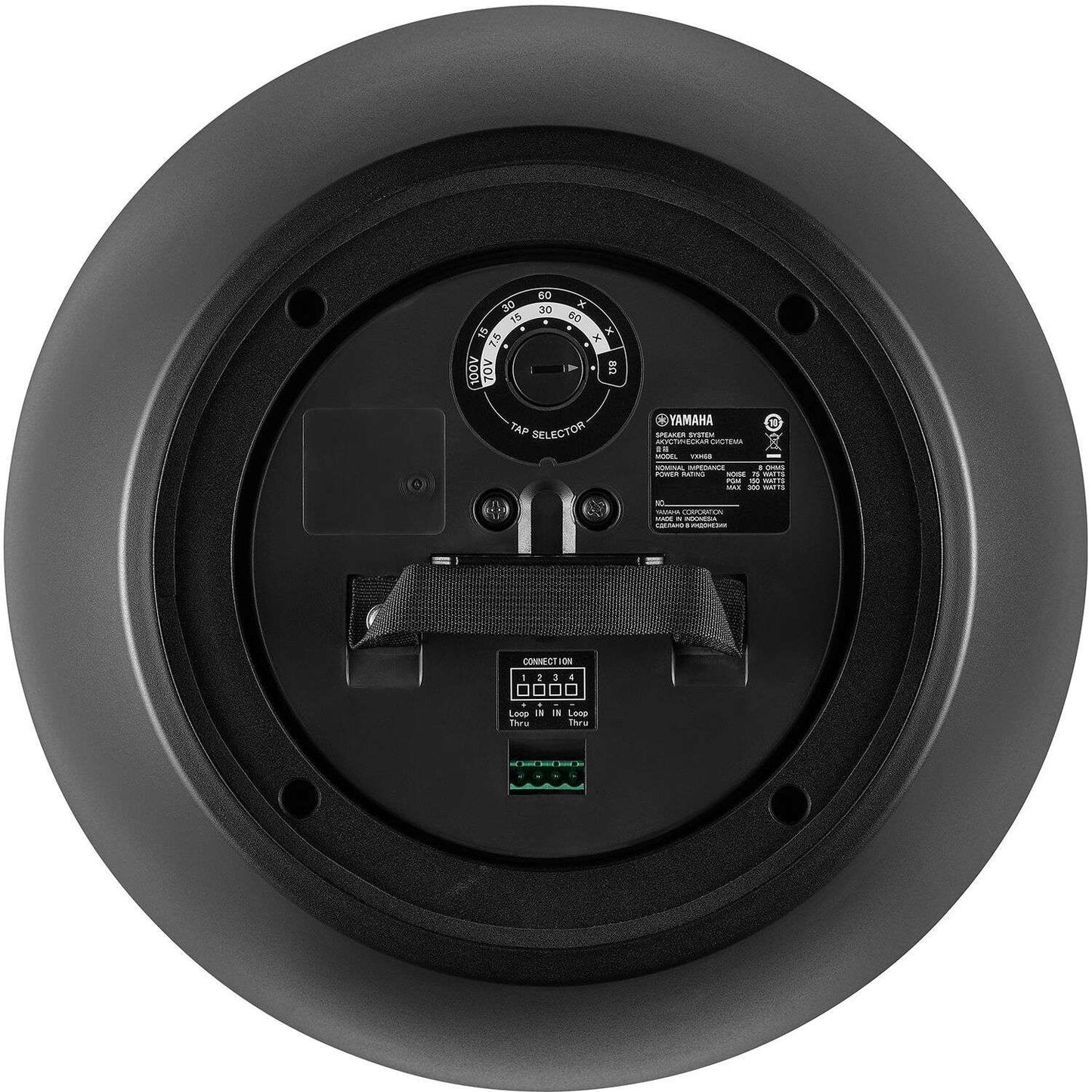

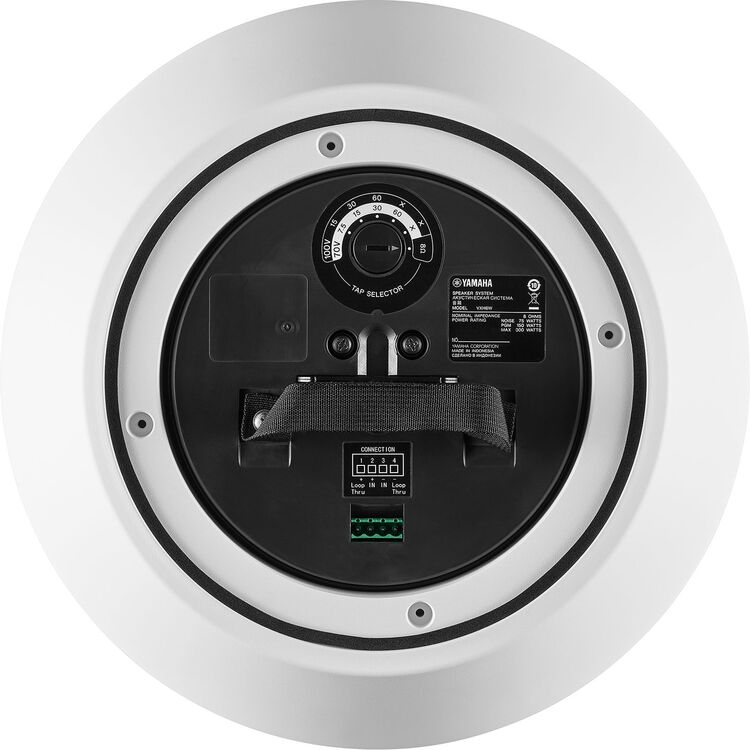

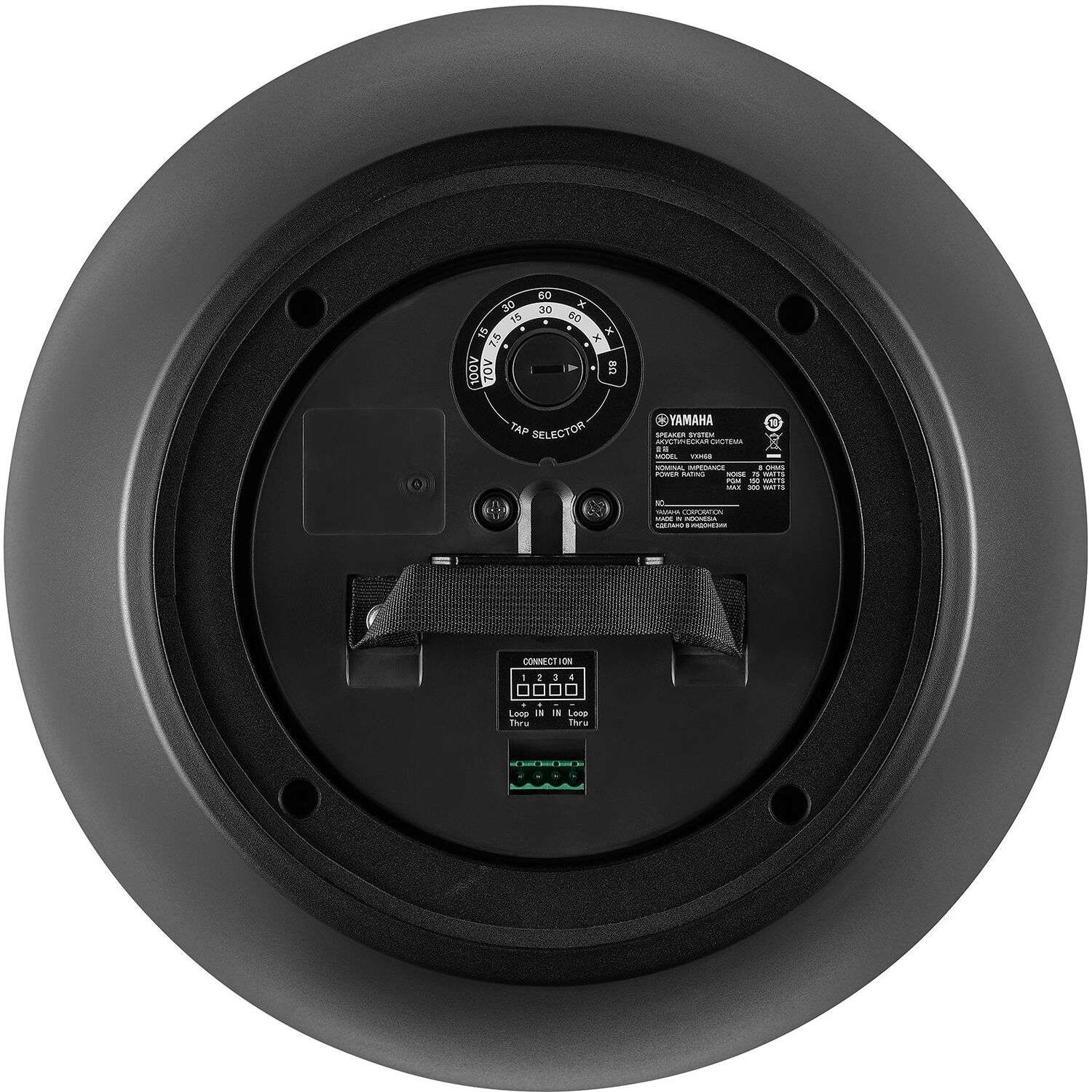

Constant Voltage / Transformer Taps |
70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
60 W |
|
Enclosure Type |
Bass-Reflex |
|

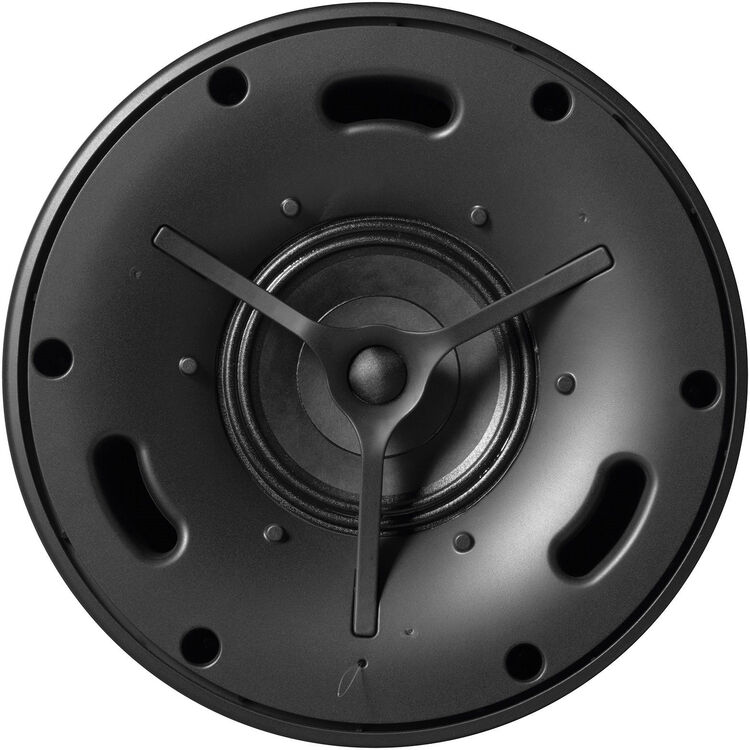

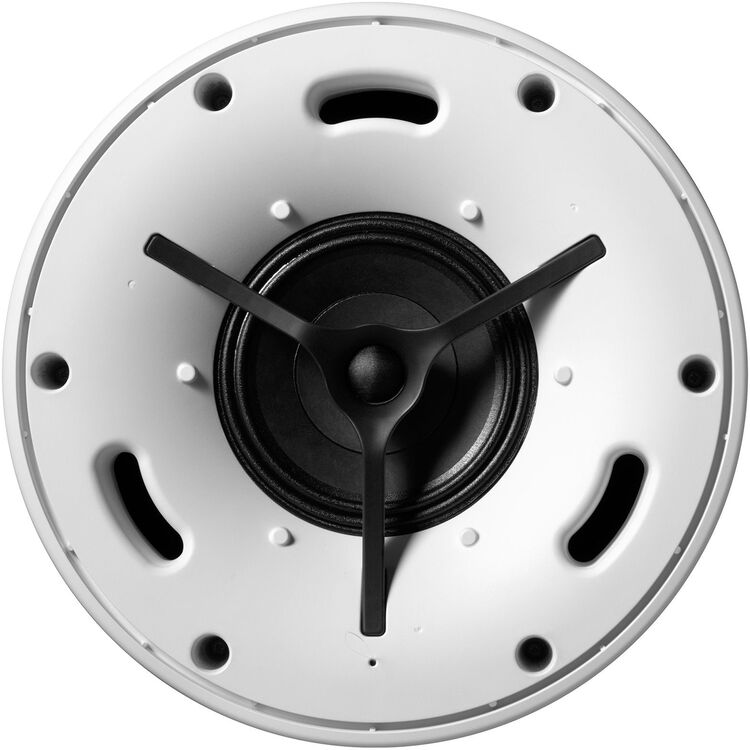

Drivers |
|
|
HF Driver |
1" / 2.5 cm Soft-Dome Tweeter |
|
LF Driver |
6.5" / 16.5 cm Woofer |
|
Performance |
|
|
Frequency Range |
55 Hz to 20 kHz (-10 dB) |
|
Maximum SPL |
118 dB SPL (Peak) |
|
Sensitivity |
93 dB SPL |
|
Coverage Angle |
120° Conical |
|
Crossover |
3 kHz |
|
Protections |
Overload |
|
Connectivity |
|
|
Inputs / Outputs |
1x Block 4-Pin Speaker Input/Thru (Locking, Removable) |
|
Maximum Wire Gauge |
12 AWG |
|
Physical |
|
|
Certifications |
CE, NFPA70, RoHS, UL1480A |
|
Environmental Resistance |
Dust/Water-Resistant (IP45) |
|
Color |
Black, White |
|
Mounting |
Suspension |
|
Dimensions |
14.9 x 13.4" / 37.9 x 34.1 cm |
|
Weight |
12.6 lb / 5.7 kg |
