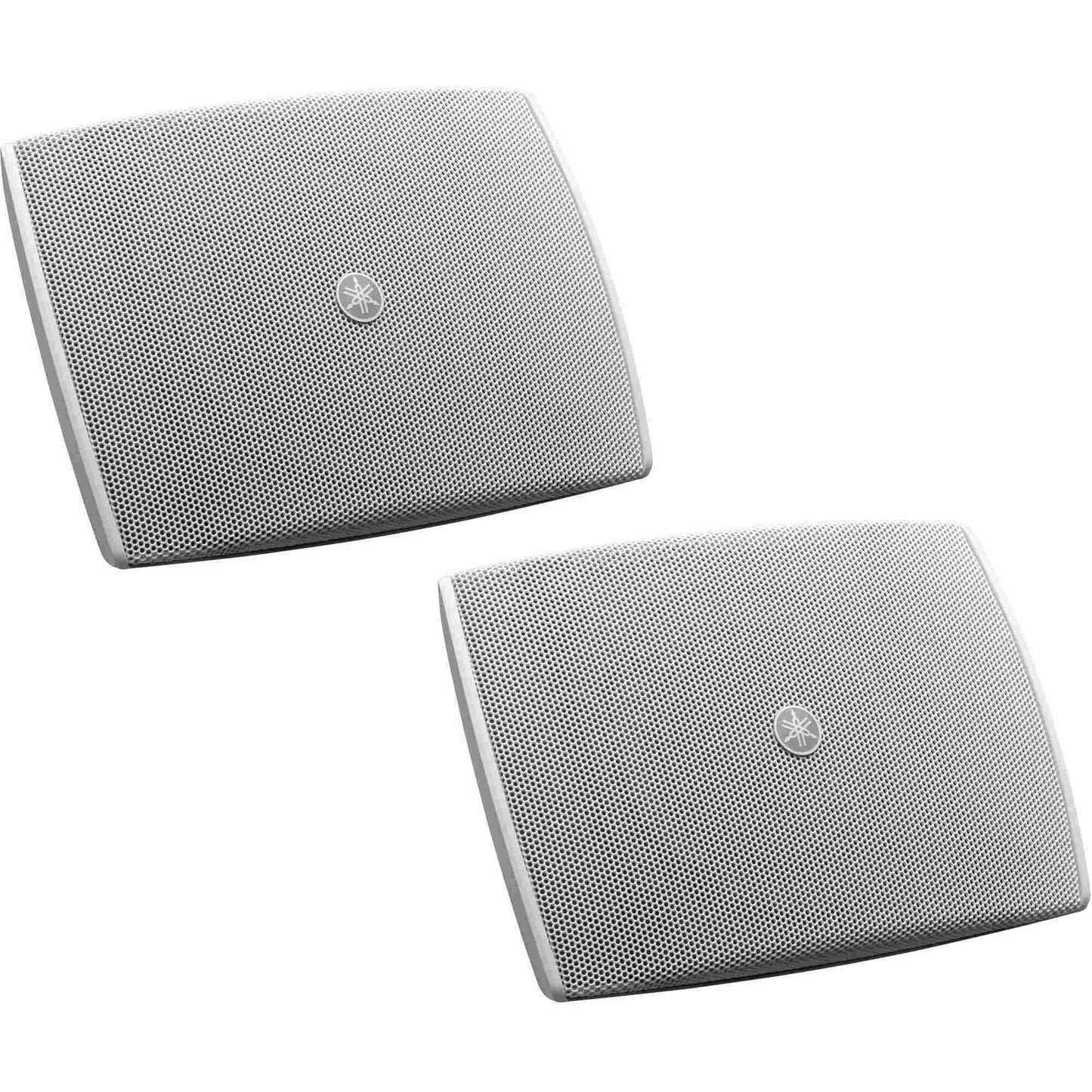

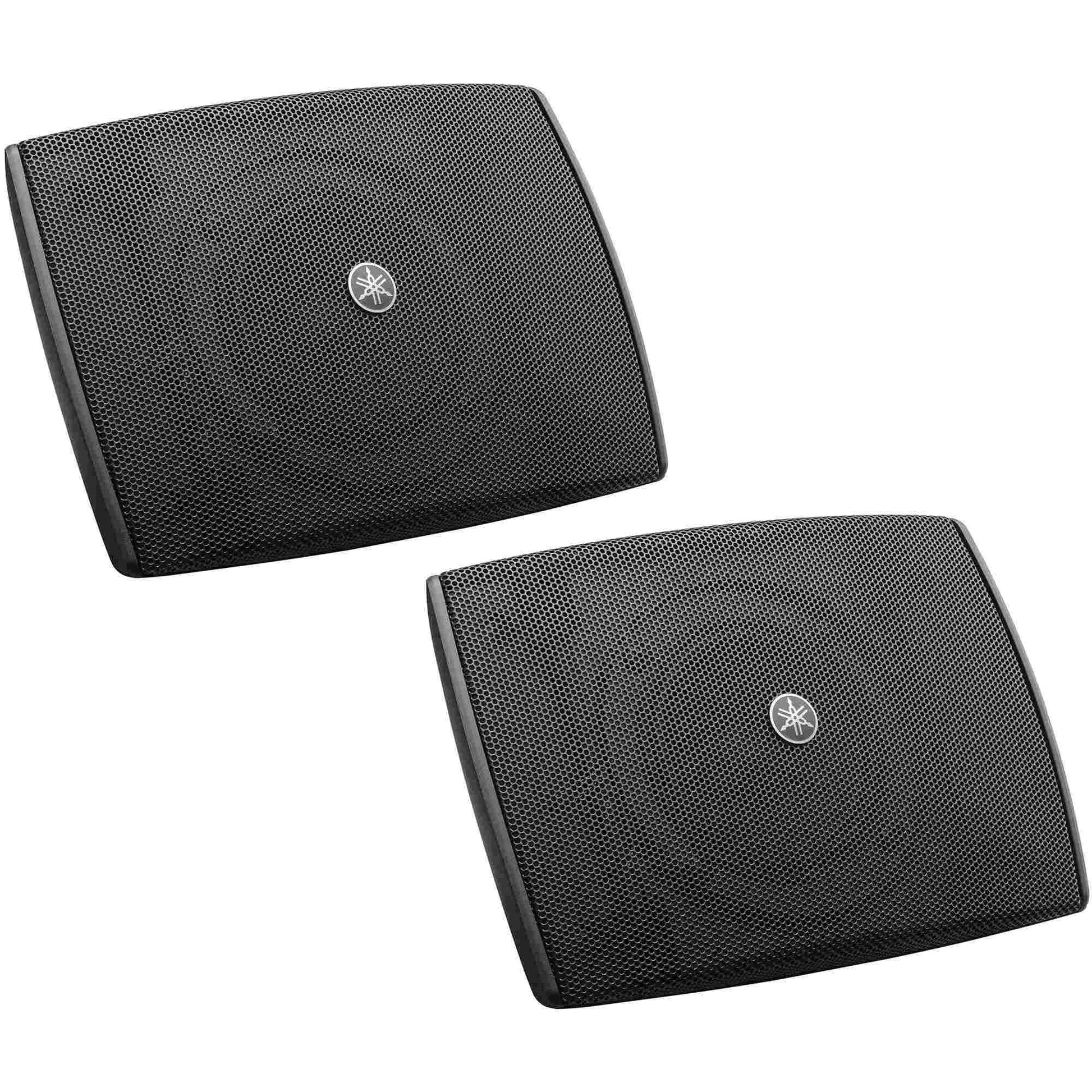

YAMAHA VXS3F
YAMAHA VXS3F
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
Full-Range |
|
Power Handling |
20 W Continuous |
|
Impedance |
8 Ohms |
|
Enclosure Type |
Sealed |
|
Drivers |
|
|
Full-Range Driver |
3.5" / 8.9 cm Cone |
|
Performance |
|
|
Frequency Range |
130 Hz to 20 kHz |
|
Maximum SPL |
105 dB SPL (Peak) |
|
Sensitivity |
86 dB SPL |
|
Coverage Angle |
150° Horizontal x 160° Vertical |
|
Protections |
Overload |
|
Connectivity |
|
|
Inputs / Outputs |

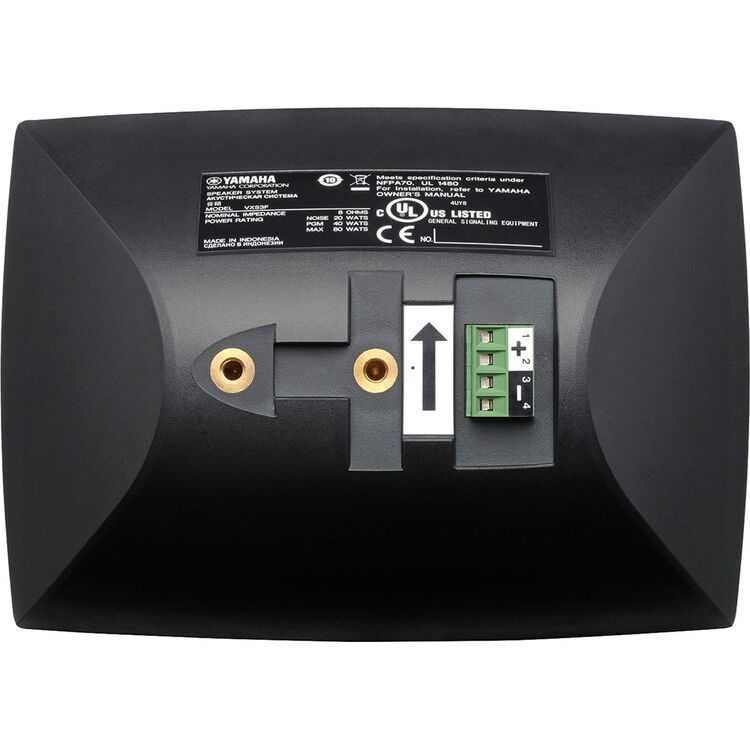

1x Block 4-Pin Speaker Input/Thru (Locking, Removable) |
|
Physical |
|
|
Certifications |
CE, NFPA70, RoHS, UL1480 |
|
Environmental Resistance |
No |
|
Color |
Black, White |
|

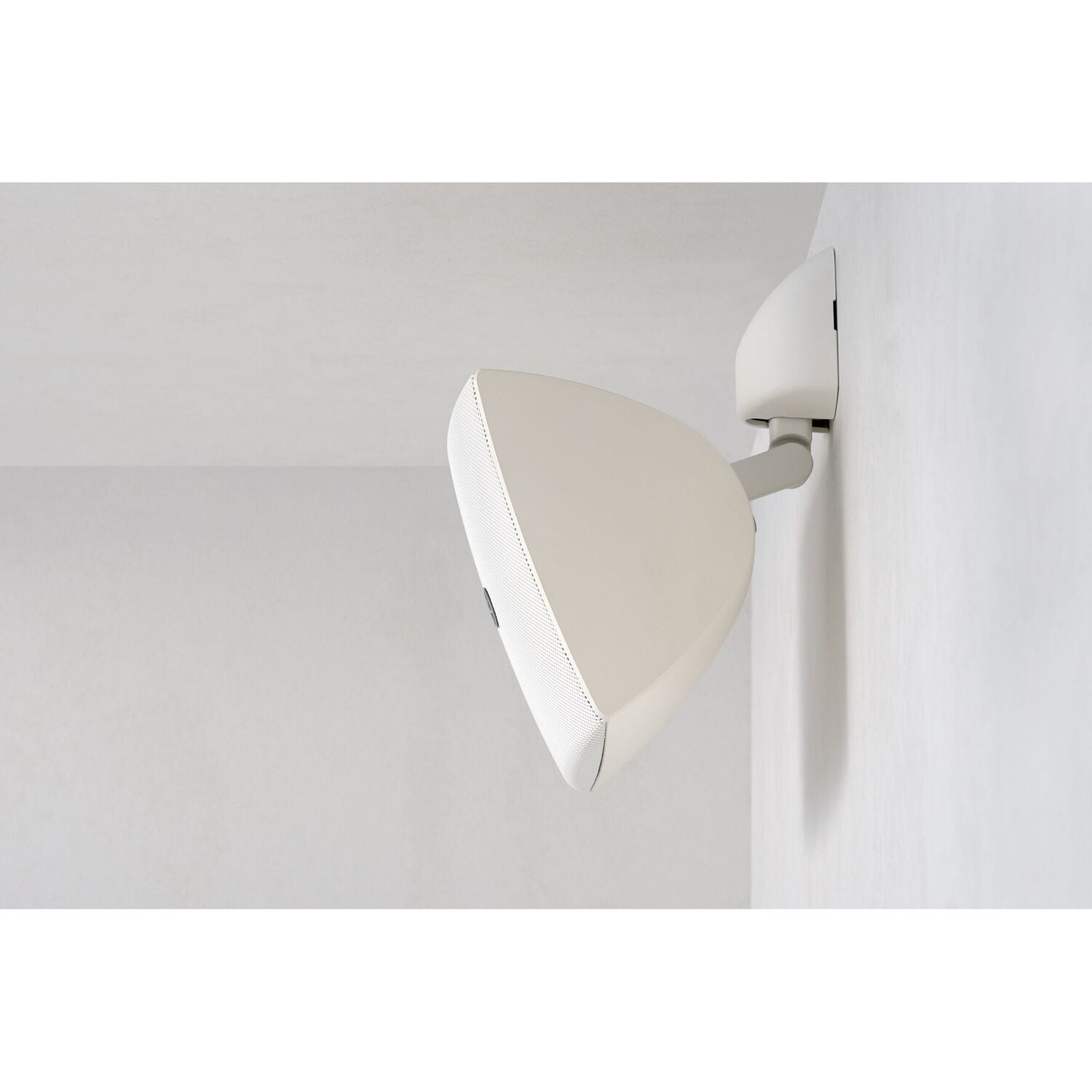

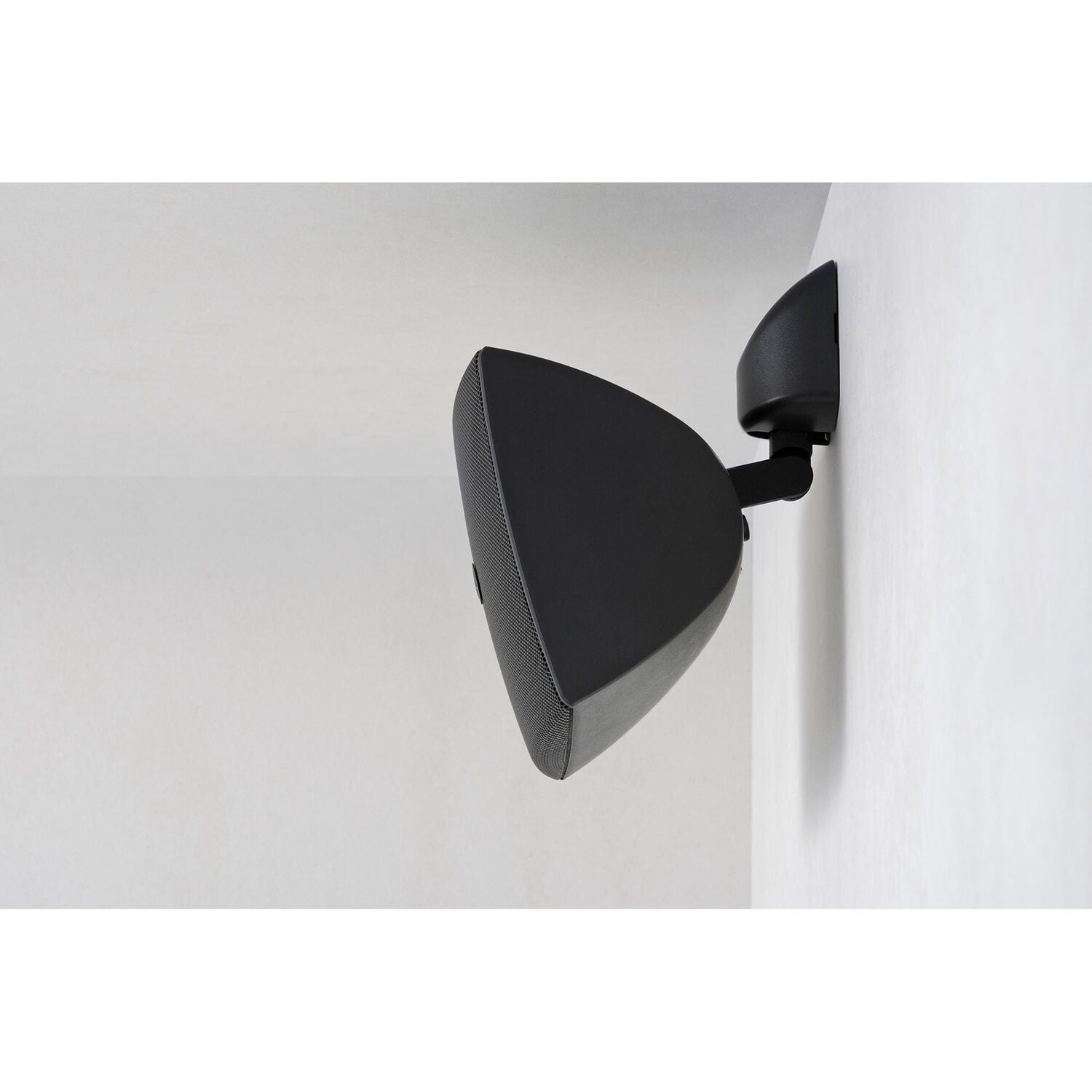

Mounting |
Bracket Point |
|
Dimensions |
7.2 x 5.1 x 3.7" / 18.4 x 13 x 9.5 cm |
|
Weight |
2.2 lb / 1 kg (Without Bracket) |
