YAMAHA VXS5
YAMAHA VXS5
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
2-Way |
|
Power Handling |
75 W Continuous |
|
Constant Voltage / Transformer Taps |
70 V: 30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
30 W |
|
Enclosure Type |
Bass-Reflex |
|
Drivers |
|
|
HF Driver |
1" / 2.5 cm Soft-Dome Tweeter |
|
LF Driver |
5.25" / 13.34 cm Woofer |
|
Performance |
|
|
Frequency Range |
62 Hz to 20 kHz (-10 dB) |
|
Maximum SPL |
114 dB SPL |
|
Sensitivity |
89 dB SPL |
|
Coverage Angle |
120° H x 120° V |
|
Crossover |
3 kHz |
|
Connectivity |
|
|
Inputs / Outputs |

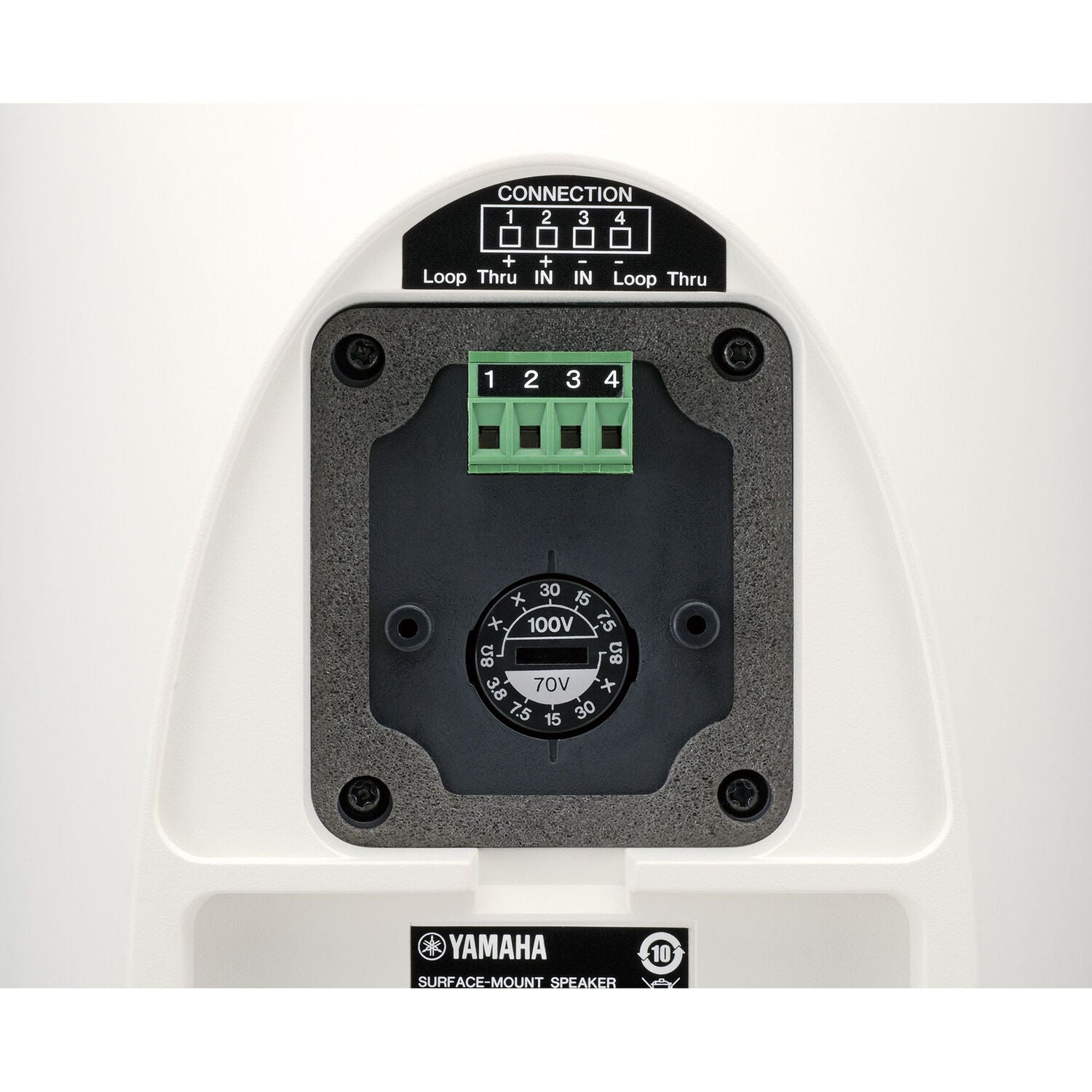

1x Block 4-Pin Speaker Input/Thru (Locking, Removable) |
|
Physical |
|
|
Certifications |
CE, EAC, NFPA70, RoHS, UL1480 |
|
Environmental Resistance |
Dust/Water-Resistant (IP35) |
|
Color |
Black, White |
|
Mounting |
Bracket Point |
|
Construction Material |
ABS |
|
Dimensions |
11 x 6.9 x 6.4" / 27.9 x 17.5 x 16.3 cm |
|
Weight |
7.9 lb / 3.6 kg |
