YAMAHA VXS8
YAMAHA VXS8
|
Key Specifications |
|
|
Active/Passive |
Passive |
|
Number of Included Speakers |
2 |
|
Speaker Configuration |
2-Way |
|
Power Handling |
90 W Continuous |
|
Constant Voltage / Transformer Taps |
70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass |
|
Impedance |
8 Ohms |
|
Transformer Wattage |
60 W |
|
Enclosure Type |
Bass-Reflex |
|
Drivers |
|
|
HF Driver |
1" / 2.5 cm Soft-Dome Tweeter |
|
LF Driver |
8" / 20.3 cm Woofer |
|
Performance |
|
|
Frequency Range |
51 Hz to 20 kHz (-10 dB) |
|
Maximum SPL |
117 dB SPL |
|
Sensitivity |
91 dB SPL |
|
Coverage Angle |
100° Conical |
|
Connectivity |
|
|
Inputs / Outputs |

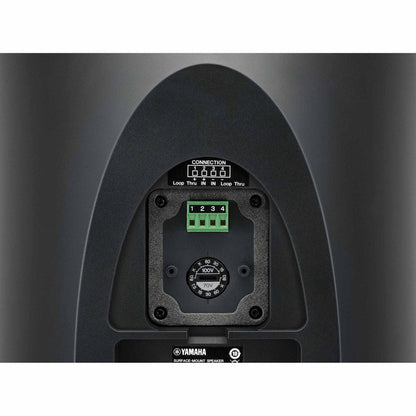

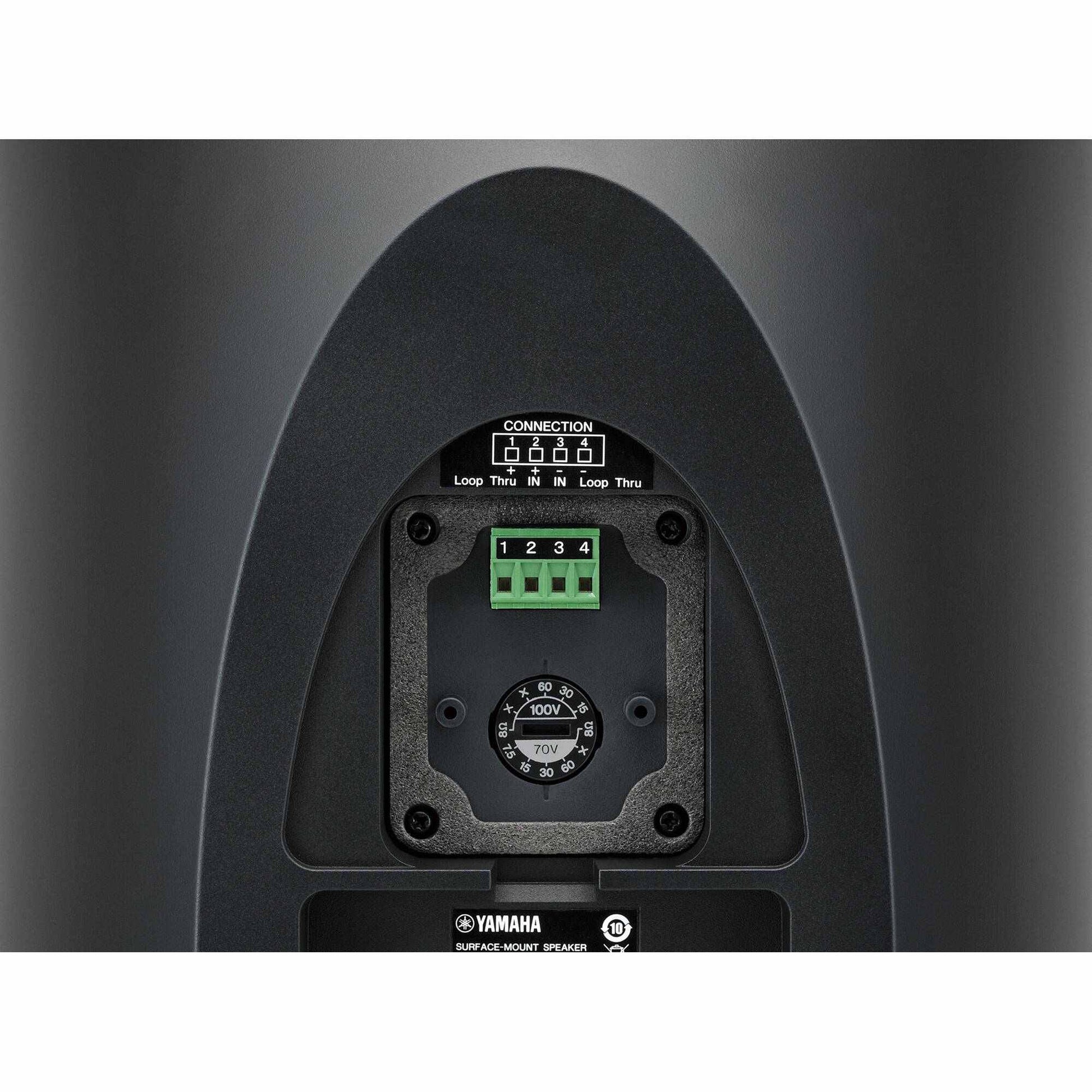

1x Block 4-Pin Speaker Input/Thru (Locking, Removable) |
|
Physical |
|
|
Certifications |
CE, EAC, NFPA70, RoHS, UL1480 |
|
Environmental Resistance |
Dust/Water-Resistant (IP35) |
|
Color |
Black, White |
|
Mounting |
Bracket Point |
|
Construction Material |
ABS |
|
Dimensions |
16.9 x 10.9 x 9.4" / 42.9 x 27.7 x 23.9 cm |
|
Weight |
18.1 lb / 8.2 kg |
