Key Specifications

Product / Device Type

4K UHD Smart Multi-LED DLP Home Theater Projector

Projection System / Technology

1-Chip DMD DLP

Native Resolution

4K UHD (3840 x 2160)

Native & Supported Aspect Ratios

Native: 16:9 | Supported: 4:3, 2.4:1

Maximum Brightness

3,200 ANSI Lumens

Color Depth

10-Bit (1.07 Billion Colors)

HDR Support

Yes (HDR10 / HDR10+ / Hybrid Log-Gamma)

3D Format Support

Yes (Frame Sequential, Frame Packing, Side-by-Side, Top-Bottom, DLP Link 3D Glasses Supported)

Sync Rates

Horizontal: 15 to 270 kHz | Vertical: 23 to 240 Hz

Projection Modes

Front, Rear, Ceiling Mountable

Projection Lens & Optics

Lens Features & Focus

Standard Throw Lens with Manual Focus

Lens Aperture & Focal Length

f/1.8 to 2.25 | f = 17.02 mm to 22.21 mm

Projection Image Size

30" to 300" (0.76 m to 7.62 m)

Throw Distance & Ratio

Standard Throw: 2.5 ft to 32.7 ft (0.76 m to 9.96 m) | Throw Ratio: 1.15 to 1.5:1 (100" @ 10 ft / 3 m)

Optical Zoom & Lens Shift

1.3x Manual Optical Zoom | Lens Shift: Horizontal ±15% / Vertical +60%

Keystone Correction

Manual: Horizontal ±30° | Vertical ±30°

Light Source Specifications

Light Source Engine

Multi-LED Light Engine

Expected Light Source Life

Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours

Smart System, Hardware & Wireless Connectivity

Operating System & Smart Features

Android TV OS

Virtual Assistant / Casting

Apple AirPlay, Works with Google Assistant

Mobile App & Wireless Compatibility

Wi-Fi 5 (802.11ac) / Bluetooth 5.0
Mobile App Support for Android & iOS (via Included Adapter)

Audio, Physical Interfaces & Security

Integrated Audio

Built-in 5 W Speaker (1x 5 W Speaker)

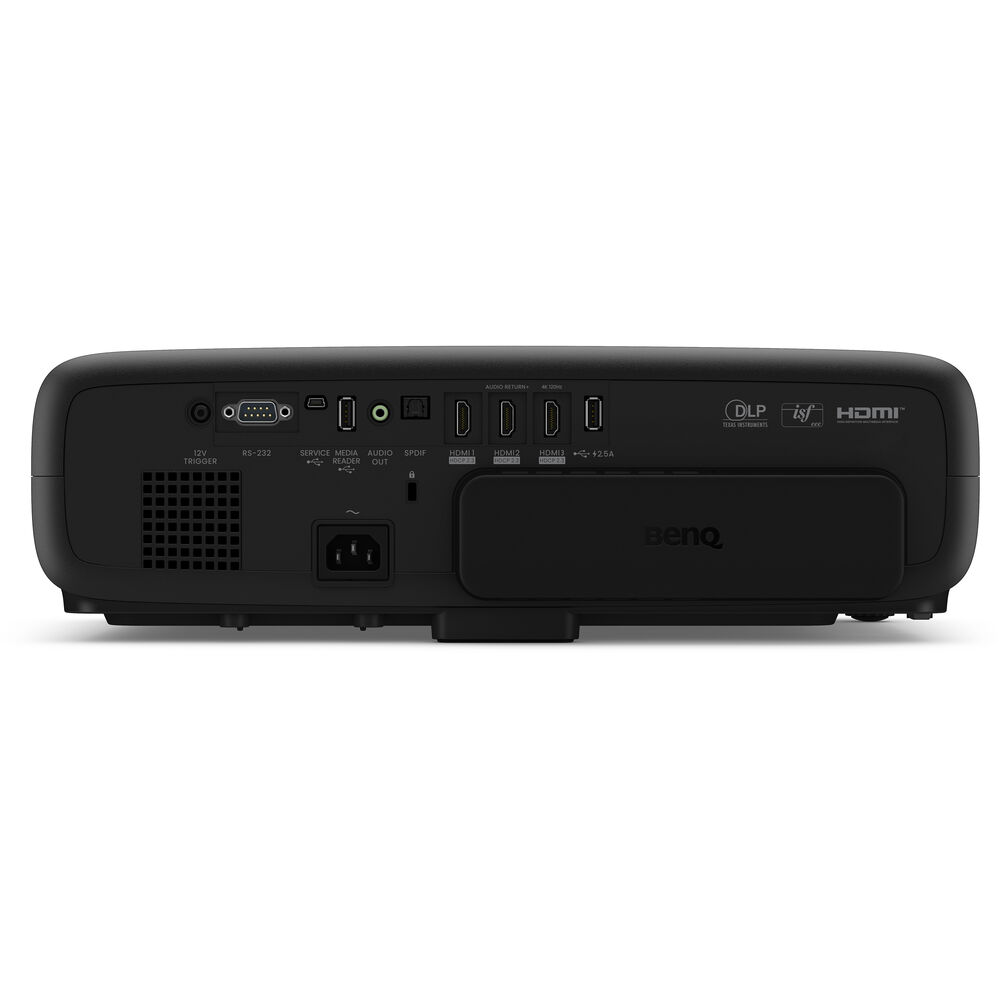

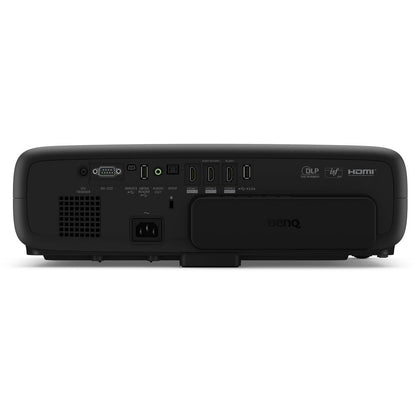

Audio / Video Connections

3x HDMI 2.1 Inputs (HDCP 2.3 Compliant)
1x HDMI 2.0b Input
1x TOSLINK Optical Audio Output
1x 3.5mm Mini Audio Output

Control, Data & Power Interfaces

1x DE-9/DB-9 (RS-232 Control Input)
1x 12V Trigger Control Output
2x USB Type-A 2.0
1x Micro-USB (Service)
1x Mini-USB (Power)

Security Features

Cable Lock Slot, Password Protection, Security Bar

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz

Power Consumption

Medium Brightness: 330 W
Standby Mode: <0.5 W

Acoustic Noise Level

Medium Brightness: 30 dB | Low Brightness: 29 dB

Operating Temperature Range

0°C to 40°C (32°F to 104°F)

Unit Dimensions (W×H×D)

520.5mm x 135.3mm x 312.1mm (20.5" x 5.3" x 12.3")

Net Weight

6.1 kg (13.4 lbs)

Packaging Info

Box: 589.3mm x 436.9mm x 317.5mm (23.2" x 17.2" x 12.5") | Gross Weight: 10.15 kg (22.37 lbs)
