Key Specifications

Wired/Wireless

Wireless

Transducer Type

Dynamic

Housing Material

Solid Cast Metal Alloy

RF Frequency Range

600-690 MHz or 863-865 MHz (Model Dependent)

Channel Frequency Spacing

450 kHz (600 MHz) / 250 kHz (863 MHz)

Operating Distance

About 100 m (Line of Sight)

Audio Frequency Range

60 Hz – 18 kHz (3 dB)

Signal-to-Noise Ratio (SNR)

> 105 dB

Total Harmonic Distortion

0.005

Maximum Deviation

± 25 kHz

Receiver & RF Performance

Intermediate Frequency (IF)

110 MHz, 10.7 MHz

Receiver Sensitivity

12 dBuV (80 dB S/N)

Sensitivity Adj. Range

12 – 32 dBuV

Erratic Control

75 dB

Antenna Connector

BNC / 50 Ω

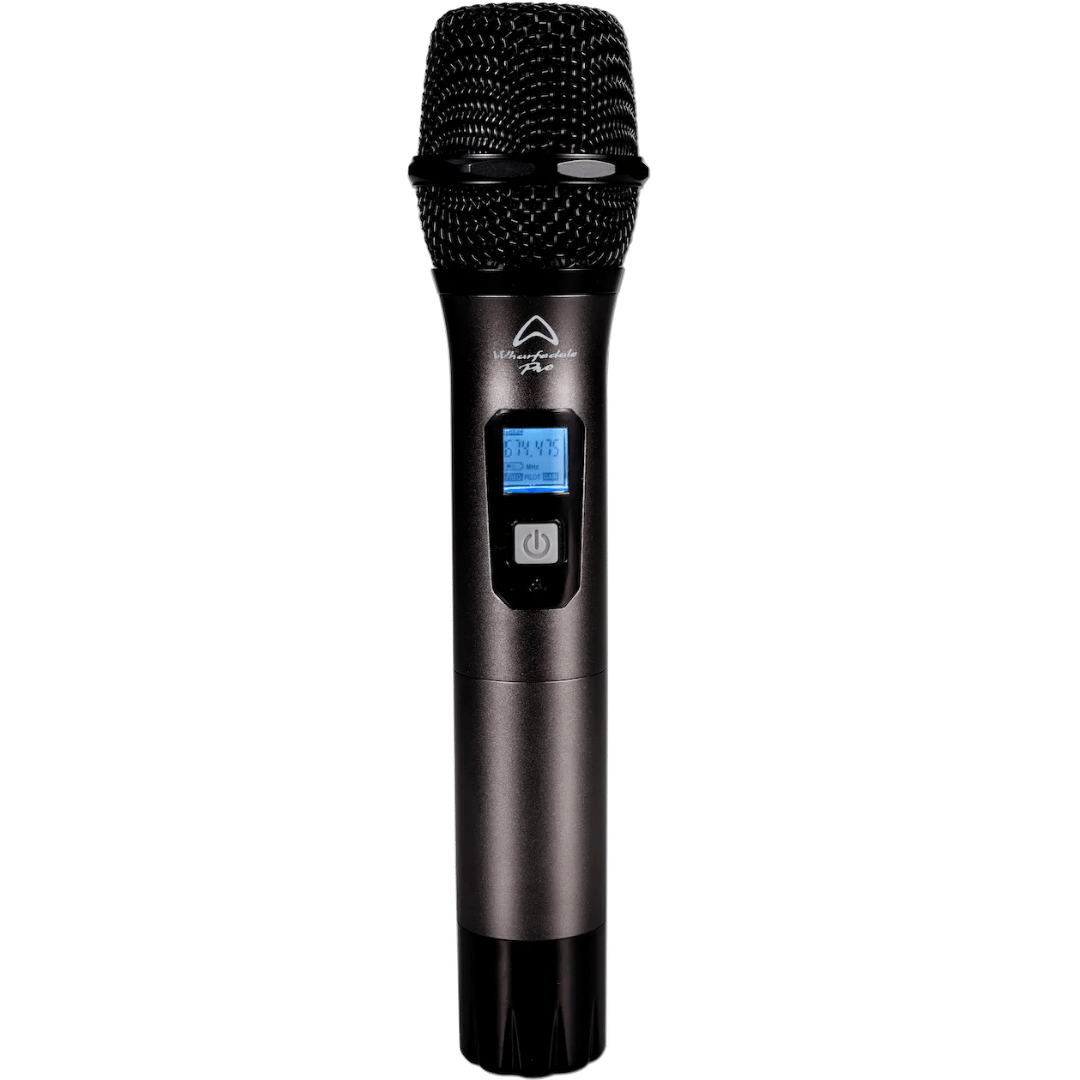

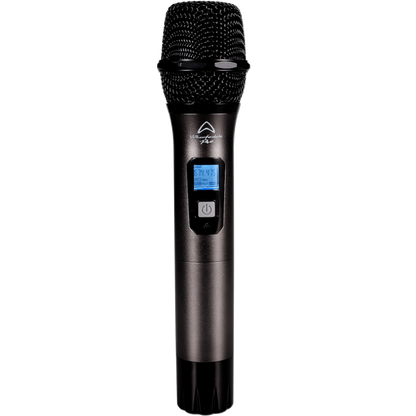

Transmitter & Battery

RF Output Power

10 mW – 30 mW

EQ Modes

5 Selectable Presets

Battery Requirements

2 × 1.5v AA per Microphone

Battery Life

6 – 8 Hours

Connectivity & Aesthetics

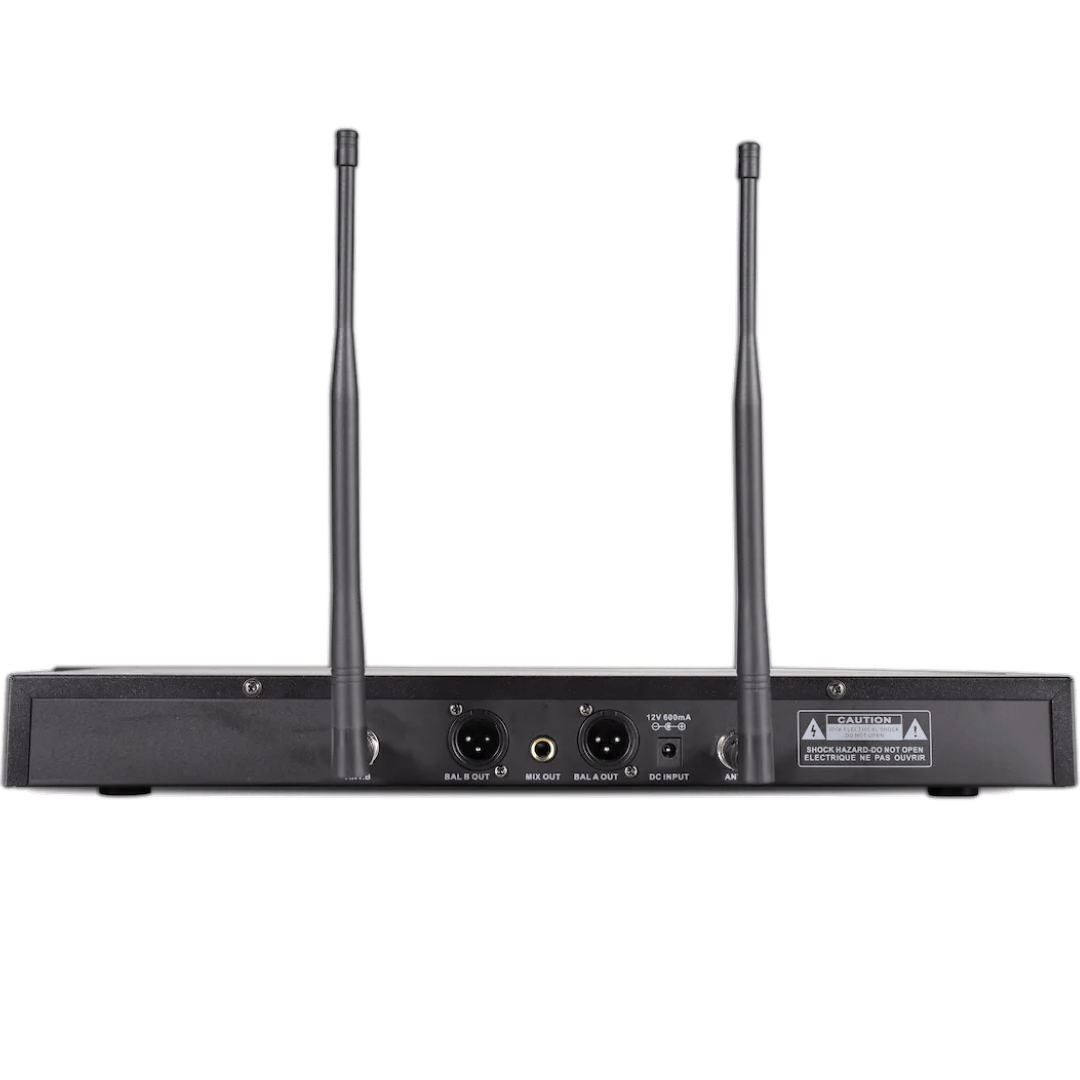

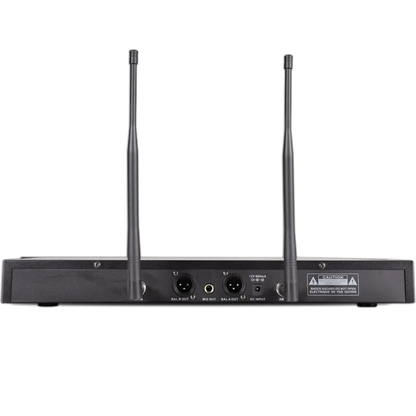

Audio Outputs

Balanced XLR (Per Channel)

Display Type

LCD

Color Scheme

Black Body, Black Pop Shield, Grey Switch
