Key Specifications

Active or Passive

Active

System Type

Array Element

Configuration

Coaxial 2-way

System Continuous Power

680 W

System Peak Power

1360 W

Max SPL @ 1m

133 dB

Freq Range (-10 dB)

35 Hz – 25 kHz

Freq Response (+/-3 dB)

55 Hz – 20 kHz

Bluetooth

No

IP Certification

None

Driver Brand

Beyma

LF Driver Size

12"

LF Magnet Material

Ferrite

LF Frame Material

Aluminium

LF Voice Coil Size

4"

HF Driver Type

Compression Driver

HF Voice Coil Size

2.87"

HF Diaphragm Material

Composite Titanium / Polyester

HF Exit Size

1.5″

HF Power (RE:AES2-2012)

80 W

HF Rated Impedance

16 Ω

HF Nominal Coverage (H x V)

100° x 20°

Vertical Splay Angle Range

0°-5°–10°–15°

Horizontal Splay Angle

15°

Preset Library

No

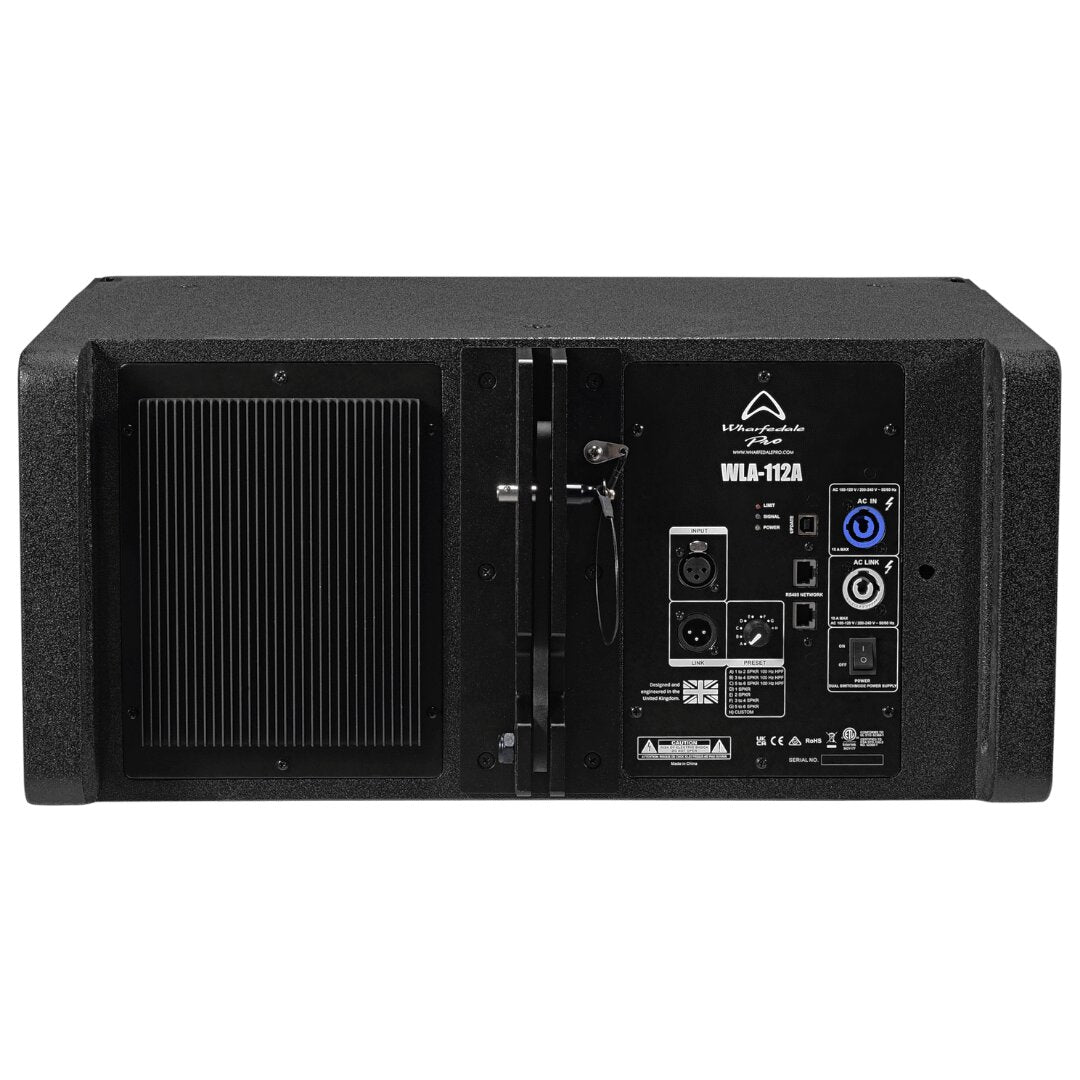

Input Connector

Balanced Socket XLR

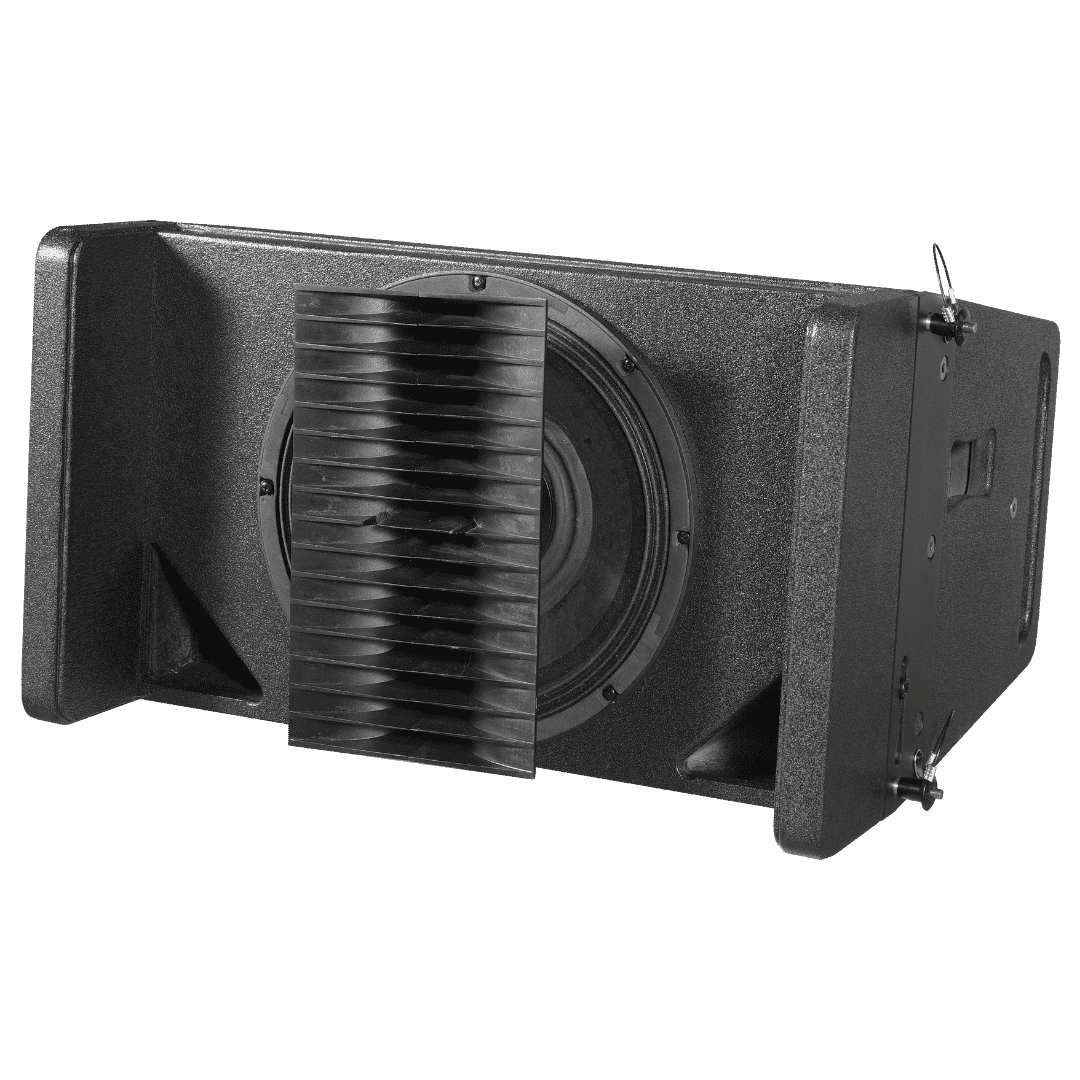

Waveguide Type

EVO-Fold

Cabinet Type

Trapezoid

Enclosure Material

Birch Plywood

Grille Material and Finish

Powder Coated Perforated Steel

Finish

Black Tough-Tone

Handles

2 side / 2 back

Deployment

Flying, Ground, Pole

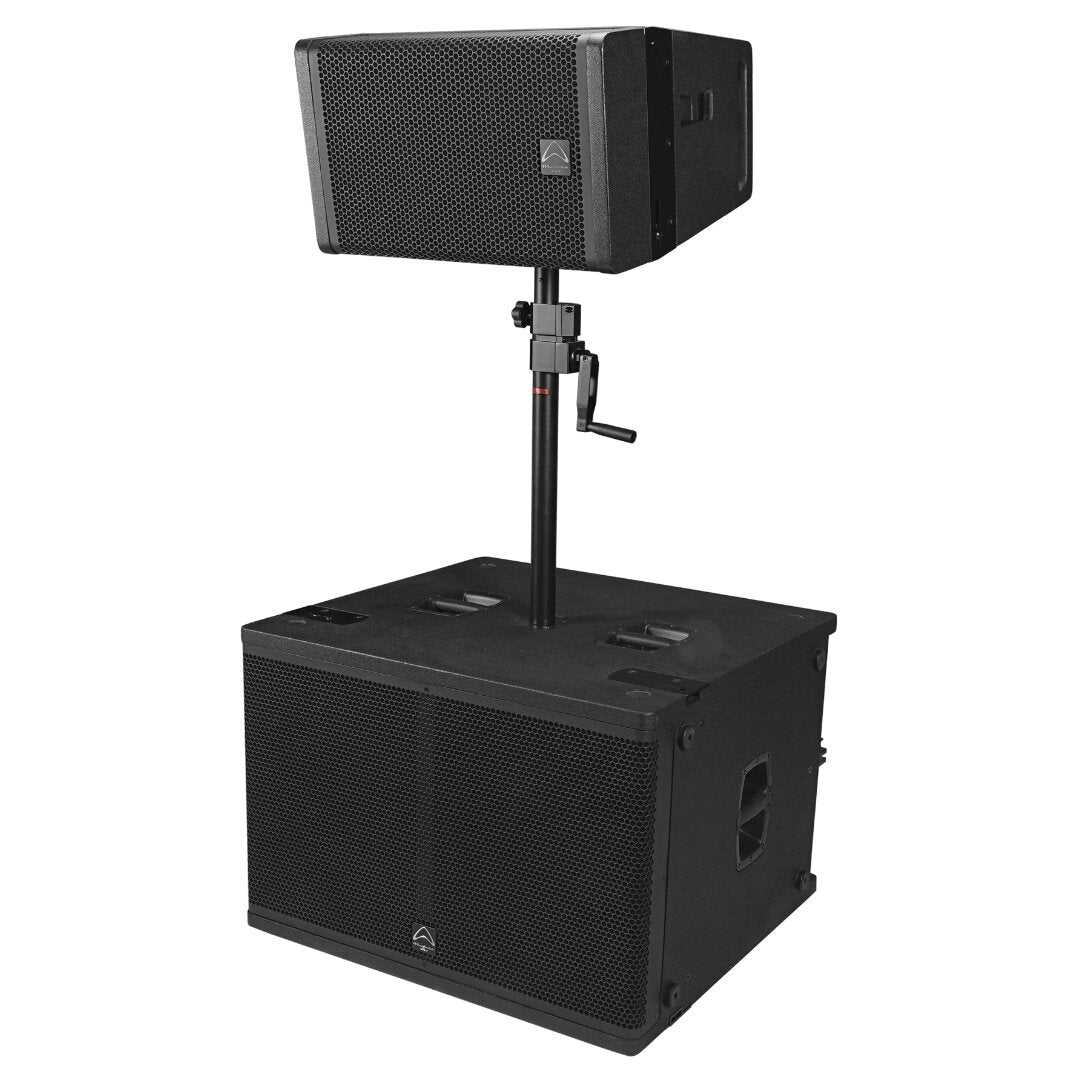

Pole Mount

35 mm Dual Angle -2.5° / +7.5°

Brackets Included

Yes

Rigging

Yes (Integral 3 Points)

Sensitivity 2.83v / 1m

101 dB

Crossover Frequency

1.2 kHz

Recommended HPF = BW 18 dB/OCT.

30 Hz

Amplifier design

Class D

Driver Protection

Independent LF/HF RMS & Peak Limiters

Thermal Protection

Amplifier Shut Down, Auto Reset

DC and Short Protection

Yes

Clip Limiter

Yes

Signal Processing

DSP Based, 8 FIR Presets

Indicators

Limiter: Red, Signal: Green, Power/Active: White, Find Function: Blue

Active loudspeaker Input Impedance

Balanced: 10 KΩ

Link Connector

Balanced Socket XLR

Input Sensitivity

+4 dBu

Max Input Level

+18 dBu

Update

USB Type B

Network (RS485)

RJ45

Main Power

AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic

Power Supply

High Efficiency Dual Switching Mode

Included Accessory

User Manual

Unpacked - Front Height (mm)

332

Unpacked - Rear Height (mm)

246

Unpacked - Width Front (mm)

566

Unpacked - Width Rear (mm)

566

Unpacked - Depth (mm)

465

Packed - Height (mm)

661

Packed - Width Front (mm)

550

Packed - Width Rear (mm)

550

Packed - Depth (mm)

410

Weight - Nett (kg)

30.4

Weight - Gross (kg)

32.8
