Key Specifications

Product / Accessory Type

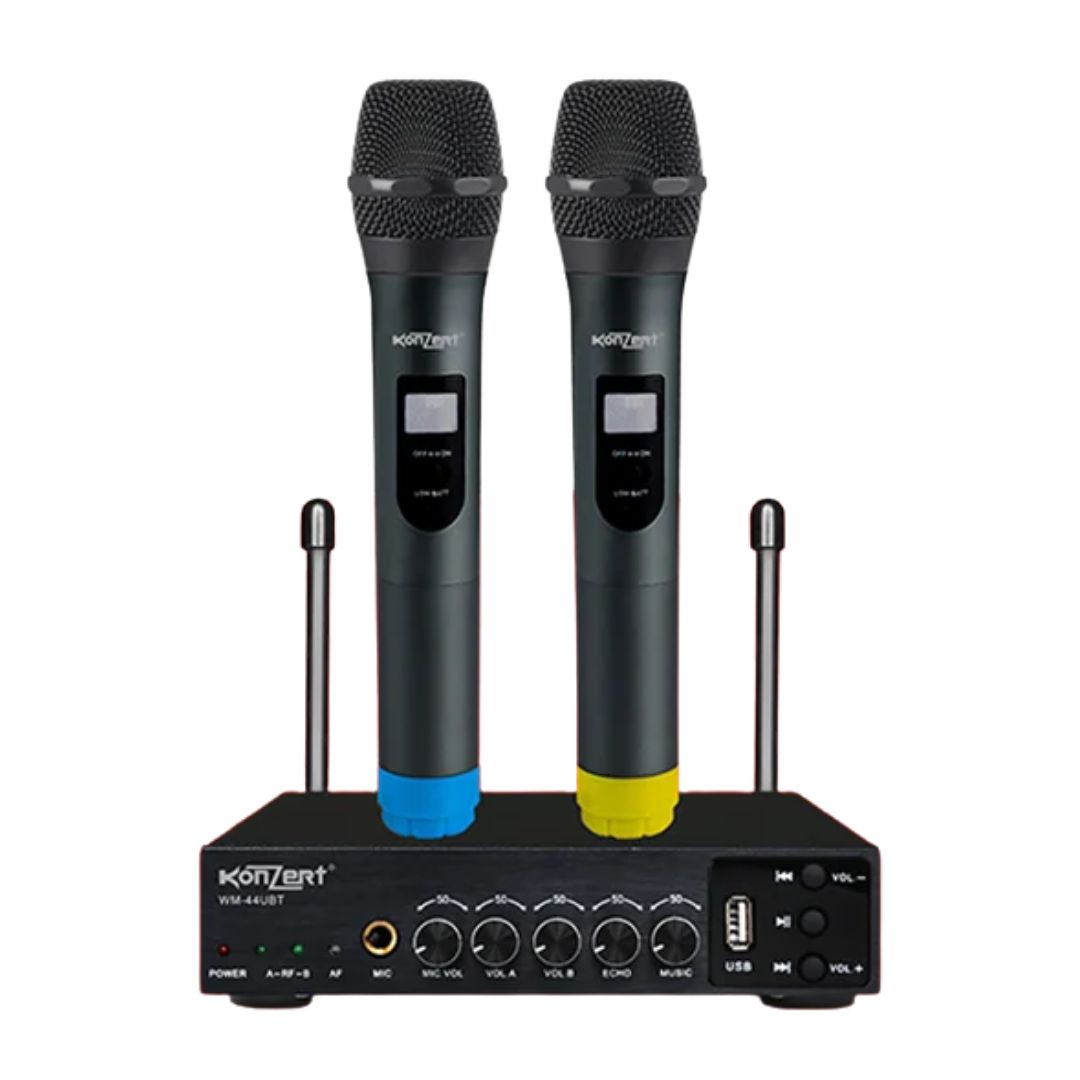

Dual-Channel Wireless Microphone System

System Capacity / Configuration

2-Person Dual Handheld Transmitter Setup with Desktop Receiver

Transmitter Element & Pick-up

600 Ohm Dynamic Element (One-Touch Operation)

Antenna Type

Internal Built-In Antenna

Included Accessories & Hardware

2x Wireless Handheld Transmitters, 1x Desktop Receiver, Power Adapter, 1/4" (6.35mm/6.5mm) TS Audio Cable, 3.5mm TRS Audio Cable, RCA-to-3.5mm Cable, 4x AA Batteries, User Manual

System Performance Specifications

Carrier Frequency Range

170 MHz to 880 MHz (Fixed Frequency Standard)

Operating / Working Distance

Up to 30 m (98.4 ft) in Standard Conditions

Frequency Response

50 Hz to 18 kHz (±3 dB)

System Dynamic Range

>95 dB

Signal-to-Noise Ratio (S/N)

>95 dB

Total System Distortion (THD)

<1% (at 1 kHz Modulation)

Frequency Stability

<0.002%

Receiver Specifications

Receiving Channels

2-Line Independent Dual Channels

Receiving Sensitivity

2 mV

Adjacent Frequency Interference Ratio

>90 dB

Image / Mirror Interference Ratio

>88 dB

Audio Output Level

0 to 300 mV

Wireless Connectivity

Bluetooth 4.1 Audio Streaming

Supply Voltage

100–240 V AC Power Supply Adapter

Transmitter Specifications

RF Output Power

10 mW

Spurious Emission

<40 dB Relative to Principal Wave

Current Consumption

<25 mA

Power Requirements

1.5 V AA Batteries (2x per Handheld Transmitter)
