Key Specifications

Product / Accessory Type

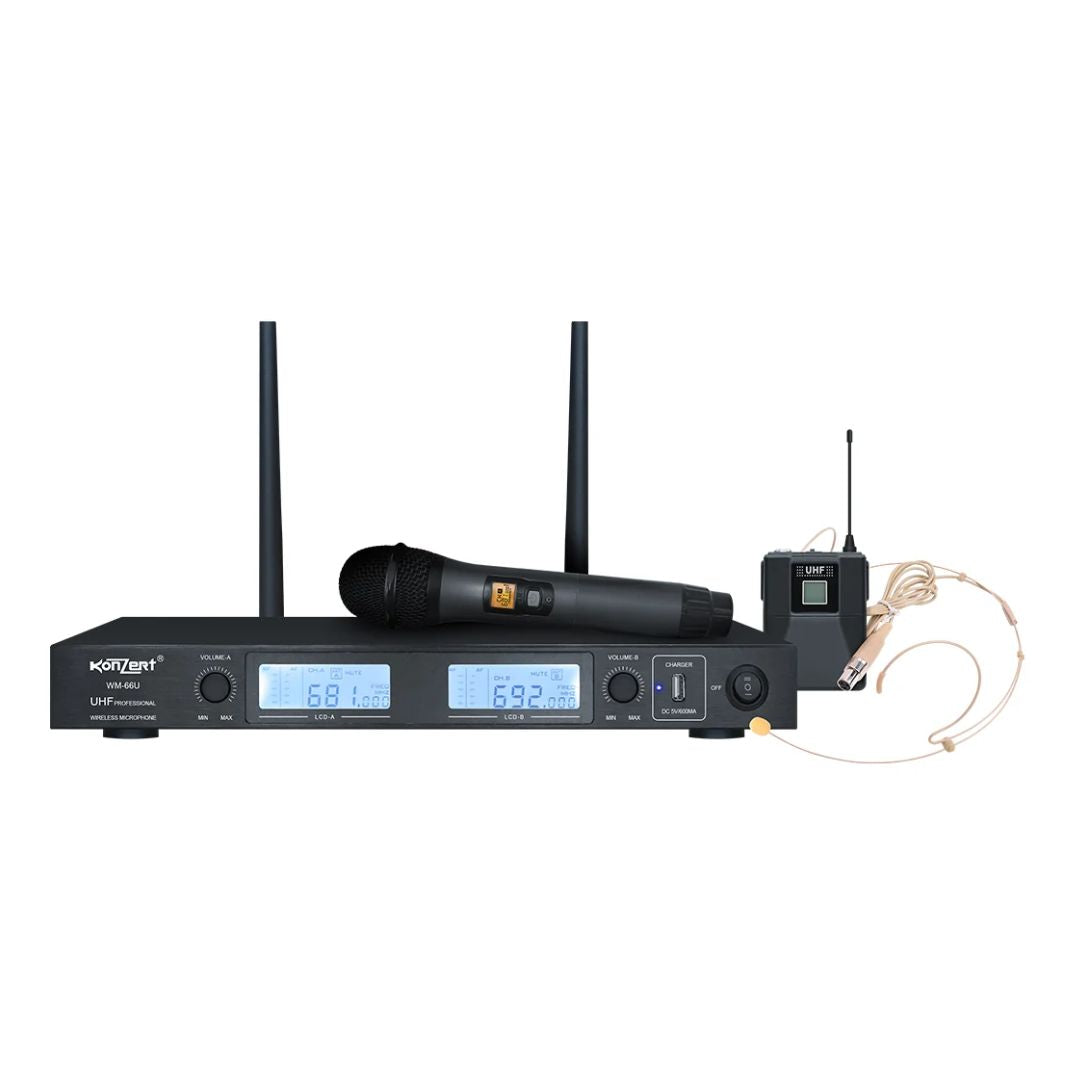

True Diversity Wireless Microphone System

System Features & Controls

Auto Scan (Free Channel), Infrared (IR) Synchronization, Digital Electronic Volume Control, Transmitter Swap Capability

System Performance Specifications

RF Carrier Frequency Range

680 MHz to 699 MHz (Optional Spectrum)

Oscillation Mode

PLL (Phase-Locked Loop) Synthesized

Diversity Receiver Type

Dual-Tune True Diversity

Frequency Response

40 Hz to 18,000 Hz

Signal-to-Noise Ratio (S/N)

>100 dBm

Total Harmonic Distortion (THD)

<0.5%

Frequency Stability

±10 ppm

Receiver Specifications

RF Receive Sensitivity

-95 dBm to -65 dBm (2 dBm Step Adjustment)

Analog Audio Outputs

Balanced XLR Socket, Unbalanced 1/4" (6.35 mm) TS Phone Jack

Receiver Power Supply

100–240 V AC, 50–60 Hz Input via 12 V DC Switch-Mode Power Adapter

Receiver Current Consumption

500 mA (Rated Working Current)

Receiver Dimensions (L×W×H)

425 mm x 220 mm x 55 mm (16.73" x 8.66" x 2.17")

Transmitter Specifications

RF Output Power

3.30 mW

Transmitter Power Requirements

3.7 V (1x 18650 Rechargeable Li-Ion Battery) or 3.0 V (2x 1.5 V AA Batteries)

Charging Interface

USB Type-C Port (Handheld Transmitter Charging)

Transmitter Dimensions (L×W×H)

60 mm x 60 mm x 250 mm (2.36" x 2.36" x 9.84")
