Key Specifications

Frequency Response (-10 dB)

80 Hz - 20000 Hz

Max SPL @ 1m

110 dB

Coverage Angle (H x V)

140° x 100°

System Sensitivity

88 dB

Power Section

Power Handling

40 W RMS / 160 W PEAK

Nominal Impedance

8 Ω

Constant Voltage Transformer

70/100 V

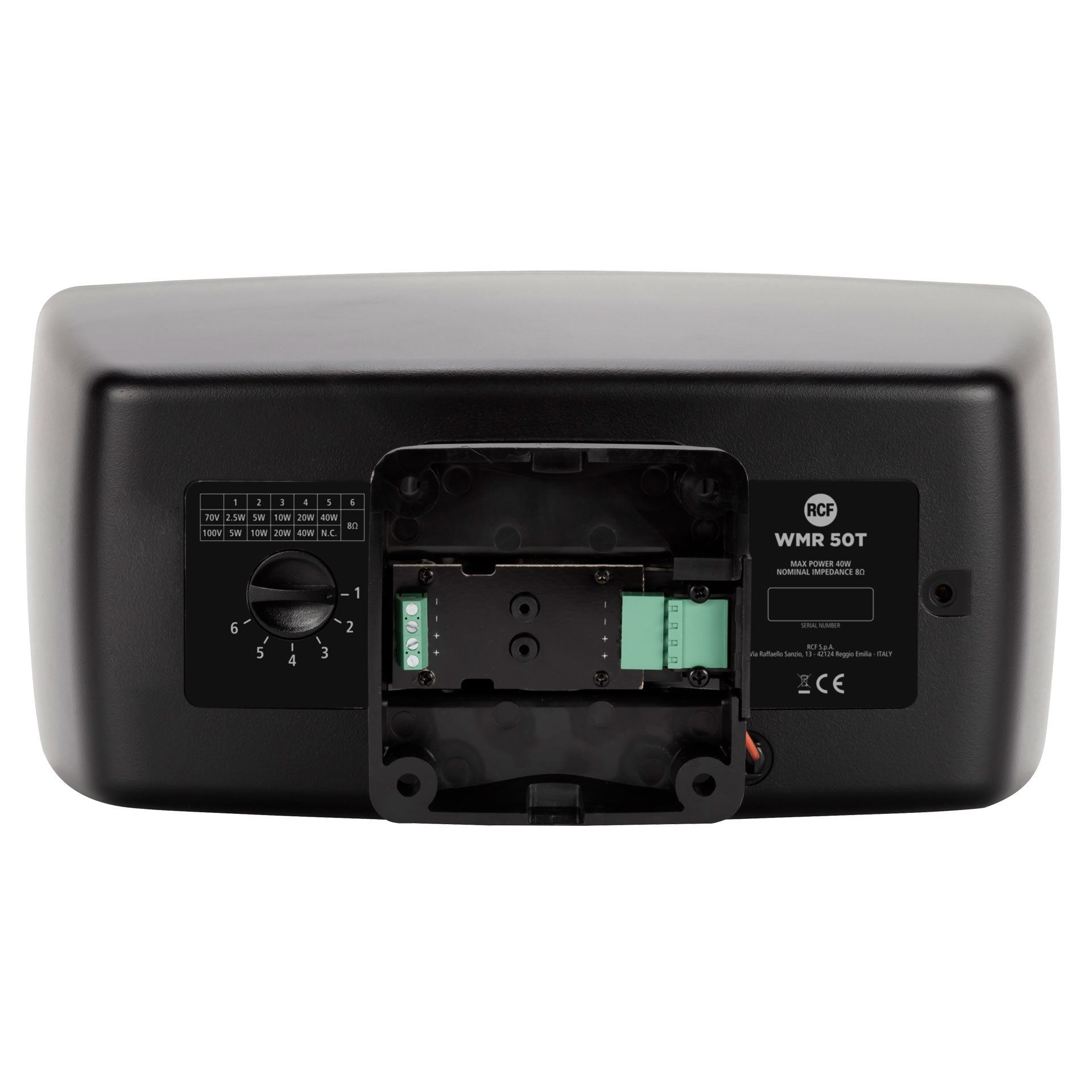

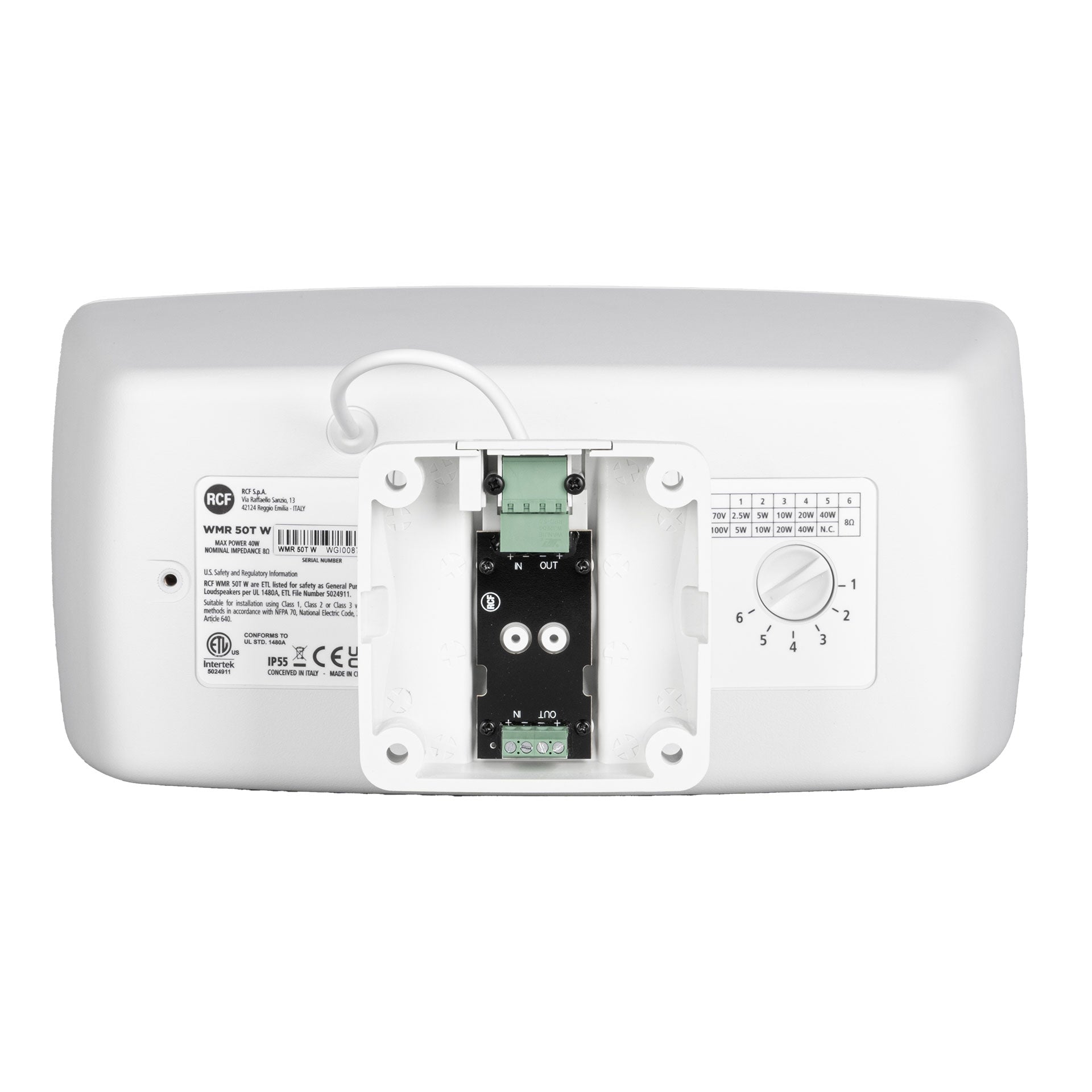

Power Selection (Taps)

40 W, 20 W, 10 W, 5 W, 2.5 W

Crossover Frequency

2500 Hz

Recommended Amplifiers

DMA 504, DMA 162, DMA 82, DMA 162P

Transducers

Dome Tweeter

1 x 1.0'' neo, 1.0'' v.c.

Woofer

1 x 5.0'', 1.0'' v.c.

Standard Compliance

IP Protection Grade

IP 55

Safety Agency

CE compliant, UL 1480A

Physical Specifications

Cabinet Material

ABS

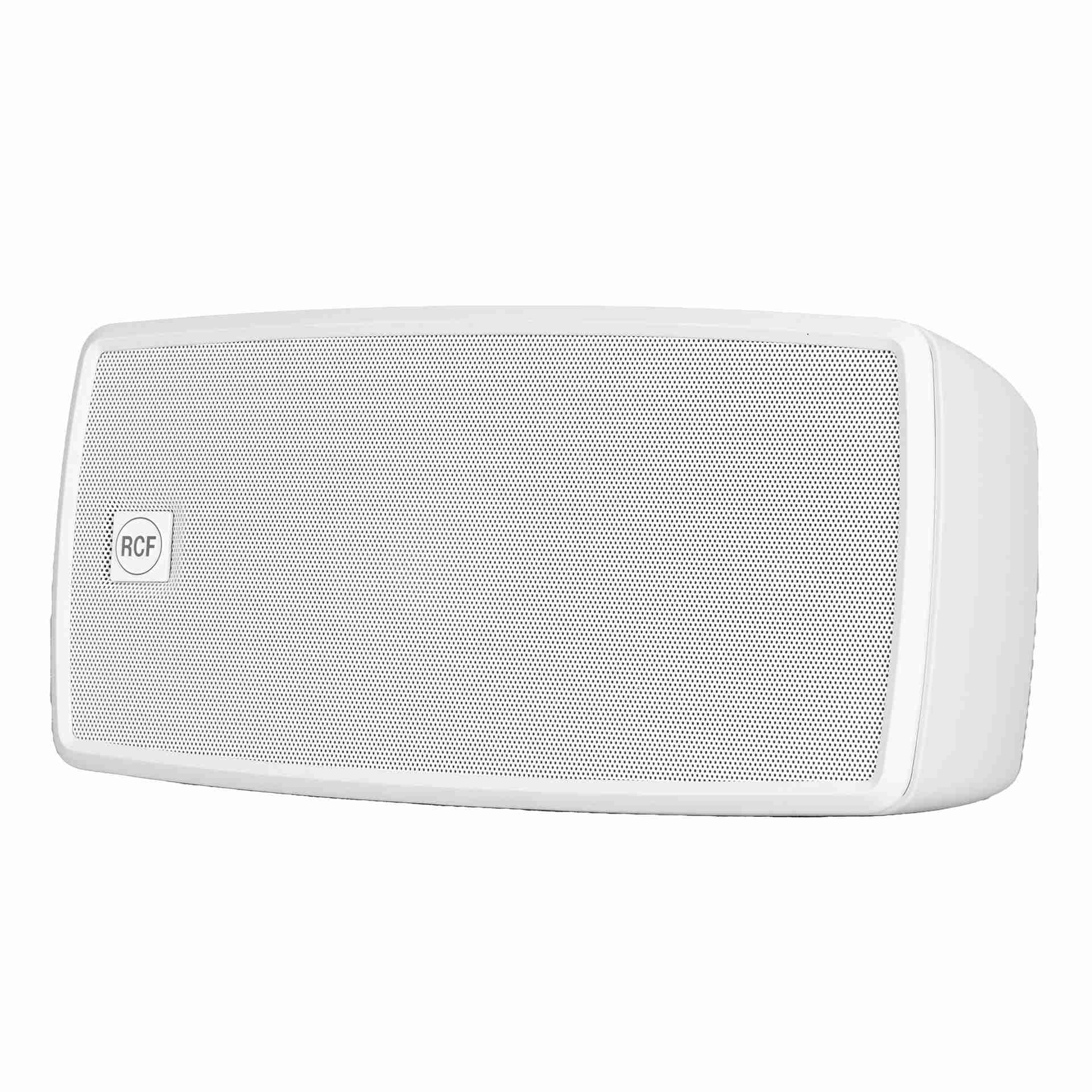

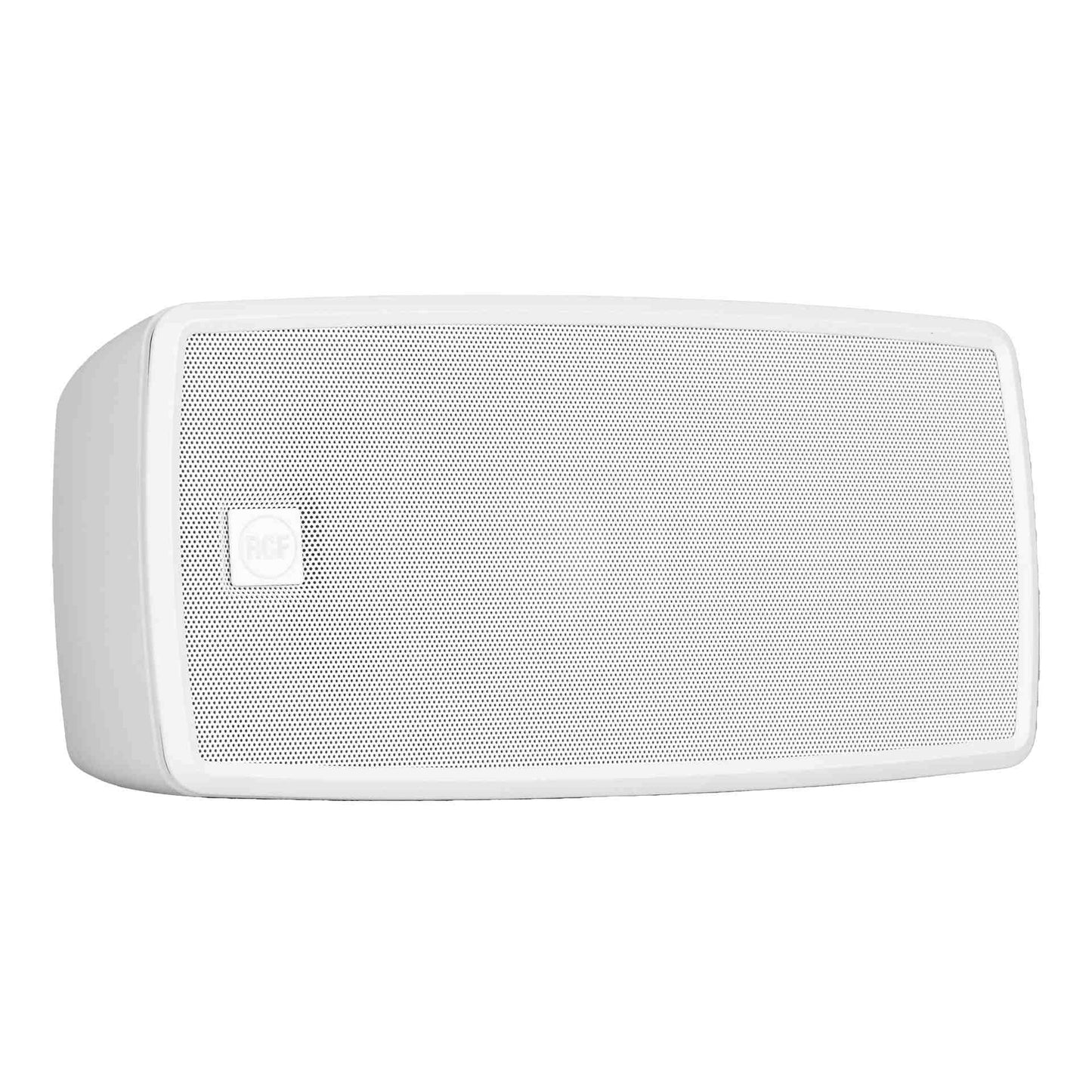

Color Options

Black (RAL 9005), White (RAL 9003)

Dimensions (H x W x D)

349 x 170 x 253 mm / 13.74 x 6.69 x 9.96 inches

Weight

4.2 kg / 9.26 lbs

Shipping Information

Package Dimensions

278 x 418 x 308 mm / 10.94 x 16.46 x 12.13 inches

Package Weight

5.3 kg / 11.68 lbs
