Key Specifications

Frequency Response (-10 dB)

70 Hz - 20000 Hz

Max SPL @ 1m

114 dB

Coverage Angle (H x V)

140° x 100°

System Sensitivity

89 dB

Power Section

Power Handling

80 W RMS / 320 W PEAK

Nominal Impedance

8 Ω

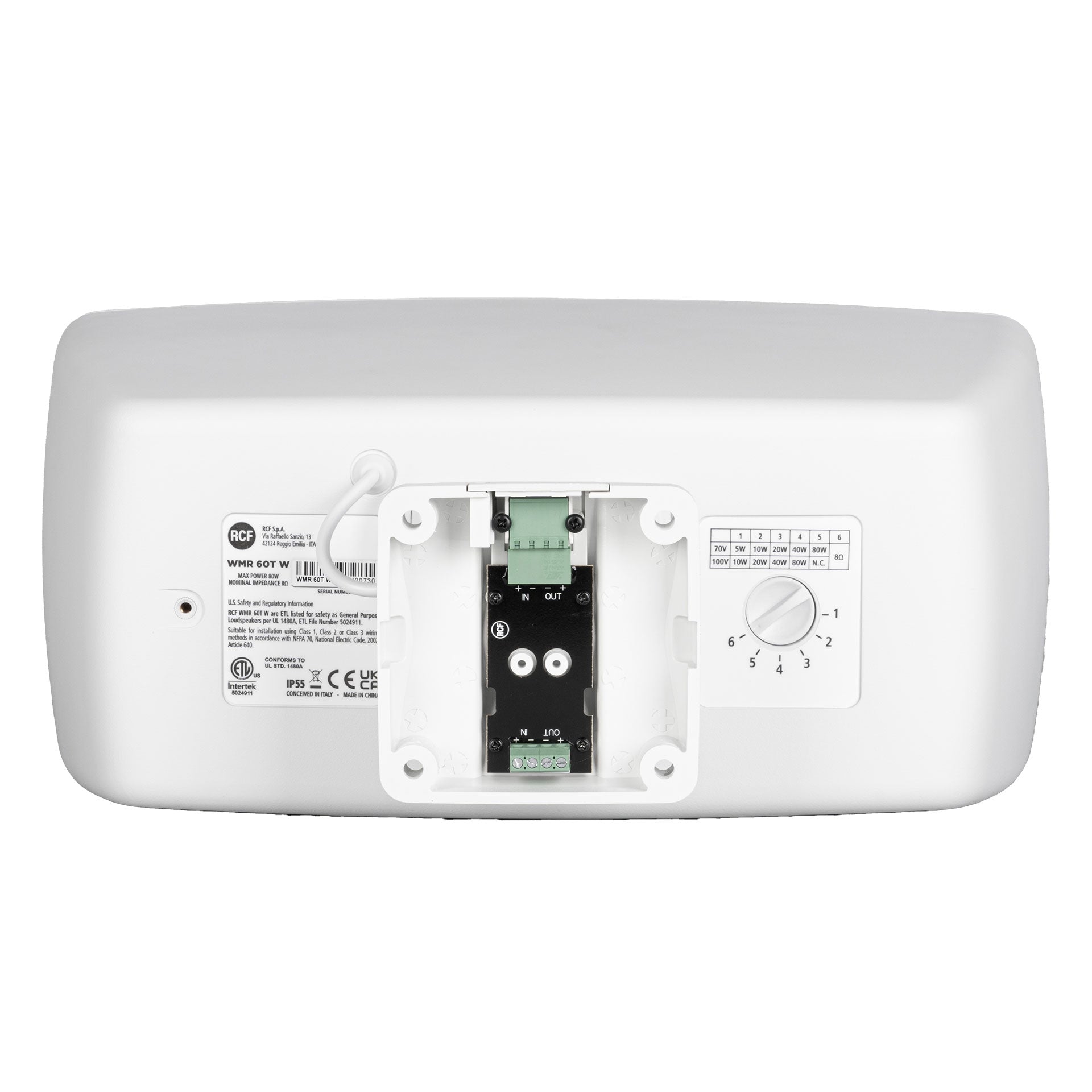

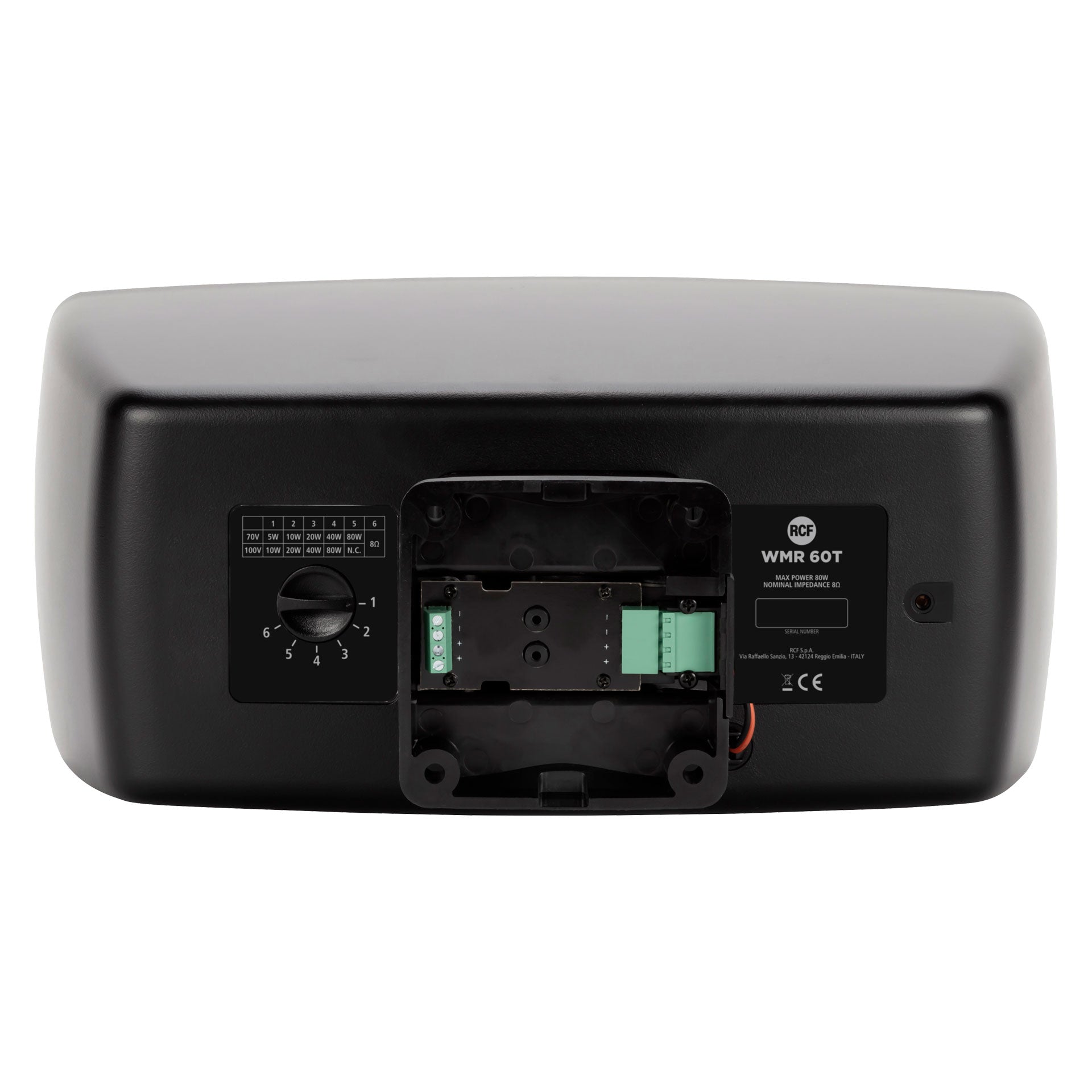

Constant Voltage Transformer

70/100 V

Power Selection (Taps)

80 W, 40 W, 20 W, 10 W, 5 W

Crossover Frequency

2500 Hz

Recommended Amplifiers

DMA 504, DMA 162, DMA 82, DMA 162P

Transducers

Dome Tweeter

1 x 1.0'' neo, 1.0'' v.c.

Woofer

1 x 6.5'', 1.2'' v.c.

Standard Compliance

IP Protection Grade

IP 55

Safety Agency

CE compliant, UL 1480A

Physical Specifications

Cabinet Material

ABS

Color Options

Black (RAL 9005), White (RAL 9003)

Dimensions (H x W x D)

403 x 193 x 293 mm / 15.87 x 7.6 x 11.54 inches

Weight

6 kg / 13.23 lbs

Shipping Information

Package Dimensions

298 x 468 x 338 mm / 11.73 x 18.43 x 13.31 inches

Package Weight

7.5 kg / 16.53 lbs
