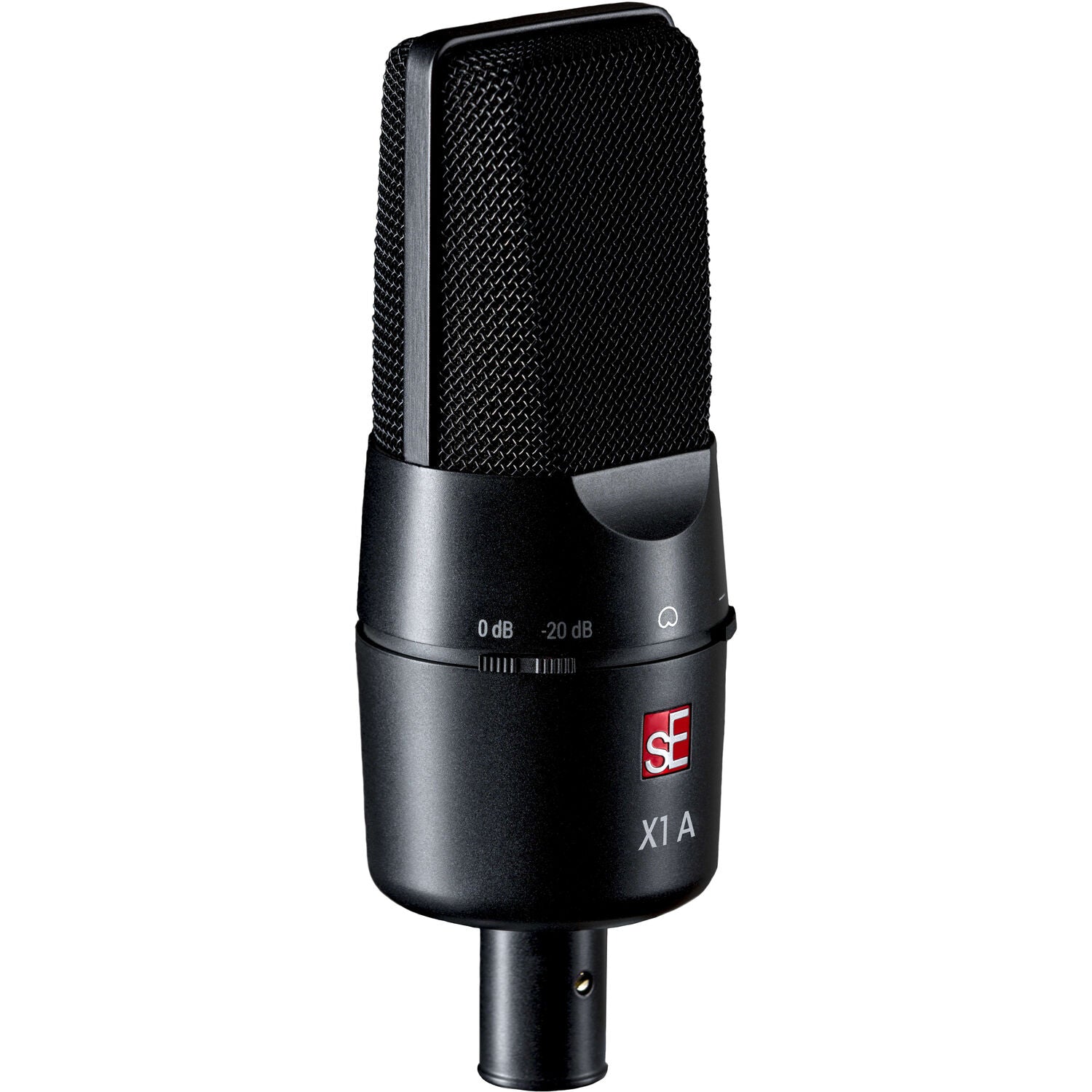

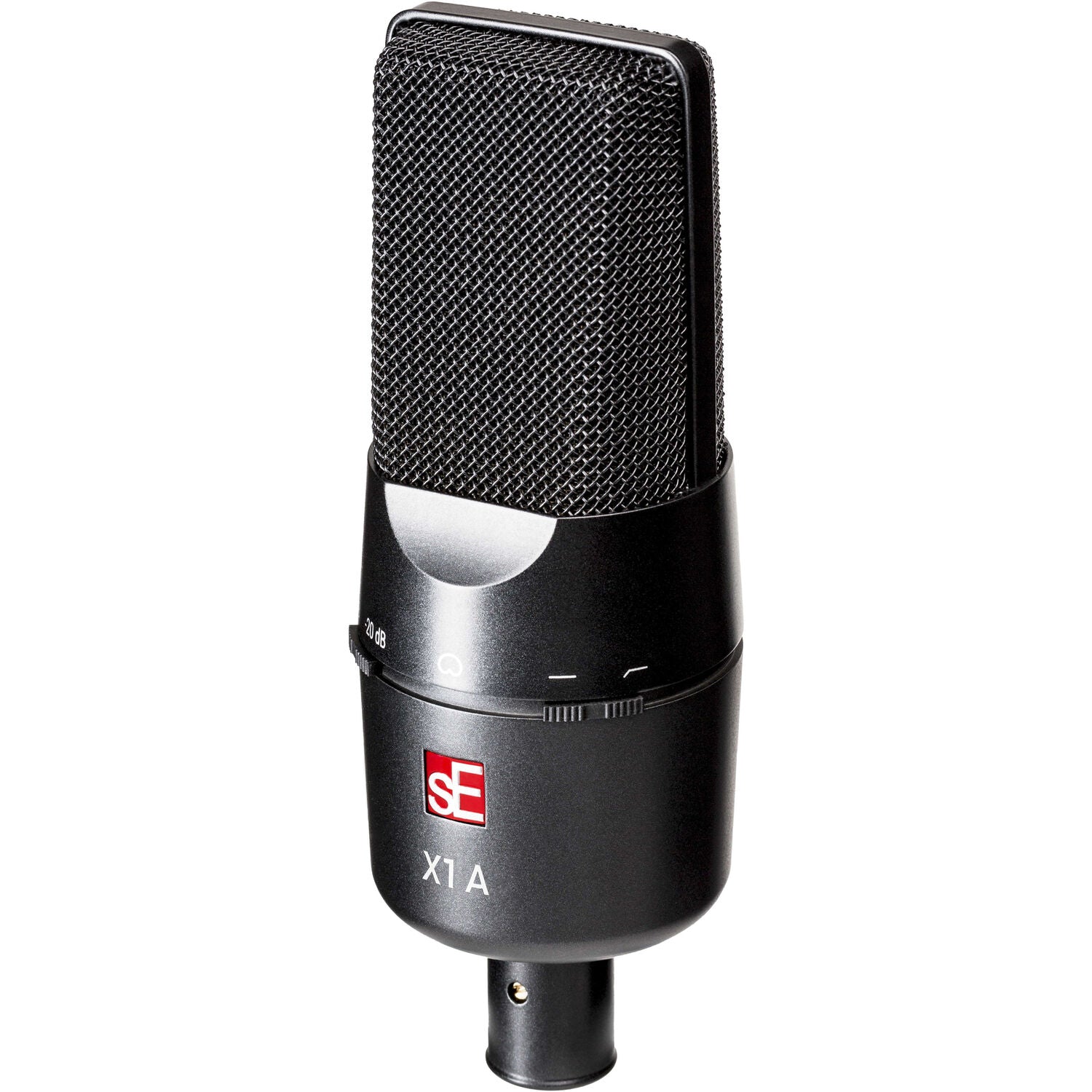

SE ELECTRONICS X1 A
SE ELECTRONICS X1 A
|
Key Specifications |
|
|
Microphone Type |
Large Diaphragm |
|
Element Type |
Electret Condenser |
|
Polar Pattern |
Cardioid |
|
Sound Field |
Mono |
|
Diaphragm |
0.67" / 17.02 mm |
|
Orientation |
Side Address |
|
Controls |
Pad, Low Cut / HPF |
|
Pad |
-20 dB |
|
Filter & EQ |
Low-Cut Filter: 100 Hz, 6 dB/Octave |
|
Circuitry |
Solid-State |
|
Performance |
|
|
Frequency Response |
20 Hz to 20 kHz |
|
Maximum SPL |
130 dB (1 kHz, 0.5% THD) |
|
Off-Axis Rejection |
3 dB at 60° |
|
Dynamic Range |
114 dB (without Pad) |
|
Equivalent Noise Level |
16 dB (A-Weighted) |
|
Connectivity |
|
|
Analog Output |
1x XLR 3-Pin Male |
|
Power |
|
|
Power Sources |
Phantom Power |
|
Operating Voltage |
48 V (Phantom Power) |
|
Physical |
|
|
Color |
Black |
|
Mounting Thread Size |
5/8"-27 Female (3/8"-16 Female with Included Adapter) |
|
Dimensions |
ø: 2.28 x L: 6.65" / ø: 5.79 x L: 16.89 cm |
|
Weight |
13.8 oz / 391 g |
|
Packaging Info |
|
|
Package Weight |
1.4 lb |
|
Box Dimensions (L × W × H) |
10.5 x 5.1 x 3.9" |
