Key Specifications

Product / Device Type

DLP Multimedia Projector

Projection System / Technology

DLP™

Native Resolution

XGA (1024 x 768)

Maximum Resolution

WUXGA (1920 x 1200)

Native Aspect Ratio

4:3

Supported Aspect Ratio

16:9

Brightness

Standard Mode: 4,800 ANSI Lumens
ECO Mode: 3,840 ANSI Lumens
(ISO 21118 Compliant)

Contrast Ratio

20,000:1

3D Support & Modes

DLP™ 3D (Front, Rear, Front Ceiling, Rear Ceiling)

Projection Lens & Optics

Projection Image Size

23" to 300" (58.4 cm to 762 cm)

Throw Ratio

1.96 to 2.15 (50" @ 2 m)

Zoom & Focus

1.1x Optical Zoom (Manual Zoom, Manual Focus)

Lens Specifications

F = f/2.56 ~ f/2.68, f = 22 mm ~ 24.10 mm

Projection Offset

120% (Half-Height)

Sync Rates

Horizontal: 15 to 100 kHz | Vertical: 24 to 120 Hz

Lamp & Light Source Specifications

Light Source Type

Philips 203 W Lamp (E20.7i)

Light Source Life

Standard Mode: 5,000 Hours
ECO Mode: 10,000 Hours

Audio, Connectivity, Control & Security

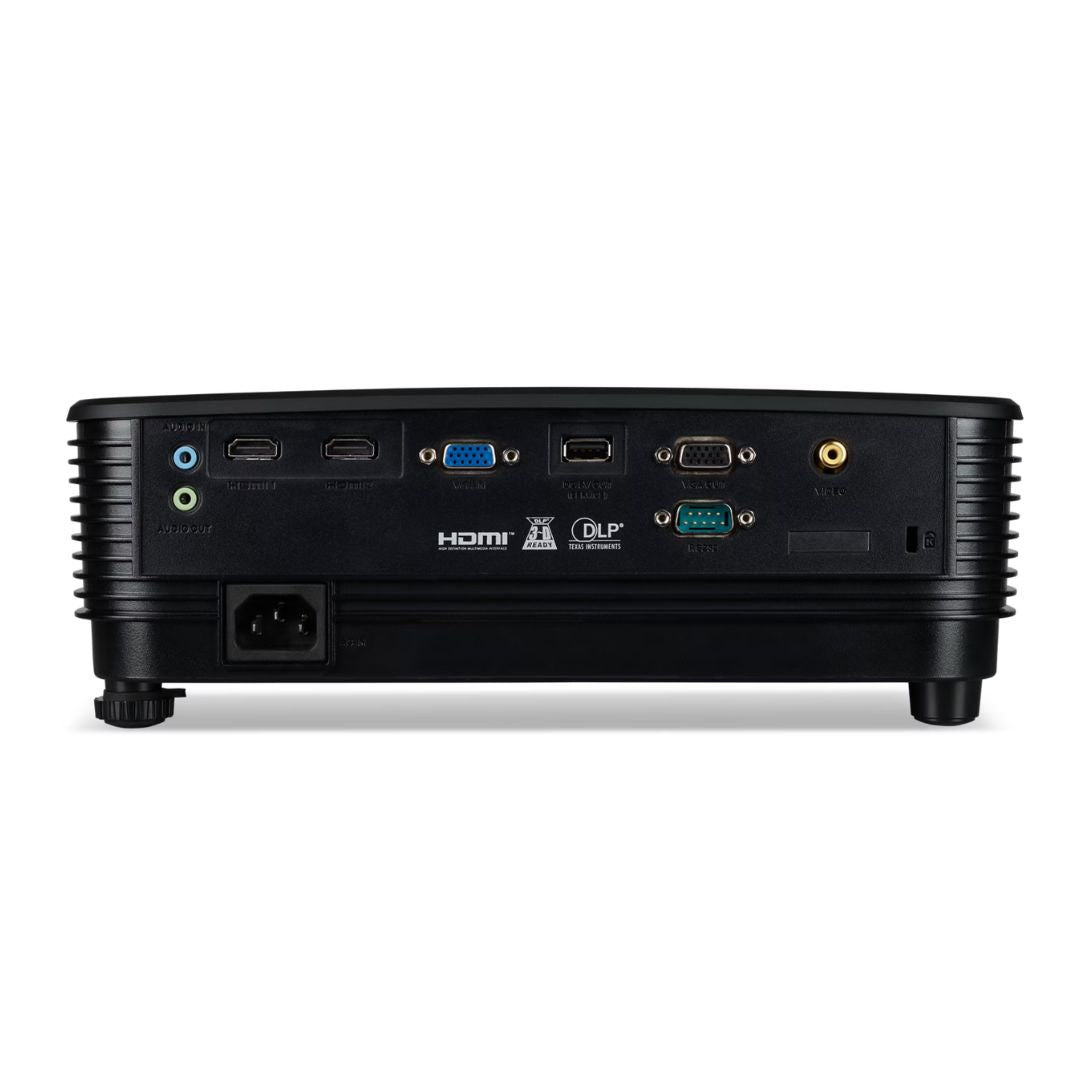

Video Inputs & Outputs

2x HDMI 1.4a (HDCP 1.4)
1x VGA In (D-sub)
1x VGA Out (D-sub)
1x Component Video (RCA)
1x Composite Video (RCA)

Audio Interfaces & Speaker

1x 3.5mm Audio In
1x 3.5mm Audio Out
1x S/PDIF Output
Integrated 3 W Speaker (1x Speaker)

Control, Power Out & Security

1x RS232 (D-sub)
1x USB Type-A DC Out (5V / 1.5A)
PIN Code Locking, Kensington Lock, Security Bar

Dimensions & Physical Specifications

Installation Mode

Ceiling Mountable / Desktop

Item Dimensions (W×D×H)

299.50mm x 220mm x 105.10mm (11.79" x 8.66" x 4.14")

Item Weight

2.4 kg (5.3 lbs)
