X12A MKII

PRICE FOR INQUIRY

2 way full range loudspeaker for portable PA and installation applications
800 Program Power, 1600 Watt peak power featuring Class D Amp for woofer and Class AB for tweeter
12" low frequency
1" neodynium driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

TOPP PRO

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:TOPP-X12AMKII-CHN-149

2 way full range loudspeaker for portable PA and installation applications
800 Program Power, 1600 Watt peak power featuring Class D Amp for woofer and Class AB for tweeter
12" low frequency
1" neodynium driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

TOPP PRO X12A MKII

Key Specifications
Product Model	X12A MKII
System Type	2-Way Active Ported Loudspeaker
Power Architecture	Class D SMPS (Bi-Amplified) Total RMS: 400W (LF 350W + HF 50W) Peak Power: 1600W
Acoustic Performance
Transducers	LF: 12" (305mm) Woofer HF: 1" (25mm) Neodymium Compression Driver
Frequency Response	65Hz - 20kHz (-3dB)
Max SPL (@ 1m)	122dB Peak / 90dB Continuous
Horn Coverage (H x V)	90° Horizontal x 60° Vertical

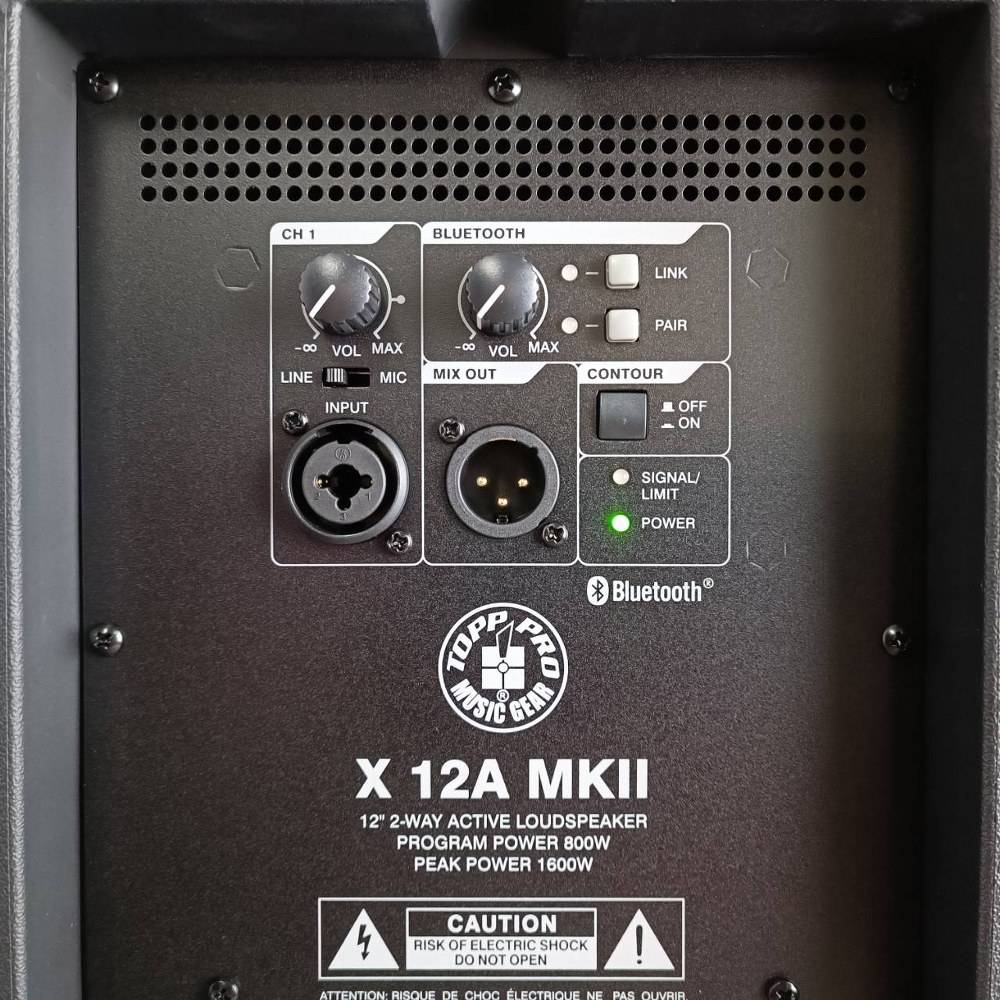

Connectivity & Controls
Input / Output	XLR Balanced Input (Mic/Line switchable) XLR Mix Output (Link) Bluetooth Stereo Pair/Link Capability
DSP & Protections	Contour Switch (+3dB LF/HF boost) Thermal / Overload / Analog Limiter / Compressor
Physical Construction
Enclosure	Injection-molded polypropylene, Multi-angle wedge monitor design
Mounting	Standard 36mm pole socket
Dimensions / Weight	602 x 381 x 348 mm \| 13.75 kg (30.3 lbs)
