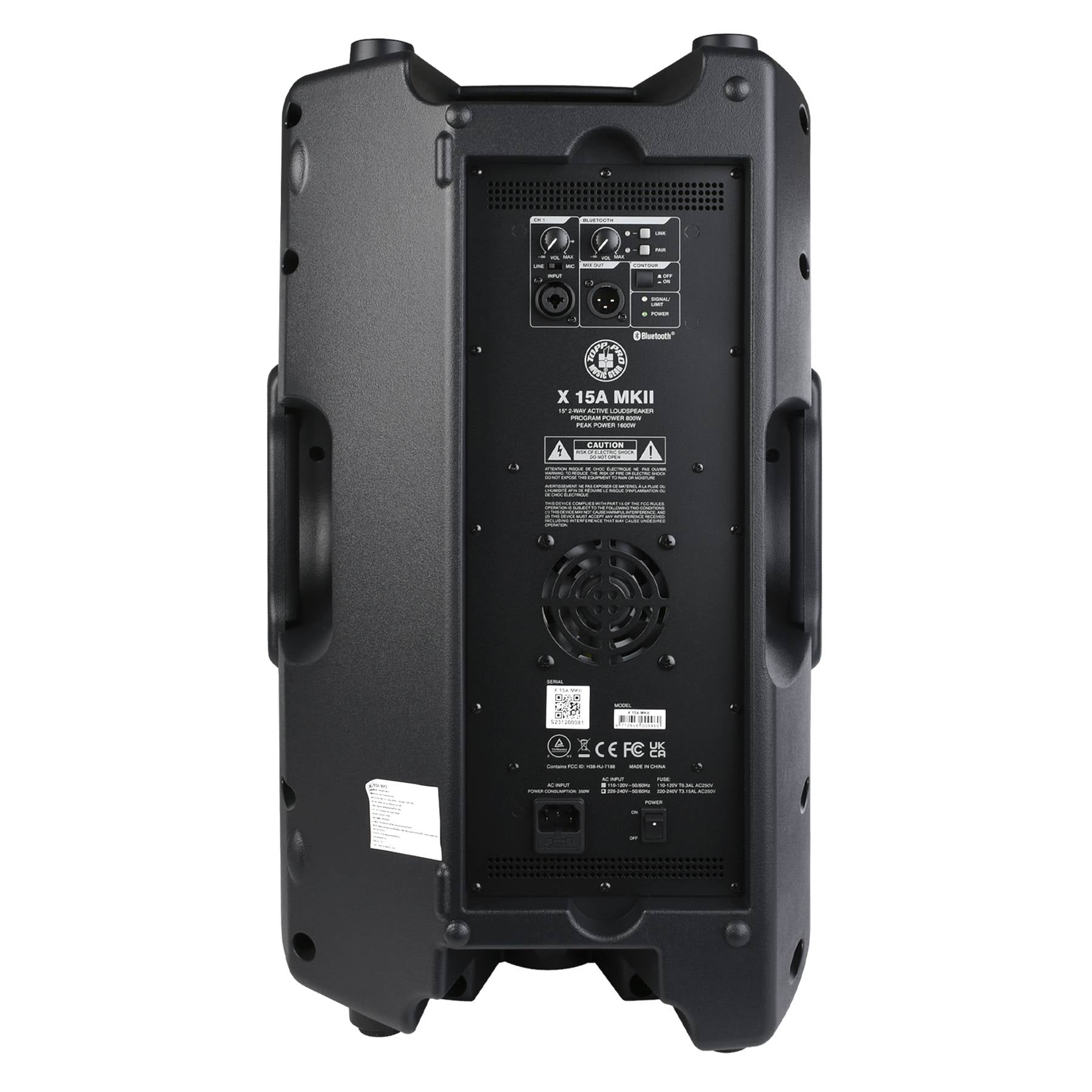

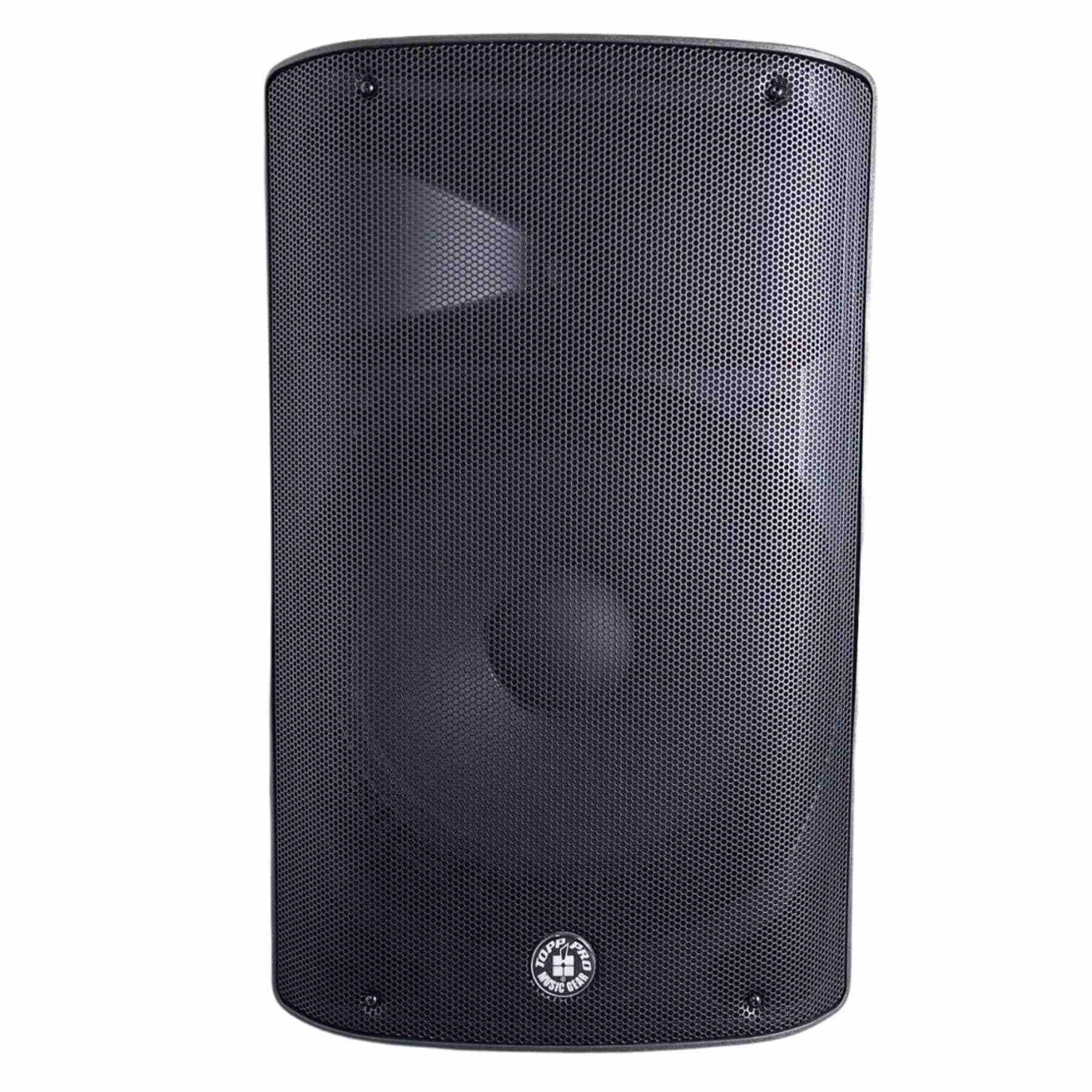

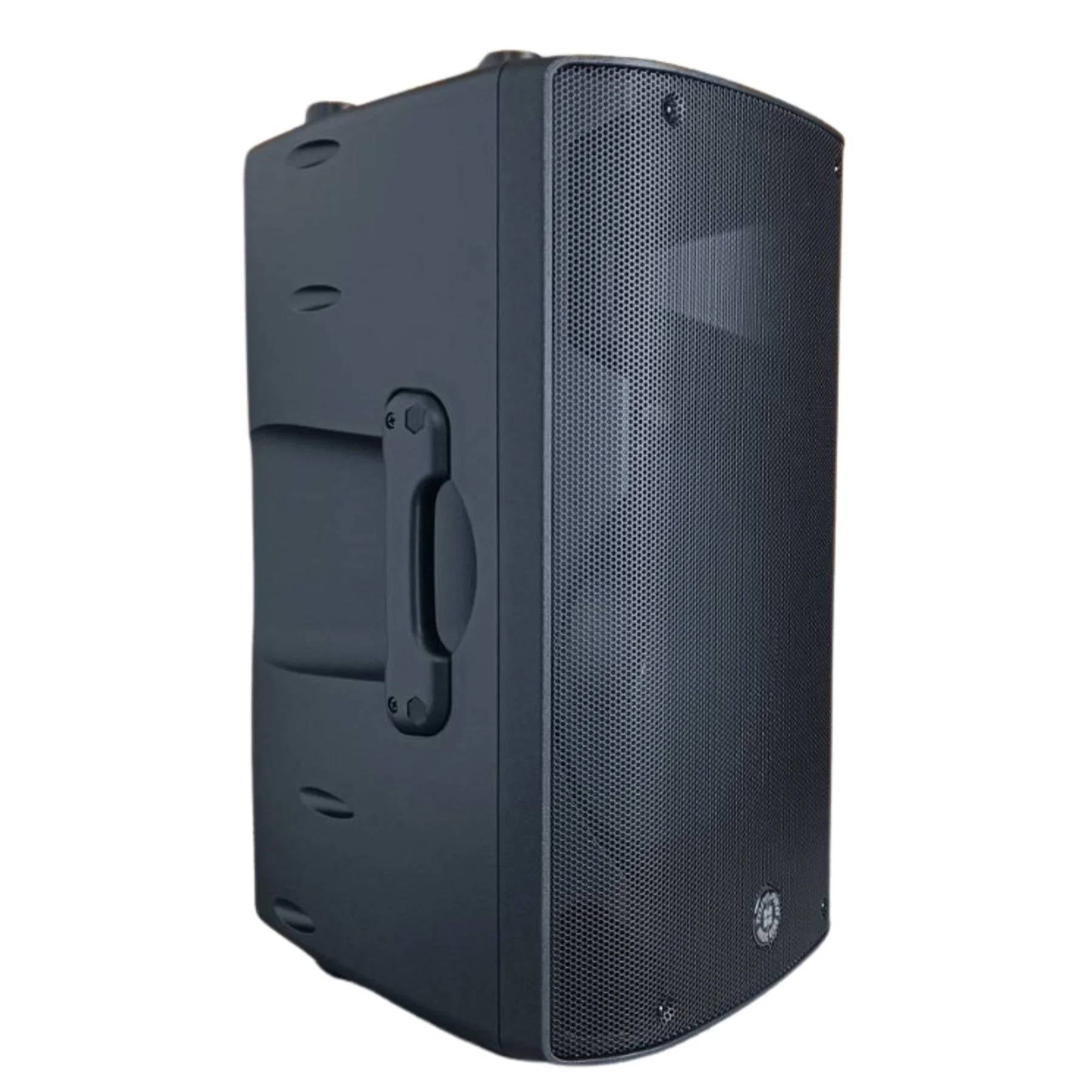

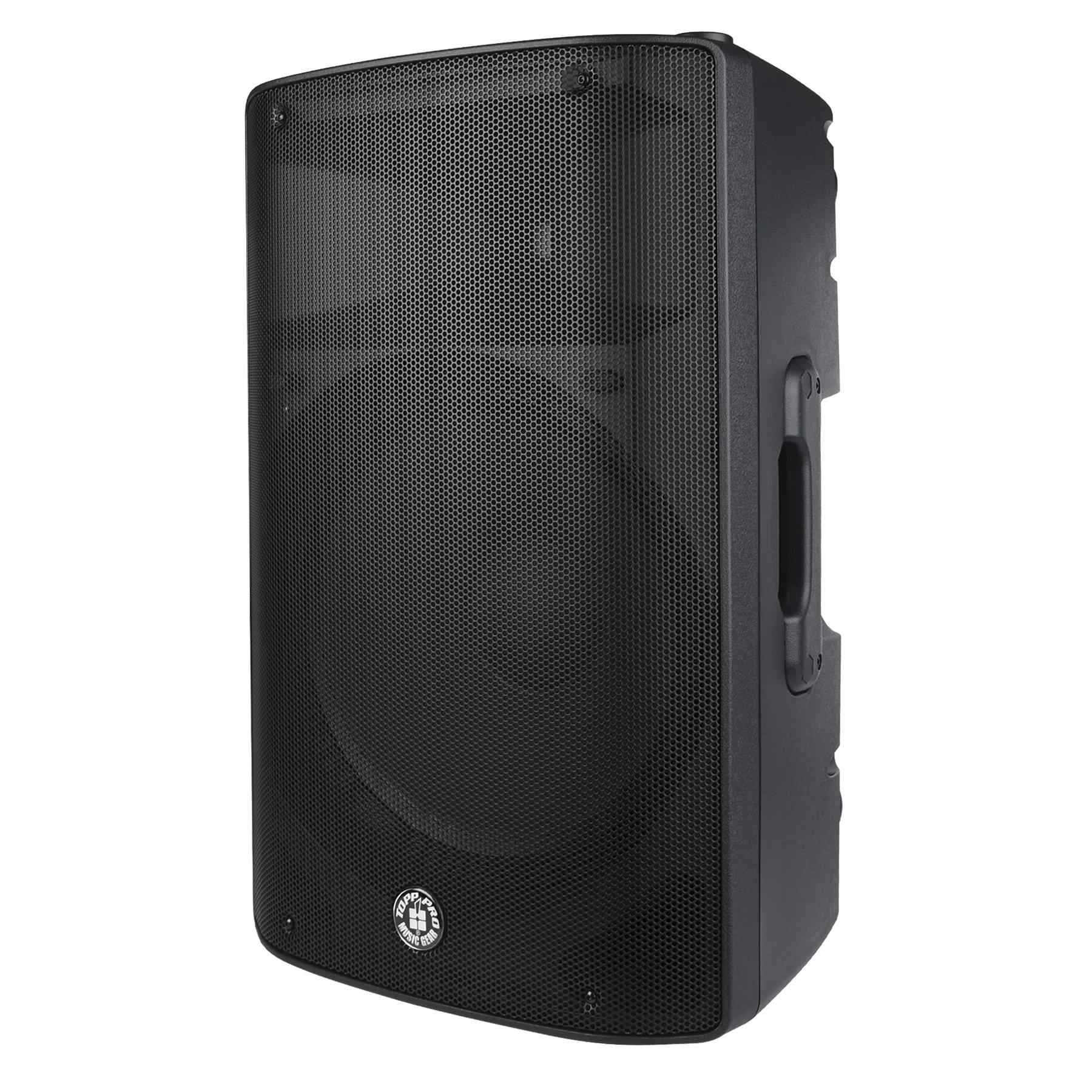

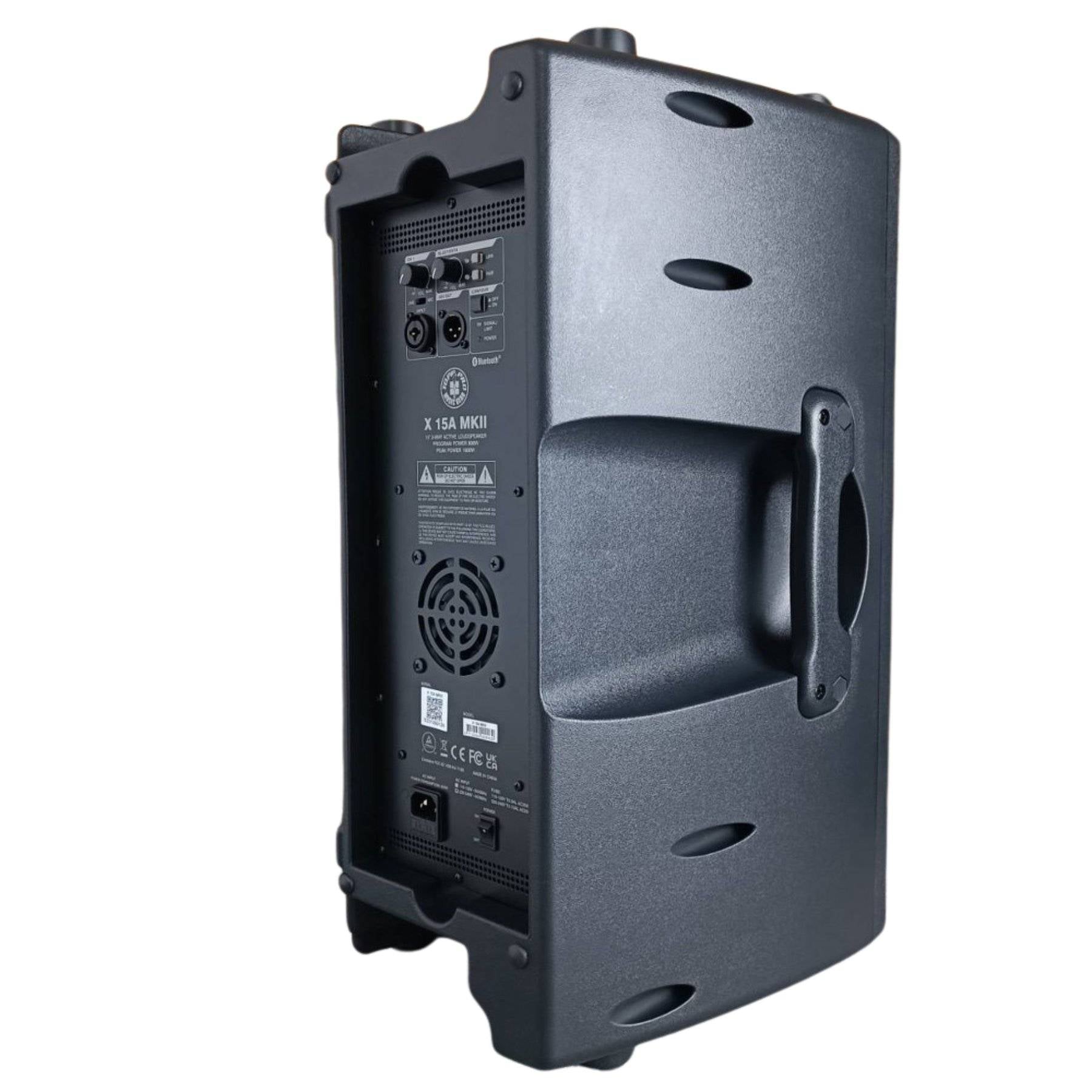

X15A MKII

2 way full range loudspeaker for portable PA and installation applications
600 Program Power, 1600 Watt peak power featuring Class D Amp for woofer and Class AB for tweeter
15" low frequency driver
1" neodynium driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

TOPP PRO

₱20,265.00 VAT INC.

₱20,265.00

UNIT: PIECE/S

Product Code: SKU:TOPP-X15AMKII-CHN-833

2 way full range loudspeaker for portable PA and installation applications
600 Program Power, 1600 Watt peak power featuring Class D Amp for woofer and Class AB for tweeter
15" low frequency driver
1" neodynium driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

TOPP PRO X15A MKII

Key Specifications
Product Model	X15A MKII
System Type	2-Way Active Ported Loudspeaker
Power Architecture	Class D SMPS (Bi-Amplified) Total RMS: 400W (LF 350W + HF 50W) Peak Power: 1600W
Acoustic Performance
Transducers	LF: 15" (381mm) Woofer HF: 1" (25mm) Neodymium Compression Driver
Frequency Response	60Hz - 20kHz (-3dB)
Max SPL (@ 1m)	125dB Peak / 93dB Continuous
Horn Coverage (H x V)	90° Horizontal x 60° Vertical
Connectivity & Controls

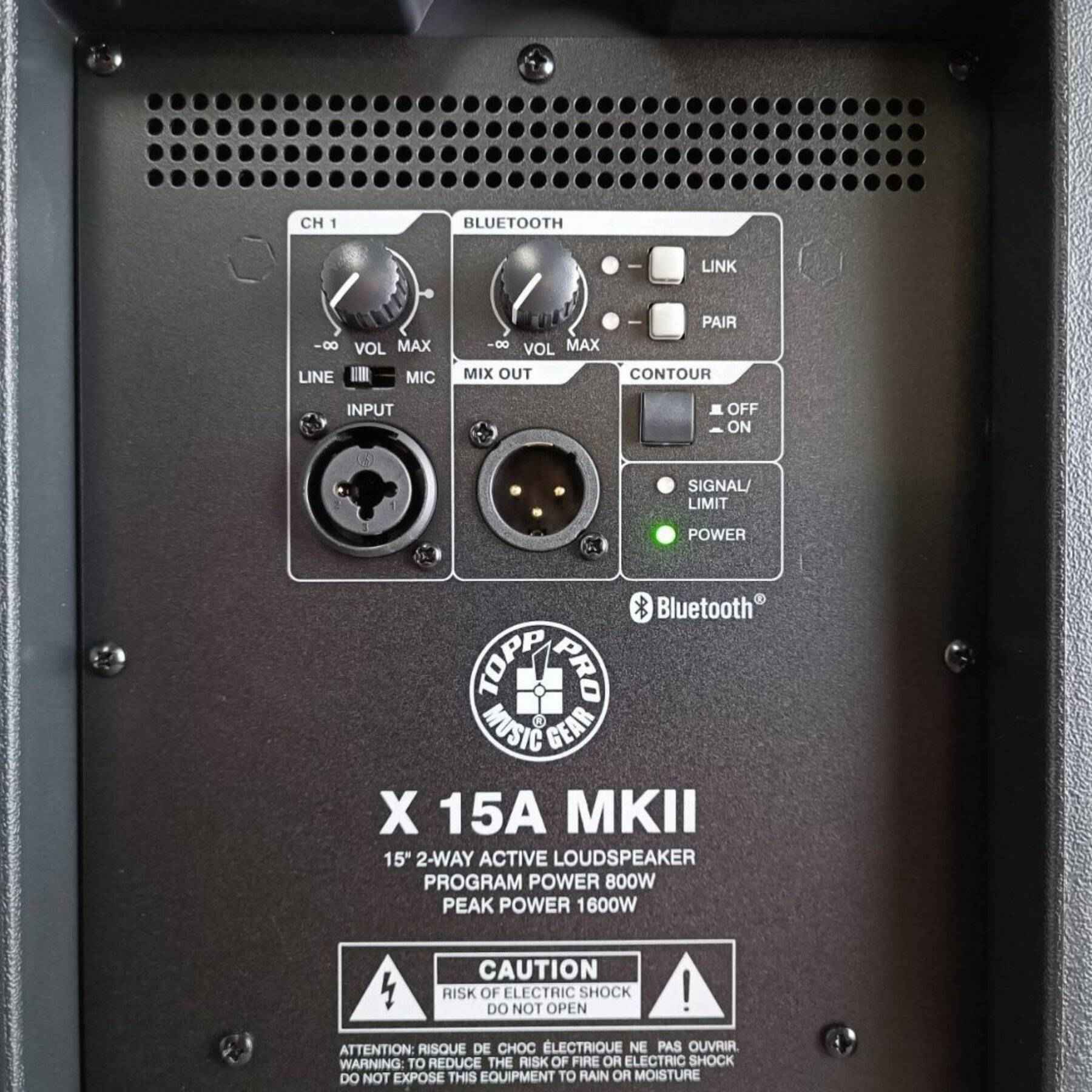

Input / Output	XLR Balanced Input (Mic/Line switchable) XLR Mix Output (Link) Bluetooth Stereo (Pair / Link Switch)
Electronic Protection	Thermal / Overload / Analog Limiter / Compressor
Physical Construction
Enclosure	Injection-molded polypropylene, multi-angle design
Mounting	Standard 36mm pole socket, wedge monitor capability
Dimensions / Weight	627 x 386 x 371 mm \| 14.3 kg (31.53 lbs)
