X3
X3
TOPP PRO
UNIT: PIECE/S
Product Code: SKU:TOPP-X3-CHN-228
Key Features

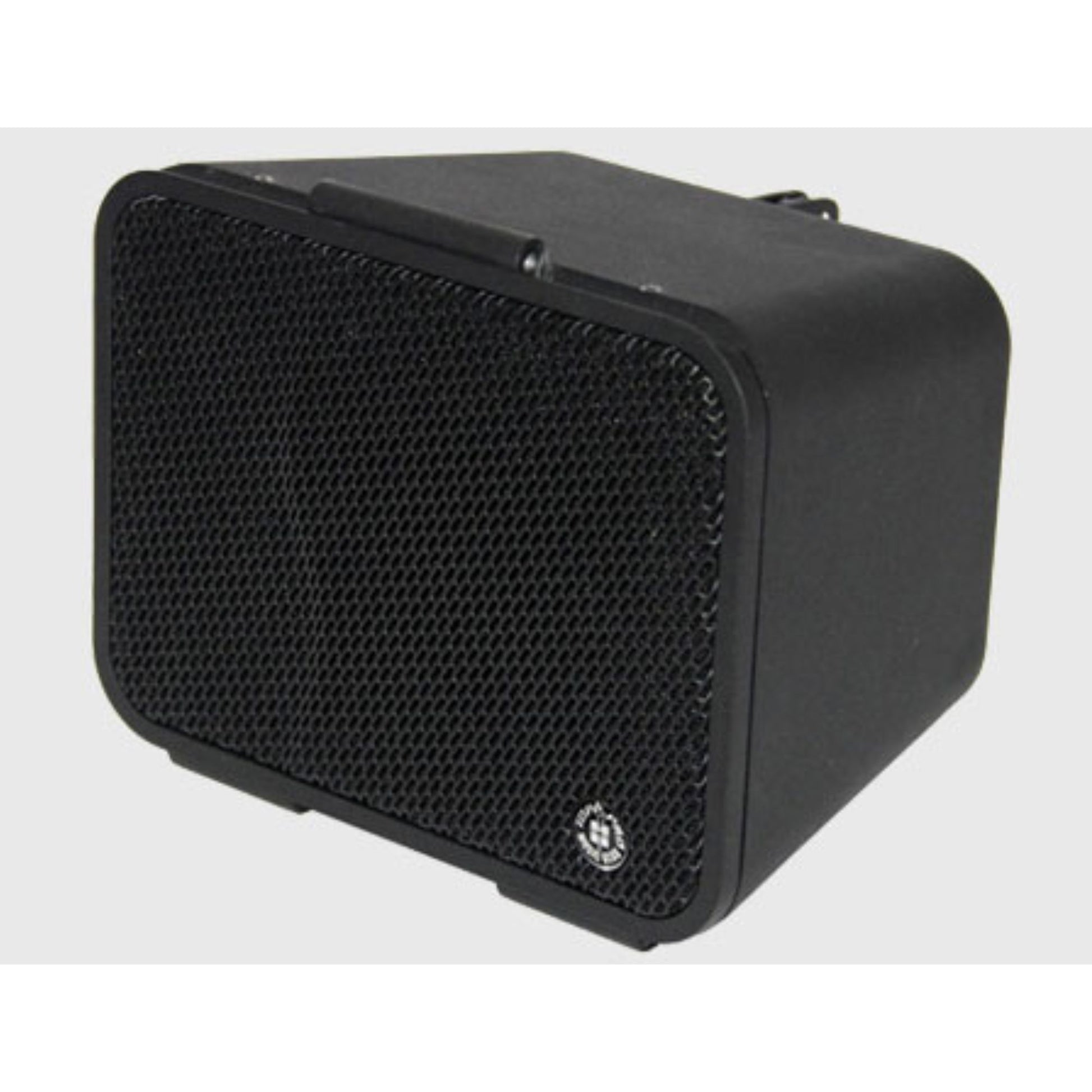

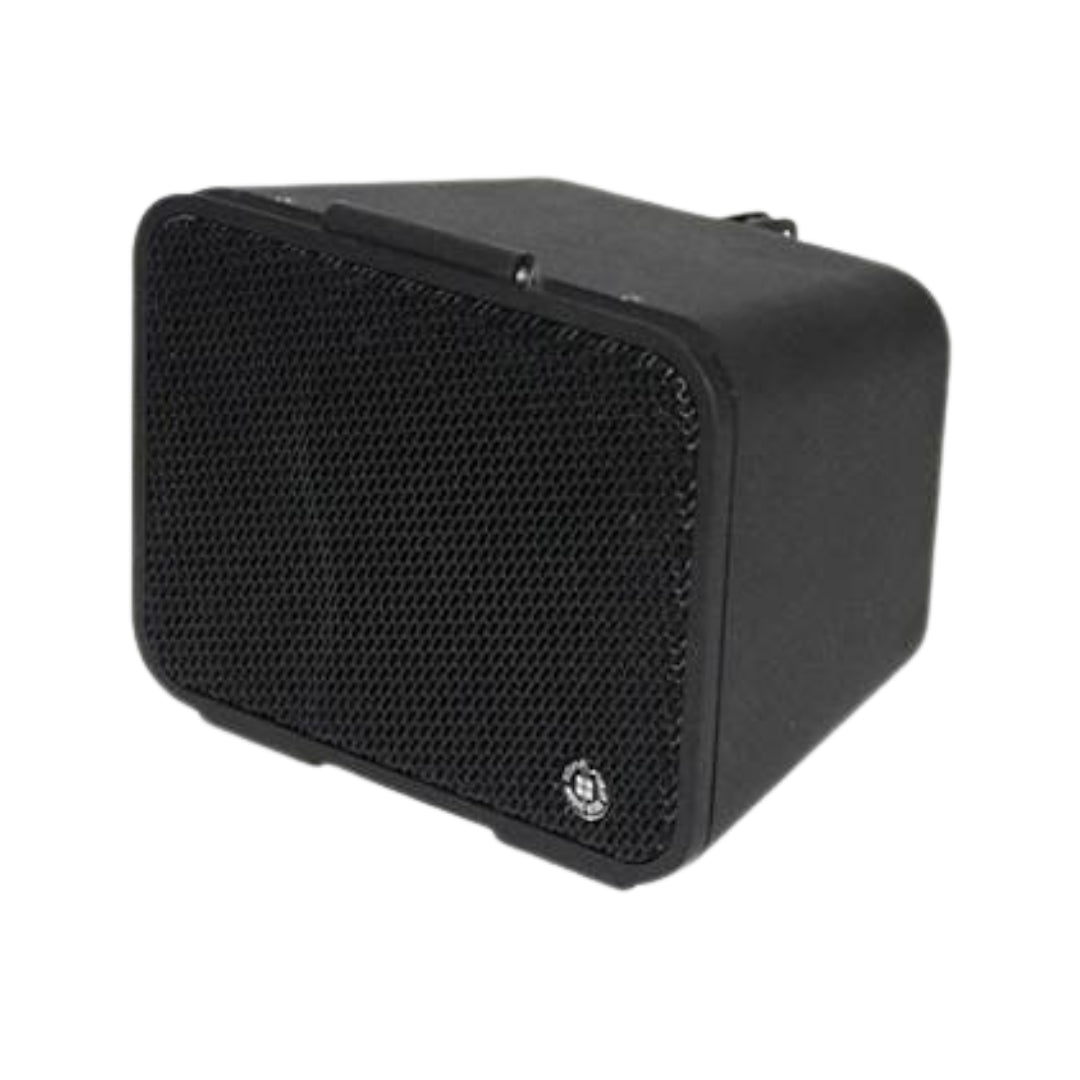

TOPP PRO X3
TOPP PRO X3
|
Key Specifications |
|
|
Product Type |
4" Two-Way Passive Line Array Module |
|
Power Handling |
30 W Continuous | 60 W Program |
|
Nominal Impedance |
8 Ω |
|
Maximum SPL |
103 dB Max (Calculated @ 1m) |
|
Acoustic Performance |
|
|
Frequency Response |
100 Hz to 20,000 Hz (-10 dB) |
|
Sensitivity |
88 dB (1 W, 1 m) |
|
Dispersion (-6 dB) |
110° Horizontal | 20° Vertical (per module) |
|
Crossover Frequency |
3.0 kHz |
|
Transducers |
|
|
Low Frequency |
4" Neodymium Woofer (1" Voice Coil) |
|
High Frequency |
3 x Ø13mm Neodymium Tweeters |
|
Physical & Rigging |
|
|
Dimensions (H x W x D) |
141 x 170 x 162 mm (5.55" x 6.69" x 6.38") |
|
Net Weight |
1.46 kg (3.21 lbs) |
|
Enclosure |
Aluminum die-cast, Resistant Black Paint, Steel Grille |
|

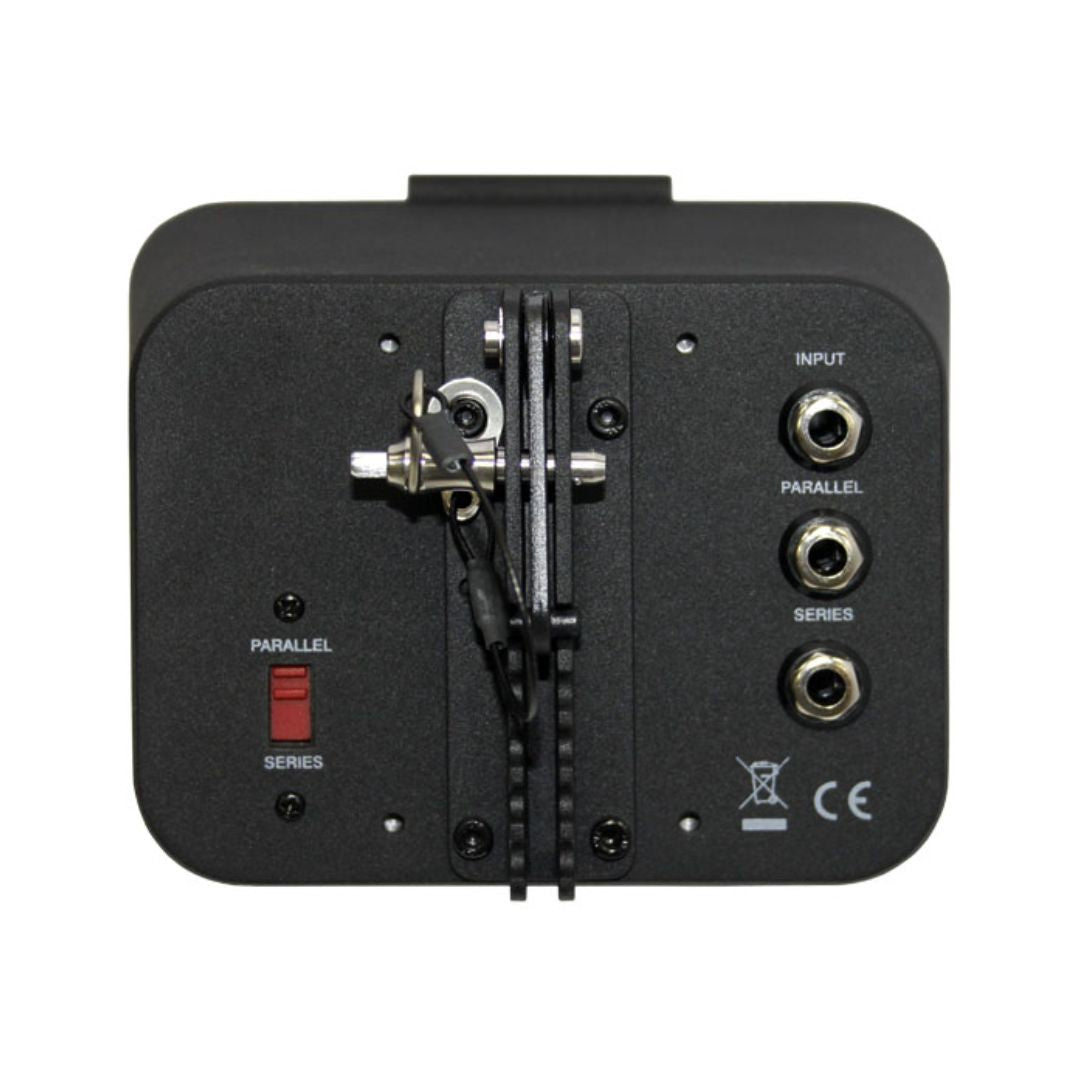

Rigging Points |
Vertical Splay: 0°, 4°, 8°, 12° increments |
TOPP PRO X3 Accessories
- No accessories available.
