Key Specifications

Product / Device Type

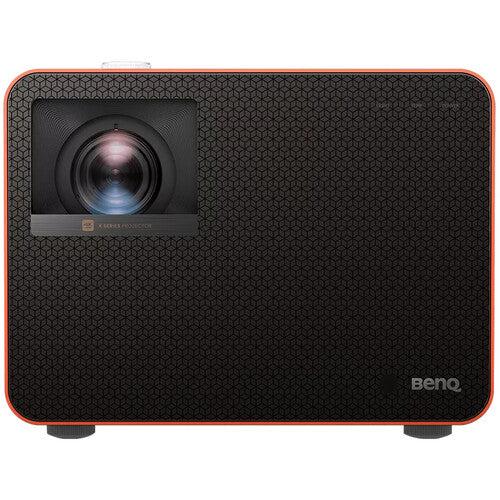

4K UHD Smart Multi-LED DLP Home Entertainment Projector

Projection System / Technology

1-Chip DMD DLP

Native / On-Screen Resolution

Native: Full HD (1920 x 1080)
On-Screen Pixel-Shift: 4K UHD (3840 x 2160)

Native Aspect Ratio

16:9

Maximum Brightness

3,300 ANSI Lumens

Color Depth

10-Bit (1.07 Billion Colors)

HDR Support

Yes (HDR10)

3D Format Support

Yes (DLP Link 3D Glasses Supported)

Sync Rates

Horizontal: 15 to 135 kHz | Vertical: 23 to 240 Hz

Projection Modes & Offset

Front, Rear, Ceiling Mountable | Vertical Offset: 110%

Projection Lens & Optics

Lens Features & Focus

Standard Throw Lens with Manual Focus

Lens Aperture & Focal Length

f/17.02 to 22.21 | f = 1.8 mm to 2.25 mm

Throw Ratio & Distance

Standard Throw | Throw Ratio: 1.15 to 1.50:1 (120" @ 11 ft / 3.5 m)

Optical Zoom & Lens Shift

1.3x Manual Optical Zoom | Vertical Lens Shift: ±20%

Keystone Correction

Auto: Vertical ±30° | Manual: Horizontal ±30°

Light Source Specifications

Light Source Engine

Multi-LED Light Engine

Expected Light Source Life

Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours

Smart System, Hardware & Wireless Connectivity

Operating System & Smart TV

Android TV 11

Virtual Assistant / Casting

Apple AirPlay, Works with Google Assistant

Mobile App Compatibility

Yes (Android & iOS)

Wireless Connectivity

Wi-Fi 5 (802.11ac) / Bluetooth 5.0

Audio, Physical Interfaces & Security

Integrated Audio

Built-in 20 W Stereo Speakers (2x 10 W Speakers)

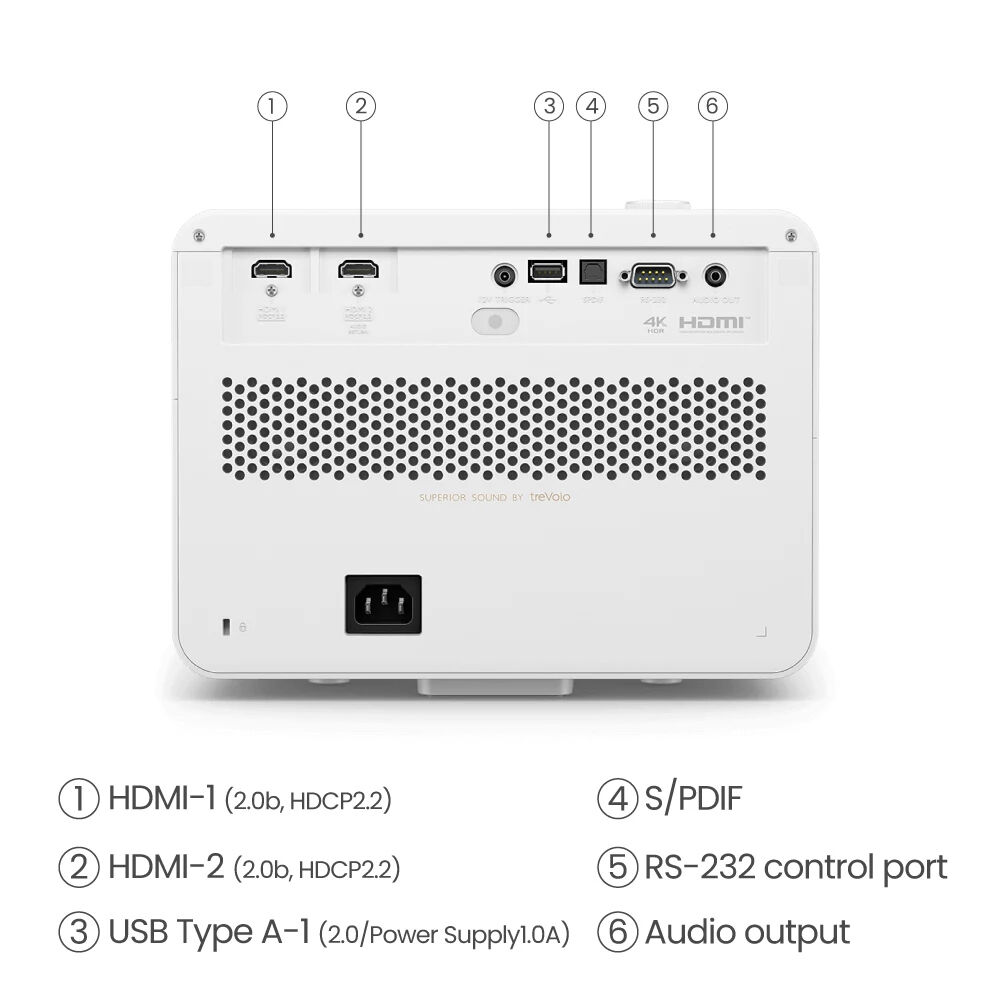

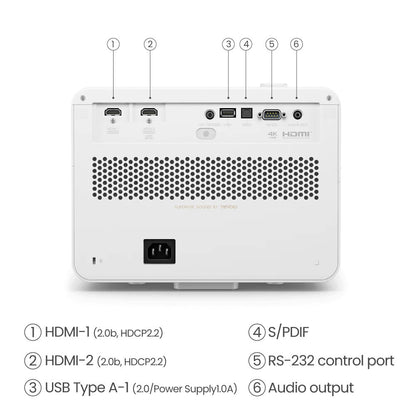

Audio / Video Connections

3x HDMI 2.0b Inputs (HDCP 2.2 Compliant)
1x TOSLINK Optical Audio Output
1x 3.5mm Mini Audio Output

Control & Data Interfaces

1x USB Type-A 2.0
1x DE-9/DB-9 (RS-232 Control Input)
1x 3.5mm Mini Control Input

Security Features

Cable Lock Slot, Password Protection, Security Bar

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz

Power Consumption

Medium Brightness: 330 W
Standby Mode: <0.5 W

Acoustic Noise Level

Full Brightness: 32 dB | Low Brightness: 28 dB

Operating Temperature Range

0°C to 40°C (32°F to 104°F)

Unit Dimensions (W×H×D)

272.0mm x 213.0mm x 259.4mm (10.7" x 8.4" x 10.2")

Net Weight

6.8 kg (15.0 lbs)

Packaging Info

Box: 398.8mm x 386.1mm x 353.1mm (15.7" x 15.2" x 13.9") | Gross Weight: 8.65 kg (19.08 lbs)
