Key Specifications

Max I/O Capacity

40x Input / 25x Output

Number of Analog Input Channels

16

Number of Mic Preamps

16

Number of Analog Output Channels

8

Faders & Level Adjustment

17x 3.9" / 100 mm Motorized Fader (Touch Sensitive)

Analog Inputs

16x XLR 3-Pin Balanced Mic/Line Input
1x XLR 3-Pin Balanced Mic/Talkback Input
1x Stereo RCA Coaxial Unbalanced Aux Input
6x 1/4" TRS Aux Return

Analog Outputs

8x XLR Main/Bus Output
1x Stereo RCA Aux Output
2x XLR Control Room/Monitor Output
2x 1/4" Control Room/Monitor Output
6x 1/4" Aux Output
2x 1/4" Headphone Output

Digital I/O

1x RJ45 Ethernet (Control, 1 Gb/s)
1x RJ45 Ultranet (I/O)
2x RJ45 AES50 (I/O)
1x XLR AES3 Output

USB I/O

1x USB-B 2.0 (Control)
1x USB-B 2.0 (Audio Playback, Multitrack Record)

Wireless

No

Rack Mountable

No

Mixer

Max I/O Capacity

40x Input / 25x Output

Number of Analog Input Channels

16

Number of Mic Preamps

16

Number of Analog Output Channels

8

Mix Routing

25x Stereo Bus

Groups

8x DCA Group
6x Mute Group

Presets

No

Display

7" LCD (Daylight-Viewable)

Faders & Level Adjustment

17x 3.9" / 100 mm Motorized Fader (Touch Sensitive)

Meters

2x 24-Segment LED

Signal Processing

Gain/Trim Range

Mic:
0 dB to +72 dB

Input Polarity

Normal/Reverse

Dynamic Processing

Input Channels:
Compressor, Limiter, Soft Limiter, Gate

EQ

6-Band EQ

Graphic EQ

31-Band 1/3 Octave

Solo/Mute

Solo, Mute per Input Channel
Mute per Master

Automatic Mic Mixing

No

Digital Audio

Sample Rates

44.1 / 48 kHz

Bit Depth

AD/DA Conversion:
24-Bit

Performance

Frequency Response

10 Hz to 22 kHz +0/-1 dB (at 48 kHz)

Max Input Level

Mic Input:
+23 dBu
Line Input:
+16 dBu

Analog Dynamic Range

Input to Output:
106 dB at Unity Gain

I/O Impedance

XLR Mic Input:
5 Kilohms (Unbalanced)
10 Kilohms (Balanced)

1/4" TRS Line Input:
20 Kilohms (Unbalanced)
40 Kilohms (Balanced)

XLR Output:
75 Ohms (Balanced/Unbalanced)

Line Output:
150 Ohms (Unbalanced)
300 Ohms (Balanced)

Noise Floor

-87 dB A-Weighted

THD+N

Mic Input to Analog Output:
0.006% at +20 dB Gain (0 dBu)

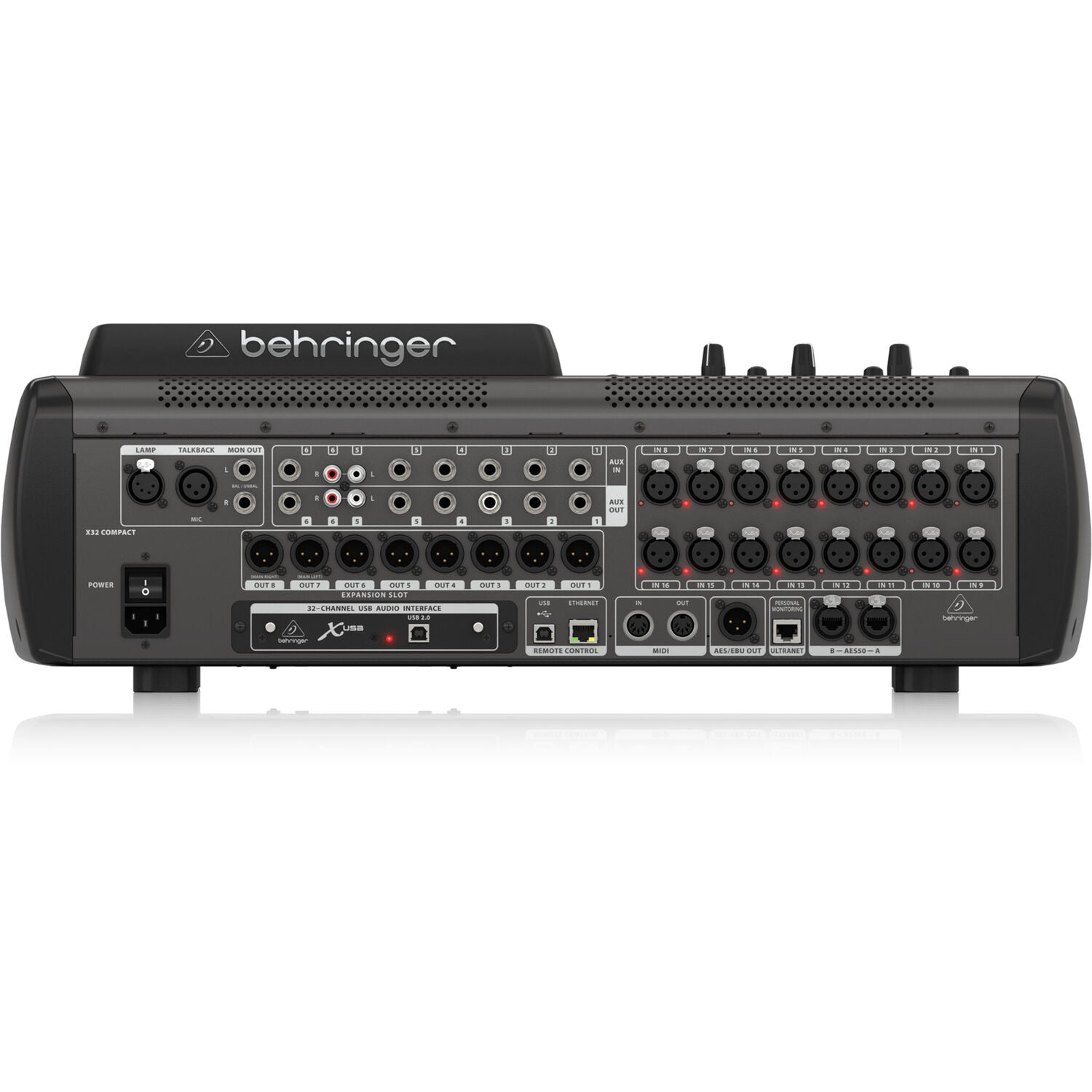

Connectivity

Analog Inputs

16x XLR 3-Pin Balanced Mic/Line Input
1x XLR 3-Pin Balanced Mic/Talkback Input
1x Stereo RCA Coaxial Unbalanced Aux Input
6x 1/4" TRS Aux Return

Analog Outputs

8x XLR 3-Pin Main/Bus Output
1x Stereo RCA Aux Output (1 Stereo Pair)
2x XLR 3-Pin Stereo Control Room/Monitor Output (1 Stereo Pair)
2x 1/4" TRS Stereo Control Room/Monitor Output
6x 1/4" TRS Aux Output
2x 1/4" TRS Headphone Output

Phantom Power

+48 V (Selectable on Individual Inputs)

Digital I/O

1x RJ45 Ethernet (Control, 1 Gb/s)
1x RJ45 Ultranet (I/O)
2x RJ45 AES50 (I/O)
1x XLR AES3 Output

MIDI I/O

1x MIDI 5-Pin In
1x MIDI 5-Pin Out

USB I/O

1x USB-B 2.0 (Control)
1x USB-B 2.0 (Audio Playback, Multitrack Record)

USB I/O Capacity

32x Input / 32x Output

Expansion Ports

No

Wireless

No

Mobile App Compatible

Yes: Android & iOS
App Name: X32-Mix, X32-Q
Functionality: Adjust Settings, Remote Control, Setup

External Display I/O

No

Recording

Max Multitrack Recording

32 Tracks

Media Support

USB Drive

Compatibility

OS Compatibility

Computer: macOS / Windows
Mobile: Android/iOS

OS Compatibility

macOS
Windows

Mobile Device Compatibility

iPad
Android Smartphone
Android Tablet

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Operating Conditions

41 to 104°F / 5 to 40°C

Dimensions

24.6 x 20 x 8.5" / 62.5 x 50.8 x 21.6 cm

Weight

33.9 lb / 15.4 kg

Packaging Info

Package Weight

40.5 lb

Box Dimensions (LxWxH)

29.5 x 25 x 13"
