Key Specifications

Stereo Power @ 8Ω

2 × 400W

Stereo Power @ 4Ω

2 × 600W

Bridge Mono Power @ 8Ω

1200W

Amplifier Topology

Class AB

Audio Performance

Signal to Noise Ratio

100 dB

Frequency Response

±0.1 dB, 20 Hz – 20 kHz

THD

≤0.05% Rated Power @ 8 Ω 1 kHz

Damping Factor

250:1

Slew Rate

15v/µs

Connectivity & Protection

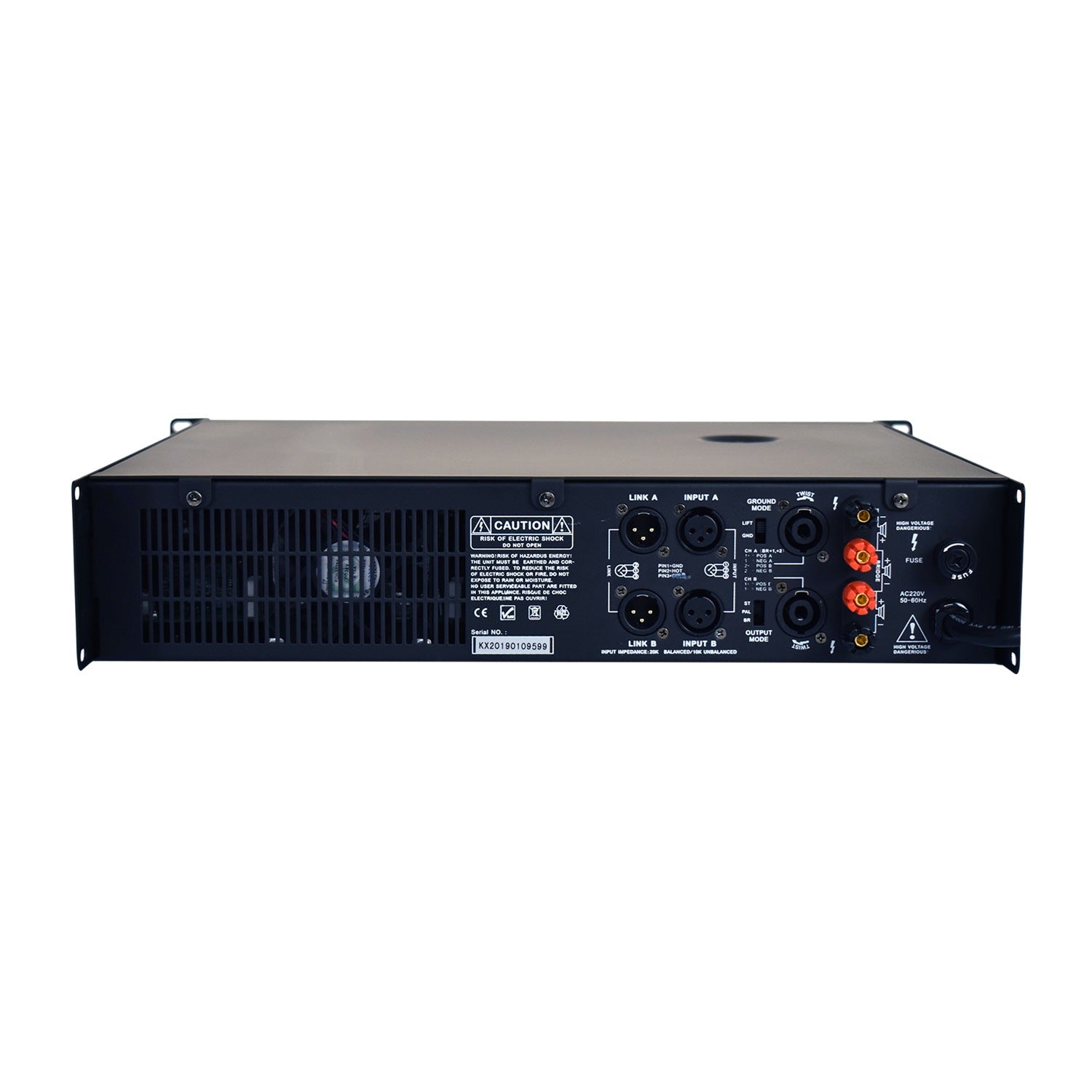

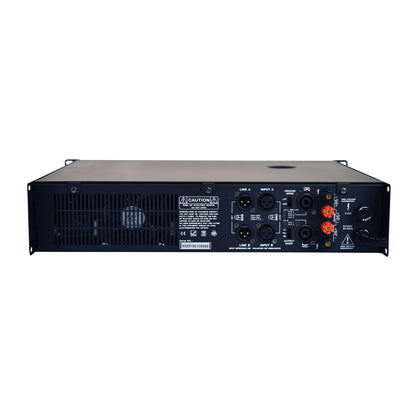

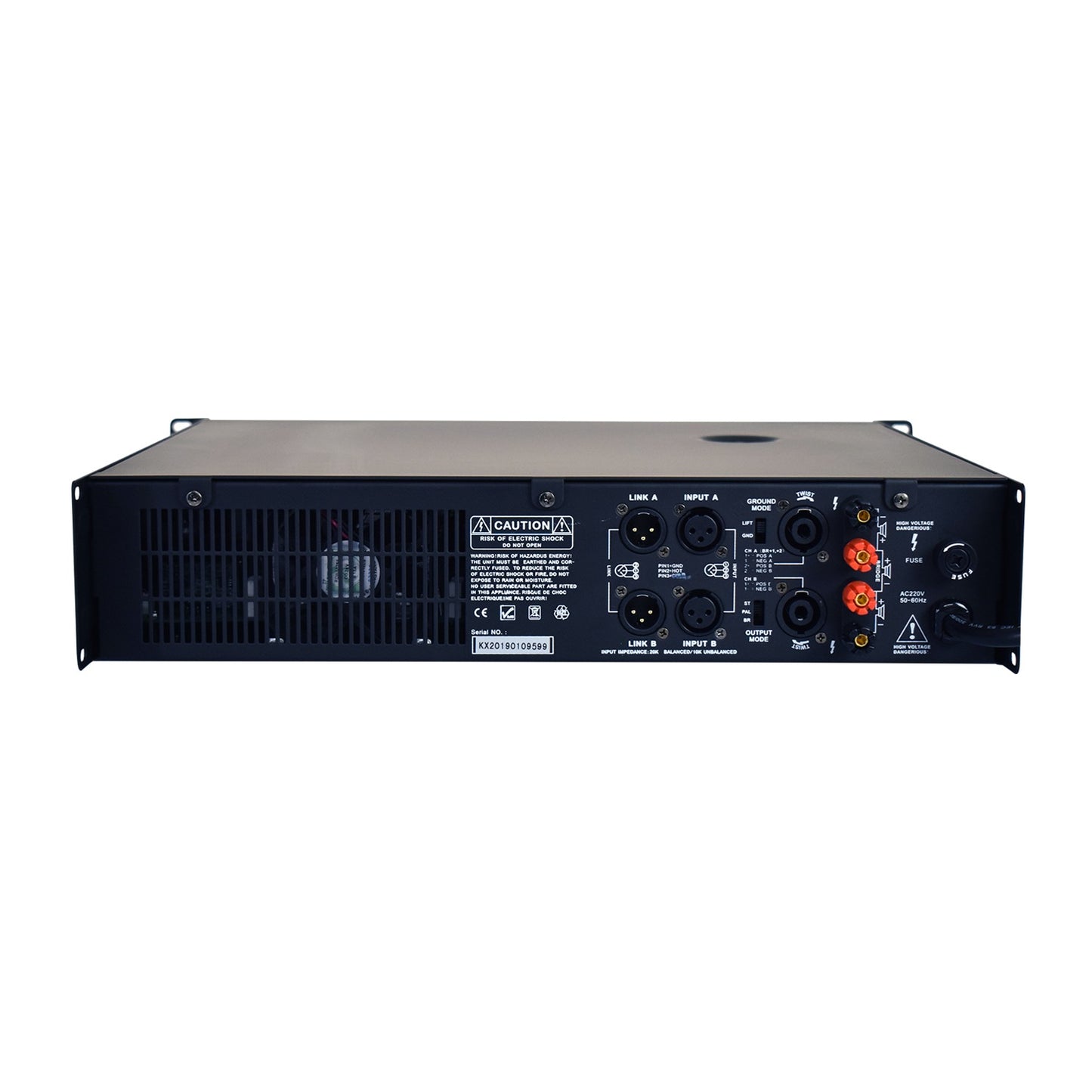

Input Connectors

Female XLR Balanced / Terminal Block Balanced (Thru)

Output Connectors

Speakon & Binding Post

Protection Circuitry

Peak Limit, DC, Overcurrent, Short Circuit, Boot Up

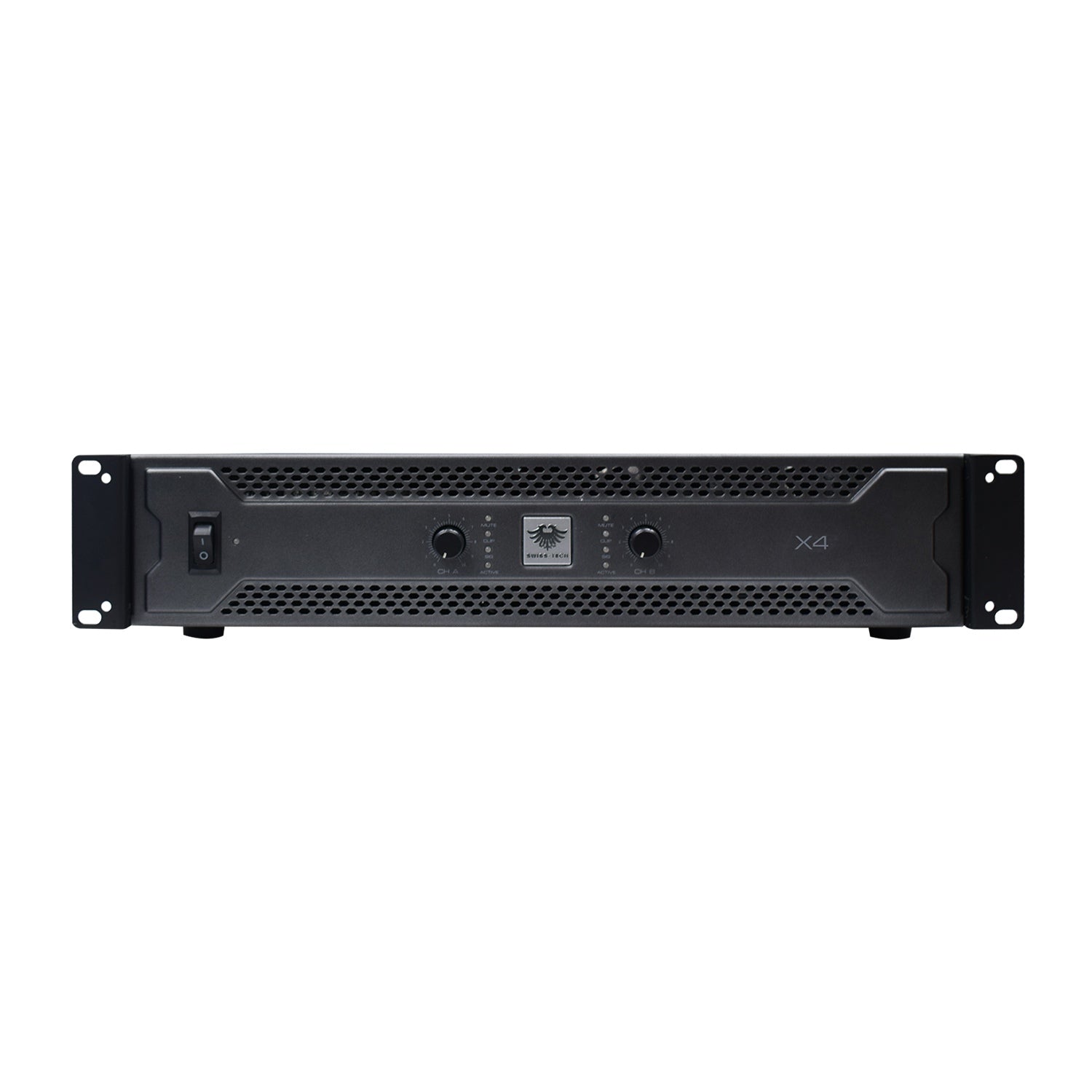

LED Indicators

Active, Signal, Clip, Mute

Electrical & Physical

Power Supply / Fuse

220V / 60Hz (T10A)

Input Sensitivity

0.775V

Net Weight

14 kg

Dimensions (mm)

481 (W) × 412 (D) × 100 (H)
