X8A MKII

2 way full range loudspeaker for portable PA and installation applications
300 Program Power, 600 Watt peak power featuring Class D
Amp for woofer and tweeter
8" low frequency driver
1" ferrite driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

TOPP PRO

₱12,285.00 VAT INC.

₱12,285.00

UNIT: PIECE/S

Product Code: SKU:TOPP-X8AMKII-CHN-460

2 way full range loudspeaker for portable PA and installation applications
300 Program Power, 600 Watt peak power featuring Class D
Amp for woofer and tweeter
8" low frequency driver
1" ferrite driver with 1” Voice Coil
Lightweight polypropylene plastic enclosure
Comprehensive electronics protection with thermal protection, overload protection, analog limiter and overload signal compressor
4 rigging points for installation applications

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

TOPP PRO X8A MKII

Key Specifications
Product Model	X8A MKII
System Type	2-Way Active Ported Loudspeaker
Power Architecture	Class D SMPS (Bi-Amplified) RMS: LF 120W + HF 30W Peak Power: 600W
Acoustic Performance
Transducers	LF: 8" (203mm) Woofer HF: 1" (25mm) Ferrite Compression Driver
Frequency Response	75Hz - 20kHz (-3dB)
Max SPL (@ 1m)	114dB Peak / 86dB Continuous
Coverage (H x V)	90° Horizontal x 60° Vertical
Connectivity & Controls

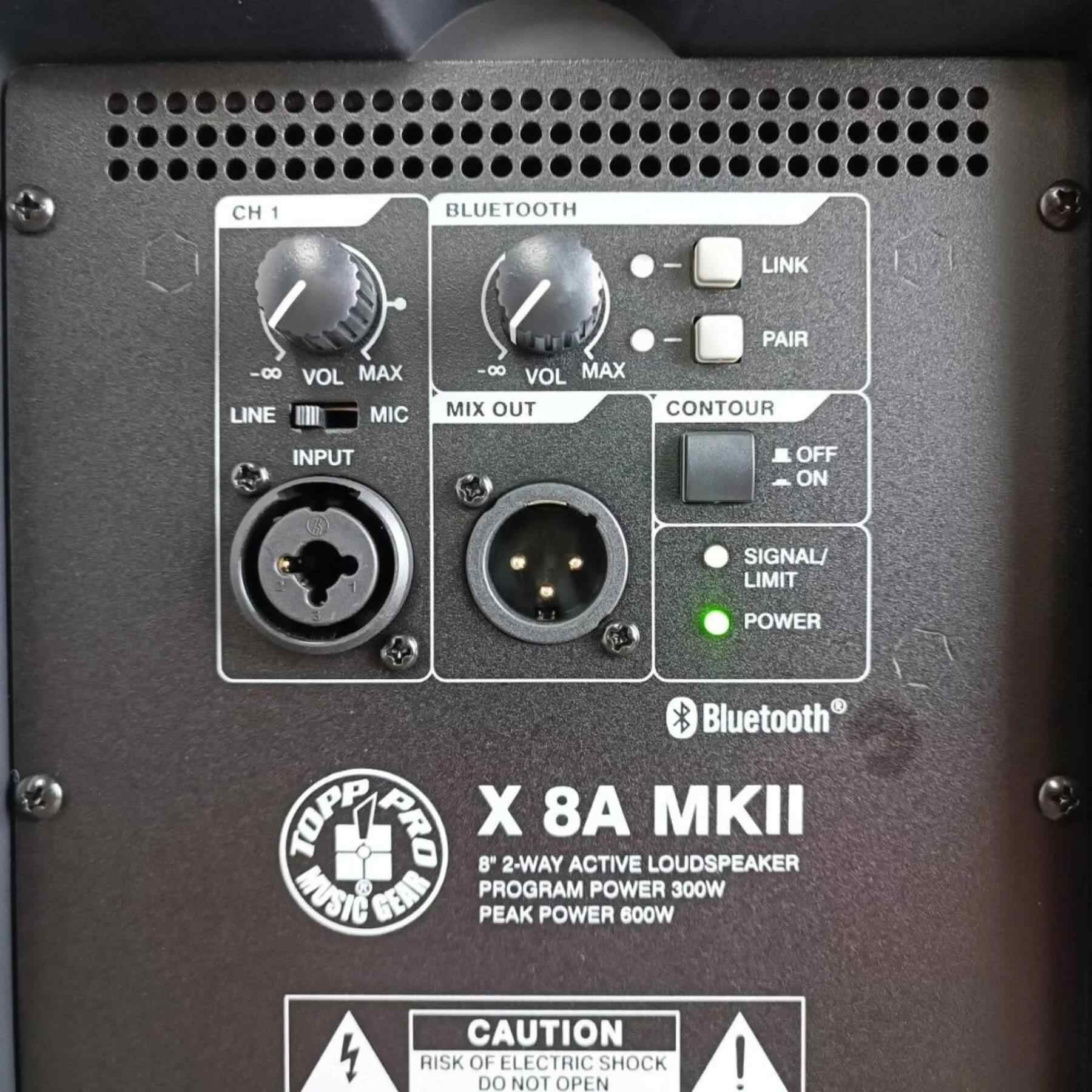

Input / Output	XLR Balanced Input (Mic/Line Switchable) XLR Mix Output (Link) Bluetooth Stereo (L/R Pair & Link)
DSP / Controls	Contour Switch (+3dB LF/HF boost) Volume Knob, Line/Mic Toggle
Physical Construction
Enclosure	Injection-molded polypropylene; Wedge monitor angle
Mounting	Standard 36mm pole socket
Dimensions / Weight	422 x 272 x 252mm \| 5.96 kg (13.1 lbs)
