Key Specifications

Mixer

• Number of Analog Input Channels: 14 (6 Mono / 4 Stereo)
• Number of Mic Preamps: 4
• Analog Output Channels: 1x Stereo Master, 1x Mono Master, 1x Stereo Control Room/Monitor, 2x Stereo Foldback/Cue, 1x Stereo Headphone
• Mix Routing: Aux Bus/Subgroup
• Faders & Level Adjustment: 10x 3.9" / 100 mm Channel Fader
• Meters: Main Meter: 2x LED

Signal Processing

• Gain/Trim Range: XLR Mic Input: -63 dBu to +17 dBu, 1/4" Line Input: -26 dBu to 30 dBu, Stereo RCA Input: 0 dBu to +10 dBu, XLR Aux Input: -26 dBu to +30 dBu
• Dynamic Processing: No
• EQ: 3-Band EQ (Mono Channels), 2-Band EQ (Stereo Channels)
• Graphic EQ: Yes
• Filters: High-Pass
• Solo/Mute: Mute, PFL per Input Channel
• Built-In Effects: No

Digital Audio

• Sample Rates: 32 / 44.1 / 48 kHz
• Bit Depth: 16-Bit

Performance

• Frequency Response: Mic Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain), Line Input to Main Output: 10 Hz to 20 kHz +0.5/-1 dB (Unity Gain), Stereo Input to Main Output: 10 Hz to 30 kHz +0.5/-1 dB
• Max Input Level: XLR Mic Input: +17 dBu, 1/4" TRS Line Input: +30 dBu, 1/4" TRS Insert: +21 dBu, XLR Line Input: +30 dBu (max)
• Noise Floor: Main Output: < -100 dBu (at Unity Gain, 22 Hz to 22 kHz), Alt Output: < -100 dBu (at Unity Gain, 22 Hz to 22 kHz), Aux Output: < -85 dBu (at Unity Gain, 22 Hz to 22 kHz)
• THD+N: Mic Input to Main Output: < 0.01% at Unity Gain (+10 dBu, 1 kHz), < 0.01% at +30 dB Gain (+10 dBu, 1 kHz), Line Input to Main Output: < 0.01% at Unity Gain (0 dBu, 1 kHz), Stereo Line Input to Main Output: < 0.01% at Unity Gain (+10 dBu, 1 kHz)

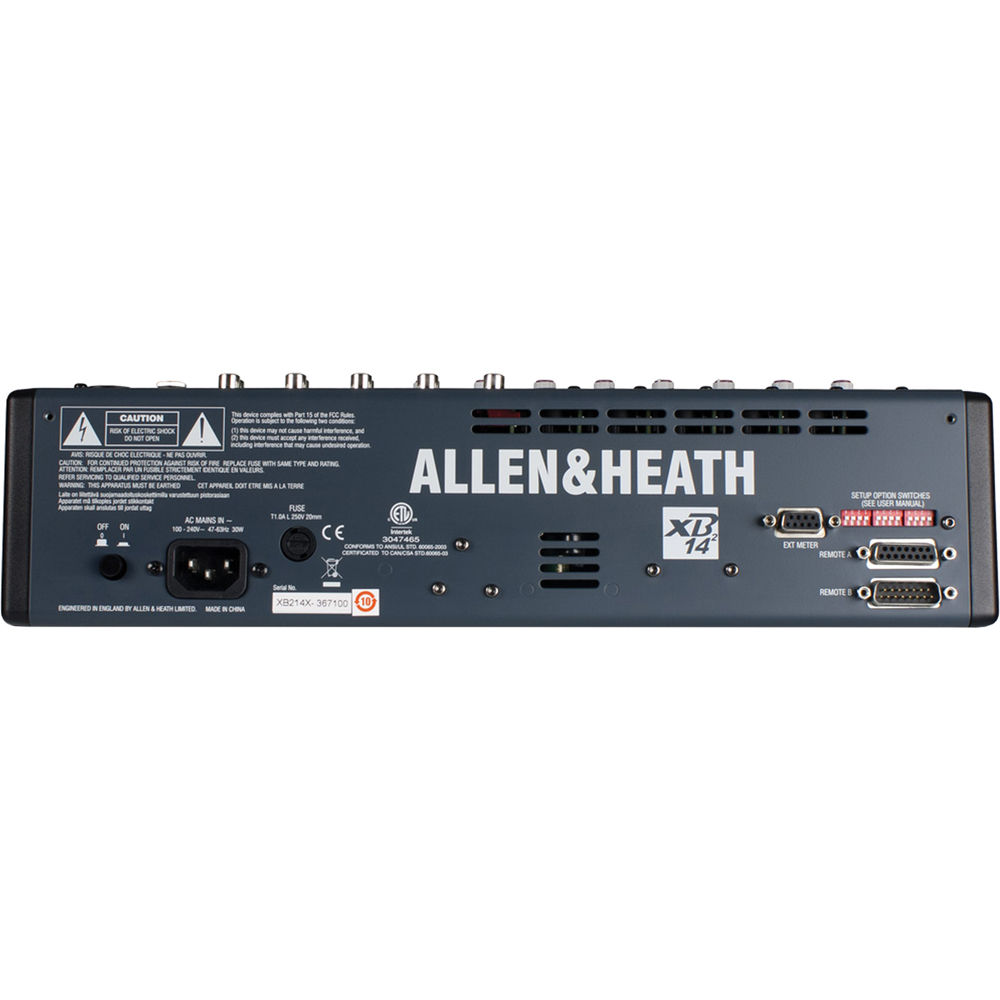

Connectivity

• Analog Inputs: 4x XLR 3-Pin Balanced Mic, 2x XLR 3-Pin Balanced Alt, 4x 1/4" Stereo Insert, 1x 1/4" Input, 4x 1/4" TRS Line, 4x 1/4" TRS Stereo Line, 2x Stereo RCA
• Analog Outputs: 2x XLR 3-Pin Stereo, 1x 1/4" Output, 2x XLR 3-Pin Alt
• Phantom Power: Yes
• Digital I/O: 1x DE-9/DB-9, 2x DE-15/DB-15
• MIDI I/O: No
• USB I/O: 1x USB-B 1.1 (I/O)
• Wireless: No

Compatibility

• OS Compatibility: macOS / Windows

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz (T 10 A 250 V)

Physical

• Rack Mountable: No
• Rackmount Size: 11 U
• Dimensions: 15.2 x 4.1 x 18.3" / 385 x 103 x 465 mm
• Weight: 16.5 lb / 7.5 kg

Packaging Info

• Package Weight: 20 lb
• Box Dimensions (L x W x H): 20.5 x 17.2 x 9.5"
