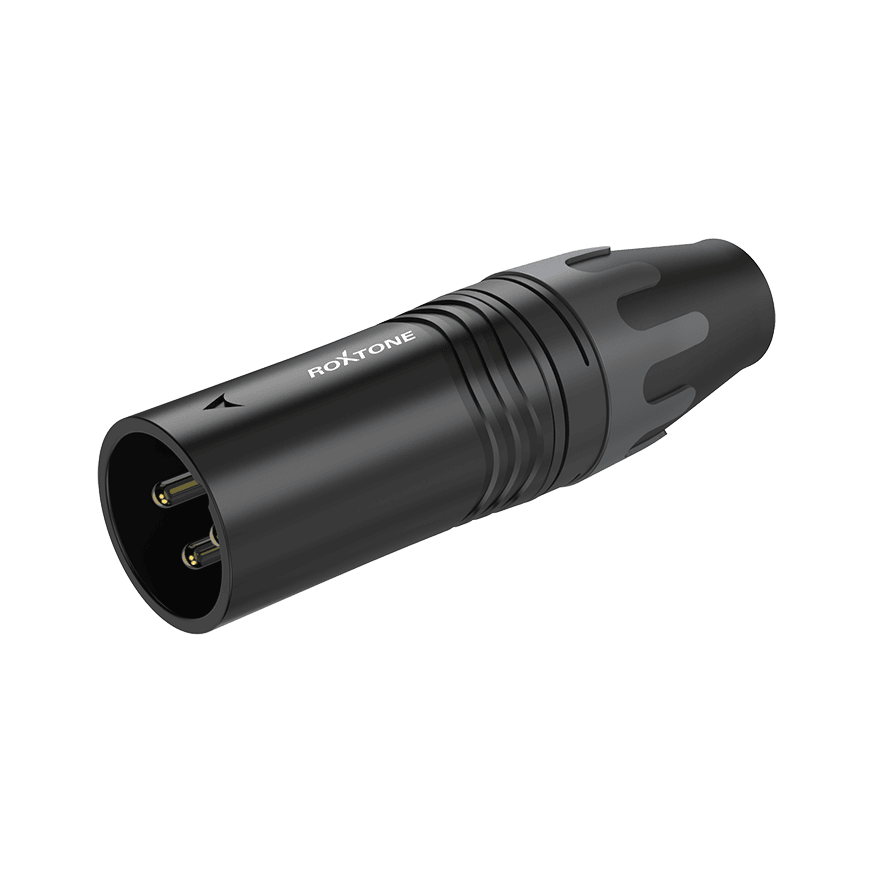

XM3BG

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 7mm
Patent-protected

ROXTONE

₱155.00 VAT INC.

₱155.00

UNIT: PIECE/S

Product Code: SKU:ROXT-XM3BG-CHN-6133

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 7mm
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE XM3BG

Key Specifications
Product Model	Roxtone XM3 Series
Product Type	3-Pole XLR Male Cable Connector Profile: Ergonomic Professional Audio Interface
Material Specifications
Component Build	Housing: Zinc Alloy Diecast Insert: PBT / PA6 30%GF (High-Temp Insulation) Contacts: Brass Strain-Relief: POM (Polyoxymethylene) Chuck-style clamp Bushing: PA + TPE (Soft-touch hybrid)
Model Variations & Finish
XM3NT	Housing Finish: Nickel Plated Contact Plating: Tin
XM3BG	Housing Finish: Black (E-coat) Contact Plating: Gold
Physical Specifications
Mechanical Features	Assembly: Screw-less "chuck-type" internal strain relief Ergonomics: PA+TPE bushing for improved grip and bend relief Coding: Interchangeable PA6 30%GF color rings Application: Balanced microphone and line-level cabling
