Key Specifications

Amplifier Class

D

Output Power (EIAJ 8:32 all channels driven)

4 x 4000 W @ 2.7 Ω
4 x 2600 W @ 4 Ω
4 x 1400 W @ 8 Ω

Frequency Response (-3 dB)

20 Hz - 23 kHz

SNR Analog Inputs (Unweighted)

>111 dB

SNR Digital Inputs (Unweighted)

>115 dB

Crosstalk

<70 dB

Distortion (THD+N)

<0.2% (20 Hz - 20 kHz, 1000 W @ 4 Ω)

Gain (Linear Mode @ 0 dB)

32 dB

Damping Factor

>95 (@ 8 Ω, 20 Hz - 1500 Hz)

Max Burst Length

200 ms (@ 50 Hz, CF = 7 dB, 4 Ω, 1% THD+N)

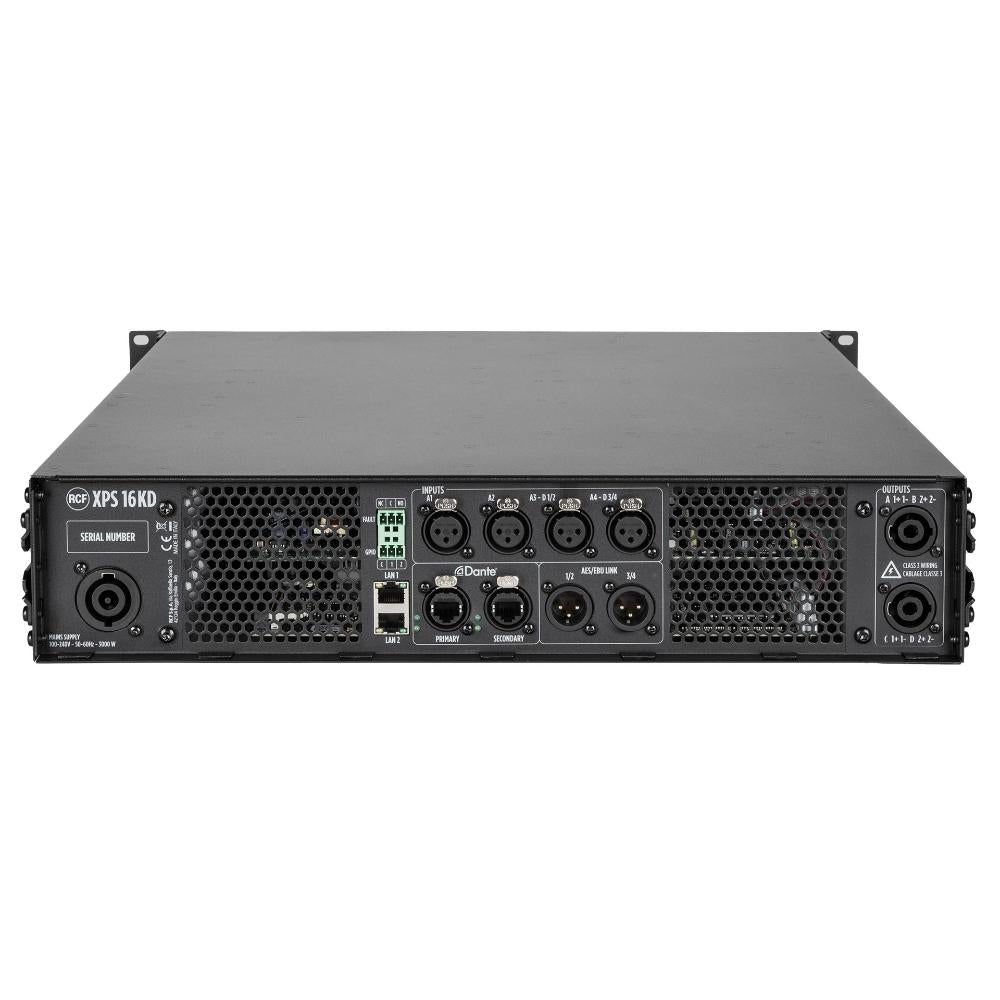

Input Section

Total Number of Inputs

16

Line Inputs

4

Line Connectors

XLR

Digital Inputs

12

Digital Connectors

etherCON, XLR

Digital Type

AES/EBU, Dante

General Purpose Inputs (GPI)

2

Programmable GPI

Yes

Photo-Coupled GPI

2

Output Section

Signal Output Number

4

Signal Output Connectors

XLR

Power Output Connectors

Speakon

General Purpose Outputs (GPO)

3

Programmable GPO

Yes

Processing

DSP

2 SHARC, 40-bit Floating Point, 96 kHz
2 ADAU, 32-bit Fixed Point, 96 kHz

EQ Filters

Peaking, HI/LO-Shelving, HI/LO-Pass (Butterworth, Linkwitz-Riley, Bessel)

Advanced Algorithms

FiRPHASE Technology, BASS Shaper, Air Compensation, Mid-Low Correction, Driver Excursion Control, Dynamic PEQ, Multi-Band Compressor, Pilot Tone Detection, Backup Recovery Strategy, Impedance Load Measurement

Compressors

RMS Limiter, Dynamic Compressor, Power Limiter, Thermal Compressor

Delay

0 to 4000 ms (Each Channel)

Tone Controls

Yes

High-Pass Filter

10 Hz - 1000 Hz

Crossover

2500 - 3500 Hz

Automatic Gain Control

Yes

Configuration and Control

Configuration

Front Panel Touch Screen, PC Software

Network

Gigabit Ethernet

RCF Speakers Presets

Yes

Priority

Yes

RDNet

Onboard

Protections

Cooling

Forced

Short Circuit

Yes

Thermal

Yes

DC

Yes

Fuses

Yes

VHF (Very High Frequencies)

Yes

Operating Conditions

Temperature Range - Continuous Operation

-5°C to +40°C / +23°F to +104°F

Temperature Range - Reduced Output Power

-5°C to +50°C / +23°F to +122°F

Fan Noise (Idle)

<35 dBA

Fan Noise (Max)

<64 dBA

Power Requirement

Operating Voltage

100-240 V~ 50/60 Hz

Nominal Current AC @ 100-120 V

30 A

Nominal Current AC @ 220-240 V

16 A

Standby Power Consumption

20 W

Idle Power Consumption

90 W

Power Consumption (Max)

5800 W

Main Fuse

Internal

Fuses Model

F 315 mA H 100 V

Standard Compliance

Safety Agency

CE Compliant, UL 62368-1 (3rd Ed.), CSA C22.2 No. 62368-1:19 (3rd Ed.)

Physical Specifications

Cabinet/Case Material

Metal

Handles

2 Metal Handles for Rack Mount

Color

Black - RAL 9005

Rack Mounting

19", 2U

Size / Weight

Height

88.7 mm / 3.49"

Width

482 mm / 18.98"

Depth

482.4 mm / 18.99"

Weight

15 kg / 33.07 lb
