Key Specifications

Mixer Configuration

Max I/O Capacity

18 Inputs × 12 Outputs

Analog Input Channels

16

Mic Preamps

16

Analog Output Channels

8

Mix Routing

12 Stereo Bus

Groups

4 DCA Groups
4 Mute Groups

Presets

64 Scenes

Faders & Level Adjustment

No

Signal Processing

Gain / Trim Range

Mic: 0 dB to +72 dB

Input Polarity

Normal / Reverse

Dynamic Processing

Compressor, Limiter, Soft Limiter, Gate

EQ

4-Band EQ

Graphic EQ

31-Band 1/3 Octave

Solo / Mute

No

Channel Monitoring

AFL

Real Time Analyzer

100-Band

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

44.1 kHz / 48 kHz

Bit Depth

24-Bit AD/DA Conversion

DSP

40-Bit Floating Point

Converter Dynamic Range

114 dB @ 48 kHz

Latency

0.8 ms (Analog Input to Analog Output)

Performance

Frequency Response

10 Hz – 22 kHz (+0/-1 dB @ 48 kHz)

Max Input Level

Combo XLR-1/4" Mic Input: +23 dBu
Line Input: +16 dBu

Output Level

Combo XLR-1/4" Output: +16 dBu Max, +4 dBu Nominal
1/4" TRS Headphone Output: +35 dBm at Max Gain (Unbalanced)

Analog Dynamic Range

106 dB at Unity Gain

Input / Output Impedance

Combo XLR-1/4" Line/Mic Input: 5 kΩ Unbalanced, 10 kΩ Balanced
1/4" TRS Hi-Z Input: 1 MΩ Unbalanced, 2 MΩ Balanced
1/4" TRS / XLR Output: 50 Ω Balanced/Unbalanced

Crosstalk

90 dB @ 1 kHz (Adjacent Channels)

CMRR

>60 dB @ +20 dB Gain
>65 dB @ +40 dB Gain

EIN

-128 dBu

Noise Floor

-92 dB A-Weighted

THD+N

0.005% at +20 dB Gain (0 dBu)

Signal Generator

No

Connectivity

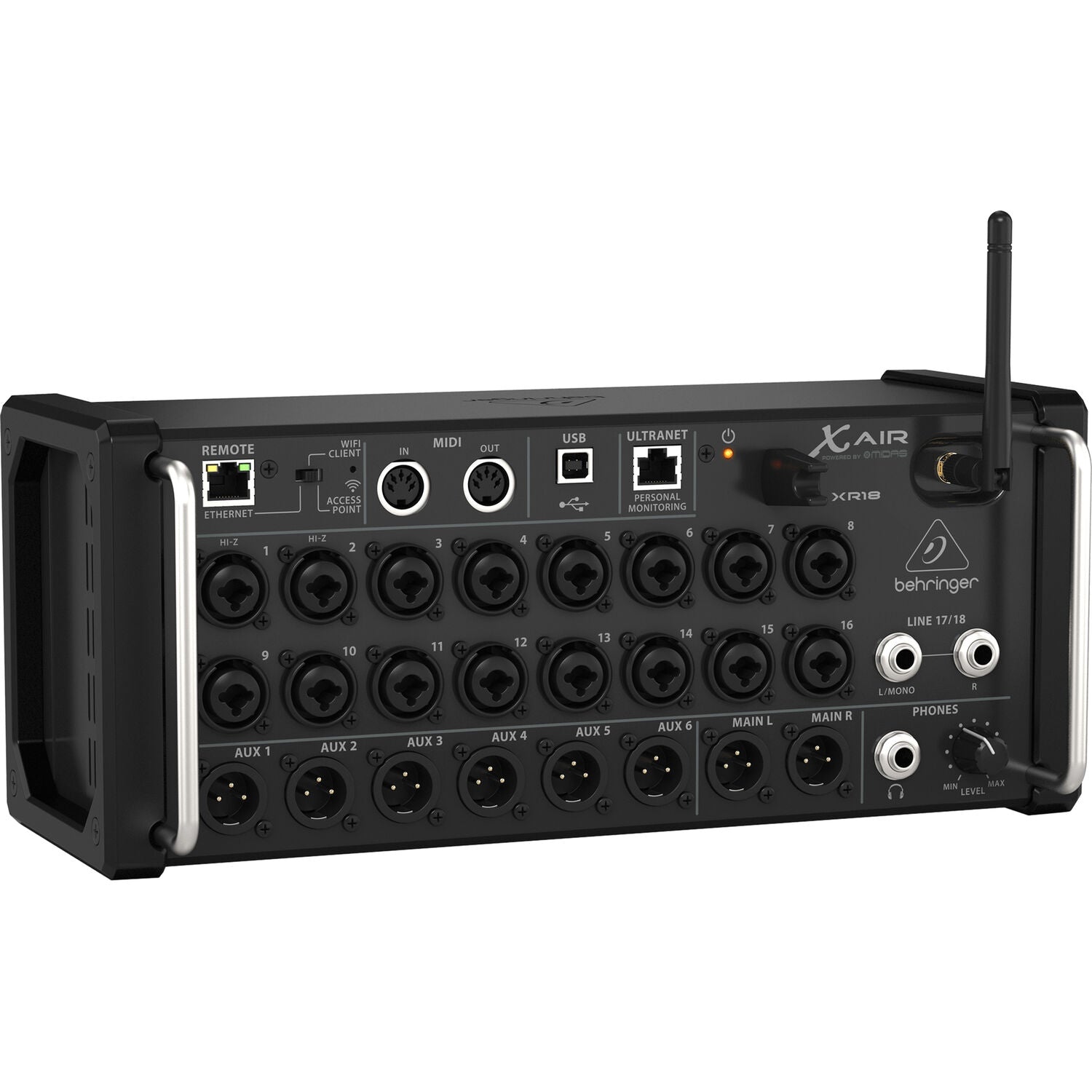

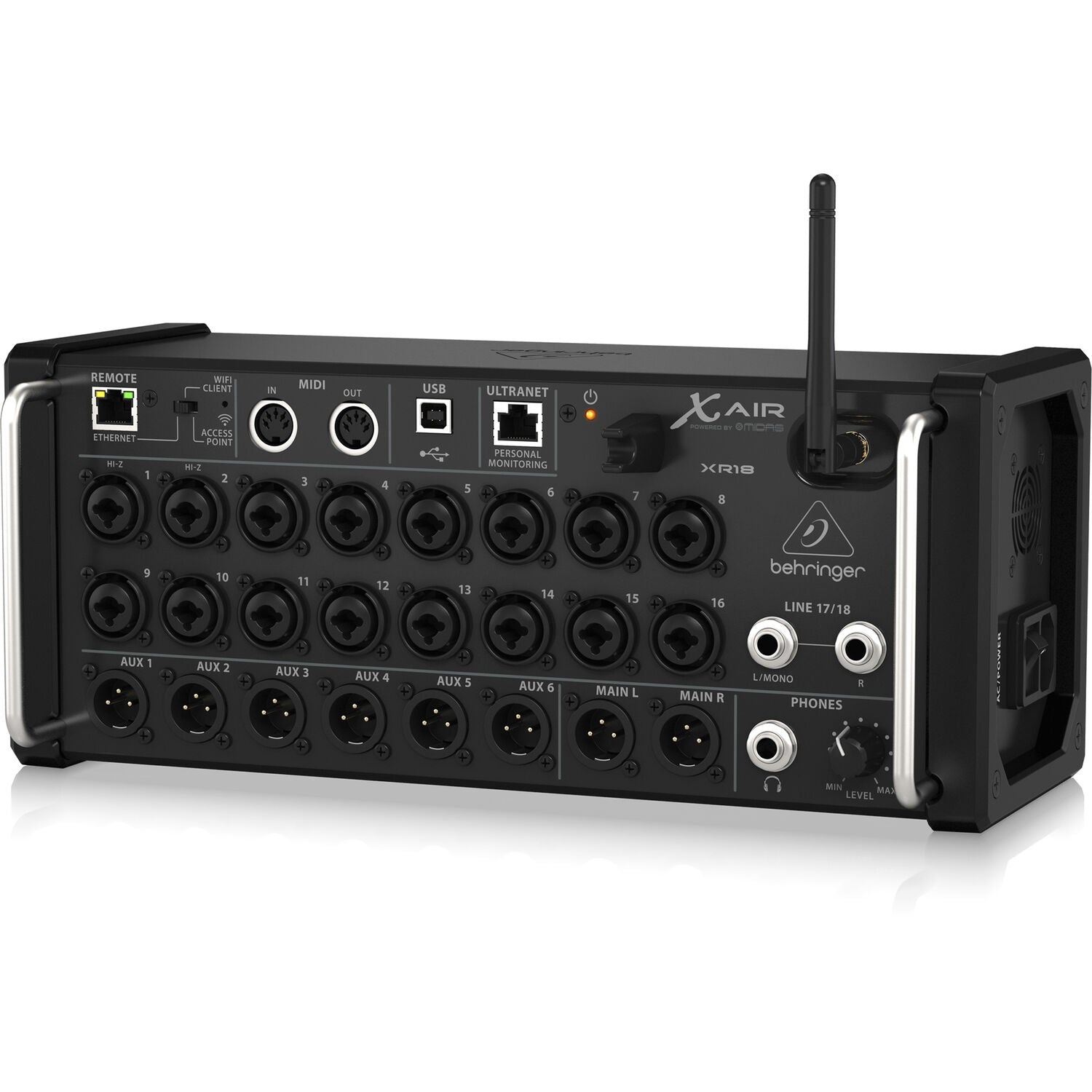

Analog Inputs

16 × Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Inputs
2 × 1/4" TRS Balanced/Unbalanced Line Inputs (1 Stereo Pair)

Analog Outputs

8 × XLR 3-Pin Main/Bus Outputs
1 × 1/4" TRS Headphone Output

Phantom Power

+48V Selectable on Individual Inputs

Digital I/O

1 × RJ45 Ethernet (Control, 1 Gb/s)
1 × RJ45 Ultranet (I/O)

MIDI I/O

1 × MIDI 5-Pin Input
1 × MIDI 5-Pin Output

USB I/O

1 × USB-B 2.0 (Audio Playback, Control, Multitrack Record)

USB I/O Capacity

18 Inputs × 18 Outputs

Expansion Ports

No

Wireless

No

Mobile App Compatibility

Android & iOS
App: X AIR MIX
Functions: Adjust Settings, Remote Control, Setup

External Display I/O

No

Recording

Max Multitrack Recording

18 Tracks

Media Support

USB Drive

Compatibility

OS Compatibility

macOS, Windows

Mobile Device Compatibility

iPad, Android Tablet

Required Hardware

No

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

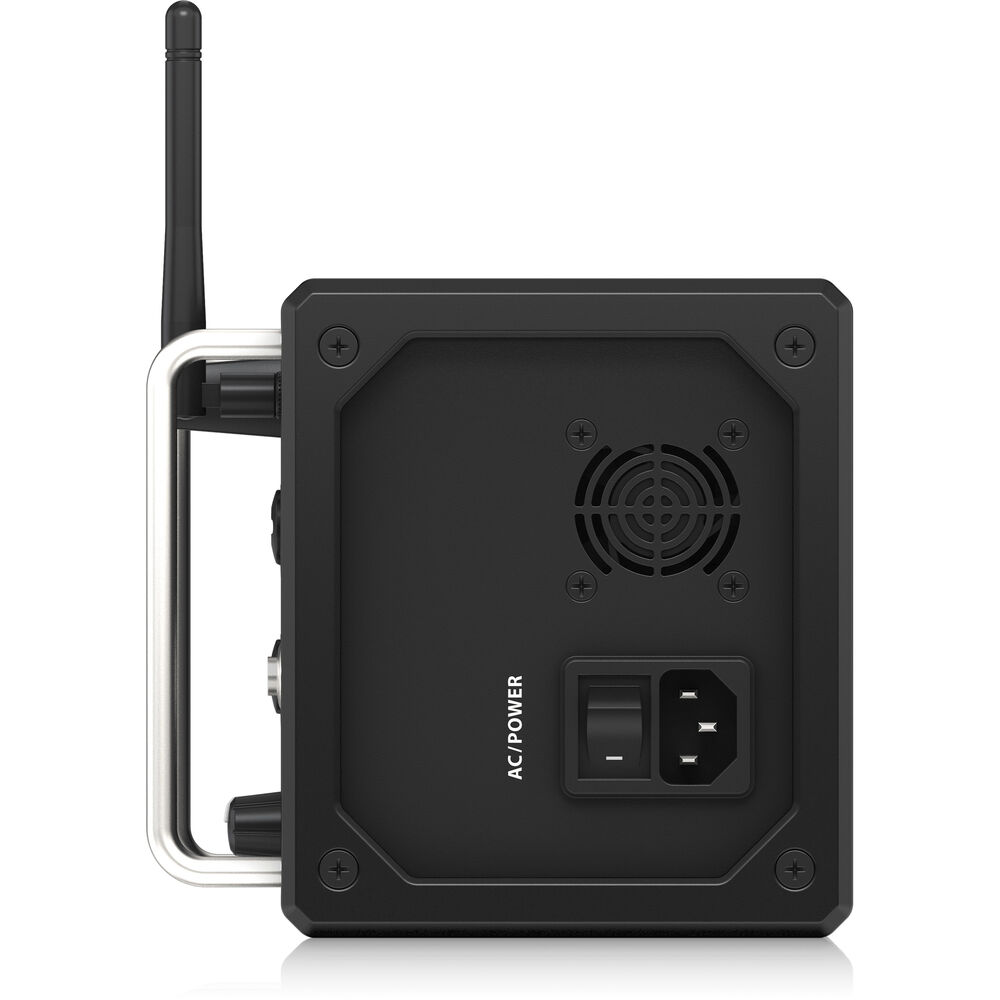

1 × IEC Input

Power Consumption

30 W

Physical Specifications

Rack Mountable

No

Operating Temperature

5°C to 40°C (41°F to 104°F)

Dimensions

333 × 150 × 140 mm (13.1 × 5.9 × 5.5")

Weight

3.2 kg (7.1 lb)

Packaging Information

Package Weight

9.38 lb

Box Dimensions (L × W × H)

15.4 × 8.3 × 7.9 in
