Key Specifications

Product / Accessory Type

Power Amplifier

Form Factor & Dimensions

1U Rackmountable (19" Rack Compatible)

Acoustic & Electrical Performance Specifications

Amplifier Topology Class

Class-D Topology

Channel Configuration

2 Output Channels / 1 Bridged Channel

Amplifier Output Power (Stereo Mode)

400 W Total RMS @ 4 Ohms / 200 W Total RMS @ 8 Ohms (200 W Total Peak @ 8 Ohms)

Amplifier Output Power (Bridged Mode)

1x 400 W RMS @ 8 Ohms

Frequency Response

20 Hz to 20,000 Hz (±0.5 dB, rel. Avg)

Input Gain Range

24 dB to 30 dB

Amplifier Protection Systems

Direct Current (DC), Short Circuit, Overheating, Overload, Soft-Start, Peak / RMS Limiter

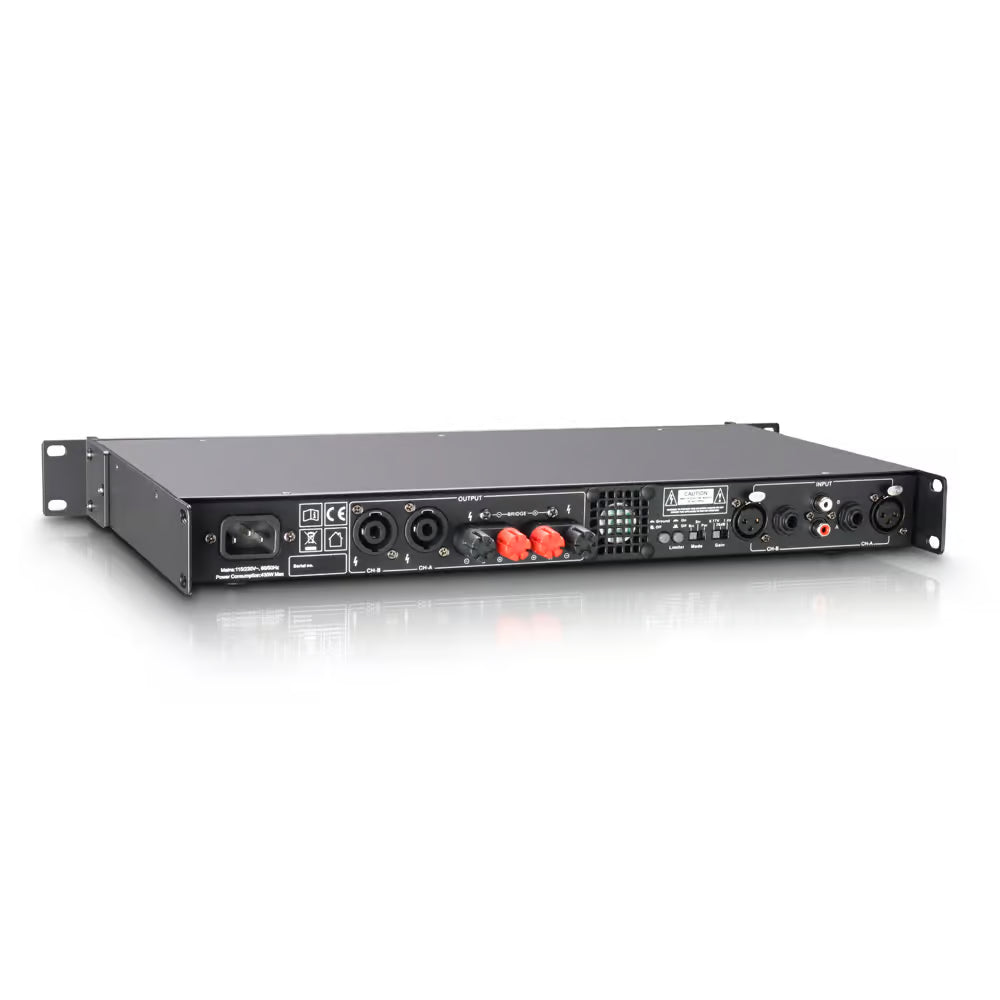

Connectivity & Expansion Specifications

Line Audio Inputs

3x Line Inputs: XLR 3-Pin Female, RCA Female, 1/4" (6.3 mm) TRS Jack Female

Speaker Audio Outputs

2x Speaker Outputs: SpeakON / 4-Pole Male Connectors, 2-Pole Speaker Terminal Blocks

Wireless Connectivity

Not Supported (No Bluetooth Receiver / Transmitter)

Power & Electrical Specifications

Power Supply Unit Type

Switched-Mode Power Supply (SMPS)

Operating AC Mains Voltage

115 V AC to 230 V AC, 50 / 60 Hz

Rated Power Consumption

470 W

Mains Connector

IEC C14 Male Inlet Plug Terminal

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

482 mm x 44 mm x 244 mm (18.98" x 1.73" x 9.61")

Product Net Weight

3.40 kg (7.50 lbs)
