XSW 1-835 Dual
XSW 1-835 Dual
SENNHEISER
UNIT: SET
Product Code: SKU:SENN-XSW1835D-CHN-4659
Key Features

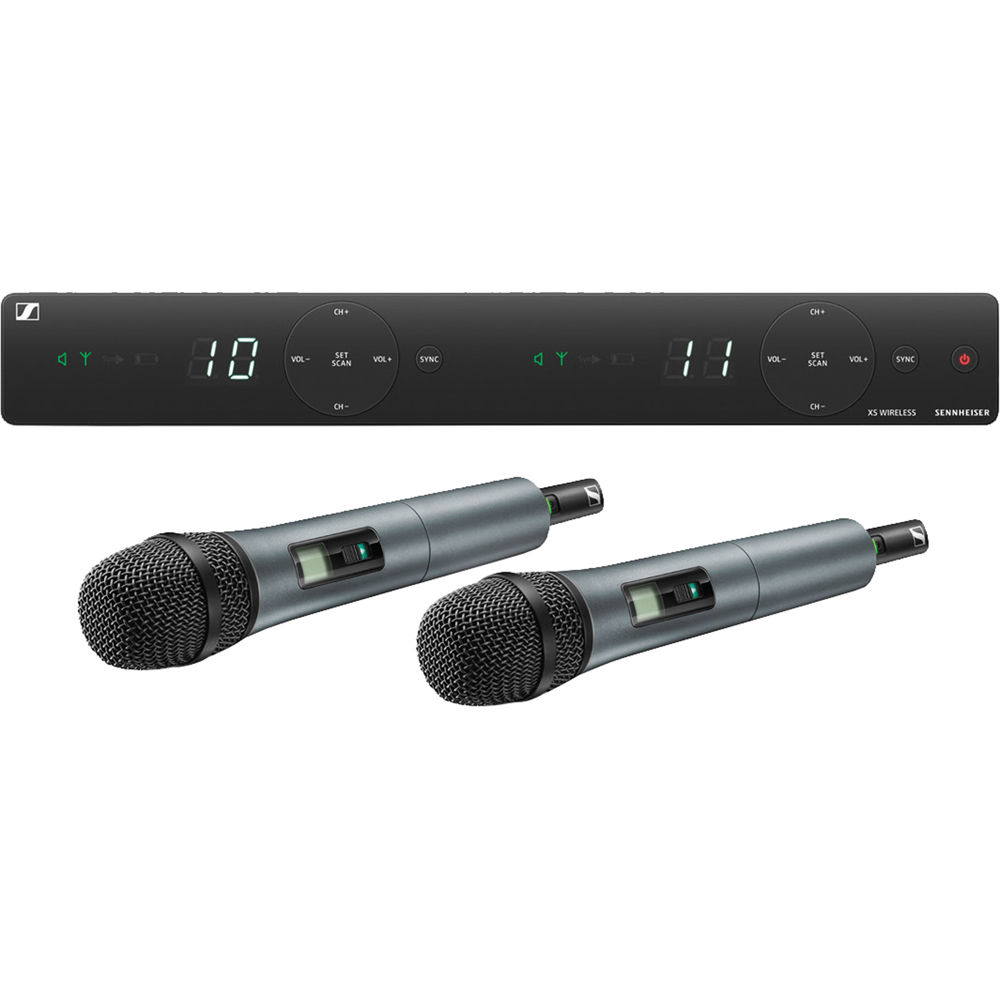

SENNHEISER XSW 1-835 Dual
SENNHEISER XSW 1-835 Dual
|
Key Specifications |
|
|
Wireless Technology |
Analog UHF |
|
RF Frequency Band |
A: 548 to 572 MHz |
|
RF Channel Frequencies |
80 Selectable Frequencies |
|
Max Transmitters per Band |
10 |
|
Diversity |
Yes |
|
Encryption |
No |
|

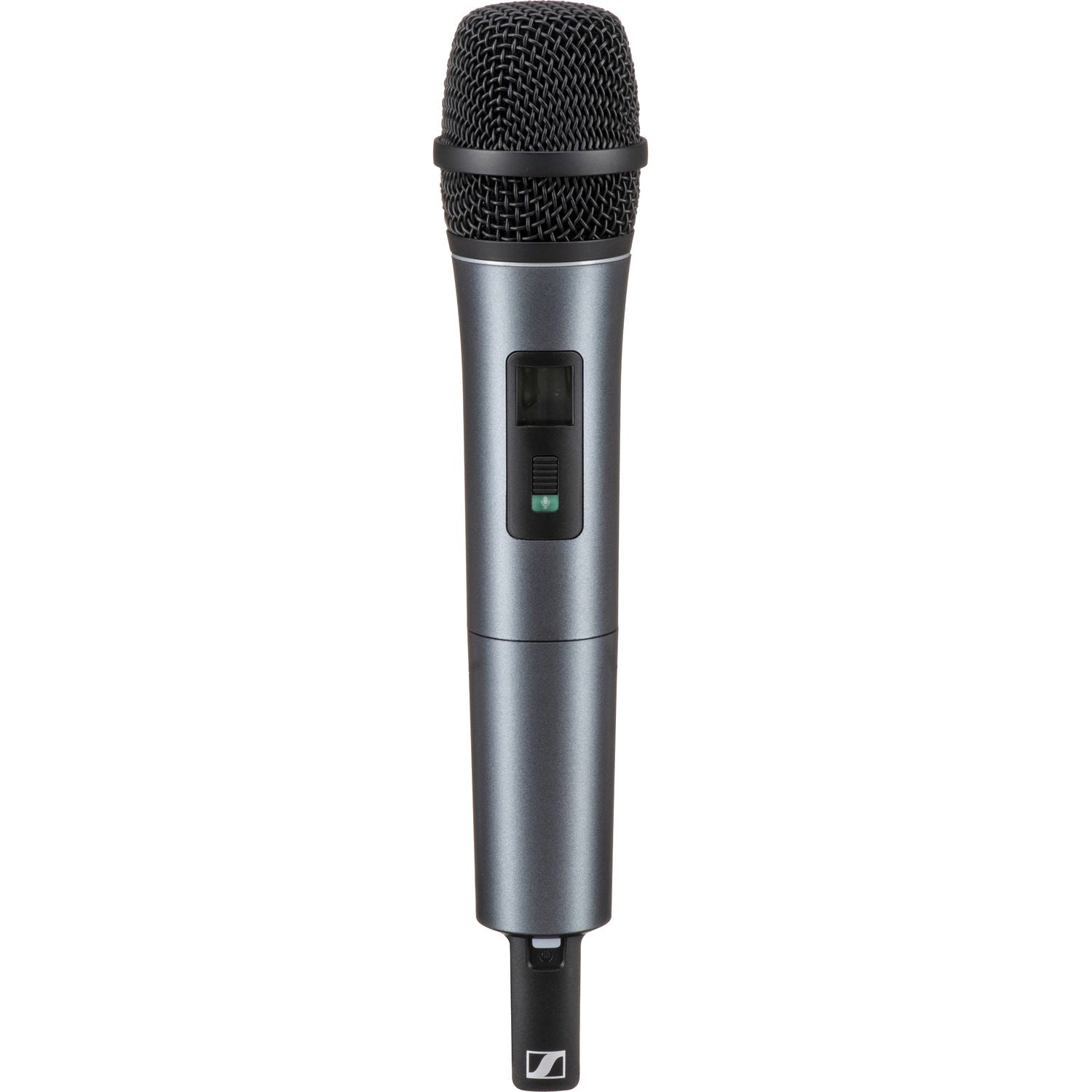

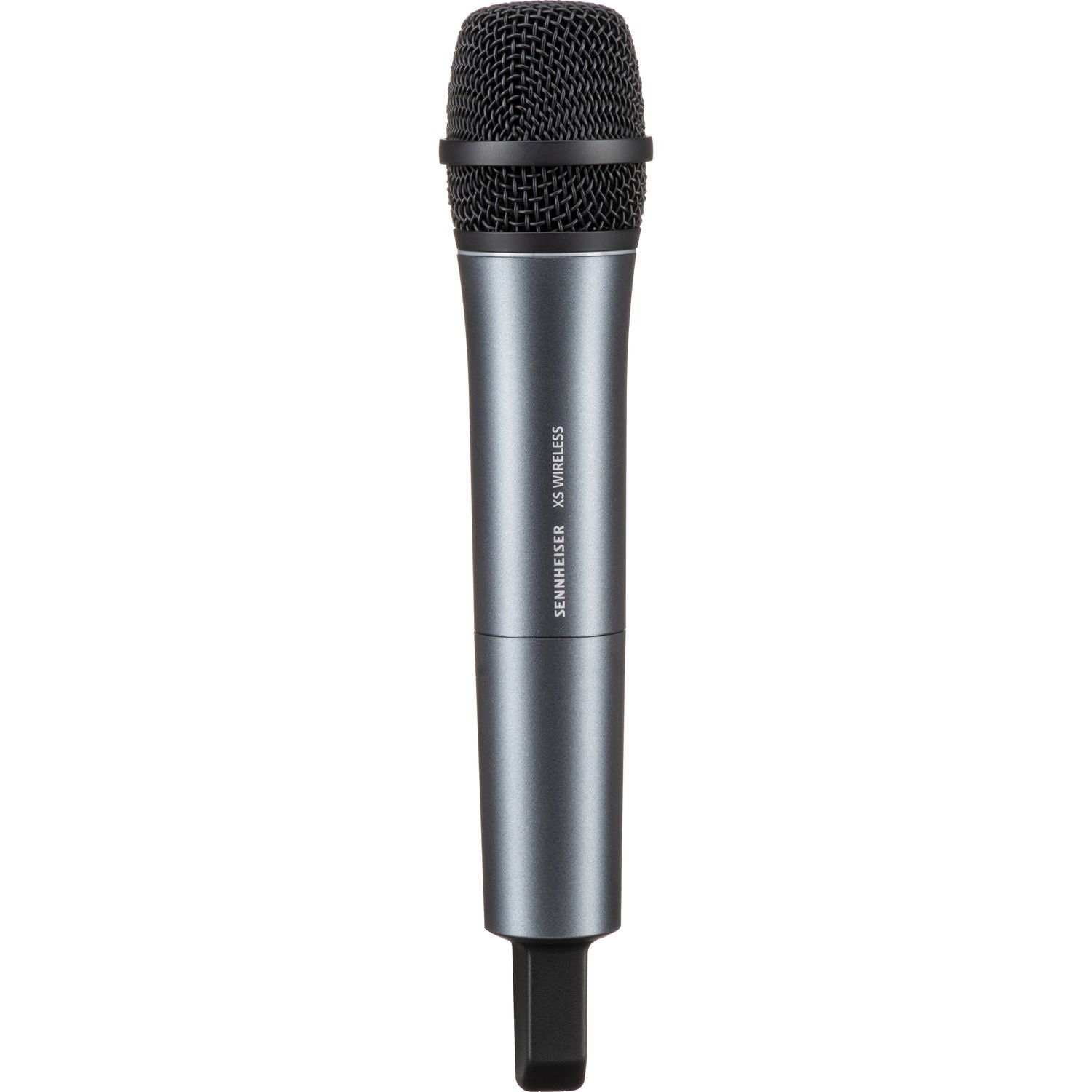

Handheld Transmitter (SKM 835-XSW-A) |
|
|
Microphone Capsule |
Sennheiser e835 (Interchangeable) |
|
Polar Pattern |
Cardioid |
|
RF Output Power |
10 mW |
|
Frequency Response |
80 Hz – 16 kHz |
|
Gain Range |
0 to -30 dB (10 dB Steps) |
|
Sync Method |
2.4 GHz QPSK |
|
Mute Function |
Mute Switch |
|
Display |
LCD (Non-Backlit) |
|
Battery Type |
2 × AA Batteries (Included) |
|
Battery Life |
Up to 10 Hours |
|
Operating Range |
Up to 100 ft / 30.5 m |
|
Dimensions |
260 × 50 mm (10.2 × 2") |
|
Weight |
340 g (12 oz) |
|

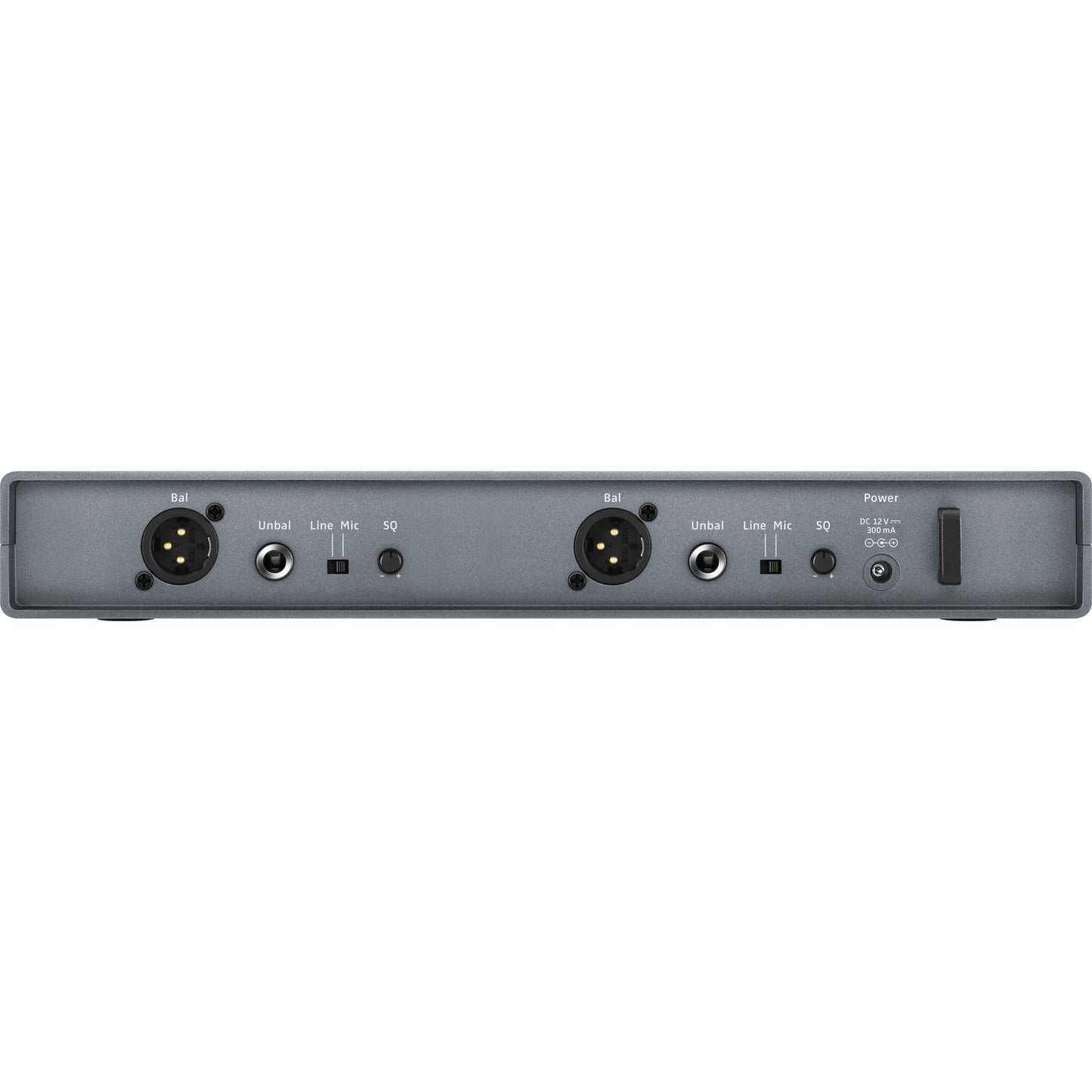

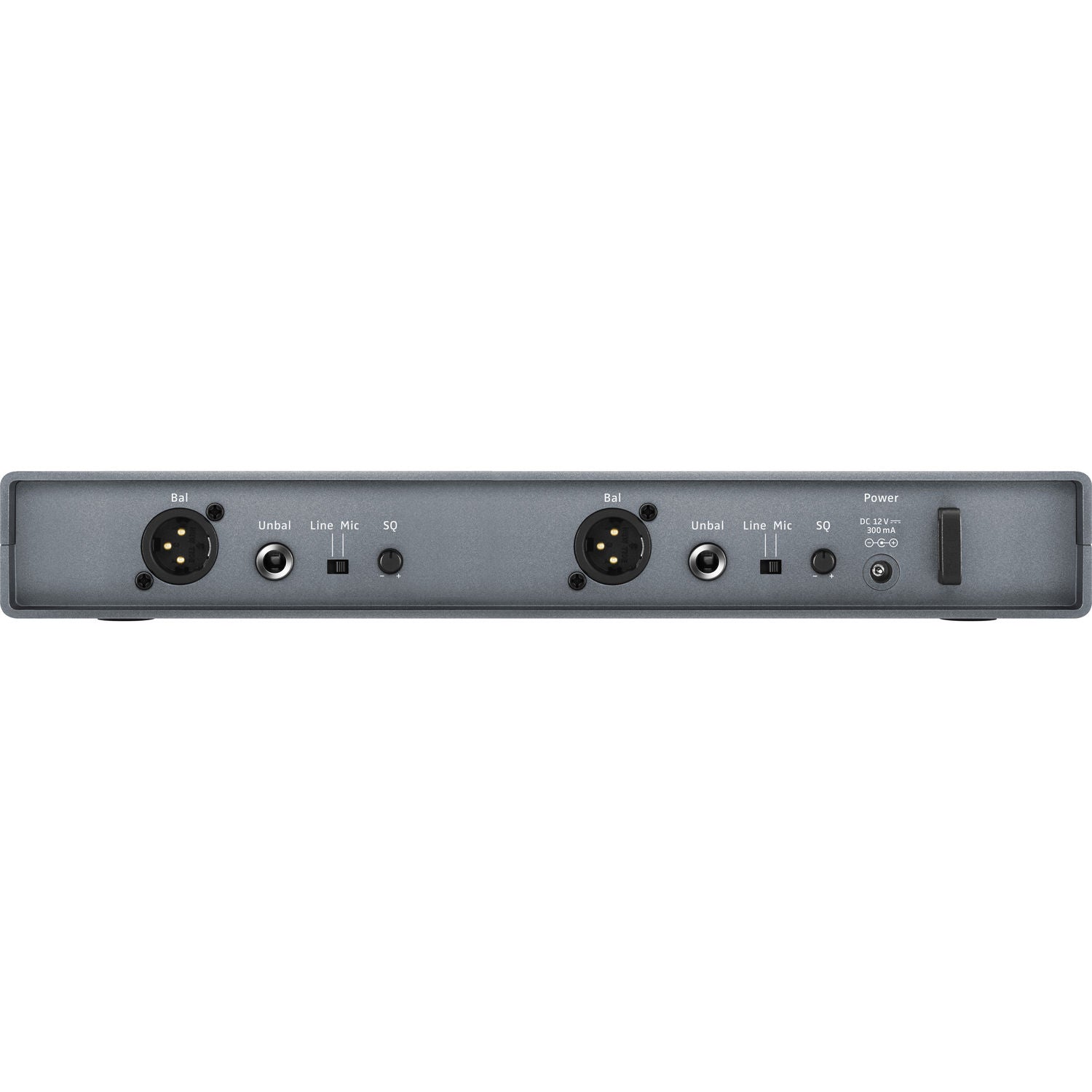

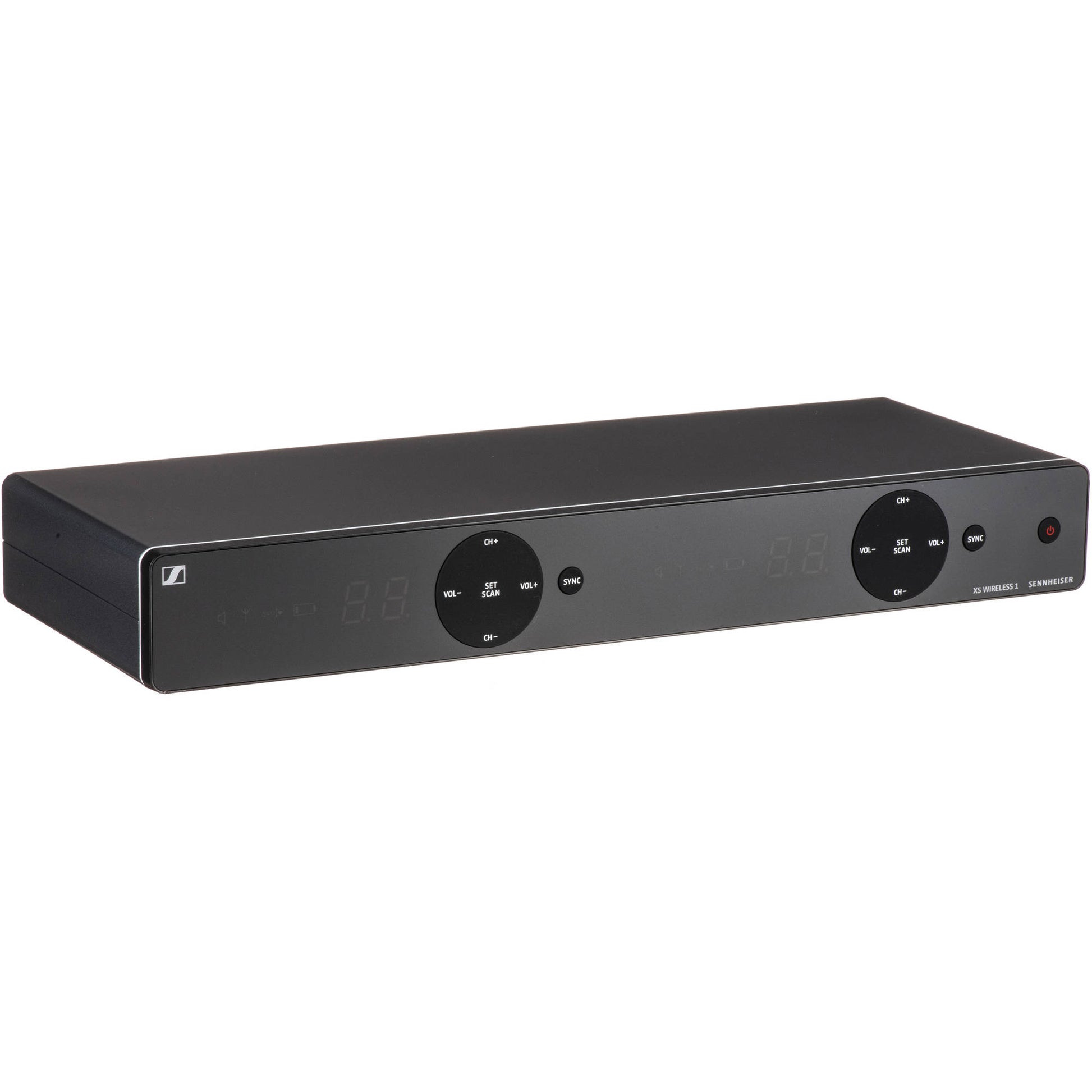

Dual-Channel Receiver (EM-XSW 1) |
|
|
Receiver Type |
Tabletop Dual-Channel Receiver |
|
Audio Channels |
2 |
|
Antennas |
2 × Internal |
|
Audio Outputs |
2 × XLR 3-Pin Balanced Mic/Line Outputs |
|
Gain Range |
45 dB (5 dB Steps) |
|
Frequency Response |
50 Hz – 16 kHz (-3 dB) |
|
Display |
Alphanumeric LED |
|
Power Supply |
12 VDC, 300 mA AC Adapter (Included) |
|
Dimensions |
320 × 126.5 × 42 mm (12.6 × 5 × 1.7") |
|
Weight |
620 g (21.9 oz) |
|
Included Accessories |
|
|
Microphone Clamp |
Sennheiser MZQ1 |
|
Power Adapter |
Included |
|
AA Batteries |
Included |
|
Charging Case |
Not Included |
SENNHEISER XSW 1-835 Dual Accessories
- No accessories available.
