Key Specifications

Product Model

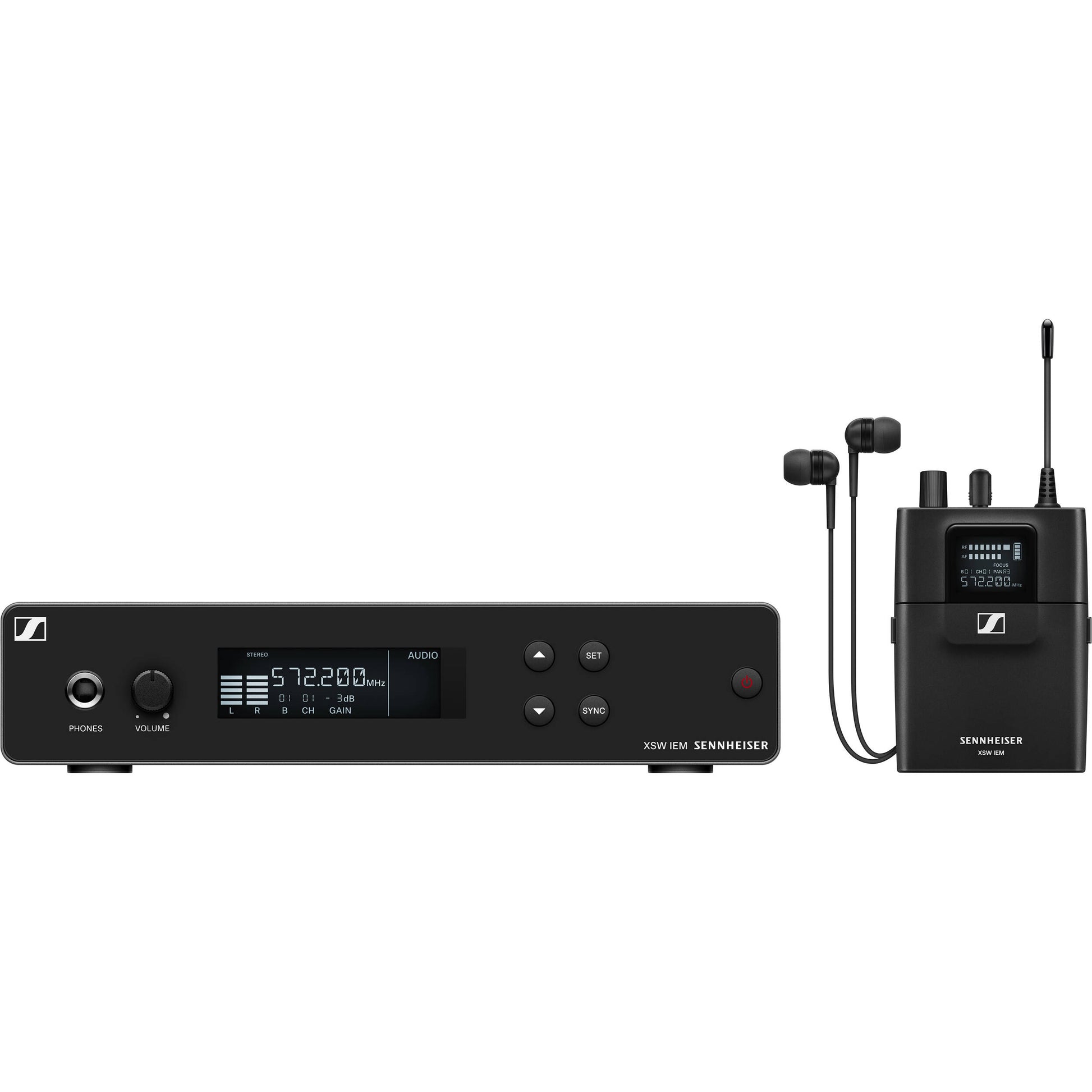

Sennheiser XSW IEM SET (Band A)

System Type

• Analog UHF All-in-One In-Ear Monitor System
• Frequency Band: A (476 to 500 MHz)

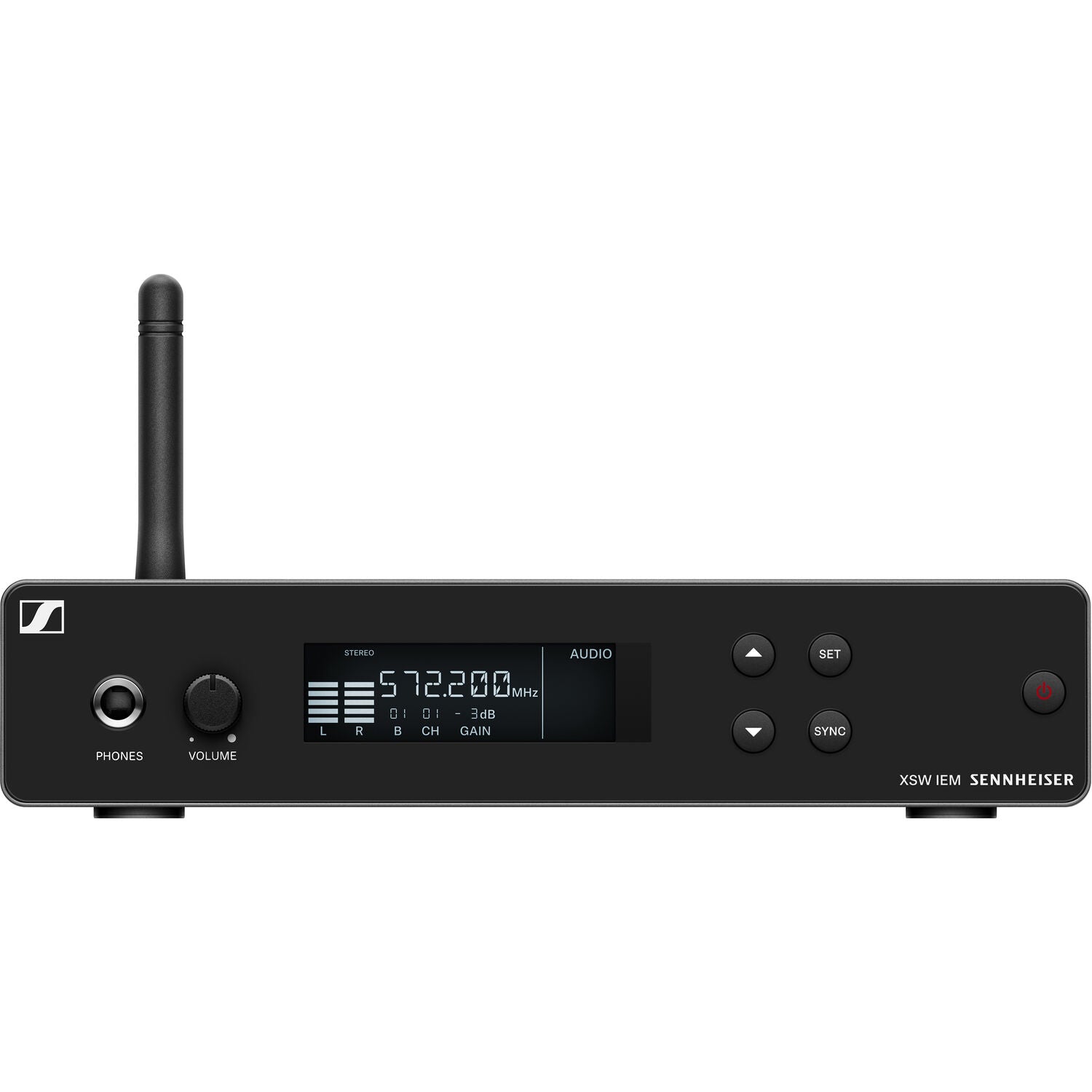

Transmitter (XSW IEM SR)

Wireless Performance

• RF Output Power: 30 mW
• Switching Bandwidth: 24 MHz
• Max Operating Range: 330' / 100 m (LoS)

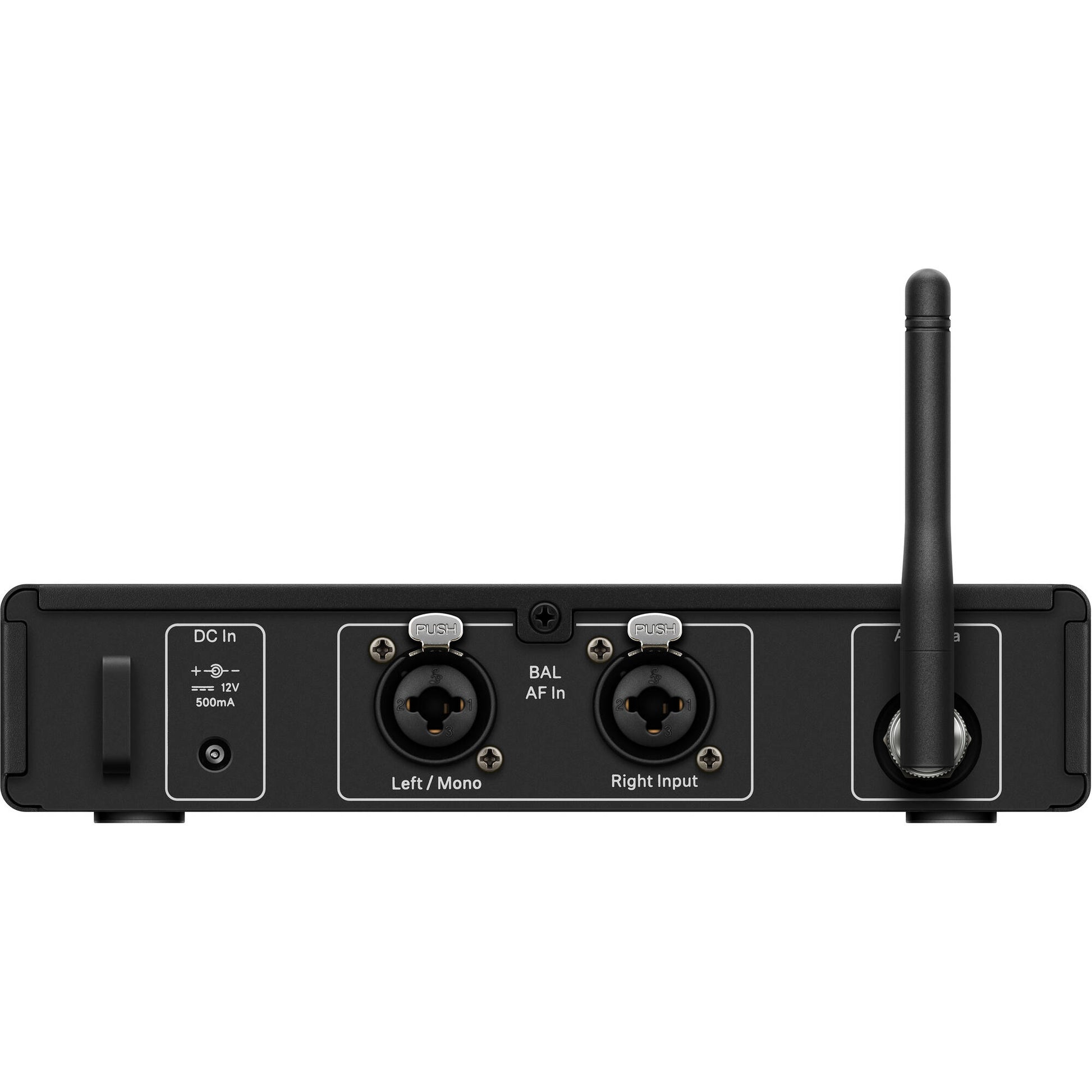

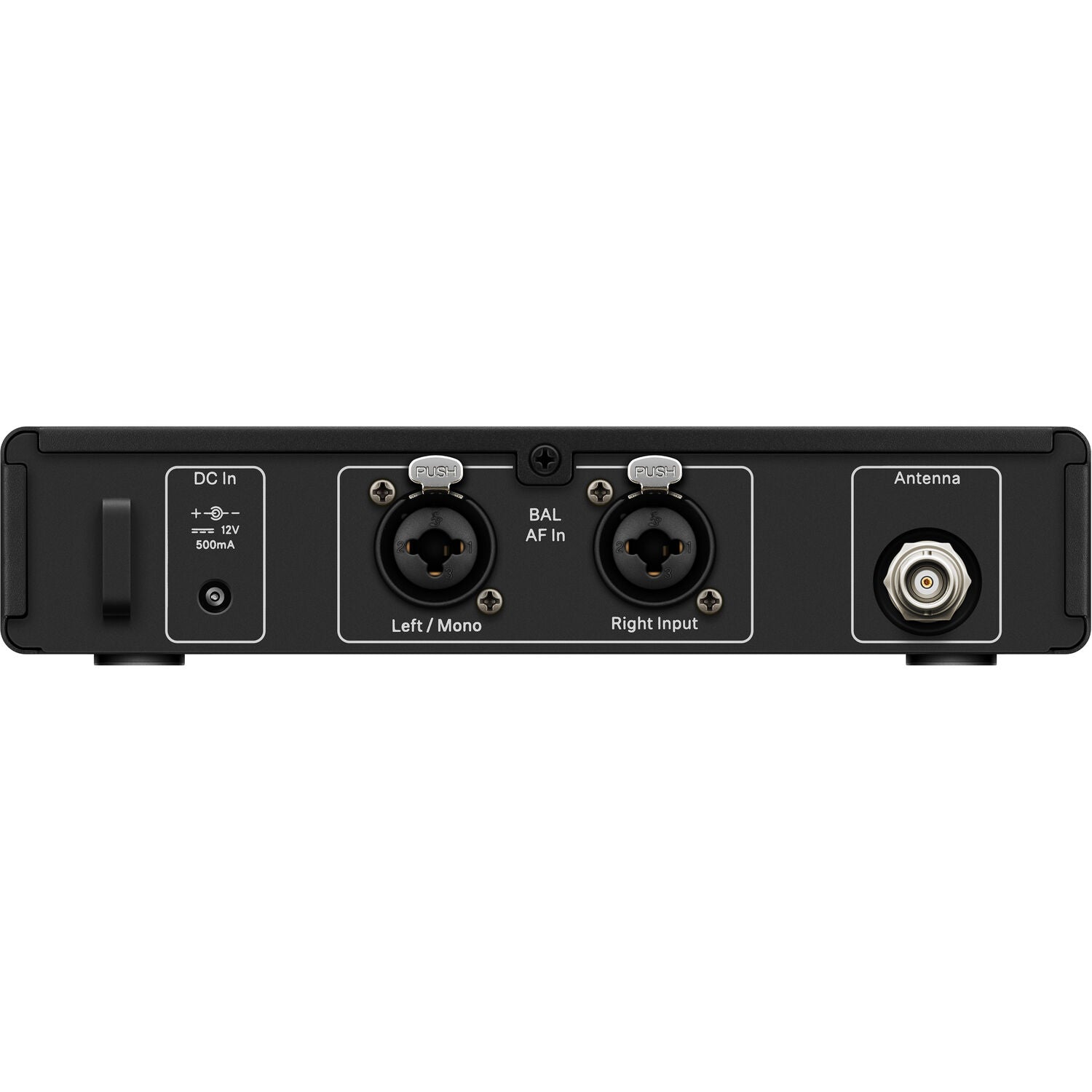

Audio Interface

• Inputs: 2x XLR-1/4" Combo (Balanced)
• Output: 1/4" TRS Headphone Out
• Frequency Response: 45 Hz to 15 kHz

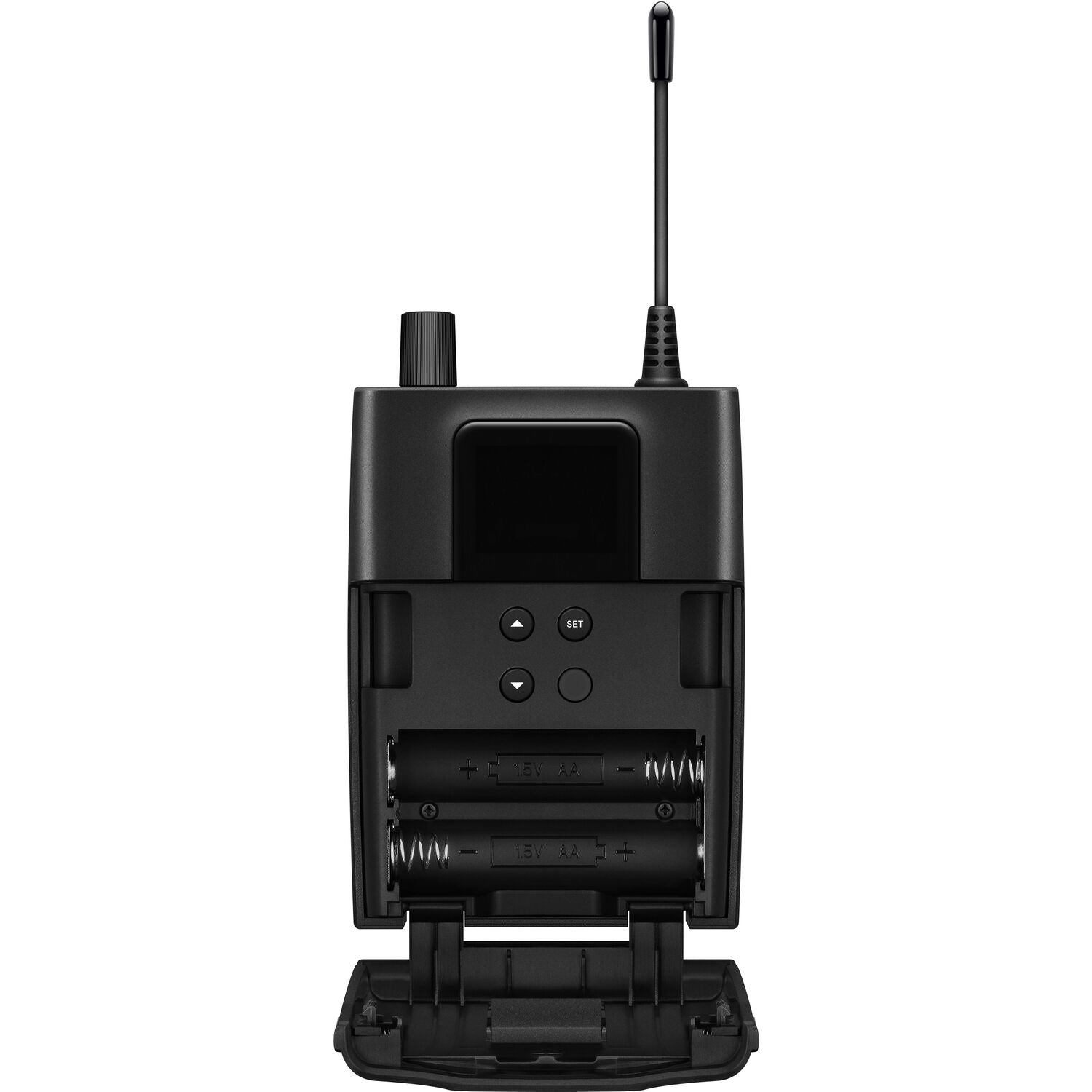

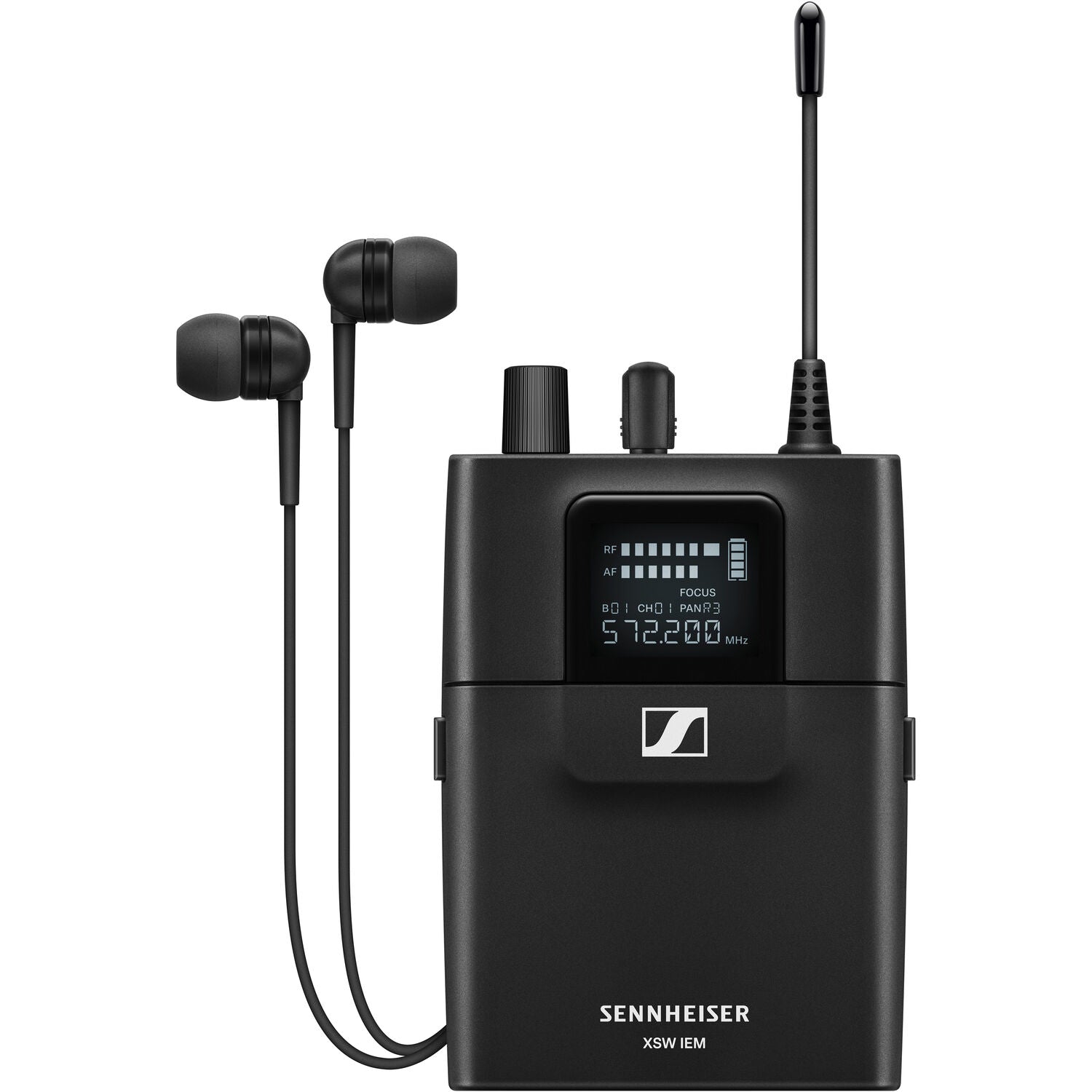

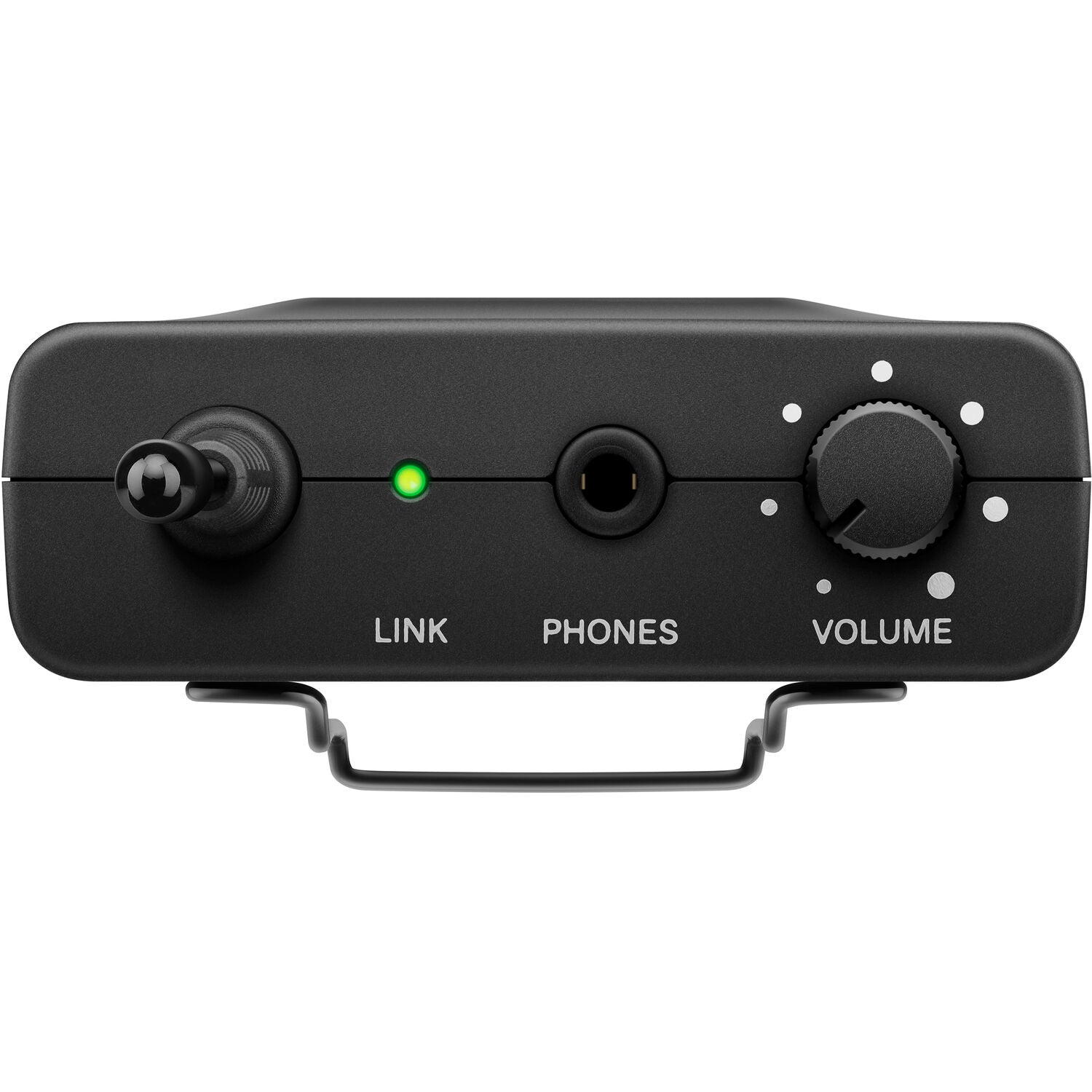

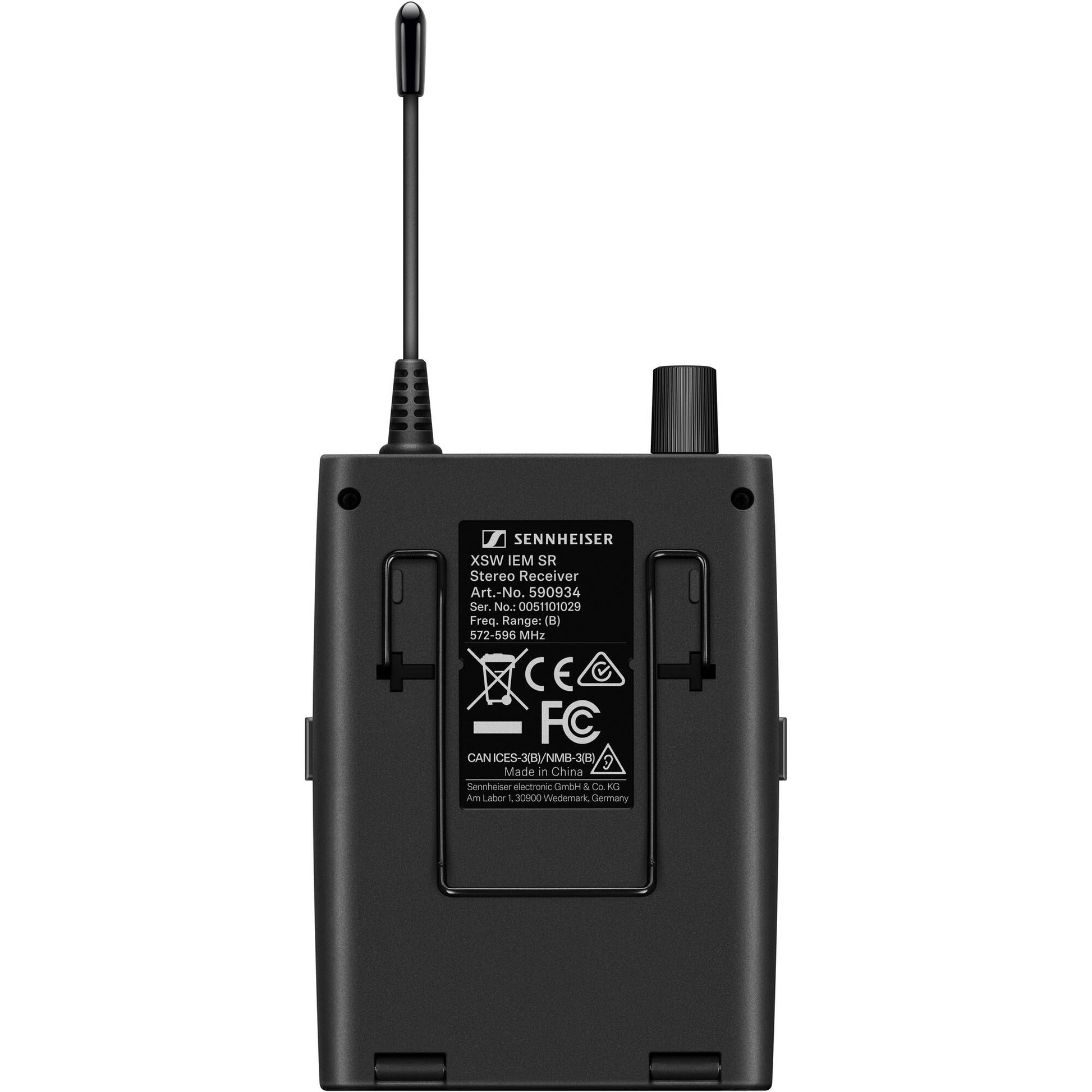

Receiver (XSW IEM EK)

Hardware Features

• Sync Method: Infrared (IR)
• Audio Processing: Limiter (-10 dB) & High Boost EQ
• Power: 2x AA Batteries (~6 Hours runtime)
• Weight: 3.9 oz / 110 g (with batteries)

Earphones (IE 4)

Acoustic Specs

• Transducer: Dynamic
• Impedance: 16 Ohms
• Frequency Response: 40 Hz to 20 kHz
