Key Specifications

Mixer Architecture

12 Channels (6 Mic Preamps) | Max I/O: 12x Input / 6x Output

Mix Routing

Main Mix / Aux Bus / Subgroup / FX Bus

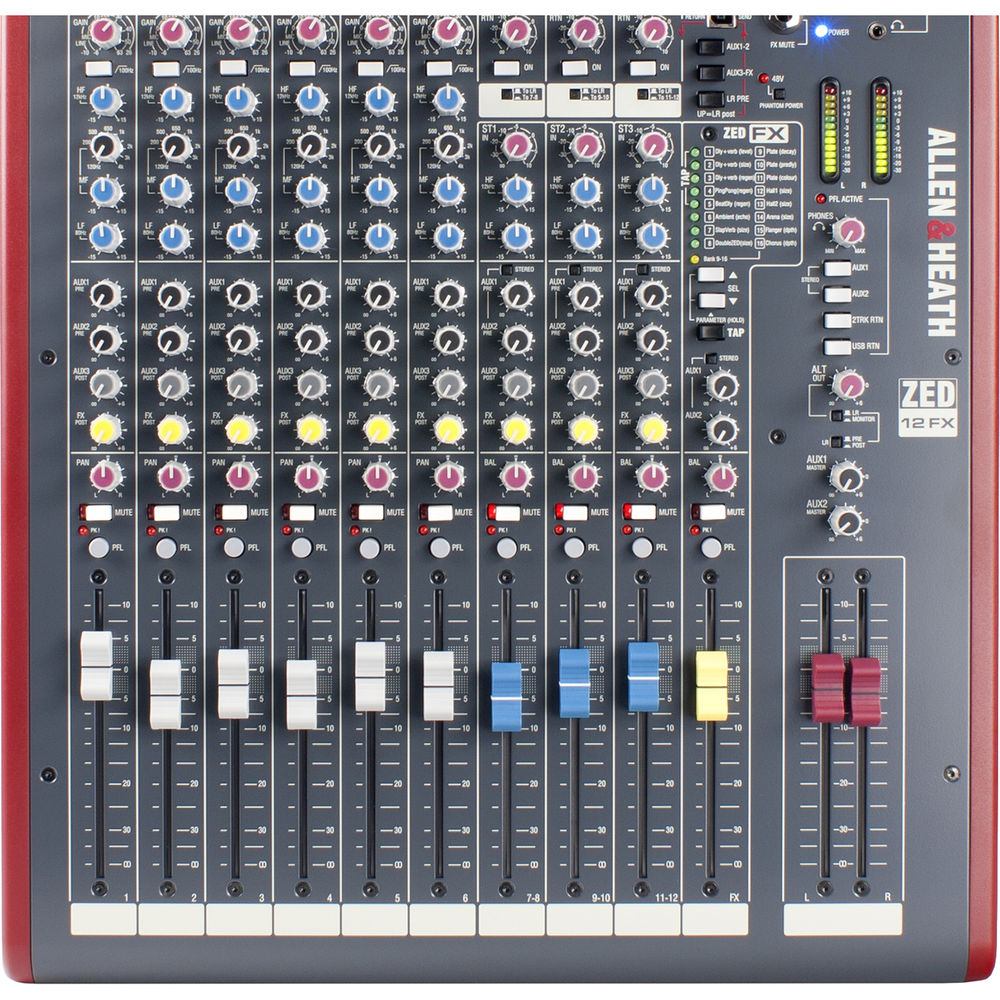

Faders & Controls

12x 100mm (3.9") Channel Faders, LED Level Meters

Channel Controls

Solo and Mute per Input Channel

Rack Mountable

No

Audio Channels & Performance Specifications

Frequency Response

Mic Input to Main Output: 20 Hz to 30 kHz (+0.5/-1 dB @ 30dB Gain)
Line Input to Main Output: 10 Hz to 30 kHz (+0.5/-1 dB @ Unity Gain)

THD+N

Mic Input: 0.004% @ Unity Gain | Line Input: 0.005% @ Unity Gain

Noise Floor

Main Output: -88 dBu (Master Level at Unity, Channel Levels at -∞)

Gain / Trim Range

Mic: -6 to +69 dB | 1/4" Line: -10 to +26 dB

Max Input Levels

XLR Input: +17 dBu | 1/4" Line Input: +30 dBu | 1/4" / RCA Input: +10 dB

Digital Audio & DSP

16-Bit | AD/DA Conversion: 32 / 44.1 / 48 kHz | DSP Processing: 48 kHz

Signal Processing & Effects

Equalization

3-Band EQ (Mono Channels), 2-Band EQ (Stereo Channels)
High: ±15 dB @ 12 kHz | Mid: ±15 dB @ 120 Hz - 4 kHz | Low: ±15 dB @ 80 Hz

Filters

High-Pass Filter on Input Channels (100 Hz, 12 dB/Octave)

Built-In Effects

15 Effects Presets (3x Delay, 6x Reverb, 3x Delay+Reverb, 1x Stereo Expander, 1x Chorus, 1x Flanger)

Connectivity & Interfaces

Analog Inputs

6x XLR 3-Pin Balanced Mic Inputs (+48V Phantom Power, Selectable On/Off)
6x 1/4" TRS Balanced/Unbalanced Line Inputs (Mono)
6x 1/4" TRS Balanced/Unbalanced Line Inputs (3 Stereo Pairs)
1x Stereo RCA Coaxial Return
6x 1/4" TRS Channel Inserts, 2x 1/4" TRS Main Inserts

Analog Outputs

2x XLR 3-Pin Balanced Main Output
1x 1/4" Main/Mono-Summed Output (Post-Fader)
1x Stereo RCA Alt Output
1x Stereo RCA Tape Output
2x 1/4" Aux Send (Pre-Fader), 1x 1/4" Aux Output (Post-Fader)
1x 1/4" FX Send (Post-Fader)

Headphone Outputs

1x 1/4" TRS Headphone Output, 1x 1/8" (3.5 mm) TRS Headphone Output

USB & Digital I/O

1x USB-B 1.1 (2 In / 2 Out Interface) | OS: macOS / Windows
(No MIDI, No Digital I/O, No Wireless)

Recording Capacity

Up to 12 Multitrack Recording Tracks

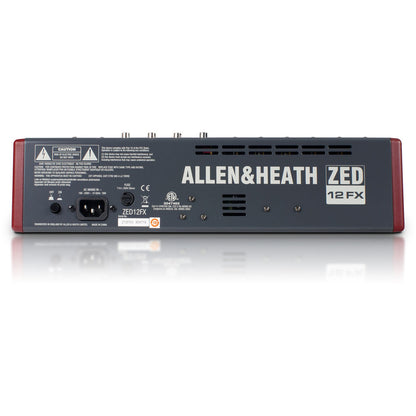

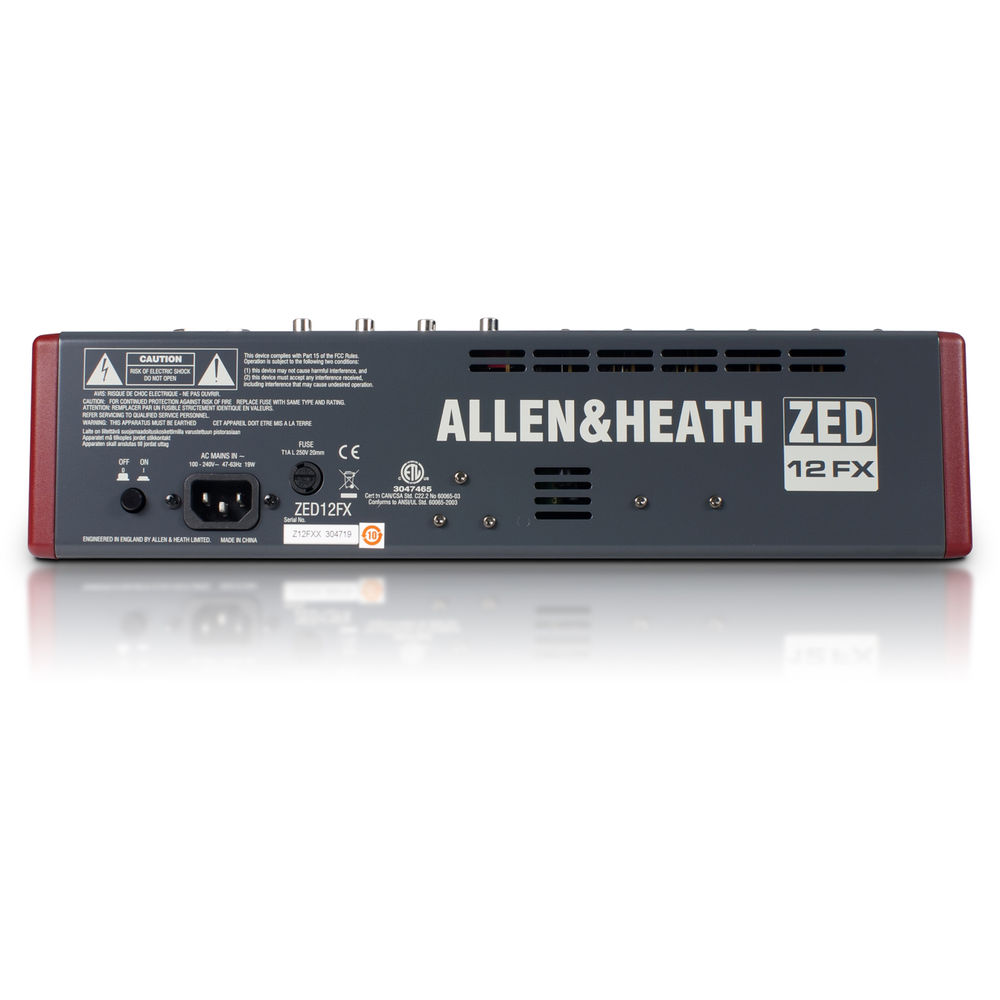

Power Specifications

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Dimensions, Weight & Packaging

Item Dimensions (H×W×D)

99mm x 386mm x 465mm (3.9" x 15.2" x 18.3")

Item Weight

6.5kg (14.3 lbs)

Box / Package Dimensions (L×W×H)

635mm x 533mm x 254mm (25.0" x 21.0" x 10.0")

Package Weight

8.39kg (18.5 lbs)
