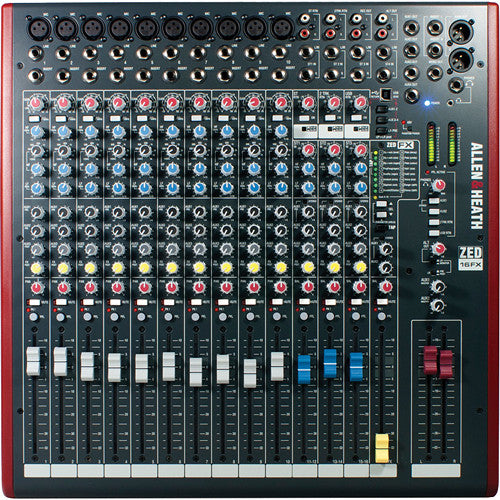

Key Specifications

Total Inputs

16 Inputs (10 Mono Mic/Line, 3 Stereo Pairs)

Faders & Level Controls

100mm Faders, Rotary Trim/Gain Controls

Metering

12-Segment Peak LEDs

Channel Controls

Mute and PFL Solo per channel

Audio Channels & Performance Specifications

Frequency Response

Mic in to Mix L/R Out (30dB Gain): 20Hz to 20kHz (+0.5/-1dB)
Line in to Mix L/R Out (0dB Gain): 10Hz to 30kHz (+0.5/-1dB)
Stereo in to Mix L/R Out: 10Hz to 30kHz (+0.5/-1dB)

Headroom

Analogue Headroom: 21dB (from nominal 0VU)
USB Headroom: 14dB (from nominal 0VU)

Signal-to-Noise Ratio (SNR)

Mic Pre EIN (@ max gain, 150Ω input Z, 22-22kHz): -127dBu
Mix L/R Out (faders = 0, 22-22kHz): -86dBu

Total Harmonic Distortion (THD)

Mic in to Mix L/R Out (0dB gain, 1kHz, +10dBu out): 0.004%
Mic in to Mix L/R Out (30dB gain, 1kHz): 0.014%
Line in to Mix L/R Out (0dB gain, 0dBu, 1kHz): 0.005%
Stereo in to Mix L/R Out (0dB gain, +10dBu, 1kHz): 0.003%

Digital Audio & USB Interface

USB 1.1 compliant (16-bit) | Sample Rates: 32kHz, 44.1kHz, 48kHz

Signal Processing & Auxiliary Routing

Equalization

3-Band EQ with Mid Sweep (Mono Channels)
2-Band EQ (Stereo Channels)

Built-in DSP Effects

Yes (ZED FX Engine, 1 Aux send reserved for internal effects)

Auxiliary Sends & Returns

4 Aux Sends total (3x 1/4" TRS Phone, 1 internal FX send)
AUX Returns: Dedicated USB Return, Aux 1-2, Aux 3-4, L/R Pre

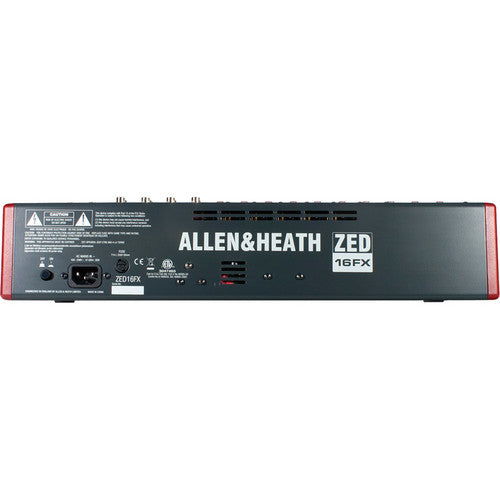

Connectivity & Interfaces

Microphone & Line Inputs

10x 3-Pin XLR Balanced Mic Inputs (+48V Phantom Power, Switched Globally)
10x 1/4" Phone Balanced Line Inputs
3x Stereo Line Inputs (ST1 - ST3 1/4" Phone L/R)

Channel & Master Inserts

12x 1/4" TRS Phone Inserts (10 Mono Channels + Main Stereo Out)

Audio Outputs

Main Output: Balanced 3-pin XLR
Mono Output: 1/4" Phone
Monitor / Recording Outputs: RCA Stereo Phono (ALT Out, REC Out)

Digital / Computer I/O

1x USB Type-B Connector

Dimensions, Weight & Packaging

Item Dimensions (H×W×D)

98mm x 464mm x 465mm (3.85" x 18.3" x 18.3")

Item Weight

8.5kg (18.7 lbs)

Box / Package Dimensions (L×W×H)

616mm x 603mm x 273mm (24.25" x 23.75" x 10.75")

Package Weight

10.2kg (22.5 lbs)
