Key Specifications

Product Model

Active ZP-10A

System Type

2-Way 10" Active Vented Loudspeaker

Amplifier Power

1000W Continuous RMS (650W LF + 350W HF) | 4000W Peak

Max SPL @ 1m

126 dB Continuous / 129 dB Peak

Acoustic Performance

Frequency Response

54 Hz – 20 kHz (-3 dB)

Transducers

10" Woofer (LF) | 1" Throat Compression Driver (HF)

Horn Coverage

90° Horizontal x 60° Vertical

Crossover

3.0 kHz

Connectivity & DSP

DSP Modes

Live, Music, Speech, Monitor

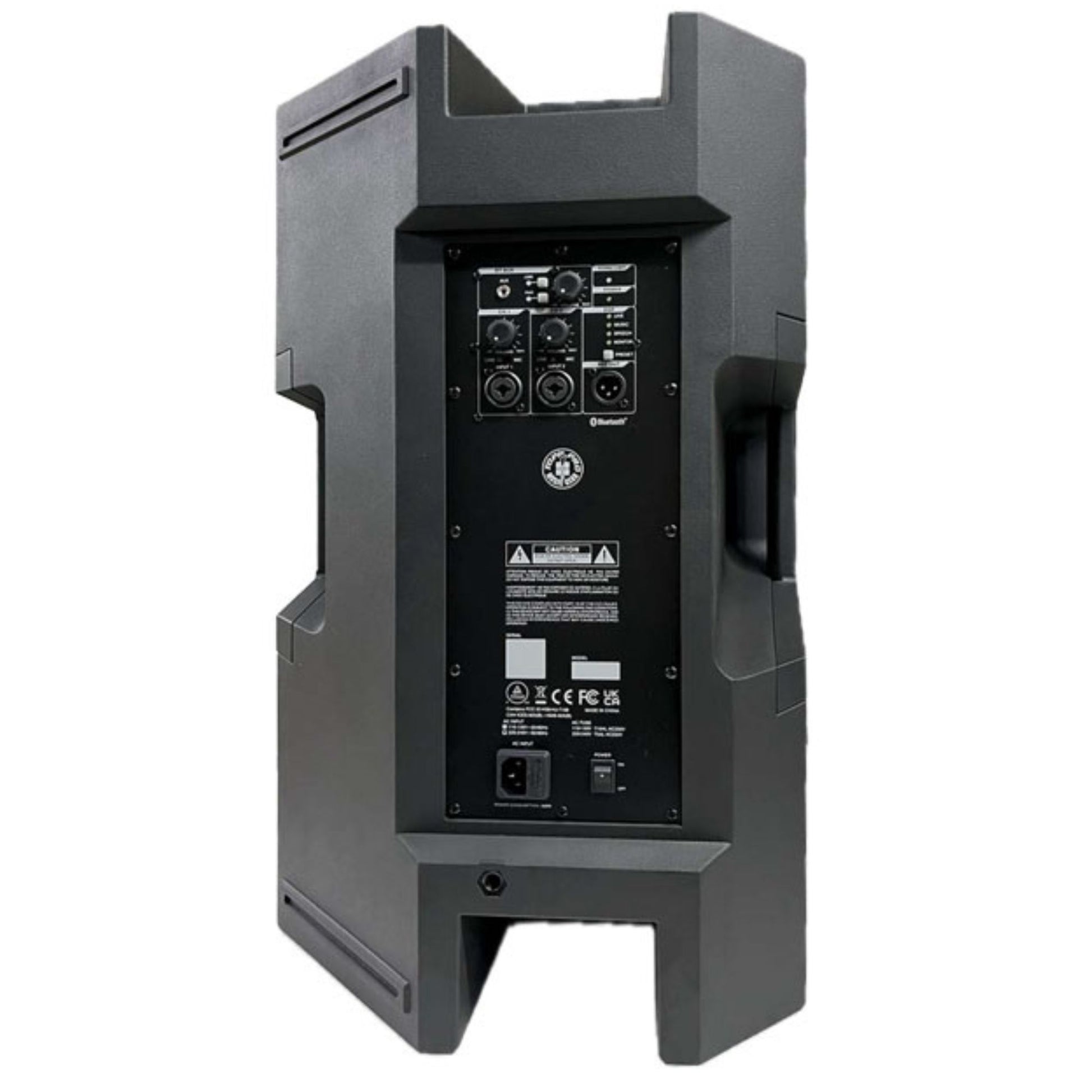

Inputs

2 x XLR/TRS Combo (Mic/Line), 1 x 3.5mm Aux, Bluetooth

Bluetooth Features

Stereo L/R Link, App Control, Pairing Switch

Physical & Installation

Enclosure

Injection-molded Polypropylene, Trapezoidal (Wedge capable)

Mounting

36mm Pole-mount, Integrated M10 Fly Points

Dimensions

528 x 332 x 315 mm (20.8" x 13.1" x 12.4")

Weight

12.3 kg (27.1 lbs)
