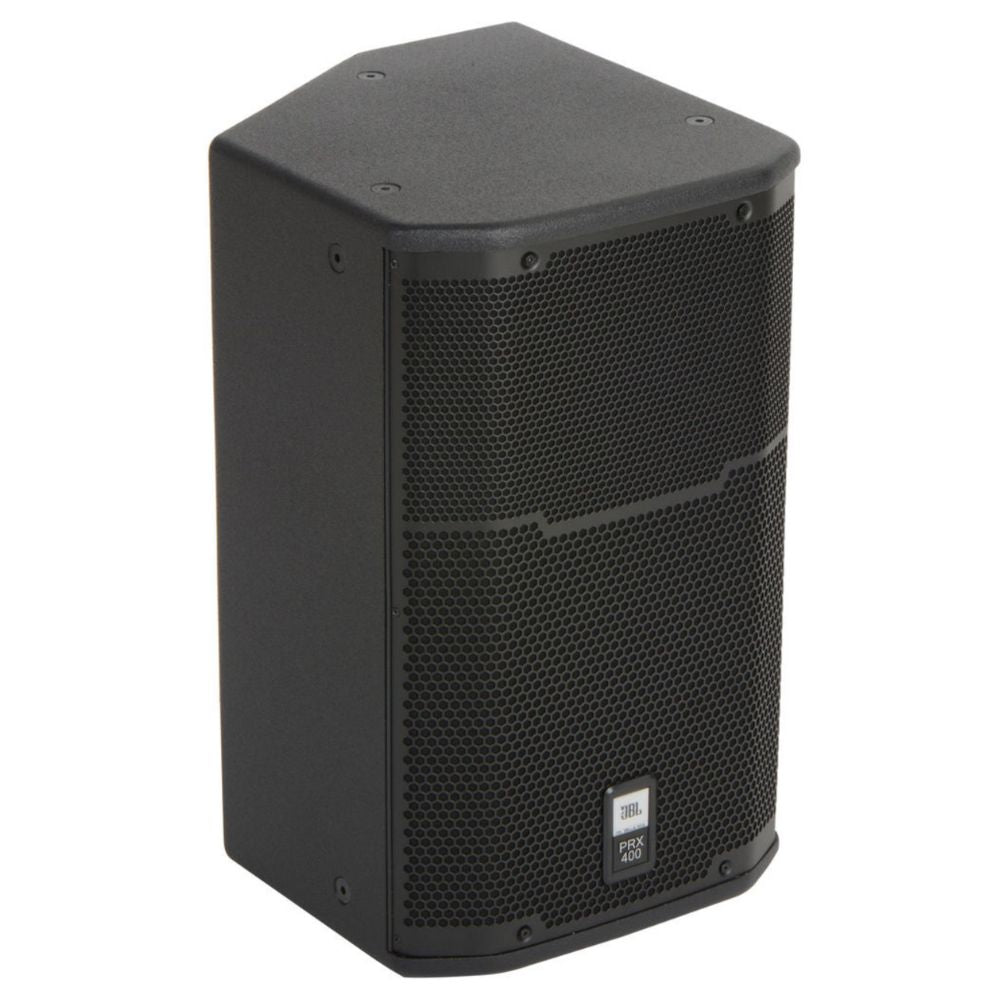

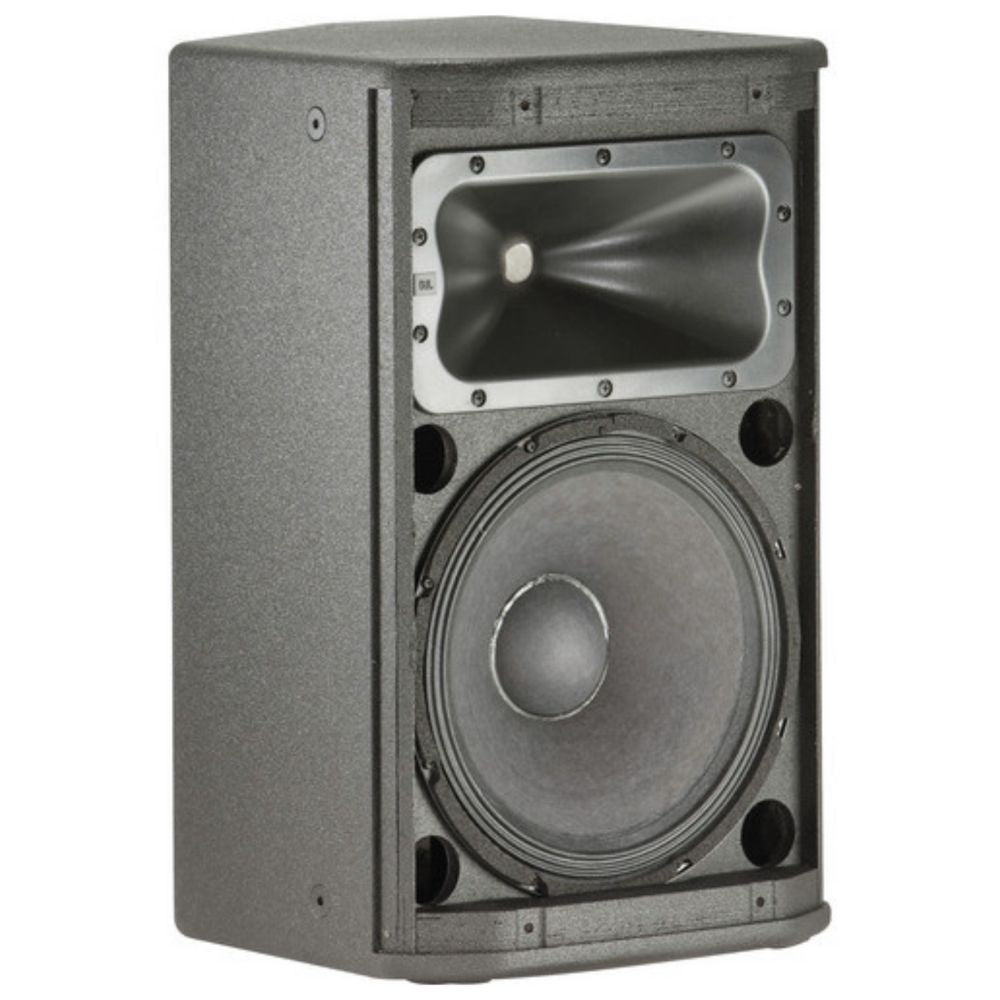

The black PRX412M Two-Way 12" Passive Speaker by JBL has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX412M houses a 12" woofer and a 1" polymer diaphragm compression driver for 300W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.

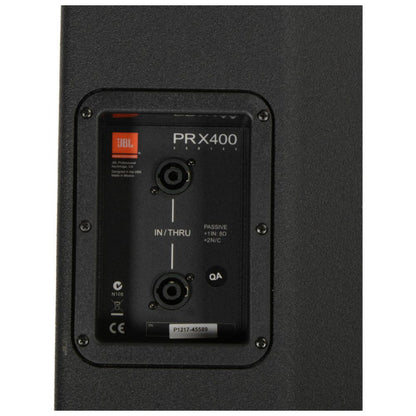

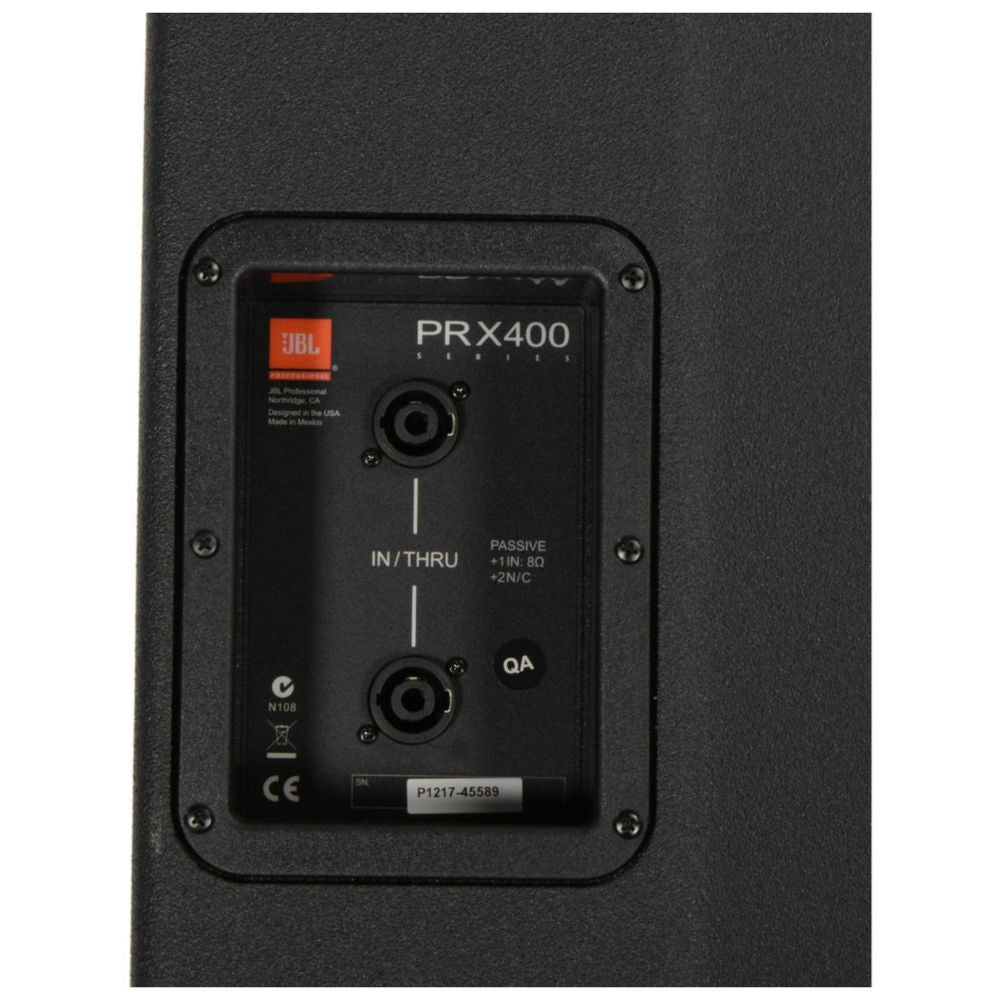

The PRX412M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. For use on a tripod or over a subwoofer, JBL's dual angle pole mount socket is integrated into the cabinet design. The socket can tilt down by 10°, allowing a mounted speaker to still obtain optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
JBL PRX412M
Key Specifications
Speaker
Speaker Type: Passive Loudspeaker/Stage Monitor
Configuration: 2-Way
Enclosure Type: Bass-Reflex
Total Passive Power Handling: 1200 W
Nominal Impedance: 8 Ohms
Constant Voltage / Transformer Taps: No
Drivers
LF Driver: 1x 12" / 30.5 cm Woofer
HF Driver: 1x 1" / 25 mm Polymer Compression Driver
Performance
Frequency Range/Response: 50 Hz to 20 kHz (-10 dB), 62 Hz to 19 kHz
Maximum SPL: 126 dB (Peak)
Speaker Sensitivity: 95 dB SPL
Coverage Angle: 90° H x 50° V
Signal Processing
Crossover Frequency: 2000 Hz
EQ & Filters: No
Connectivity
Audio I/O: 2x Combo speakON-1/4" Input
Physical
Color: Black
Mounting: Stand Mount, 1x 1.38" / 35 mm Dual-Angle Pole Socket, 12x M10 Bracket Point (Bottom)
Handles: 1
Construction Material: Plywood
Environmental Resistance: No
Dimensions: 22.6 x 13.9 x 15.7" / 574 x 353 x 399 mm
