QU-5D
QU-5D
ALLEN&HEATH
UNIT: PIECE/S
Product Code: SKU:A&H-QU5D-CHN-756
Key Features

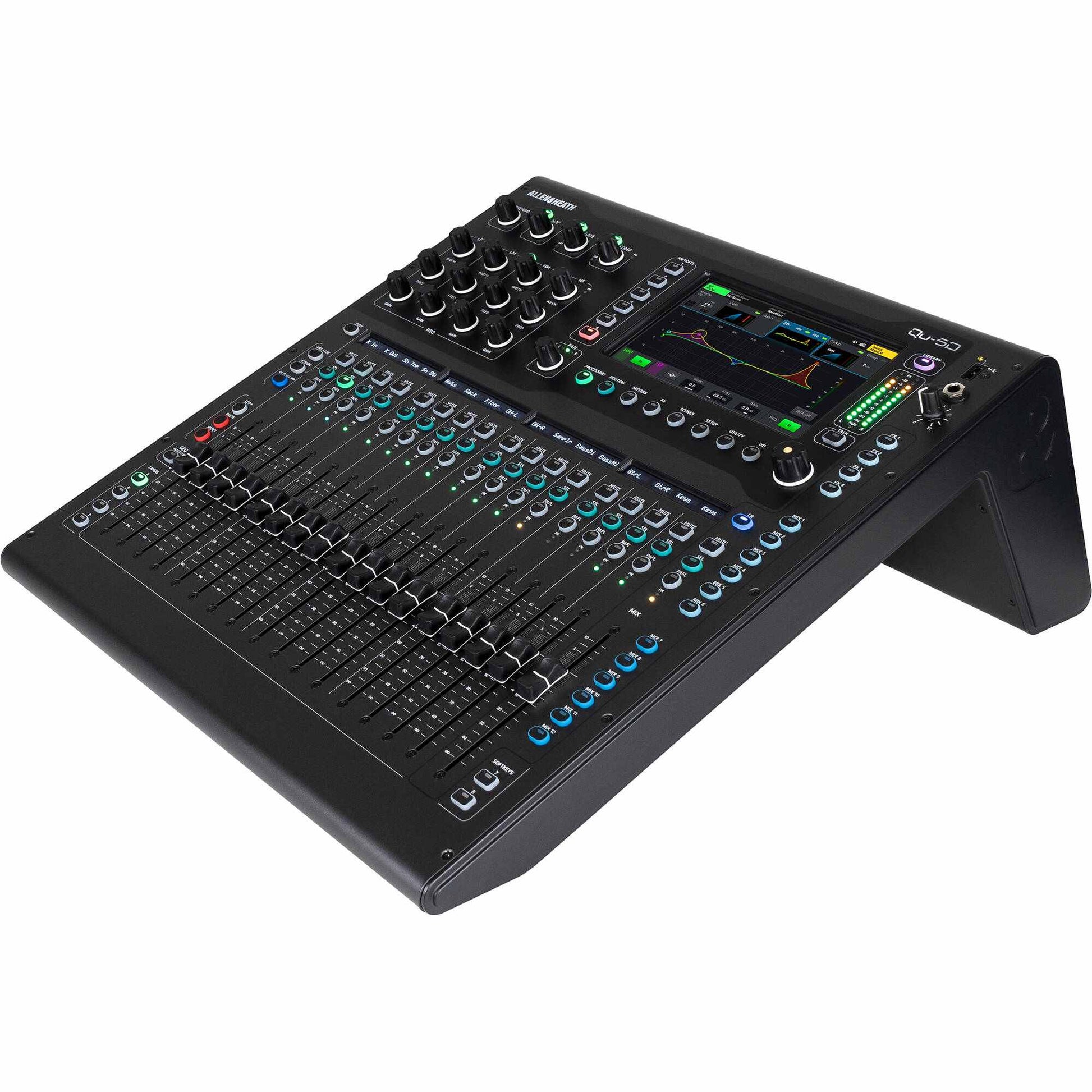

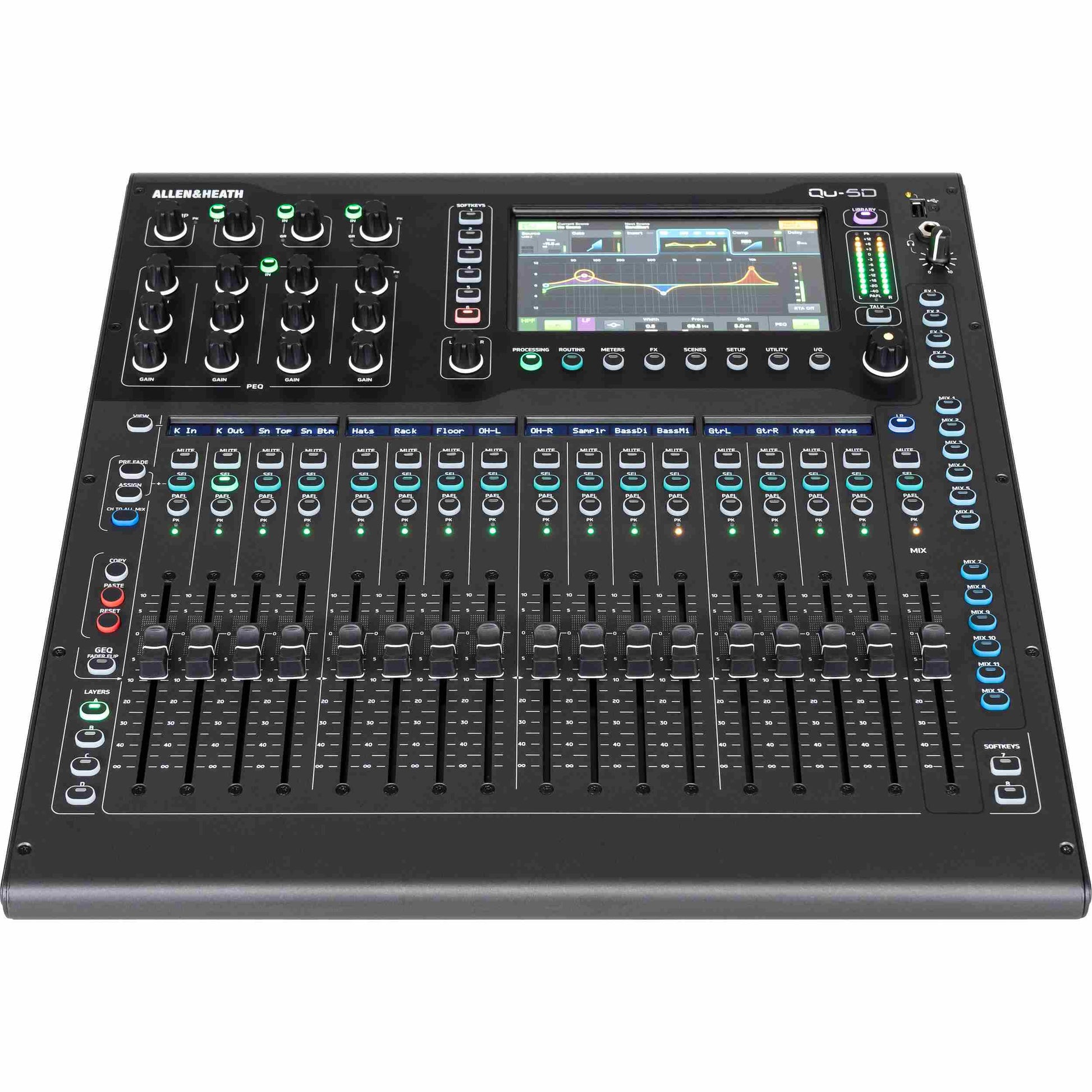

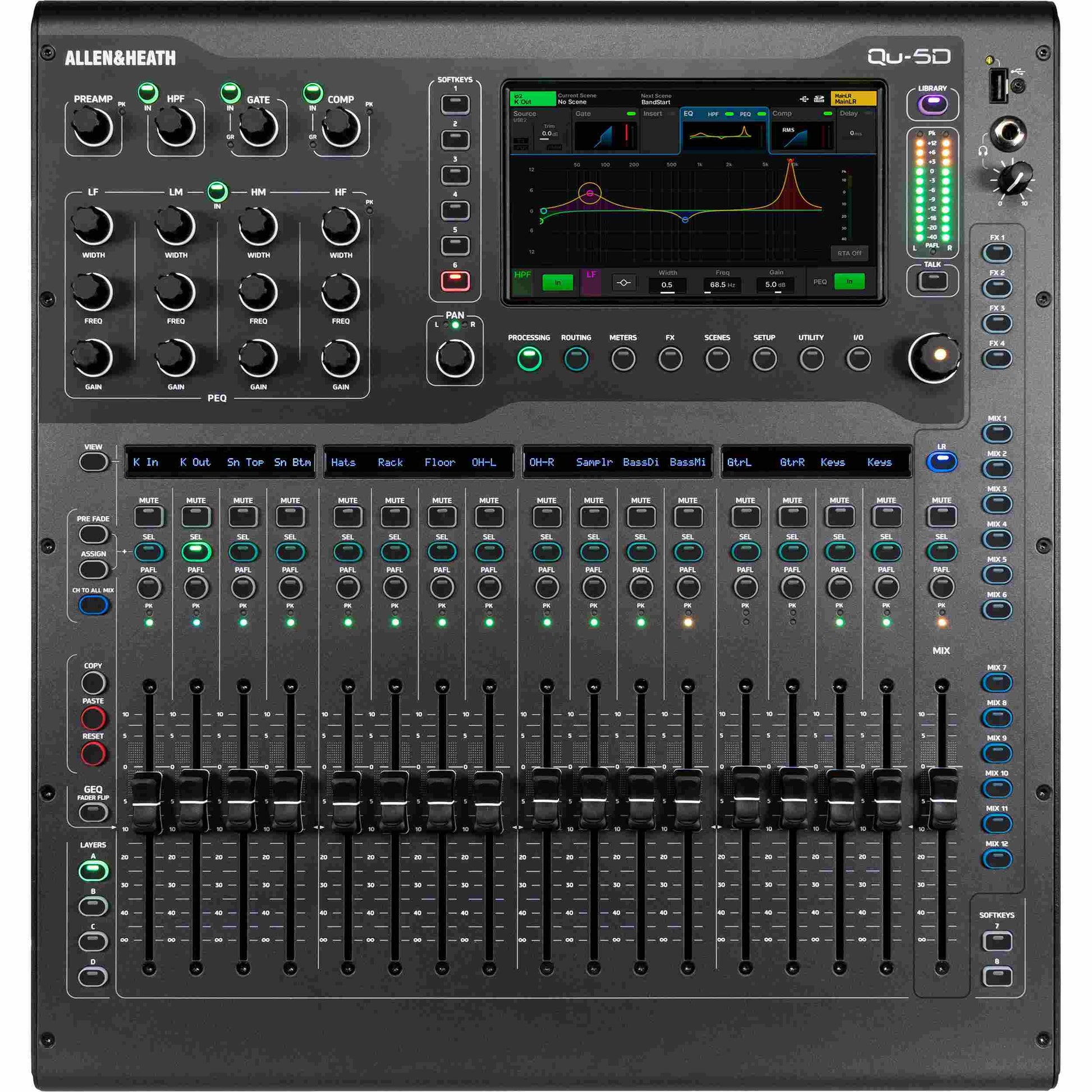

ALLEN&HEATH QU-5D
ALLEN&HEATH QU-5D
|
Key Specifications |
|
|
Type |
Digital Mixer |
|
Channels (Total) |
38 |
|
A/D Resolution |
96kHz |
|
Faders |
17 x 100mm Motorized Faders |
|
Screen |
7" Capacitive Touchscreen |
|
Manufacturer Part Number |
AH-QU-5D (Likely referencing the Qu series with Dante) |
|
Inputs & Pre-Amps |
|
|
Mic Preamps / Phantom Power |
16 x XLR-1/4" (mic/line) / 16 Channels |
|
Other Analog Inputs |
4 x 1/4" (2 Stereo In) |
|
Talkback Input |
1 x XLR |
|

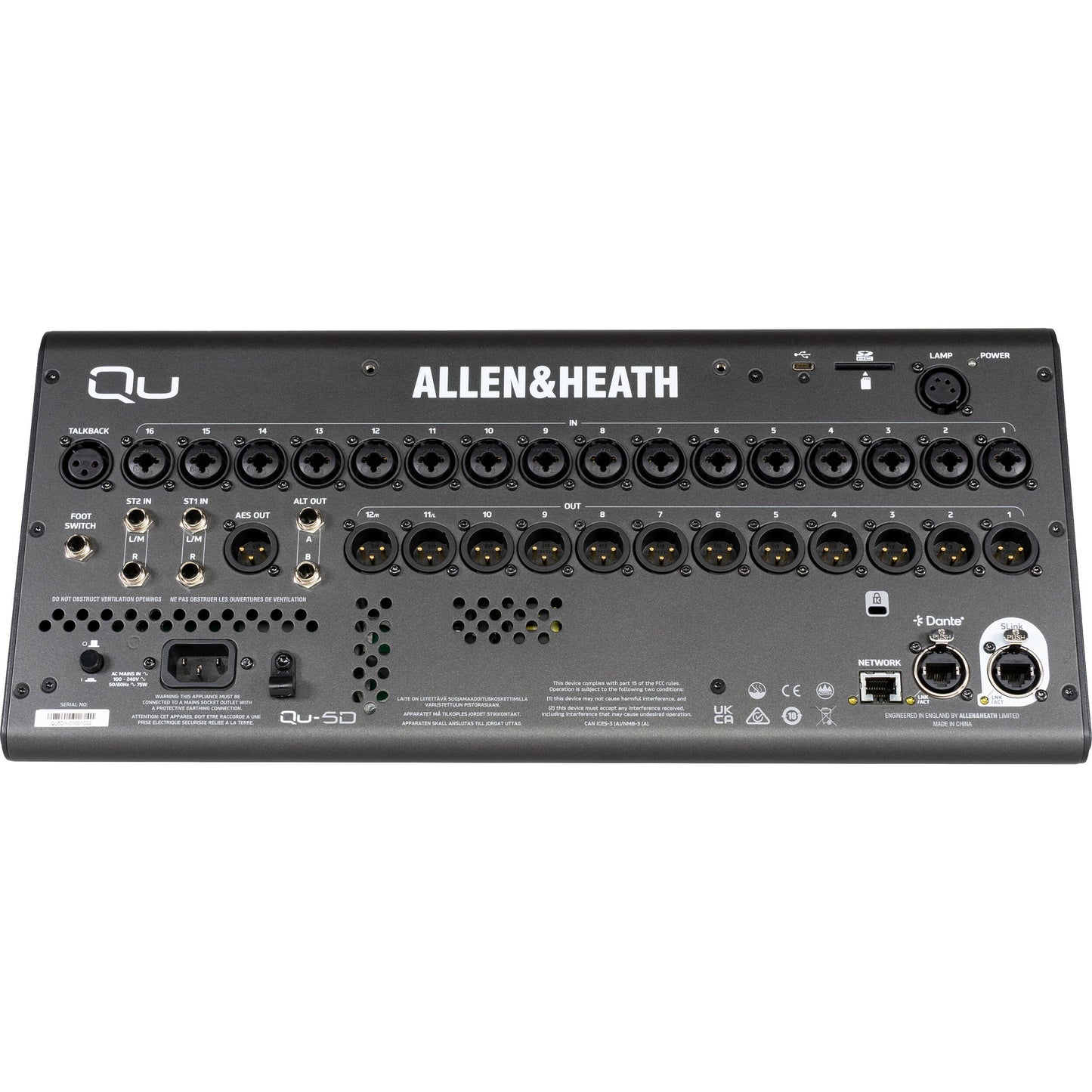

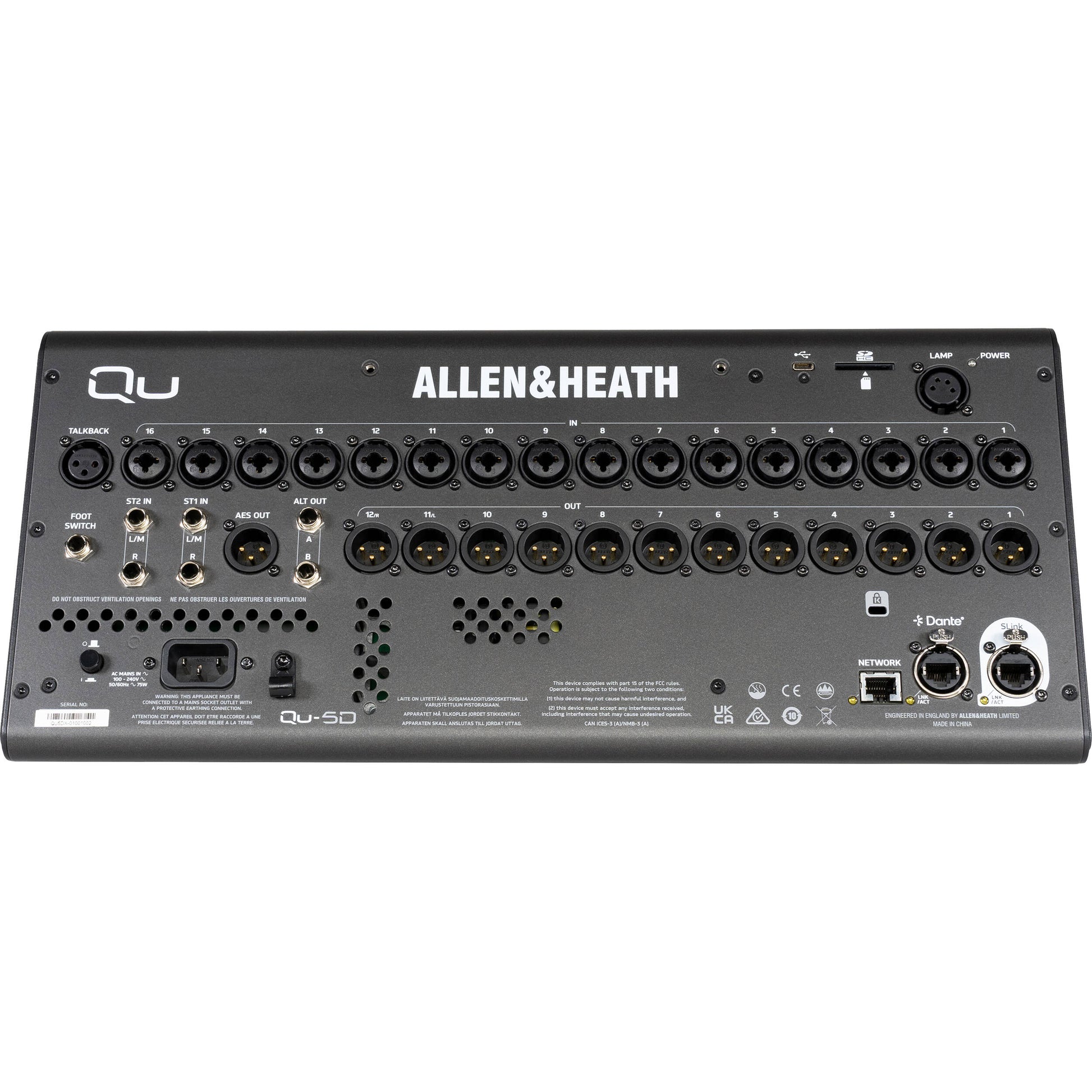

Outputs |
|
|
Main Outputs |
2 x XLR (left, right) |
|
Direct Outputs |
10 x XLR |
|
Other Analog Outputs |
2 x 1/4" (alt) |
|
Digital Output |
1 x XLR (AES/EBU) |
|
Headphones |
1 x 1/4" |
|
Processing & Connectivity |
|
|
EQ Bands |
4-band parametric |
|
Internal Core |
96kHz FPGA Core |
|
Data I/O |
1 x EtherCon (SLink) | 1 x EtherCon (Dante) | 1 x RJ45 |
|
USB (Host/Audio Interface) |
1 x USB-A | 1 x USB-C (32x32 Computer Connectivity) |
|
Storage / Remote |
SD card slot / Footswitch, Windows/MacOS/iOS/Android Apps |
|
Physical & Power |
|
|
Dimensions (W x D x H) |
17.3" x 18.7" x 8.3" |
|
Weight |
22 lbs |
|
Rackmountable |
Yes (kit sold separately) |
|
Power Source |
IEC Main Connection w/Worldwide PSU |
