Key Specifications

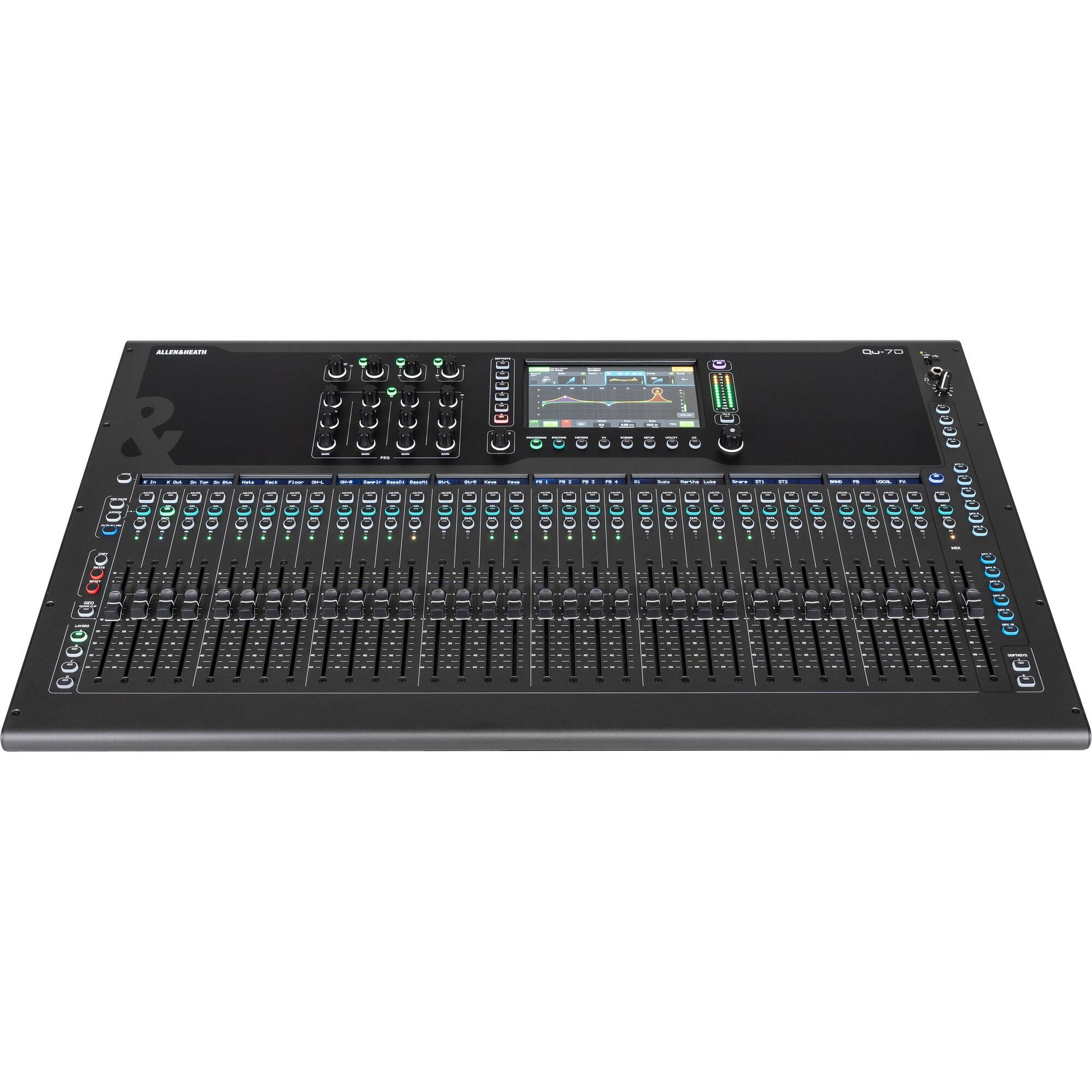

Mixer

• Max I/O Capacity: 36x Input / 12x Output
• Number of Analog Input Channels: 36 (32 Mono / 2 Stereo)
• Number of Mic Preamps: 32
• Number of Analog Output Channels: 22
• Mix Routing: 6x Mono Aux Send, 6x Stereo Aux Send
• Groups: 6x Subgroup
• Presets: No
• Display: 7" Touchscreen
• Faders & Level Adjustment: 33x 3.9" / 100 mm Fader
• Meters: Main Meter: 2x 12-Segment LED, Channel Meter: Single LED

Signal Processing

• Dynamic Processing: Input Channels: Compressor, Gate, Master: Compressor, Limiter
• EQ: Input Channels: 4-Band Parametric
• Filters: High-Pass
• Solo/Mute: Solo-in-Place/AFL, Mute, PFL per Input Channel, Bus, Master
• Audio Delay: Adjustable Up to 682 ms
• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz, AES3 Output: 44.1 / 48 / 88.2 / 96 kHz, Stereo Record: 96 kHz, Stereo Playback: 44.1 / 48 / 96 kHz, Multitrack Playback/Multitrack Record: 96 kHz
• Bit Depth: Up to 96-Bit, Stereo Record: 24-Bit, Stereo Playback: 16 / 24-Bit, Multitrack Playback, Multitrack Record: 24-Bit

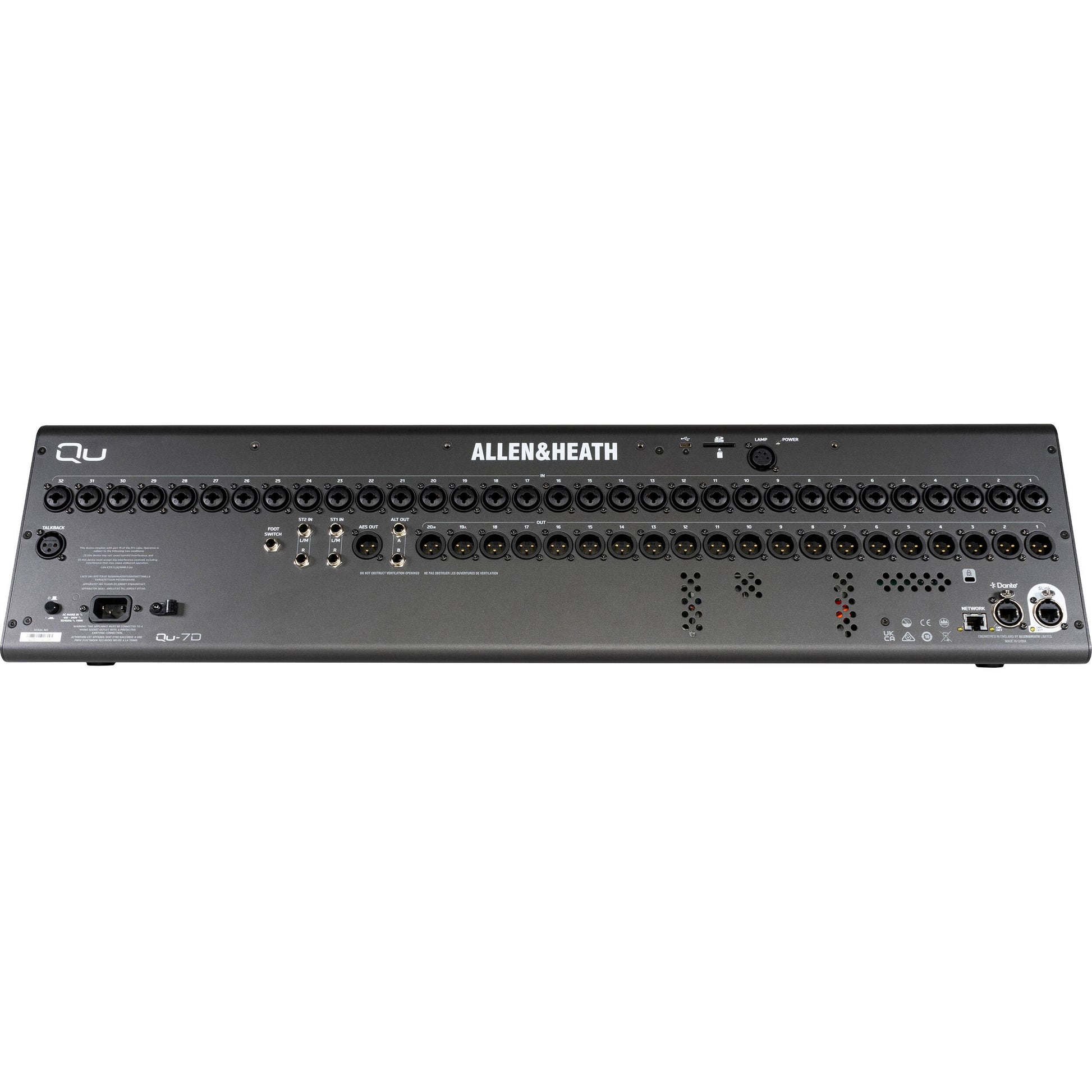

Connectivity

• Analog Inputs: 1x XLR Talkback Input, 16x XLR Balanced Mic/Line Input, 4x 1/4" TRS Balanced Channel Input (2 Stereo Pairs, Half-Normalled)
• Analog Outputs: 12x XLR Balanced Output, 2x 1/4" TRS Balanced Output
• Phantom Power: +48 V
• Digital I/O: 1x etherCON Input/Output (I/O), 1x XLR AES3 Output, 1x etherCON Dante Input/Output
• MIDI I/O: No
• USB I/O: 1x USB-A 2.0 (External Memory), 1x USB-C 2.0 (Audio Streaming)
• USB I/O Capacity: 32x Input / 32x Output
• Other I/O: 1x RJ45 Control In/Out (Bi-Directional), 1x 1/4" Footswitch Input
• Wireless: No
• External Display I/O: No

Recording

• Max Multitrack Recording: 32 Tracks
• Media Support: SD, USB Drive
• File Format Support: WAV

Compatibility

• OS Compatibility: Computer: Windows 10 or Later / macOS 10.14 to 11, Mobile: Android/iOS
• Mobile Device Compatibility: Android Smartphone, Android Tablet, iPad, iPhone

Power

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: Yes
• Operating Conditions: 32 to 104°F / 0 to 40°C
• Dimensions: 24 x 8.4 x 18.7" / 61 x 21.3 x 47.5 cm

Packaging Info

• Package Weight: 46 lb
• Box Dimensions (L x W x H): 37 x 25.5 x 12.5"
